테스트 환경을 구축하기 위해 Cloudformation을 공부해보자
실무에서도 빠르게 인프라를 구축하기 위해 많이 사용한다.

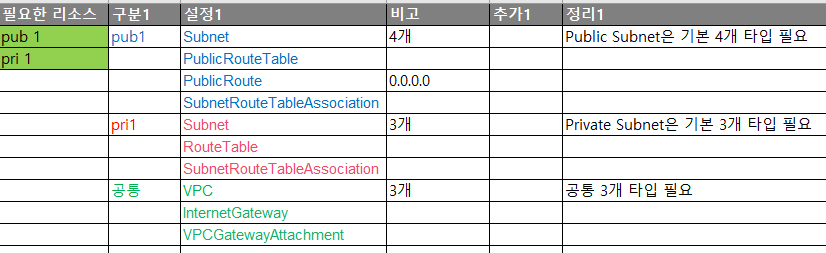

VPC 1개
Public Subnet 1개
Private Sunet 1개 구성이다.
pub관련 4개
PublicSubnet1
PublicRouteTable 테이블
PublicRoute 0.0.0.0
PublicSubnetRouteTableAssociation1
private 관련 3개
PrivateSubnet1:
PrivateRouteTable: 테이블
PrivateSubnetRouteTableAssociation1:
// private는 라우팅 테이블 없는것.
// 나중에 nat가 생기면 라우팅 테이블이 있음.
공통
VPC
InternetGateway
VPCGatewayAttachment
AWSTemplateFormatVersion: 2010-09-09
Description: Deploy a VPC
Resources:
VPC:
Type: AWS::EC2::VPC
Properties:
CidrBlock: 10.0.0.0/16
EnableDnsHostnames: true
Tags:
- Key: Name
Value: Lab VPC
InternetGateway:
Type: AWS::EC2::InternetGateway
Properties:
Tags:
- Key: Name
Value: Lab Internet Gateway
AttachGateway:
Type: AWS::EC2::VPCGatewayAttachment
Properties:
VpcId: !Ref VPC
InternetGatewayId: !Ref InternetGateway
PublicSubnet1: 1111111111111111111111111111
Type: AWS::EC2::Subnet
Properties:
VpcId: !Ref VPC
CidrBlock: 10.0.0.0/24
AvailabilityZone: !Select
- '0'
- !GetAZs ''
Tags:
- Key: Name
Value: Public Subnet 1
PrivateSubnet1: 111111111111111111111111111
Type: AWS::EC2::Subnet
Properties:
VpcId: !Ref VPC
CidrBlock: 10.0.1.0/24
AvailabilityZone: !Select
- '0'
- !GetAZs ''
Tags:
- Key: Name
Value: Private Subnet 1
PublicRouteTable: 222222222222222222222
Type: AWS::EC2::RouteTable
Properties:
VpcId: !Ref VPC
Tags:
- Key: Name
Value: Public Route Table
PublicRoute: 333333333333333333
Type: AWS::EC2::Route
Properties:
RouteTableId: !Ref PublicRouteTable
DestinationCidrBlock: 0.0.0.0/0
GatewayId: !Ref InternetGateway
PublicSubnetRouteTableAssociation1: 44444444444444444
Type: AWS::EC2::SubnetRouteTableAssociation
Properties:
SubnetId: !Ref PublicSubnet1
RouteTableId: !Ref PublicRouteTable
PrivateRouteTable: 222222222222222222222
Type: AWS::EC2::RouteTable
Properties:
VpcId: !Ref VPC
Tags:
- Key: Name
Value: Private Route Table
PrivateSubnetRouteTableAssociation1: 3333333333333333333333
Type: AWS::EC2::SubnetRouteTableAssociation
Properties:
SubnetId: !Ref PrivateSubnet1
RouteTableId: !Ref PrivateRouteTable
Outputs:
VPC:
Description: VPC
Value: !Ref VPC
AZ1:
Description: Availability Zone 1
Value: !GetAtt
- PublicSubnet1
- AvailabilityZone
파일 첨부
https://brunch.co.kr/@topasvga/1781
https://brunch.co.kr/@topasvga/1910
감사합니다.
