<1> 요청 사항 - Pub3 , Pri3 , DB 2 Subnet

<2> Cloudformation 코드에 들어가야 하는것

<3> Cloudformation 내용

<4> 다른 Cloudformation 파일 보기




<1> 요청 사항 - Pub3 , Pri3 , DB 2 Subnet


VPC 1개

Public Subnet 3개

Private Sunet 3개

DB Subnet 2개

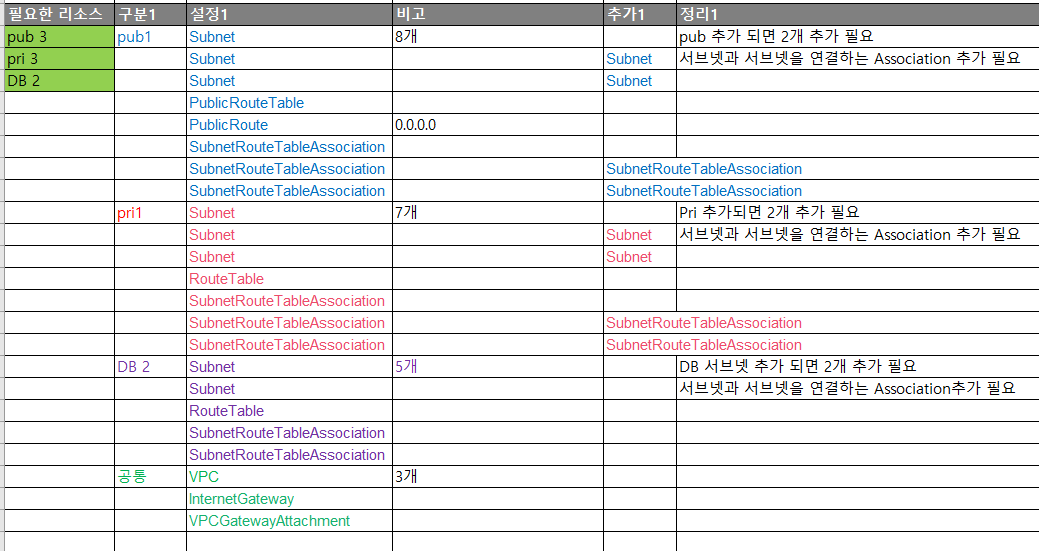

<2> Cloudformation 코드에 들어가야 하는것


pub관련  8개

PublicSubnet1

PublicSubnet2

PublicSubnet3

PublicRouteTable 테이블

PublicRoute  0.0.0.0

PublicSubnetRouteTableAssociation1

PublicSubnetRouteTableAssociation2:

PublicSubnetRouteTableAssociation3


private 관련 7개

PrivateSubnet1

PrivateSubnet2

PrivateSubnet3

PrivateRouteTable:  테이블

PrivateSubnetRouteTableAssociation1:

PrivateSubnetRouteTableAssociation2

PrivateSubnetRouteTableAssociation3


DB관련 5개

dbsubnert1:

dbsubnert3:

dbroutettable: 테이블

dbsubnertRouteTableAssociation1:

dbsubnertRouteTableAssociation2


공통 3개

VPC

IGW

IGW Attatch





<3> Cloudformation 내용


설정 파일


AWSTemplateFormatVersion: 2010-09-09

Description: Deploy a VPC


Resources:

  VPC:

    Type: AWS::EC2::VPC

    Properties:

      CidrBlock: 10.10.10.0/23

      EnableDnsHostnames: true

      Tags:

      - Key: Name

        Value: s0-dev-vpc


  InternetGateway:

    Type: AWS::EC2::InternetGateway

    Properties:

      Tags:

      - Key: Name

        Value: igw


  AttachGateway:

    Type: AWS::EC2::VPCGatewayAttachment

    Properties:

      VpcId: !Ref VPC

      InternetGatewayId: !Ref InternetGateway




  PublicSubnet1:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.10.0/26

      AvailabilityZone: !Select

        - '0'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: Pub-Subnet-a


  PrivateSubnet1:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.11.0/26

      AvailabilityZone: !Select

        - '0'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: Pri-Subnet-a


  dbsubnert1:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.10.192/26

      AvailabilityZone: !Select

        - '0'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: db-subnet-a


  PublicSubnet2:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.10.64/26

      AvailabilityZone: !Select

        - '1'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: Pub-Subnet-b




  PrivateSubnet2:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.11.64/26

      AvailabilityZone: !Select

        - '1'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: Pri-Subnet-b



  PublicSubnet3:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.10.128/26

      AvailabilityZone: !Select

        - '2'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: Pub-Subnet-c


  PrivateSubnet3:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.11.128/26

      AvailabilityZone: !Select

        - '2'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: Pri-Subnet-c


  dbsubnert3:

    Type: AWS::EC2::Subnet

    Properties:

      VpcId: !Ref VPC

      CidrBlock: 10.10.11.192/26

      AvailabilityZone: !Select

        - '2'

        - !GetAZs ''

      Tags:

        - Key: Name

          Value: db-subnet-c



  PublicRouteTable:

    Type: AWS::EC2::RouteTable

    Properties:

      VpcId: !Ref VPC

      Tags:

        - Key: Name

          Value: Pub-rt


  PublicRoute:

    Type: AWS::EC2::Route

    Properties:

      RouteTableId: !Ref PublicRouteTable

      DestinationCidrBlock: 0.0.0.0/0

      GatewayId: !Ref InternetGateway


  PublicSubnetRouteTableAssociation1:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref PublicSubnet1

      RouteTableId: !Ref PublicRouteTable


  PublicSubnetRouteTableAssociation2:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref PublicSubnet2

      RouteTableId: !Ref PublicRouteTable


  PublicSubnetRouteTableAssociation3:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref PublicSubnet3

      RouteTableId: !Ref PublicRouteTable


  PrivateRouteTable:

    Type: AWS::EC2::RouteTable

    Properties:

      VpcId: !Ref VPC

      Tags:

      - Key: Name

        Value: Pri-rt


  PrivateSubnetRouteTableAssociation1:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref PrivateSubnet1

      RouteTableId: !Ref PrivateRouteTable


  PrivateSubnetRouteTableAssociation2:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref PrivateSubnet2

      RouteTableId: !Ref PrivateRouteTable


  PrivateSubnetRouteTableAssociation3:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref PrivateSubnet3

      RouteTableId: !Ref PrivateRouteTable

  PrivateRouteTable:

    Type: AWS::EC2::RouteTable

    Properties:

      VpcId: !Ref VPC

      Tags:

      - Key: Name

        Value: Pri-rt




  dbroutettable:

    Type: AWS::EC2::RouteTable

    Properties:

      VpcId: !Ref VPC

      Tags:

      - Key: Name

        Value: db-rt


  dbsubnertRouteTableAssociation1:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref dbsubnert1

      RouteTableId: !Ref dbroutettable



  dbsubnertRouteTableAssociation3:

    Type: AWS::EC2::SubnetRouteTableAssociation

    Properties:

      SubnetId: !Ref dbsubnert3

      RouteTableId: !Ref dbroutettable




Outputs:

  VPC:

    Description: VPC

    Value: !Ref VPC


  AZ1:

    Description: Availability Zone 1

    Value: !GetAtt

      - PublicSubnet1

      - AvailabilityZone


  AZ2:

    Description: Availability Zone 2

    Value: !GetAtt

      - PublicSubnet2

      - AvailabilityZone


  AZ3:

    Description: Availability Zone 2

    Value: !GetAtt

      - PublicSubnet3

      - AvailabilityZone
