4-2. NHN 클라우드 - 데이터 소스-서버생성
# 서버 생성하자
# 보안 그룹 적용하자
1
# 서버 생성
#compute
# 네트워크 추가, 블록 스토리지 추가된 인스턴스 생성
resource "nhncloud_compute_instance_v2" "web_server" {
name = "web_server"
key_pair = "seo1"
flavor_id = data.nhncloud_compute_flavor_v2.web_server.id
security_groups = ["default"]
network {
port = nhncloud_networking_port_v2.port_1.id
}
block_device {
uuid = data.nhncloud_images_image_v2.ubuntu_22.id
source_type = "image"
destination_type = "volume"
boot_index = 0
volume_size = 20
delete_on_termination = true
}
user_data = "#include https://kr2-api-object-storage.nhncloudservice.com/v1/AUTH_cf5a0f8add884a61a2f047ff8c16c4bb/real-iac-terraform/terra-index.txt"
}
resource "nhncloud_networking_port_v2" "port_1" {
name = "tf_port_1"
network_id = nhncloud_networking_vpc_v2.terraform_vpc.id
fixed_ip {
subnet_id = nhncloud_networking_vpcsubnet_v2.public_subnet.id
}
}
#data
data "nhncloud_compute_flavor_v2" "web_server"{
name = "m2.c1m2"
}
data "nhncloud_images_image_v2" "ubuntu_22" {
name = "Ubuntu Server 22.04.5 LTS (2025.02.25)"
}
# network
#VPC 생성 리소스 블록
resource "nhncloud_networking_vpc_v2" "terraform_vpc" {
name = "terraform_vpc"
cidrv4 = "10.0.0.0/16"
}
resource "nhncloud_networking_vpcsubnet_v2" "public_subnet" {
name = "public_subnet"
vpc_id = nhncloud_networking_vpc_v2.terraform_vpc.id
cidr = "10.0.1.0/24"
}
resource "nhncloud_networking_vpcsubnet_v2" "private_subnet" {
name = "private_subnet"
vpc_id = nhncloud_networking_vpc_v2.terraform_vpc.id
cidr = "10.0.2.0/24"
}
resource "nhncloud_networking_routingtable_v2" "private_rt" {
name = "private_rt"
vpc_id = nhncloud_networking_vpc_v2.terraform_vpc.id
}
# privider
# Define required providers
terraform {
required_version = ">= 1.0.0"
required_providers {
nhncloud = {
source = "nhn-cloud/nhncloud"
version = "1.0.2"
}
}
}
provider "nhncloud" {
user_name = var.nhncloud_info["user_name"]
tenant_id = var.nhncloud_info["tenant_id"]
password = var.passwd
auth_url = var.nhncloud_info["auth_url"]
region = var.region["kr2"]
}
# var
variable nhncloud_info {
type =map(string)
default = {
user_name = "topasvga@naver.com"
tenant_id = "0ccc9863e23247e78a9fb6ad32d7cf43"
password = "test"
auth_url = "https://api-identity-infrastructure.nhncloudservice.com/v2.0"
}
}
variable passwd {
type = string
default = "test"
sensitive =true
}
variable region {
type = map(string)
default = {
kr1 = "KR1"
kr2 = "KR2"
}
}
2
# 보안 그룹 생성 , network.tf
# compute.tf 수정 - security_groups = ["default","web-sg"]
# network
#VPC 생성 리소스 블록
resource "nhncloud_networking_vpc_v2" "terraform_vpc" {
name = "terraform_vpc"
cidrv4 = "10.0.0.0/16"
}
resource "nhncloud_networking_vpcsubnet_v2" "public_subnet" {
name = "public_subnet"
vpc_id = nhncloud_networking_vpc_v2.terraform_vpc.id
cidr = "10.0.1.0/24"
}
resource "nhncloud_networking_vpcsubnet_v2" "private_subnet" {
name = "private_subnet"
vpc_id = nhncloud_networking_vpc_v2.terraform_vpc.id
cidr = "10.0.2.0/24"
}
resource "nhncloud_networking_routingtable_v2" "private_rt" {
name = "private_rt"
vpc_id = nhncloud_networking_vpc_v2.terraform_vpc.id
}
resource "nhncloud_networking_secgroup_v2" "web-sg" {
name = "web-sg"
}
resource "nhncloud_networking_secgroup_rule_v2" "web_sg-rule" {
direction = "ingress"
ethertype = "IPv4"
protocol = "tcp"
port_range_min = 80
port_range_max = 80
remote_ip_prefix = "0.0.0.0/0"
security_group_id = nhncloud_networking_secgroup_v2.web-sg.id
}
# compute
# 네트워크 추가, 블록 스토리지 추가된 인스턴스 생성
resource "nhncloud_compute_instance_v2" "web_server" {
name = "web_server"
key_pair = "seo1"
flavor_id = data.nhncloud_compute_flavor_v2.web_server.id
# security_groups = ["default"]
security_groups = ["default","web-sg"]
network {
port = nhncloud_networking_port_v2.port_1.id
}
block_device {
uuid = data.nhncloud_images_image_v2.ubuntu_22.id
source_type = "image"
destination_type = "volume"
boot_index = 0
volume_size = 20
delete_on_termination = true
}
user_data = "#include https://kr2-api-object-storage.nhncloudservice.com/v1/AUTH_cf5a0f8add884a61a2f047ff8c16c4bb/real-iac-terraform/terra-index.txt"
}
resource "nhncloud_networking_port_v2" "port_1" {
name = "tf_port_1"
network_id = nhncloud_networking_vpc_v2.terraform_vpc.id
fixed_ip {
subnet_id = nhncloud_networking_vpcsubnet_v2.public_subnet.id
}
}
# 공인 ip
#floating IP 생성
resource "nhncloud_networking_floatingip_v2" "fip_01" {
pool = "Public Network"
}
#floating IP 연결
resource "nhncloud_networking_floatingip_associate_v2" "fip_associate" {
floating_ip = nhncloud_networking_floatingip_v2.fip_01.address #생성한 Floating IP
port_id = nhncloud_networking_port_v2.port_1.id #floating IP 연결한 네트워크 포트 id 값 가져오기
}

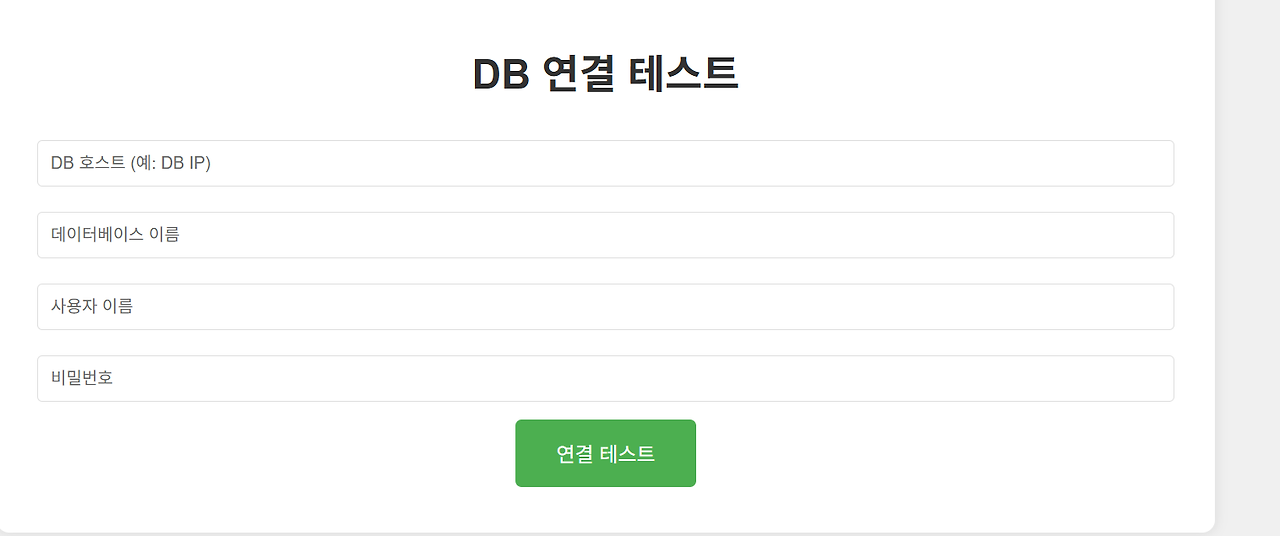

공인ip로 접속
