3. 테라폼-네이버 클라우드-실무 네트워크 생성
terraform destroy -auto-approve
<1> pri1 subnet 추가 =10.0.0.0/23
<2> pub lb , pri lb 추가 , vpc 10.0.0.0/20
<3> DB 라우팅 분리-새파일로-nks.tf 삭제-AZ1 네트워크 빠르게 구축하기
<1> pri1 subnet 추가 =10.0.0.0/23
cd /root/terraform-provider-ncloud-main/examples/vpc/scenario01
2
ipv4_cidr_block = "10.0.0.0/16"
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 8, 1)
/16에 + 8 = /24
10.0.1.0/24 이다.
3
vi main.tf
ipv4_cidr_block = "10.0.0.0/16"
10.0.2.0/24 public
10.0.0.0/23 private
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 8, 2)
/16에 + 8 = /24
10.0.2.0/24 이다.
C-Class 1개 /24는 8
뒷자리는 시작 블럭
C-Class 2개 /23는 7
뒷자리는 시작 블럭 0 부터 시작
10.0.0.0/23
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 7, 0)
/16에 + 7 = /23
10 yy
p
4
vi variables.tf
변수 파일
4yy
[root@quick1 scenario01]# more variables.tf
variable pub1 {
default = "pub1"
}
variable pri1 {
default = "pri1"
}
variable name_scn01 {
default = "tf-scn01"
}
5
resource "ncloud_subnet" "pri1" {
name = var.pri1
vpc_no = ncloud_vpc.vpc_scn_01.id
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 7, 0)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_scn_01.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
terraform apply -auto-approve
6

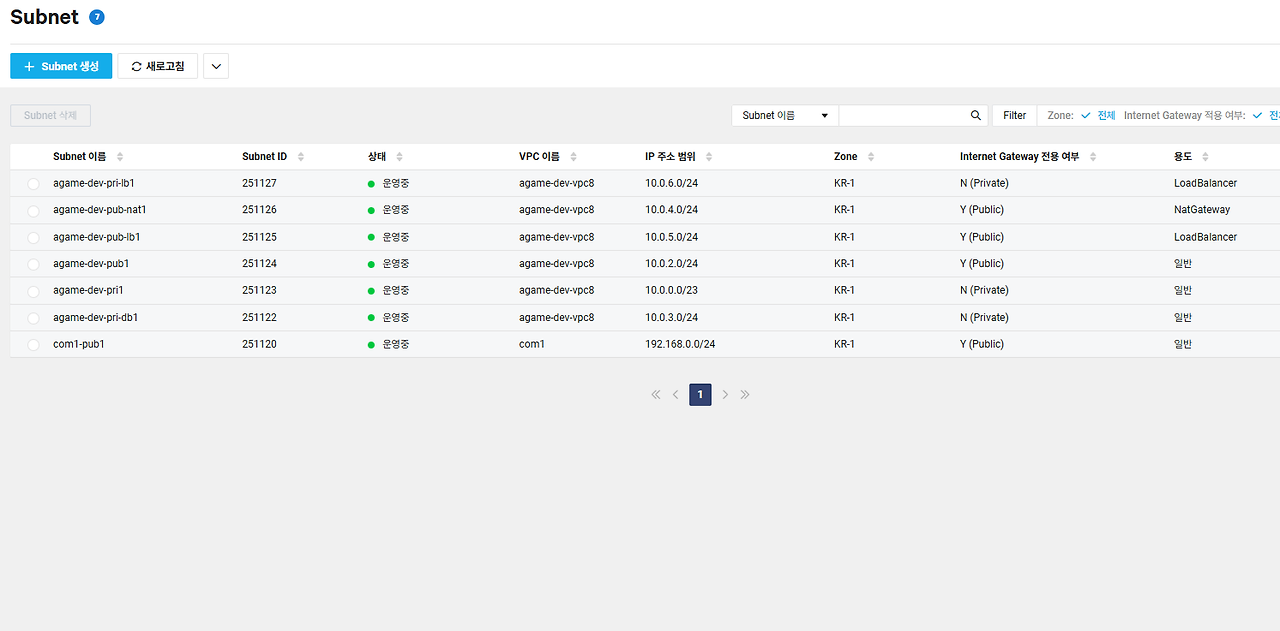

콘솔에서 네트워크 생성 확인
7
삭제
terraform destroy
<2> pub lb , pri lb 추가 , vpc 10.0.0.0/20
ipv4_cidr_block = "10.0.0.0/20"
1
참고 자료
cd /root/terraform-provider-ncloud-main/examples/nks
more main.tf
clear
2
# 현재 소스
::::::::::::::
main.tf
::::::::::::::
# VPC > User scenario > Scenario 1. Single Public Subnet
# https://docs.ncloud.com/ko/networking/vpc/vpc_userscenario1.html
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_vpc" "vpc" {
name = "vpc"
ipv4_cidr_block = "10.0.0.0/20"
}
resource "ncloud_subnet" "node_subnet" {
vpc_no = ncloud_vpc.vpc.id
subnet = "10.0.1.0/24"
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc.default_network_acl_no
subnet_type = "PRIVATE"
name = "node-subnet"
usage_type = "GEN"
}
#############
ipv4_cidr_block = "10.0.0.0/20"
############################
resource "ncloud_subnet" "lb_subnet" {
vpc_no = ncloud_vpc.vpc_scn_01.id
# subnet = "10.0.100.0/24"
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 4, 5)
zone = "KR-2"
network_acl_no = ncloud_vpc.vpc_scn_01.default_network_acl_no
subnet_type = "PRIVATE"
name = "lb-subnet-pri1"
usage_type = "LOADB"
}
# pri-lb1 4.0
resource "ncloud_subnet" "lb_subnet_pub" {
vpc_no = ncloud_vpc.vpc_scn_01.id
# subnet = "10.0.101.0/24"
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 4, 4)
zone = "KR-2"
network_acl_no = ncloud_vpc.vpc_scn_01.default_network_acl_no
subnet_type = "PUBLIC"
name = "lb-subnet-pub1"
usage_type = "LOADB"
}
################
data "ncloud_nks_versions" "version" {
hypervisor_code = "KVM"
filter {
name = "value"
values = [var.nks_version]
regex = true
}
}
resource "ncloud_login_key" "loginkey" {
key_name = var.login_key
}
resource "ncloud_nks_cluster" "cluster" {
hypervisor_code = "KVM"
cluster_type = "SVR.VNKS.STAND.C002.M008.G003"
k8s_version = data.ncloud_nks_versions.version.versions.0.value
login_key_name = ncloud_login_key.loginkey.key_name
name = "sample-cluster"
lb_private_subnet_no = ncloud_subnet.lb_subnet.id
lb_public_subnet_no = ncloud_subnet.lb_subnet_pub.id
kube_network_plugin = "cilium"
subnet_no_list = [ ncloud_subnet.node_subnet.id ]
vpc_no = ncloud_vpc.vpc.id
public_network = false
zone = "KR-2"
auth_type = "API"
access_entries {
entry = "nrn:PUB:IAM::123456789012:SubAccount/UUID"
policies {
type = "NKSClusterAdminPolicy"
scope = "Cluster"
}
}
}
data "ncloud_nks_server_images" "image"{
hypervisor_code = "KVM"
filter {
name = "label"
values = ["ubuntu-22.04"]
regex = true
}
}
data "ncloud_nks_server_products" "product"{
software_code = data.ncloud_nks_server_images.image.images[0].value
zone = "KR-1"
filter {
name = "product_type"
values = [ "STAND"]
}
filter {
name = "cpu_count"
values = [ "2"]
}
filter {
name = "memory_size"
values = [ "8GB" ]
}
}
resource "ncloud_nks_node_pool" "node_pool" {
cluster_uuid = ncloud_nks_cluster.cluster.uuid
node_pool_name = "pool1"
node_count = 2
software_code = data.ncloud_nks_server_images.image.images[0].value
server_spec_code = data.ncloud_nks_server_products.product.products.0.value
storage_size = 200
autoscale {
enabled = false
min = 0
max = 0
}
label {
key = "foo"
value = "bar"
}
taint {
key = "foo"
value = "bar"
effect = "NoExecute"
}
}
more: cannot open clear: No such file or directory
[root@quick1 nks]#
9
4
# 에러
[root@quick1 scenario01]# terraform apply -auto-approve
╷
│ Error: Reference to undeclared resource
│
│ on main.tf line 42, in resource "ncloud_subnet" "lb_subnet":
│ 42: vpc_no = ncloud_vpc.vpc.id
│
│ A managed resource "ncloud_vpc" "vpc" has not been declared in the root module.
╵
╷
│ Error: Reference to undeclared resource
│
│ on main.tf line 50, in resource "ncloud_subnet" "lb_subnet":
│ 50: network_acl_no = ncloud_vpc.vpc.default_network_acl_no
│
│ A managed resource "ncloud_vpc" "vpc" has not been declared in the root module.
╵
╷
│ Error: Reference to undeclared resource
│
│ on main.tf line 62, in resource "ncloud_subnet" "lb_subnet_pub":
│ 62: vpc_no = ncloud_vpc.vpc.id
│
│ A managed resource "ncloud_vpc" "vpc" has not been declared in the root module.
╵
╷
│ Error: Reference to undeclared resource
│
│ on main.tf line 70, in resource "ncloud_subnet" "lb_subnet_pub":
│ 70: network_acl_no = ncloud_vpc.vpc.default_network_acl_no
│
│ A managed resource "ncloud_vpc" "vpc" has not been declared in the root module.
vpc 대신
vpc_scn_01 로 교체
30
삭제
terraform destroy
31
참고 자료
[root@ncp-game44-com ~]# more *.tf
::::::::::::::
main.tf
::::::::::::::
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_login_key" "key_vpc" {
key_name = var.name_vpc
}
resource "ncloud_vpc" "vpc_vpc" {
name = var.name_vpc
ipv4_cidr_block = "10.0.0.0/21"
}
resource "ncloud_subnet" "subnet_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,2 ,0 )
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-lb1" {
name = var.name_pub-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 5)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "LOADB"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-lb1" {
name = var.name_pri-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 6)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
usage_type = "LOADB"
}
::::::::::::::
nks.tf
::::::::::::::
resource "ncloud_nks_cluster" "cluster" {
cluster_type = "SVR.VNKS.STAND.C002.M008.NET.SSD.B050.G002"
k8s_version = data.ncloud_nks_versions.version.versions.0.value
login_key_name = ncloud_login_key.loginkey.key_name
name = "sample-cluster"
lb_private_subnet_no = ncloud_subnet.subnet_pri-lb1.id
lb_public_subnet_no = ncloud_subnet.subnet_pub-lb1.id
kube_network_plugin = "cilium"
subnet_no_list = [ ncloud_subnet.subnet_pri1.id ]
vpc_no = ncloud_vpc.vpc_vpc.id
zone = "KR-1"
log {
audit = true
}
}
data "ncloud_nks_server_images" "image"{
hypervisor_code = "XEN"
filter {
name = "label"
values = ["ubuntu-20.04"]
regex = true
}
}
data "ncloud_nks_server_products" "nks_products"{
software_code = data.ncloud_nks_server_images.image.images[0].value
zone = "KR-1"
filter {
name = "product_type"
values = [ "STAND"]
}
filter {
name = "cpu_count"
values = [ "2"]
}
filter {
name = "memory_size"
values = [ "8GB" ]
}
}
resource "ncloud_nks_node_pool" "node_pool" {
cluster_uuid = ncloud_nks_cluster.cluster.uuid
node_pool_name = "pool1"
node_count = 1
software_code = data.ncloud_nks_server_images.image.images[0].value
product_code = data.ncloud_nks_server_products.nks_products.products[0].value
subnet_no_list = [ncloud_subnet.subnet_pri1.id]
autoscale {
enabled = true
min = 1
max = 2
}
}
data "ncloud_nks_versions" "version" {
filter {
name = "value"
values = [var.nks_version]
regex = true
}
}
resource "ncloud_login_key" "loginkey" {
key_name = var.login_key
}
::::::::::::::
variables.tf
::::::::::::::
variable name_vpc {
default = "agame-dev-vpc8"
}
variable name_pub1 {
default = "agame-dev-pub1"
}
variable name_pri1 {
default = "agame-dev-pri1"
}
variable name_pub-lb1 {
default = "agame-dev-pub-lb1"
}
variable name_pri-lb1 {
default = "agame-dev-pri-lb1"
}
variable client_ip {
default = "3.3.3.3"
}
variable access_key {
default = "ncp_iam_BPAMKR4Q5KfFCsZXt2Ng"
}
variable secret_key {
default = "ncp_iam_BPKMKR6EFfmXGEJBcIwkD6gFVJ0mFbGTc5"
}
variable nks_version {
default = "1.29"
}
variable name_scn_02 {
default = "tf-scn02"
}
variable login_key {
default = "agame11"
}
::::::::::::::
versions.tf
::::::::::::::
terraform {
required_providers {
ncloud = {
source = "navercloudplatform/ncloud"
}
}
required_version = ">= 0.13"
}
<3> DB 라우팅 분리-새파일로-nks.tf 삭제-AZ1 네트워크 빠르게 구축하기
1
mkdir db
cd db
root@quick1 db]# ls
main.tf nat.tf terraform.tfstate terraform.tfstate.backup var.tf ver.tf
rm -rf nks.tf
[root@ngame-web01-dev 6]# more *.tf
::::::::::::::
main.tf
::::::::::::::
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_login_key" "key_vpc" {
key_name = var.name_vpc
}
resource "ncloud_vpc" "vpc_vpc" {
name = var.name_vpc
ipv4_cidr_block = "10.0.0.0/21"
}
resource "ncloud_subnet" "subnet_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,2 ,0 )
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub1" {
name = var.name_pub1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 2)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-db1" {
name = var.name_pri-db1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 3)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-nat1" {
name = var.name_pub-nat1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 4)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "NATGW"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-lb1" {
name = var.name_pub-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 5)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "LOADB"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-lb1" {
name = var.name_pri-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 6)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
usage_type = "LOADB"
}
::::::::::::::
nat.tf
::::::::::::::
resource "ncloud_route_table" "route_table_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
supported_subnet_type = "PRIVATE"
}
resource "ncloud_route_table_association" "subnet_pri-db1" {
route_table_no = ncloud_route_table.route_table_pri1.id
subnet_no = ncloud_subnet.subnet_pri-db1.id
}
# NAT Gateway
resource "ncloud_nat_gateway" "nat_gateway_scn_02" {
vpc_no = ncloud_vpc.vpc_vpc.id
subnet_no = ncloud_subnet.subnet_pub-nat1.id
zone = "KR-1"
name = var.name_pub-nat1
}
# Route Table
resource "ncloud_route" "route_scn_02_nat" {
route_table_no = ncloud_vpc.vpc_vpc.default_private_route_table_no
#route_table_no = ncloud_route_table.route_table_pri1.id
destination_cidr_block = "0.0.0.0/0"
target_type = "NATGW"
target_name = ncloud_nat_gateway.nat_gateway_scn_02.name
target_no = ncloud_nat_gateway.nat_gateway_scn_02.id
}
::::::::::::::
nks.tf
::::::::::::::
resource "ncloud_nks_cluster" "cluster" {
cluster_type = "SVR.VNKS.STAND.C002.M008.NET.SSD.B050.G002"
k8s_version = data.ncloud_nks_versions.version.versions.0.value
login_key_name = ncloud_login_key.loginkey.key_name
name = "sample-cluster"
lb_private_subnet_no = ncloud_subnet.subnet_pri-lb1.id
lb_public_subnet_no = ncloud_subnet.subnet_pub-lb1.id
kube_network_plugin = "cilium"
subnet_no_list = [ ncloud_subnet.subnet_pri1.id ]
vpc_no = ncloud_vpc.vpc_vpc.id
zone = "KR-1"
log {
audit = true
}
}
data "ncloud_nks_server_images" "image"{
hypervisor_code = "XEN"
filter {
name = "label"
values = ["ubuntu-20.04"]
regex = true
}
}
data "ncloud_nks_server_products" "nks_products"{
software_code = data.ncloud_nks_server_images.image.images[0].value
zone = "KR-1"
filter {
name = "product_type"
values = [ "STAND"]
}
filter {
name = "cpu_count"
values = [ "2"]
}
filter {
name = "memory_size"
values = [ "8GB" ]
}
}
resource "ncloud_nks_node_pool" "node_pool" {
cluster_uuid = ncloud_nks_cluster.cluster.uuid
node_pool_name = "pool1"
node_count = 1
software_code = data.ncloud_nks_server_images.image.images[0].value
product_code = data.ncloud_nks_server_products.nks_products.products[0].value
subnet_no_list = [ncloud_subnet.subnet_pri1.id]
autoscale {
enabled = true
min = 1
max = 2
}
}
data "ncloud_nks_versions" "version" {
filter {
name = "value"
values = [var.nks_version]
regex = true
}
}
resource "ncloud_login_key" "loginkey" {
key_name = var.login_key
}
::::::::::::::
variables.tf
::::::::::::::
variable name_vpc {
default = "agame-dev-vpc8"
}
variable name_pri1 {
default = "agame-dev-pri1"
}
variable name_pub1 {
default = "agame-dev-pub1"
}
variable name_pri-db1 {
default = "agame-dev-pri-db1"
}
variable name_pub-nat1 {
default = "agame-dev-pub-nat1"
}
variable name_pub-lb1 {
default = "agame-dev-pub-lb1"
}
variable name_pri-lb1 {
default = "agame-dev-pri-lb1"
}
variable client_ip {
default = "3.3.3.3"
}
variable access_key {
default = "ncp_iam_BPAqKT6sp5"
}
variable secret_key {
default = "ncp_iam_BPKLNrW50nQ"
}
variable nks_version {
default = "1.28"
}
variable name_scn_02 {
default = "tf-scn02"
}
variable login_key {
default = "agame-k8s12"
}
::::::::::::::
versions.tf
::::::::::::::
terraform {
required_providers {
ncloud = {
source = "navercloudplatform/ncloud"
}
}
required_version = ">= 0.13"
}
var.tf
access
secret
default = "1.32"
terraform init
terraform plan
terraform apply -auto-approve
