by 동네아밥 May 20. 2022

EXCEL OLE

아휴 이제 다신 백지에서 안짠다

매번 필드에 값을 일일이 넣어줘서 그리는데 한세월이었는데

속도가 많이 개선되어서 저장해놓으려고 한다.

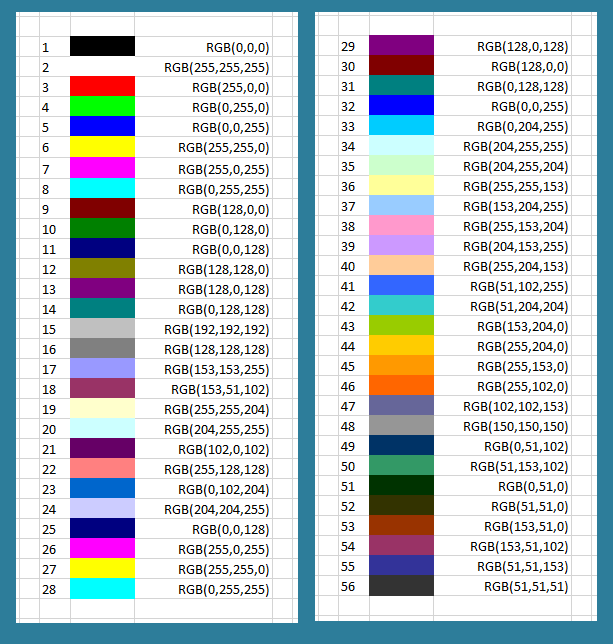

소스 하단에는 결과물과 ColorIndex 첨부.

셀별 값 입력에서 Clipboard 복붙으로 변경으로 속도개선

필드 값 표기 속성 추가 : Decimals, Bold, Size

실행순서

1. 셀 컬러 및 테두리 레이아웃 설정

2. 데이터 COPY&PASTE

3. 필드 값 표기 속성 설정

65 * 27 = 1,755개 필드 값 실행속도

30초 -> 3초로 줄어들었음.. 데이터 양이 늘어날수록 개선효과가 더 클듯

헌데.. 일정 이상이 되면 클립보드에 다 안들어가지 않을지도..

이때는 LT_CHAR의 필드길이를 가늠해서 조절해보자.

-파일은 아래 내용과 동일-

get_xls.txt

form get_xls using    value(pt_mplan) like gt_mplan[].

   data: begin of ls_check,
           matnr     like ztppgt00060-matnr,
           maktx     like makt-maktx,
           longm     like makt-zz_maktx,
           verid     like ztppgt00060-verid,
           bomc      like ztppgt00060-bomc,
           mdv01     like ztppgt00060-mdv01,
           idnrk     like ztppgt00060-idnrk,
           maktx1    like makt-maktx,
           longm1    like makt-zz_maktx,
           power(10),
           gtext(15),
         end of ls_check,

         lv_fildname type char70,
         lv_val      type char70,
         lv_rc       type i,

         begin of ls_char,
           line(3000),
         end of ls_char,
         lt_char like table of ls_char,

         lt_desc type abap_component_tab,
         lo_type type ref to cl_abap_datadescr,
         lo_struc type ref to cl_abap_structdescr,
         lo_table type ref to cl_abap_tabledescr,
         lo_data type ref to data.

   data: lv_excel    type ole2_object, " Excel object
         lv_wbl      type ole2_object, " List of workbooks
         lv_wb       type ole2_object, " Workbook
         lv_cell     type ole2_object, " Cell
         lv_font     type ole2_object, " Font
         lv_interior type ole2_object, " Interior
         lv_columns type ole2_object, " Columns
         lv_border   type ole2_object, " Borders
         lv_begin    type ole2_object, " Borders
         lv_end      type ole2_object. " Borders

   data: lv_title    type i value 15, " Light Gray
         lv_total    type i value 50, " Green
         lv_subtotal type i value 35, " Light Green
         lv_conf     type i value 36. " Light Yellow

   field-symbols: <lv_val> type any,
                  <lt_tab> type standard table.

*--------------------------------------------------------------------*
   "FILL OUTTAB Contents
   loop at pt_mplan into data(ls_mplan).

     if ls_mplan-idnrk is not initial.

       move: ls_mplan-idnrk to ls_check-idnrk,
             ls_mplan-maktx1 to ls_check-maktx1,
             ls_mplan-longm1 to ls_check-longm1,
             ls_mplan-power to ls_check-power.

     elseif ls_mplan-verid is not initial.

       move: ls_mplan-verid to ls_check-verid,
             ls_mplan-bomc   to ls_check-bomc ,
             ls_mplan-mdv01 to ls_check-mdv01.

       move: ls_mplan-idnrk to ls_check-idnrk ,
             ls_mplan-maktx1 to ls_check-maktx1,
             ls_mplan-longm1 to ls_check-longm1,
             ls_mplan-power to ls_check-power .

     elseif ls_mplan-matnr is not initial.

       move-corresponding ls_mplan to ls_check.

     endif.

     modify pt_mplan from corresponding #( base ( ls_mplan ) ls_check ).

   endloop.

*--------------------------------------------------------------------*
   "GET Column List
   go_grid4->get_frontend_fieldcatalog(
     importing
       et_fieldcatalog = data(lt_fcat)
   ).

   delete lt_fcat where no_out = 'X'.
   sort lt_fcat by col_pos.
   data(lv_cols) = lines( lt_fcat ).

   call function 'SAPGUI_PROGRESS_INDICATOR'
     exporting
       text       = 'Exporting Data to Excel...'.

*--------------------------------------------------------------------*
   "OLE CONTROL
   create object lv_excel 'EXCEL.APPLICATION'.
   call method of lv_excel 'Workbooks' = lv_wbl.
   call method of lv_wbl 'Add' = lv_wb.
   get property of lv_excel 'ActiveSheet' = lv_wb.

*--------------------------------------------------------------------*
   "CREATE Header
   loop at lt_fcat into data(ls_fcat).

     data(lv_col) = sy-tabix.

     call method of lv_excel 'Cells' = lv_cell
       exporting
         #1 = 1 "ROW
         #2 = lv_col. "COL

     if ls_fcat-coltext is initial.
       ls_fcat-coltext = ls_fcat-scrtext_s.
     endif.

     set property of lv_cell 'Value' = ls_fcat-coltext no flush.

     get property of lv_cell 'Interior' = lv_interior.
     set property of lv_interior 'ColorIndex' = lv_title no flush.

     get property of lv_cell 'Font' = lv_font.
     set property of lv_font 'Bold' = 1.
     set property of lv_font 'Size' = 11.

   endloop.

*--------------------------------------------------------------------*
   "TITLE + CONTENTS RowNO.
   data(lv_rows) = lines( pt_mplan ) + 1.

   "GET MENA COLUMN No.: to set decimals property
   data(lt_mena) = lt_fcat.
   delete lt_mena where fieldname(4) <> 'MENA'.
   read table lt_mena into ls_fcat index 1.
   data(lv_mena_s) = ls_fcat-col_pos.
   read table lt_mena into ls_fcat index lines( lt_mena ).
   data(lv_mena_e) = ls_fcat-col_pos.

*--------------------------------------------------------------------*
   call function 'CONTROL_FLUSH'.

   loop at pt_mplan into ls_mplan.

     data(lv_row) = sy-tabix + 1.

     loop at lt_fcat into ls_fcat.

       lv_col = sy-tabix.

       "CREATE VALUE & SET FORMAT
       lv_fildname = 'LS_MPLAN-' && ls_fcat-fieldname.
       assign (lv_fildname) to <lv_val>.

       case ls_fcat-fieldname(4).
         when 'MENA'.
           write <lv_val> to lv_val decimals 3 left-justified.
         when others.
           write <lv_val> to lv_val left-justified.
       endcase.

*--------------------------------------------------------------------*
       "SET EXPORT TAB
       ls_char-line = ls_char-line && lv_val && cl_abap_char_utilities=>horizontal_tab.
       at last.
         append ls_char to lt_char. clear ls_char.
       endat.

*--------------------------------------------------------------------*

  "SET MENA~ as TEXT, Right justified
   call method of lv_wb 'Cells' = lv_begin
     exporting
       #1 = 2
       #2 = lv_mena_s.
   call method of lv_wb 'Cells' = lv_end
     exporting
       #1 = lv_rows
       #2 = lv_mena_e.
   call method of lv_wb 'Range' = lv_cell
     exporting
       #1 = lv_begin
       #2 = lv_end.

   call method of lv_cell 'Select'.
   set property of lv_cell 'NumberFormat' = '@' no flush.
   set property of lv_cell 'HorizontalAlignment' = -4152.
*--------------------------------------------------------------------*
       "SET COLOR
       read table ls_mplan-fcol into data(ls_fcol) with key fname = ls_fcat-fieldname.
       if sy-subrc = 0.
         call method of lv_excel 'Cells' = lv_cell
           exporting
             #1 = lv_row "ROW
             #2 = lv_col. "COL
         "FIELDCOLOR => CONFIRMED
         get property of lv_cell 'Interior' = lv_interior.
         set property of lv_interior 'ColorIndex' = lv_conf no flush.
       else.
         if ls_mplan-lcol = 'C510'.
           call method of lv_excel 'Cells' = lv_cell
             exporting
               #1 = lv_row "ROW
               #2 = lv_col. "COL
           "ROWCOLOR => TOTAL
           get property of lv_cell 'Interior' = lv_interior.
           set property of lv_interior 'ColorIndex' = lv_total no flush.
         elseif ls_mplan-lcol = 'C500'.
           call method of lv_excel 'Cells' = lv_cell
             exporting
               #1 = lv_row "ROW
               #2 = lv_col. "COL
           "ROWCOLOR => SUBTOTAL
           get property of lv_cell 'Interior' = lv_interior.
           set property of lv_interior 'ColorIndex' = lv_subtotal no flush.
         endif.
       endif.

     endloop.

   endloop.

   cl_gui_frontend_services=>clipboard_export(
     exporting
       no_auth_check = 'X'
     importing
       data                 = lt_char
     changing
       rc                   = lv_rc
     exceptions
       cntl_error           = 1
       error_no_gui         = 2
       not_supported_by_gui = 3
       no_authority         = 4
       others               = 5
   ).

*--------------------------------------------------------------------*
   "PASTE Contents
   call method of lv_wb 'Cells' = lv_begin
     exporting
       #1 = 2
       #2 = 1.
   call method of lv_wb 'Cells' = lv_end
     exporting
       #1 = lv_rows
       #2 = lv_cols.
   call method of lv_wb 'Range' = lv_cell
     exporting
       #1 = lv_begin
       #2 = lv_end.

   call method of lv_cell 'Select'.
   call method of lv_wb 'Paste'.

   get property of lv_cell 'Font' = lv_font.
   set property of lv_font 'Size' = 10.

*--------------------------------------------------------------------*
   "SET Border
   call method of lv_wb 'Cells' = lv_begin
     exporting
       #1 = 1
       #2 = 1.
   call method of lv_wb 'Cells' = lv_end
     exporting
       #1 = lv_rows
       #2 = lv_cols.
   call method of lv_wb 'Range' = lv_cell
     exporting
       #1 = lv_begin
       #2 = lv_end.

   call method of lv_cell 'Select'.

   call method of lv_cell 'Borders' = lv_border
     exporting
       #1 = '7'. " xlEdgeLeft
   set property of lv_border 'LineStyle' = 1 no flush.

   call method of lv_cell 'Borders' = lv_border
     exporting
       #1 = '8'. " xlEdgeTop
   set property of lv_border 'LineStyle' = 1 no flush.

   call method of lv_cell 'Borders' = lv_border
   exporting
     #1 = '9'. " xlEdgeTop
   set property of lv_border 'LineStyle' = 1 no flush.

   call method of lv_cell 'Borders' = lv_border
   exporting
     #1 = '10'. " xlEdgeTop
   set property of lv_border 'LineStyle' = 1 no flush.

   call method of lv_cell 'Borders' = lv_border
   exporting
     #1 = '11'. " xlInsideVertical
   set property of lv_border 'LineStyle' = 1 no flush.

   call method of lv_cell 'Borders' = lv_border
   exporting
     #1 = '12'. " xlInsideHorizontal
   set property of lv_border 'LineStyle' = 1 no flush.

*--------------------------------------------------------------------*
   "SET MENA~ Decimals 3
   call method of lv_wb 'Cells' = lv_begin
     exporting
       #1 = 1
       #2 = lv_mena_s.
   call method of lv_wb 'Cells' = lv_end
     exporting
       #1 = lv_rows
       #2 = lv_mena_e.
   call method of lv_wb 'Range' = lv_cell
     exporting
       #1 = lv_begin
       #2 = lv_end.

   call method of lv_cell 'Select'.
   set property of lv_cell 'NumberFormat' = '0,000.000' no flush.

*--------------------------------------------------------------------*
   "OPTIMIZE All Cols
   call method of lv_wb 'Columns' = lv_columns.
   call method of lv_columns 'Autofit' no flush.
   set property of lv_excel 'Visible' = 1.

   "SET Cursor
   call method of lv_excel 'Cells' = lv_cell
     exporting
       #1 = 1
       #2 = 1.
   call method of lv_cell 'Select'.
*--------------------------------------------------------------------*
   "CLEAR Clipboard
   refresh: lt_char.
   cl_gui_frontend_services=>clipboard_export(
     exporting
       no_auth_check = 'X'
     importing
       data                 = lt_char
     changing
       rc                   = lv_rc
     exceptions
       cntl_error           = 1
       error_no_gui         = 2
       not_supported_by_gui = 3
       no_authority         = 4
       others               = 5
   ).

*--------------------------------------------------------------------*
   call function 'CONTROL_FLUSH'.
