EKS 1탄-4. Container Insights

실습 1탄 = 4/7

EKS 클러스터를 만들었다면, CloudWatch Insights로  모니터링 하자

인그레스 자원을 사용하는 ALB를 만들자.

kube-ops-view로 보자



<1>  EKS 모니터링 = CloudWatch Container Insights 로 보자

<2>  인그레스 자원을 사용하는  ALB 만들기

<3>  Helm 설치, kube-ops-view로 보자

<4>  서비스 배포하자

<5> 삭제

<6> 다음 과정.  실습5. 콘솔에서 EKS nodes 정보 보기

<10>  EKS 실습 1 - 애플리케이션




<1>  EKS 모니터링 = CloudWatch Container Insights 로 보자


echo ${AWS_REGION}


리전 변경 필요시

export AWS_REGION=us-west-1

export AWS_REGION=us-west-2


US West (N. California)us-west-1

US West (Oregon)us-west-2


echo ${AWS_REGION}


Cluster 설치 완료 후


Container insights 설정을 하고 나면 아래와 같이 리소스를 볼수 있다.

기본적으로는 나오지 않는다.

https://docs.aws.amazon.com/ko_kr/AmazonCloudWatch/latest/monitoring/Container-Insights-setup-metrics.html



1

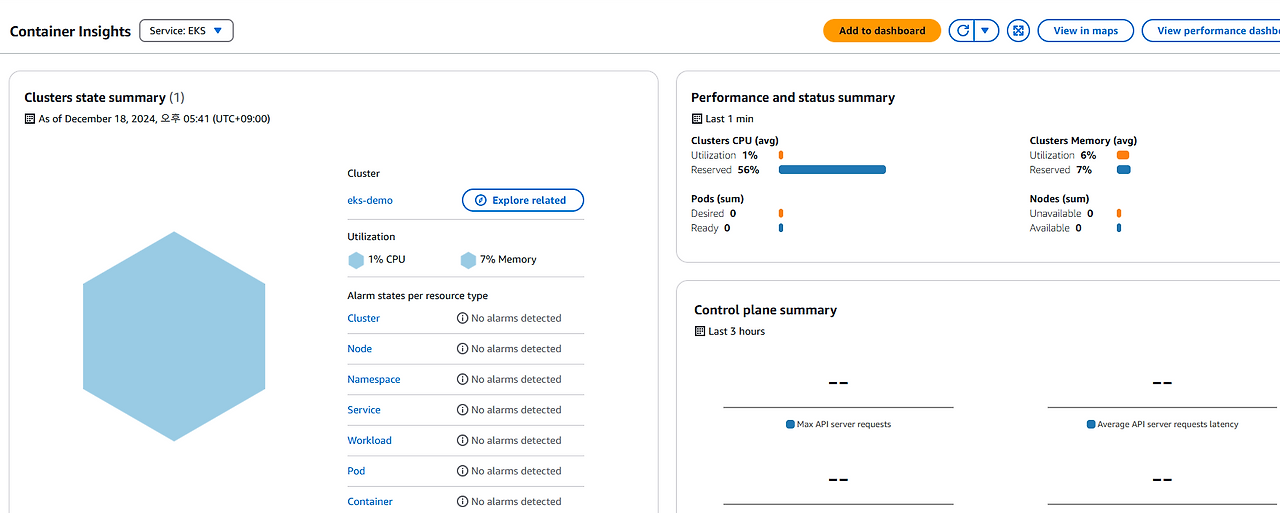

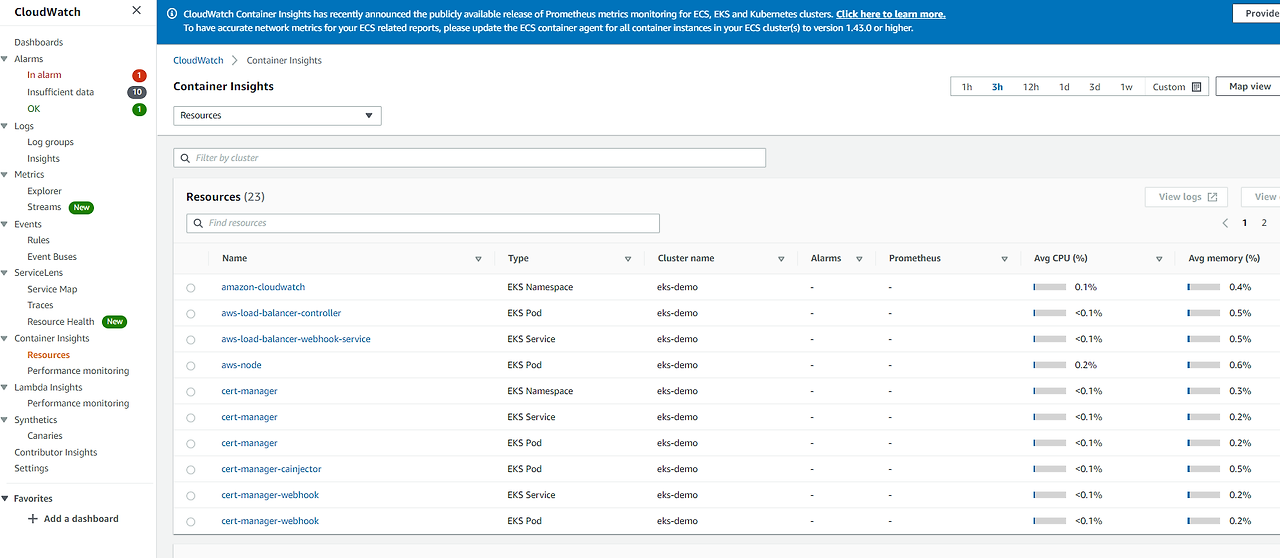

CloudWatch > insights > Container insights > Resources  가면  아래 처럼 리소스를 볼수 있다.


오른쪽위에서 시간을 5분으로 조정한다.

Custom(5m)



2

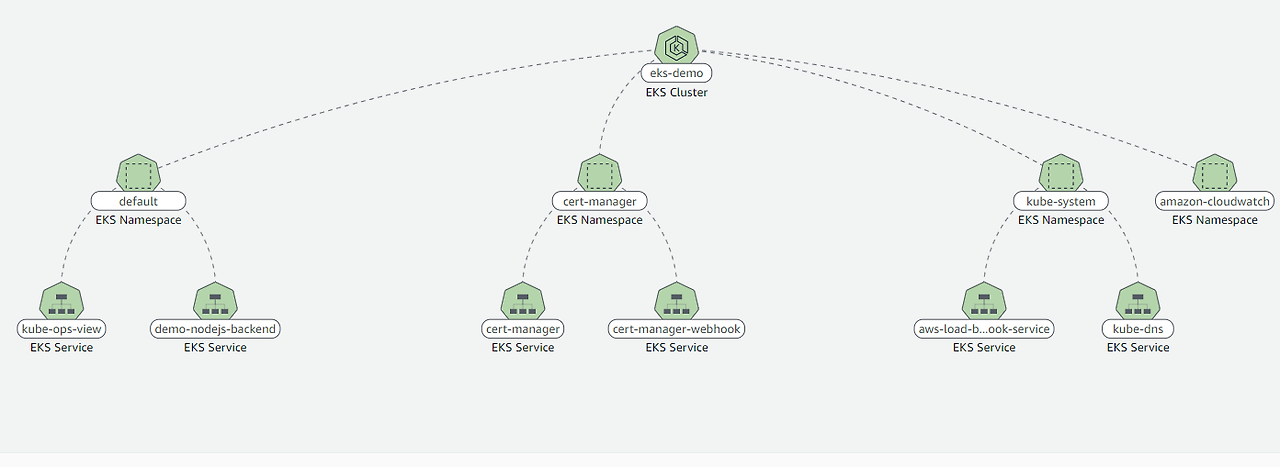

오른쪽 MAP view 클릭





자 ~

 Container insights 를 볼수 있도록 설정해보자.


 CloudWatch 에이전트 및 Fluent Bit를 설치 = 아래 내용 정리 text



3

별도 터미널에서 모니터링하자

watch -d kubectl get ns -A


watch -d kubectl get pod,ds,svc,ep,deployment -A



4

cd ~/environment

mkdir -p manifests/cloudwatch-insight && cd manifests/cloudwatch-insight


네임스페이스 만들기

kubectl create ns amazon-cloudwatch



5

kubectl get ns

NAME                STATUS   AGE

amazon-cloudwatch   Active   8s

cert-manager        Active   138m

default             Active   3h14m

kube-node-lease     Active   3h14m

kube-public         Active   3h14m

kube-system         Active   3h14m



6

#  CloudWatch 에이전트 및 Fluent Bit를 설치


변수 설정

ClusterName=eks-demo

RegionName=us-west-1

FluentBitHttpPort='2020'

FluentBitReadFromHead='Off'

[[ ${FluentBitReadFromHead} = 'On' ]] && FluentBitReadFromTail='Off'|| FluentBitReadFromTail='On'

[[ -z ${FluentBitHttpPort} ]] && FluentBitHttpServer='Off' || FluentBitHttpServer='On'



ClusterName=eks-demo

RegionName=${AWS_REGION}

FluentBitHttpPort='2020'

FluentBitReadFromHead='Off'

[[ ${FluentBitReadFromHead} = 'On' ]] && FluentBitReadFromTail='Off'|| FluentBitReadFromTail='On'

[[ -z ${FluentBitHttpPort} ]] && FluentBitHttpServer='Off' || FluentBitHttpServer='On'




7

배포


curl https://raw.githubusercontent.com/aws-samples/amazon-cloudwatch-container-insights/latest/k8s-deployment-manifest-templates/deployment-mode/daemonset/container-insights-monitoring/quickstart/cwagent-fluent-bit-quickstart.yaml | sed 's/{{cluster_name}}/'${ClusterName}'/;s/{{region_name}}/'${RegionName}'/;s/{{http_server_toggle}}/"'${FluentBitHttpServer}'"/;s/{{http_server_port}}/"'${FluentBitHttpPort}'"/;s/{{read_from_head}}/"'${FluentBitReadFromHead}'"/;s/{{read_from_tail}}/"'${FluentBitReadFromTail}'"/' | kubectl apply -f -



8

kubectl get po -n amazon-cloudwatch

NAME                     READY   STATUS              RESTARTS   AGE

cloudwatch-agent-gh6lf   0/1     ContainerCreating   0          10s

cloudwatch-agent-jxglj   0/1     ContainerCreating   0          10s

cloudwatch-agent-r2ckc   0/1     ContainerCreating   0          10s

fluent-bit-2x6g8         0/1     ContainerCreating   0          10s

fluent-bit-8mjtp         0/1     ContainerCreating   0          10s

fluent-bit-plfnv         0/1     ContainerCreating   0          10s



9

kubectl get daemonsets -n amazon-cloudwatch

NAME               DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE

cloudwatch-agent   3         3         3       3            3           <none>          22s

fluent-bit         3         3         3       3            3           <none>          22s



10

console에서 확인

cloudwatch > container insights > resource





<2>  인그레스 자원을 사용하는  ALB 만들기


리전 변경 필요시

export AWS_REGION=us-west-1

export AWS_REGION=us-west-2


US West (N. California)us-west-1

US West (Oregon)us-west-2




echo ${AWS_REGION}


ClusterName=eks-demo



1

인그레스 ALB  -----서비스 ----- POD 구성



2

cd ~/environment

mkdir -p manifests/alb-ingress-controller && cd manifests/alb-ingress-controller



3

iam oidc  (open ip  만들기)

서비스 어카운트에 iap role 을 사용하기 위해  eks-demo 에  iam provider가 존재해야함.



eksctl utils associate-iam-oidc-provider  --region ${AWS_REGION}  --cluster ${ClusterName}  --approve

2021-06-18 00:28:40 [ℹ]  will create IAM Open ID Connect provider for cluster "eks-demo" in "us-west-1"

2021-06-18 00:28:40 [✔]  created IAM Open ID Connect provider for cluster "eks-demo" in "us-west-1"



4

확인?


aws eks describe-cluster --name ${ClusterName} --query "cluster.identity.oidc.issuer" --output text

https://oidc.eks.us-east-2.amazonaws.com/id/28C478AFEF60726FD91F80A9E7E1EC2D



5

aws iam list-open-id-connect-providers | grep 28C478AFEF60726FD91F80A9E7E1EC2D



6

alb를 클러스터에 추가


kubectl apply --validate=false -f https://github.com/jetstack/cert-manager/releases/download/v1.3.0/cert-manager.yaml



7

lb 컨트롤러 다운로드

wget https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.1.3/docs/install/v2_1_3_full.yaml



8

vi  v2_1_3_full.yaml


spec:

  containers:

    - args:

        - --cluster-name=${ClusterName}


또는

spec:

  containers:

    - args:

        - --cluster-name=eks-demo # 생성한 클러스터 이름을 입력




9

배포  //  버전 변경되며 오류~


kubectl apply -f v2_1_3_full.yaml


[root@ip-172-31-40-122 alb-ingress-controller]# kubectl apply -f v2_1_3_full.yaml

serviceaccount/aws-load-balancer-controller unchanged

role.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-role unchanged

clusterrole.rbac.authorization.k8s.io/aws-load-balancer-controller-role configured

rolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-rolebinding unchanged

clusterrolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-rolebinding unchanged

service/aws-load-balancer-webhook-service unchanged

deployment.apps/aws-load-balancer-controller unchanged

certificate.cert-manager.io/aws-load-balancer-serving-cert unchanged

issuer.cert-manager.io/aws-load-balancer-selfsigned-issuer unchanged

resource mapping not found for name: "targetgroupbindings.elbv2.k8s.aws" namespace: "" from "v2_1_3_full.yaml": no matches for kind "CustomResourceDefinition" in version "apiextensions.k8s.io/v1beta1"

ensure CRDs are installed first

resource mapping not found for name: "aws-load-balancer-webhook" namespace: "" from "v2_1_3_full.yaml": no matches for kind "MutatingWebhookConfiguration" in version "admissionregistration.k8s.io/v1beta1"

ensure CRDs are installed first

resource mapping not found for name: "aws-load-balancer-webhook" namespace: "" from "v2_1_3_full.yaml": no matches for kind "ValidatingWebhookConfiguration" in version "admissionregistration.k8s.io/v1beta1"

ensure CRDs are installed first

[root@ip-172-31-40-122 alb-ingress-controller]#




10

확인

kubectl get deployment -n kube-system aws-load-balancer-controller

NAME                           READY   UP-TO-DATE   AVAILABLE   AGE

aws-load-balancer-controller   1/1     1            1           49s



11

서비스 어카운드 확인

kubectl get sa aws-load-balancer-controller -n kube-system -o yaml



12

로그 확인

kubectl logs -n kube-system $(kubectl get po -n kube-system | egrep -o "aws-load-balancer[a-zA-Z0-9-]+")



13

속성 값 확인 !!

ALBPOD=$(kubectl get pod -n kube-system | egrep -o "aws-load-balancer[a-zA-Z0-9-]+")


kubectl describe pod -n kube-system ${ALBPOD}





<3>  Helm 설치, kube-ops-view로 보자


cd ~/environment


선행작업?

Cluster 설치 완료 후

ALB 설치 완료 후


Helm을 이용 = kube-ops-view 사용

Helm은 쿠버네티스 뷰를  관리

cloud9로



1

helm cli 툴을 설치

curl https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3 | bash


현재의 버전 확인

helm version --short



2

repo에 Stable 저장소 더함

helm repo add stable https://charts.helm.sh/stable


3

차트 리스트 확인 (선택)

helm search repo stable



4

helm completion bash >> ~/.bash_completion

. /etc/profile.d/bash_completion.sh

. ~/.bash_completion

source <(helm completion bash)



5


kube-ops-view 설치


helm repo add geek-cookbook https://geek-cookbook.github.io/charts/


helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set env.TZ="Asia/Seoul" --namespace kube-system


kubectl patch svc -n kube-system kube-ops-view -p '{"spec":{"type":"LoadBalancer"}}'


kubectl annotate service kube-ops-view -n kube-system "external-dns.alpha.kubernetes.io/hostname=kubeopsview.$MyDomain"


echo -e "Kube Ops View URL = http://kubeopsview.$MyDomain:8080/#scale=1.5"


( 5분 걸림)



kubens  kube-system

Context "i-07fd28704cd927cb4@eks-demo.ap-northeast-2.eksctl.io" modified.

Active namespace is "kube-system".



 k get svc

kube-ops-view                       LoadBalancer   10.100.18.156   a2f43379b1fb0440db35af6dc4a29f2b-1377535766.ap-northeast-2.elb.amazonaws.com   8080:30385/TCP   2m1s

[root@ip-172-31-40-122 alb-ingress-controller]#


8080 접속



10

AWS 콘솔 로그인 > EC2 >  Load Balancers 가서 로드 밸런서 생성확인 > DNS name 확인

웹 브라우저에서 실행.



11

설정중 오류가 나면~

해당 리전에 Cloud9을 만들어 사용하도록 하자

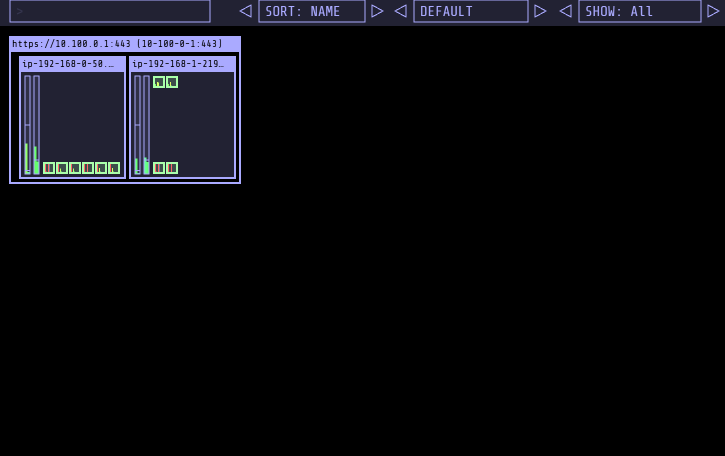

그림 설명

아래 9개  kube-system

위 1개 default

위 3개 cert-manager



12






13

참고 자료

https://codeberg.org/hjacobs/kube-ops-view




<4>  서비스 배포하자


1

다시 웹 접속 확인

컨테이너가 추가 된것을 확인하자~


2

노란색 디폴트가 3개 추가 된다.~






<5> 삭제


1

EKS 삭제

export AWS_REGION=ap-south-1

eksctl delete cluster --name=eks-demo



리전 변경

export AWS_REGION=us-east-1

export AWS_REGION=us-east-2

export AWS_REGION=us-west-1

export AWS_REGION=us-west-2


US East (N. Virginia)us-east-1

US East (Ohio)us-east-2

US West (N. California)us-west-1

US West (Oregon)us-west-2


echo ${AWS_REGION}


or


EKS삭제가 안되면

EC2 > 인스턴스 종료

EKS > 삭제





<6> 다음 과정.  실습 5. 콘솔에서 EKS nodes 정보 보기


https://brunch.co.kr/@topasvga/1654




<10>  (몰아보기) Amazon  EKS 실습 1탄 - 애플리케이션


https://brunch.co.kr/@topasvga/1883


https://brunch.co.kr/@topasvga/1679


감사합니다.
