by Master Seo Jun 29. 2021

쿠버1탄-8.  쿠버네티스- 프루브(증명)

다음은 쿠버네티스 스터디 자료를 참고해  정리한 내용입니다.


<1>  프루브 개요

<2>  completed.yaml - sleep 5초후 종료코드0(정상) 반환후 종료함

<3>  onfailure.yaml   - sleep 5초후 종료코드 1(Error) 반환후 종료함

<4>  onfailure.yaml : restartPolicy: OnFailure , sleep 5초 후 종료 코드 0 (정상) 반환 후 종료

<5> livenessprobe.yaml

<6> ReadinessProbe

<7> 정리



<1> 프루브 개요


1

liveness Probe

컨테이너 내부 애플리케이션이 살아있는지 검사

실패할 경우 해당 컨테이너는 restartPolicy 에 따라서 재시작


2

readiness Probe

컨테이너 내부의 애플리케이션이 사용자 요청을 처리할 준비가 됐는지 검사

검사에 실패할 경우 컨테이너는 서비스의 라우팅 대상에서 제외

로드 밸런서 = 서비스 개념이다.



<2>  completed.yaml - sleep 5초후 종료코드0(정상) 반환후 종료함


master node의 api 서버 접속

ssh -i ~/.ssh/id_rsa ubuntu@api.k8s.serverchk.com


kubectl delete pod --all



completed.yaml


1

ubuntu@ip-172-20-41-255:~$ more completed.yaml


cat << EOF > completed.yaml

apiVersion: v1

kind: Pod

metadata:

  name: completed-pod

spec:

  containers:

    - name: completed-pod

      image: busybox

      command: ["sh"]

      args: ["-c", "sleep 5 && exit 0"]

EOF


// 5초후 정상 종료라고 알려주고 끝나는 pod



2

별도 터미널에서 확인?


watch -d "kubectl describe pod completed-pod | grep Events -A 12"

// completed 상태 모니터링


NAME                                READY   STATUS              RESTARTS   AGE

completed-pod                       0/1     ContainerCreating   0          0s

deployment-nginx-78bc6dfdf7-8mrs4   1/1     Running             0          11m

deployment-nginx-78bc6dfdf7-mr4w2   1/1     Running             0          11m

deployment-nginx-78bc6dfdf7-tvv44   1/1     Running             0          11m

completed-pod                       0/1     ContainerCreating   0          1s

completed-pod                       1/1     Running             0          3s

completed-pod                       0/1     Completed           0          8s

completed-pod                       1/1     Running             1          10s

completed-pod                       0/1     Completed           1          15s

completed-pod                       0/1     CrashLoopBackOff    1          26s

completed-pod                       1/1     Running             2          27s

completed-pod                       0/1     Completed           2          33s

completed-pod                       0/1     CrashLoopBackOff    2          48s


//  Completed 완료 상태가 나옴.  무한 반복중



3

kubectl apply -f completed.yaml && kubectl get pod -w


4

정책 확인

kubectl get pod completed-pod -o yaml | grep restartPolicy

        f:restartPolicy: {}

  restartPolicy: Always

// restartPolicy 재시작 정책이  Always 라  다시 Running 상태로 가서 무한 반복 하는것이다.

// Completed (0) 반환



5

과정

Running >  Completed   >  restartPolicy 가 Always (재시작) 되면 >    CrashLoopBackOff    >

Running >  Completed   >  restartPolicy 가 Always (재시작) 되면 >    CrashLoopBackOff    >

Running >  Completed   >  restartPolicy 가 Always (재시작) 되면 >    CrashLoopBackOff    >


6

kubectl delete pod --all





<3>  onfailure.yaml   - sleep 5초후 종료코드 1(Error) 반환후 종료함


onfailure.yaml

정상 종료 코드는 0이다.

sleep 5초 후 종료 코드 1 반환 후 종료하는것을 해보자

비정상적으로 종료(1)가 되었다고 가정한다.



1

cat << EOF > onfailure.yaml

apiVersion: v1

kind: Pod

metadata:

  name: completed-pod

spec:

  restartPolicy: OnFailure

  containers:

    - name: completed-pod

      image: busybox

      command: ["sh"]

      args: ["-c", "sleep 5 && exit 1"]

EOF




2

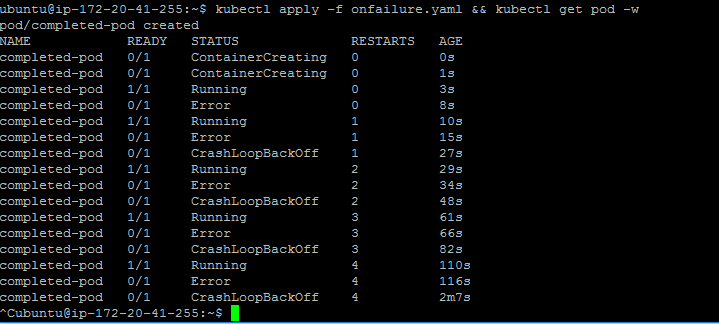

kubectl apply -f onfailure.yaml && kubectl get pod -w


error 발생



// 무한 반복중

과정

Running >  Error (비정상 종료1)  >  restartPolicy: OnFailure

Running >  Error (비정상 종료1)  >  restartPolicy: OnFailure

Running >  Error (비정상 종료1)  >  restartPolicy: OnFailure



3

kubectl get pod completed-pod -o yaml | grep restartPolicy

      {"apiVersion":"v1","kind":"Pod","metadata":{"annotations":{},"name":"completed-pod","namespace":"default"},"spec":{"containers":[{"args":["-c","sleep 5 \u0026\u0026 exit 1"],"command":["sh"],"image":"busybox","name":"completed-pod"}],"restartPolicy":"OnFailure"}}

        f:restartPolicy: {}

  restartPolicy: OnFailure


// Runninng -> Error (1)로 감. 무한 반복



4

다른 터미널에서

watch -d "kubectl describe pod completed-pod | grep Events -A 12"


5

kubectl delete pod --all




<4>  onfailure.yaml : restartPolicy: OnFailure , sleep 5초 후 종료 코드 0 (정상) 반환 후 종료



1

cat << EOF > onfailure.yaml

apiVersion: v1

kind: Pod

metadata:

  name: completed-pod

spec:

  restartPolicy: OnFailure

  containers:

    - name: completed-pod

      image: busybox

      command: ["sh"]

      args: ["-c", "sleep 5 && exit 0"]

EOF




2

ubuntu@ip-172-20-41-255:~$  kubectl apply -f onfailure.yaml && kubectl get pod -w

pod/completed-pod created

NAME            READY   STATUS              RESTARTS   AGE

completed-pod   0/1     ContainerCreating   0          0s

completed-pod   0/1     ContainerCreating   0          0s

completed-pod   1/1     Running             0          3s

completed-pod   0/1     Completed           0          8s

completed-pod   0/1     Completed           0          8s


// 정상 종료라 완료 됨.

 restartPolicy: OnFailure 라  완료.

OnFailure는 비정상일때만 재시작 하라는 것이다.

0 = 정상종료라 재시작하지 않는다.


3

watch -d "kubectl describe pod completed-pod | grep Events -A 12"


4

kubectl delete pod --all

pod "completed-pod" deleted





<5> livenessprobe.yaml


liveness Probe ?

컨테이너 내부 애플리케이션이 살아있는지 검사

실패할 경우 해당 컨테이너는 restartPolicy 에 따라서 재시작


1

cat << EOF > livenessprobe.yaml

apiVersion: v1

kind: Pod

metadata:

  name: livenessprobe

spec:

  containers:

  - name: livenessprobe

    image: nginx

    livenessProbe:

      httpGet:

        port: 80

        path: /index.html

EOF



2

kubectl apply -f livenessprobe.yaml && kubectl get events --sort-by=.metadata.creationTimestamp -w



3

확인

kubectl describe pod livenessprobe | grep Liveness

    Liveness:     http-get http://:80/index.html delay=0s timeout=1s period=10s #success=1 #failure=3



4

kubectl logs livenessprobe -f

/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration

/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/

:6

2021/06/29 08:28:07 [notice] 1#1: start worker processes

2021/06/29 08:28:07 [notice] 1#1: start worker process 31

2021/06/29 08:28:07 [notice] 1#1: start worker process 32

172.20.38.144 - - [29/Jun/2021:08:28:10 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:28:20 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:28:30 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

// probe가 index.html을 10초 간격으로 체크하고 있다.


5

테스트 ?

index.html 삭제후 실행


kubectl exec livenessprobe -- rm /usr/share/nginx/html/index.html && kubectl logs livenessprobe -f

/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration

:

/docker-entrypoint.sh: Configuration complete; ready for start up

2021/06/29 08:28:07 [notice] 1#1: using the "epoll" event method

2021/06/29 08:28:07 [notice] 1#1: nginx/1.21.0

2021/06/29 08:28:07 [notice] 1#1: built by gcc 8.3.0 (Debian 8.3.0-6)

2021/06/29 08:28:07 [notice] 1#1: OS: Linux 5.4.0-1047-aws

:

2021/06/29 08:29:20 [error] 32#32: *8 open() "/usr/share/nginx/html/index.html" failed (2: No such file or directory), client: 172.20.38.144, server: localhost, request: "GET /index.html :

2021/06/29 08:29:31 [notice] 31#31: exit

2021/06/29 08:29:31 [notice] 1#1: signal 17 (SIGCHLD) received from 32

2021/06/29 08:29:31 [notice] 1#1: worker process 31 exited with code 0

2021/06/29 08:29:31 [notice] 1#1: worker process 32 exited with code 0

2021/06/29 08:29:31 [notice] 1#1: exit


// index.html 3번 실패하면  재시작.

이미지를 다시 가져와 재시작함



6

다시 생성되면 정상 됨.

다시 생성되어 index.html 가 생겨서 정상이 됨


kubectl logs livenessprobe -f

/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration

:

2021/06/29 08:29:33 [notice] 1#1: start worker processes

2021/06/29 08:29:33 [notice] 1#1: start worker process 32

2021/06/29 08:29:33 [notice] 1#1: start worker process 33

172.20.38.144 - - [29/Jun/2021:08:29:40 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:29:50 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:30:00 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:30:10 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:30:20 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:30:30 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"

172.20.38.144 - - [29/Jun/2021:08:30:40 +0000] "GET /index.html HTTP/1.1" 200 612 "-" "kube-probe/1.20" "-"



7

kubectl get events --sort-by=.metadata.creationTimestamp -w



8

파드 삭제

kubectl delete pod --all


// 과제 log 캡춰 제출!!





<6> ReadinessProbe


컨테이너 내부의 애플리케이션이 사용자 요청을 처리할 준비가 됐는지 검사

검사에 실패할 경우 컨테이너는 서비스의 라우팅 대상에서 제외

로드 밸런서 = 서비스 개념이다.


1

cat << EOF > readinessprobe-service.yaml

apiVersion: v1

kind: Pod

metadata:

  name: readinessprobe

  labels:

    readinessprobe: first

spec:

  containers:

  - name: readinessprobe

    image: nginx

    readinessProbe:

      httpGet:

        port: 80

        path: /

---

apiVersion: v1

kind: Service

metadata:

  name: readinessprobe-service

spec:

  ports:

    - name: nginx

      port: 80

      targetPort: 80

  selector:

    readinessprobe: first

  type: ClusterIP

EOF



2

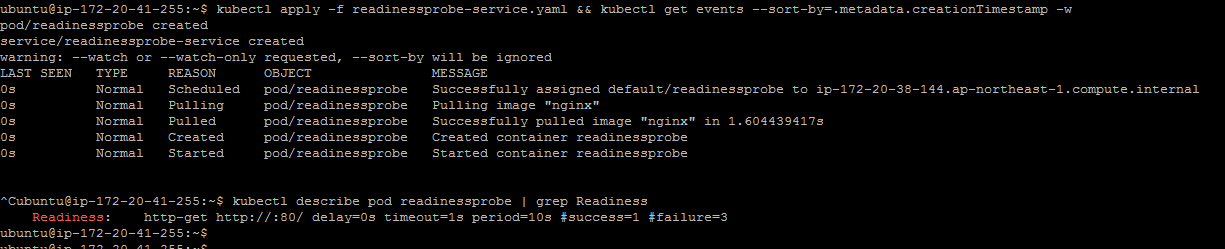

kubectl apply -f readinessprobe-service.yaml && kubectl get events --sort-by=.metadata.creationTimestamp -w



3

kubectl describe pod readinessprobe | grep Readiness


4

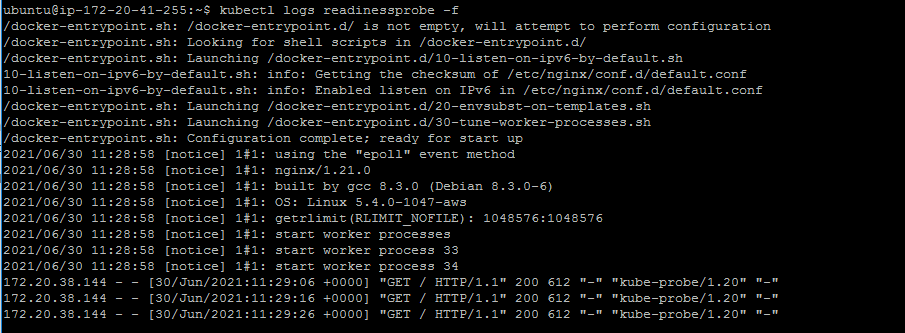

kubectl logs readinessprobe -f


5

kubectl get service readinessprobe-service -o wide


ubuntu@ip-172-20-41-255:~$ kubectl get service readinessprobe-service -o wide

NAME                     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE   SELECTOR

readinessprobe-service   ClusterIP   100.71.183.52   <none>        80/TCP    44s   readinessprobe=first



6

kubectl get endpoints readinessprobe-service


ubuntu@ip-172-20-41-255:~$ kubectl get endpoints readinessprobe-service

NAME                     ENDPOINTS           AGE

readinessprobe-service   100.98.158.137:80   49s


7

curl <CLUSTER-IP>


ubuntu@ip-172-20-41-255:~$ curl 100.98.158.137

<!DOCTYPE html>

<html>

<head>

<title>Welcome to nginx!</title>

<style>

    body {

        width: 35em;

        margin: 0 auto;

        font-family: Tahoma, Verdana, Arial, sans-serif;


8

L4가 실패하도록  index.html 삭제후  재확인


kubectl exec readinessprobe -- rm /usr/share/nginx/html/index.html && kubectl logs readinessprobe -f


9

kubectl get pod

NAME             READY   STATUS    RESTARTS   AGE

readinessprobe   0/1     Running   0          12m

//READY 상태가 0이 됨



10

실패하면  EXTERNAL-IP 가 없어진다.

kubectl get service readinessprobe-service -o wide

NAME                                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE     SELECTOR

readinessprobe-service   ClusterIP    100.71.183.52   <none>          80/TCP  3m37s  readinessprobe=first


11

index.html 실패하면  ENDPOINTS 가 없어진다.

kubectl get endpoints readinessprobe-service

NAME                             ENDPOINTS   AGE

readinessprobe-service                      3m42s


pod가 서비스에서 제외 된다.

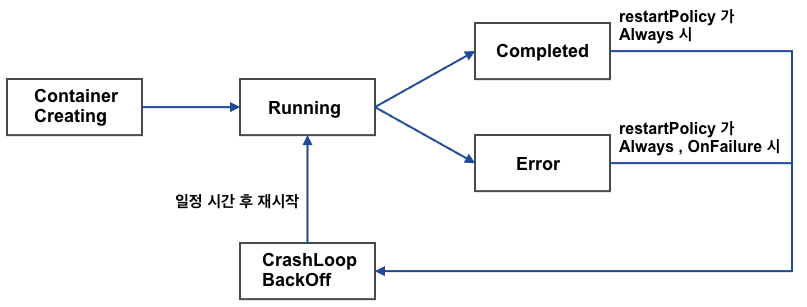

<7> 정리


1

Pod 상태 확인


2

liveness Probe

컨테이너 내부 애플리케이션이 살아있는지 검사

실패할 경우 해당 컨테이너는 restartPolicy 에 따라서 재시작



3

readiness Probe

컨테이너 내부의 애플리케이션이 사용자 요청을 처리할 준비가 됐는지 검사

검사에 실패할 경우 컨테이너는 서비스의 라우팅 대상에서 제외




다음과정

https://brunch.co.kr/@topasvga/1673




감사합니다.
