리눅스 서버 디스크 용량이 부족할 때 디스크 추가가 필요하다.
DISK 추가해보자
<1> 용량 확인과 디스크 추가
<2> 마운트 디렉터리 만들기, 파티셔닝, 포맷하기, 사용하기
<3> 서버 반납은 추가된 스토리지를 삭제한 후에 서버 반납이 가능하다.
<1> 용량 확인과 디스크 추가
1

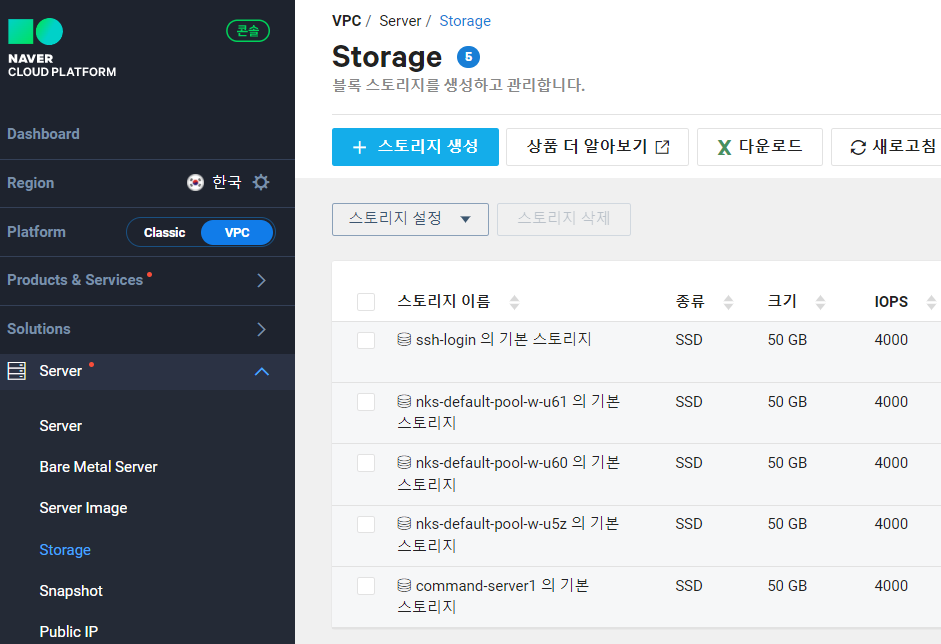

Server > Storage 가면 용량을 확인할 수 있다.
리눅스는 디폴트로 50GB 할당이다.
2

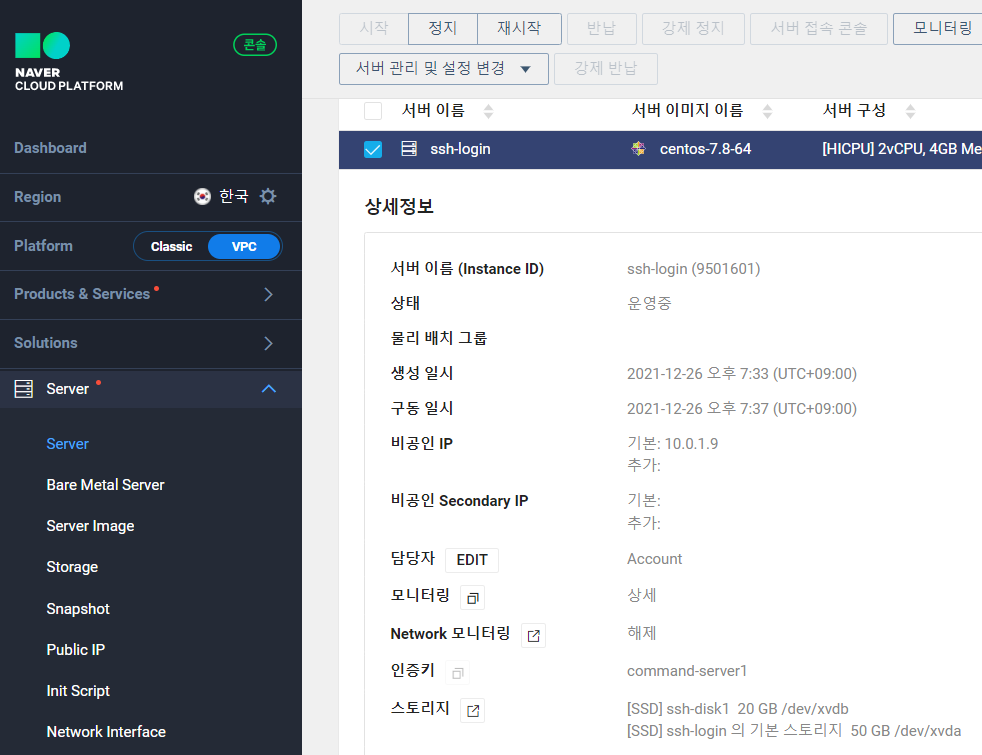

디스크 추가는 Sever > 해당 서버 클릭
서버 관리 및 설정 변경 > 스토리지 생성에서 SSD, HDD 중 선택해 만든다.
ssh-disk1
최소 10기가 ~ 최대 2 테라까지 가능하다.
10기가로 추가하자
3
확인?
Server에서 확인 가능

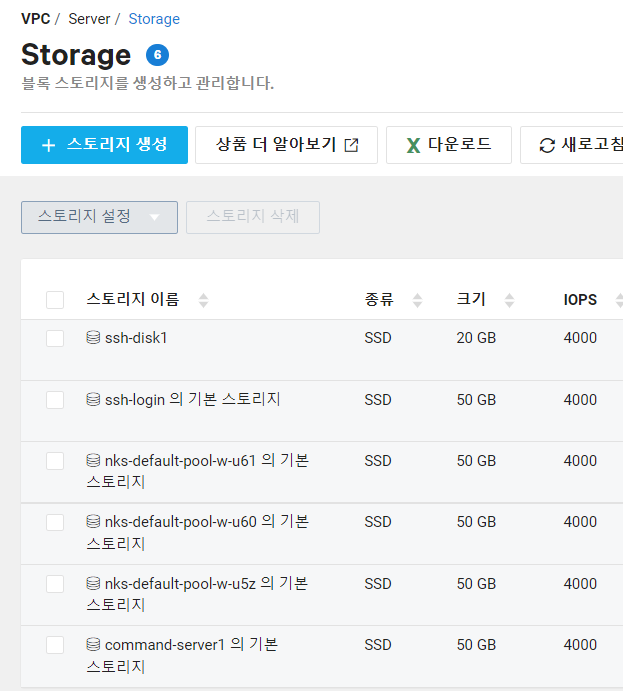

서버 > 스토리지에서 확인 가능하다.
<2> 마운트 디렉터리 만들기, 파티셔닝, 포맷하기, 사용하기
1
마운트 디렉터리 만들기
root (/) 아래에 만든다.
[root@ssh-login ~]# mkdir /disk1
2
파티셔닝
[root@ssh-login ~]# fdisk /dev/xvdb
Welcome to fdisk (util-linux 2.23.2).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0x4 b64 ec74.
Command (m for help): n
Partition type:
p primary (0 primary, 0 extended, 4 free)
e extended
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-20971519, default 2048):
Using default value 2048
Last sector, +sectors or +size {K, M, G} (2048-20971519, default 20971519):
Using default value 20971519
Partition 1 of type Linux and of size 10 GiB is set
Command (m for help): w
The partition table has been altered!
Calling ioctl() to re-read partition table.
Syncing disks.
3
포맷하기
[root@ssh-login ~]# mkfs.ext4 /dev/xvdb1
4
마운트 하기
[root@ssh-login ~]# mount /dev/xvdb1 /disk1
[root@ssh-login ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 1.9G 0 1.9G 0% /dev
tmpfs 1.9G 0 1.9G 0% /dev/shm
tmpfs 1.9G 9.2M 1.9G 1% /run
tmpfs 1.9G 0 1.9G 0% /sys/fs/cgroup
/dev/xvda2 49G 2.4G 47G 5% /
/dev/xvda1 1014M 183M 832M 18% /boot
tmpfs 378M 0 378M 0% /run/user/0
tmpfs 378M 0 378M 0% /run/user/1001
/dev/xvdb1 9.8G 37M 9.2G 1% /disk1
5
사용하기
[root@ssh-login ~]# cd /disk1
[root@ssh-login disk1]# touch test
[root@ssh-login disk1]# ls -al
total 20
drwxr-xr-x 3 root root 4096 Dec 27 11:19.
dr-xr-xr-x. 19 root root 270 Dec 27 11:18..
drwx------ 2 root root 16384 Dec 27 11:19 lost+found
-rw-r--r-- 1 root root 0 Dec 27 11:19 test
아래는 20G추가 경우
<3> 서버 반납은 추가된 스토리지를 삭제한 후에 서버 반납이 가능하다.

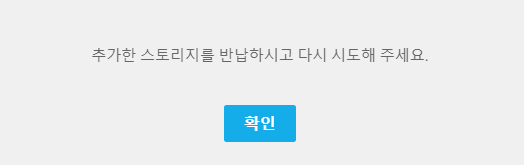

Server > Storage 에서 추가된 스토리지를 삭제한 후에 서버 반납이 가능하다.
다음은
운영중인 서버로 이미지 서버 만들고, 해당 이미지로 서버 만들어 보자
https://brunch.co.kr/@topasvga/2052
감사합니다.
