by Master Seo Apr 20. 2022

NCP 4탄-CLI로 VPC, 서브넷 -10/11

1

CLI로 VPC 만들기


ncloud vpc createVpc --regionCode KR --vpcName devops-edu --ipv4CidrBlock 10.0.0.0/16


[root@Server-EC2 cli_linux]# ncloud vpc createVpc --regionCode KR --vpcName devops-edu --ipv4CidrBlock 10.0.0.0/16

{"createVpcResponse": {

  "requestId": "78327ef0-5da7-4df9-a2fd-f8916306db73",

  "returnCode": "0",

  "returnMessage": "success",

  "totalRows": 1,

  "vpcList": [

    {

      "vpcNo": "19567",

      "vpcName": "devops-edu",

      "ipv4CidrBlock": "10.0.0.0/16",

      "vpcStatus": {

        "code": "INIT",

        "codeName": "init"

      },

      "regionCode": "KR",

      "createDate": "2022-04-20T18:10:24+0900"

    }

  ]

}}

[root@Server-EC2 cli_linux]#

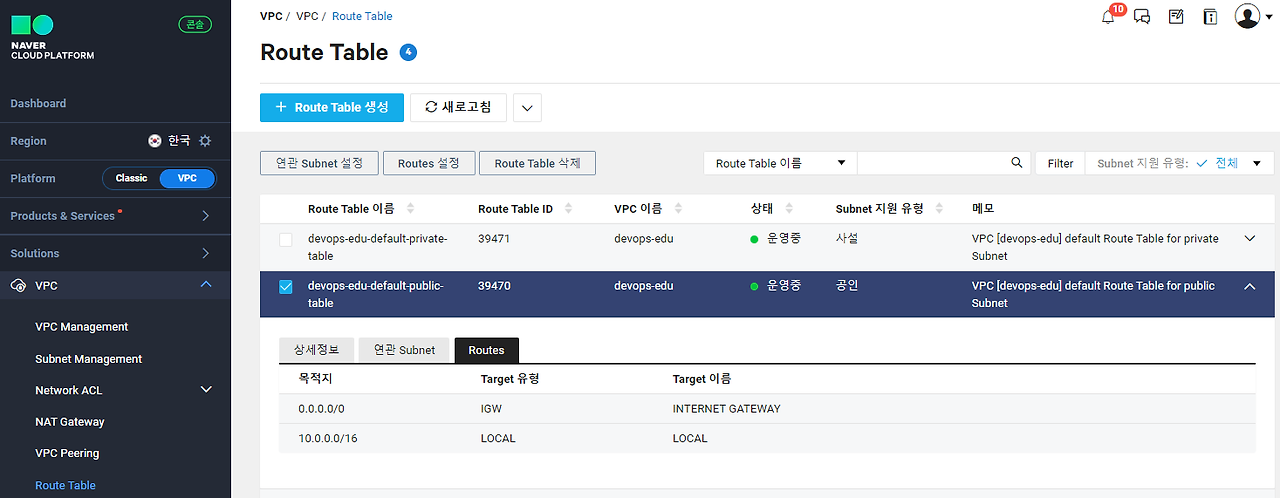

VPC를 만들면 라우팅 테이블도 같이 만들어진다.



2

VPC 확인?


ncloud vpc getVpcList --vpcName devops-edu




3

서브넷은 파워 쉘로 작업 해보자~


[root@Server-EC2 cli_linux]# pwsh


## VPC 정보 불러오기

$vpcList = ((ncloud vpc getVpcList --vpcName devops-edu) | ConvertFrom-Json).getVpcListResponse.vpcList


$eduVpc = $vpcList | Where-Object {$_.vpcName -eq "devops-edu" }

$eduVpcNo = $eduVpc.vpcNo

$eduVpc

$eduVpcNo


PS /root/cli_linux> $vpcList = ((ncloud vpc getVpcList --vpcName devops-edu) | ConvertFrom-Json).getVpcListResponse.vpcList

PS /root/cli_linux> $eduVpc = $vpcList | Where-Object {$_.vpcName -eq "devops-edu" }

PS /root/cli_linux> $eduVpcNo = $eduVpc.vpcNo


PS /root/cli_linux> $eduVpc

vpcNo         : 19567

vpcName       : devops-edu

ipv4CidrBlock : 10.0.0.0/16

vpcStatus     : @{code=RUN; codeName=run}

regionCode    : KR

createDate    : 4/20/2022 6:10:24 PM


PS /root/cli_linux> $eduVpcNo

19567



4

## ACL 정보 불러오기

$eduNacl = ((ncloud vpc getNetworkAclList --vpcNo $eduVpcNo) | ConvertFrom-Json).getNetworkAclListResponse.networkAclList

$eduNaclNo = $eduNacl[0].networkAclNo


$eduNacl

$eduNaclNo



## ACL 정보 불러오기

PS /root/cli_linux> $eduNacl = ((ncloud vpc getNetworkAclList --vpcNo $eduVpcNo) | ConvertFrom-Json).getNetworkAclListResponse.networkAclList

PS /root/cli_linux> $eduNaclNo = $eduNacl[0].networkAclNo


PS /root/cli_linux> $eduNacl

networkAclNo          : 29231

networkAclName        : devops-edu-default-network-acl

vpcNo                 : 19567

networkAclStatus      : @{code=RUN; codeName=run}

networkAclDescription : VPC [devops-edu] default Network ACL

createDate            : 4/20/2022 6:10:25 PM

isDefault             : True


PS /root/cli_linux> $eduNaclNo

29231



5

## 서브넷 만들기

ncloud vpc createSubnet --regionCode KR --zoneCode KR-1 `

     --vpcNo $eduVpcNo --subnetName devops-edu-t1 `

     --subnet 10.0.10.0/24 --networkAclNo $eduNaclNo `

     --subnetTypeCode PUBLIC



ncloud vpc createSubnet --regionCode KR --zoneCode KR-1 `

     --vpcNo $eduVpcNo --subnetName devops-edu-t2 `

     --subnet 10.0.20.0/24 --networkAclNo $eduNaclNo `

     --subnetTypeCode PRIVATE



ncloud vpc createSubnet --regionCode KR --zoneCode KR-1 `

     --vpcNo $eduVpcNo --subnetName devops-edu-t3 `

     --subnet 10.0.30.0/24 --networkAclNo $eduNaclNo `

     --subnetTypeCode PRIVATE



PS /root/cli_linux> ncloud vpc createSubnet --regionCode KR --zoneCode KR-1 `

>>     --vpcNo $eduVpcNo --subnetName devops-edu-t2 `

>>     --subnet 10.0.20.0/24 --networkAclNo $eduNaclNo `

>>     --subnetTypeCode PRIVATE

{"createSubnetResponse": {

  "requestId": "7e39b2cd-b86f-4de3-b8be-5e02acafe5ff",

  "returnCode": "0",

  "returnMessage": "success",

  "totalRows": 1,

  "subnetList": [

    {

      "subnetNo": "40766",

      "vpcNo": "19567",

      "zoneCode": "KR-1",

      "subnetName": "devops-edu-t2",

      "subnet": "10.0.20.0/24",

      "subnetStatus": {

        "code": "CREATING",

        "codeName": "creating"

      },

      "createDate": "2022-04-20T19:56:39+0900",

      "subnetType": {

        "code": "PRIVATE",

        "codeName": "Private"

      },

      "usageType": {

        "code": "GEN",

        "codeName": "General"

      },

      "networkAclNo": "29231"

    }

  ]

}}



PS /root/cli_linux> ncloud vpc createSubnet --regionCode KR --zoneCode KR-1 `

>>     --vpcNo $eduVpcNo --subnetName devops-edu-t3 `

>>     --subnet 10.0.30.0/24 --networkAclNo $eduNaclNo `

>>     --subnetTypeCode PRIVATE

{"createSubnetResponse": {

  "requestId": "8cfdae59-d724-4fcc-921a-f904c7bd87e7",

  "returnCode": "0",

  "returnMessage": "success",

  "totalRows": 1,

  "subnetList": [

    {

      "subnetNo": "40767",

      "vpcNo": "19567",

      "zoneCode": "KR-1",

      "subnetName": "devops-edu-t3",

      "subnet": "10.0.30.0/24",

      "subnetStatus": {

        "code": "CREATING",

        "codeName": "creating"

      },

      "createDate": "2022-04-20T19:56:42+0900",

      "subnetType": {

        "code": "PRIVATE",

        "codeName": "Private"

      },

      "usageType": {

        "code": "GEN",

        "codeName": "General"

      },

      "networkAclNo": "29231"

    }

  ]

}}


PS /root/cli_linux> exit




6

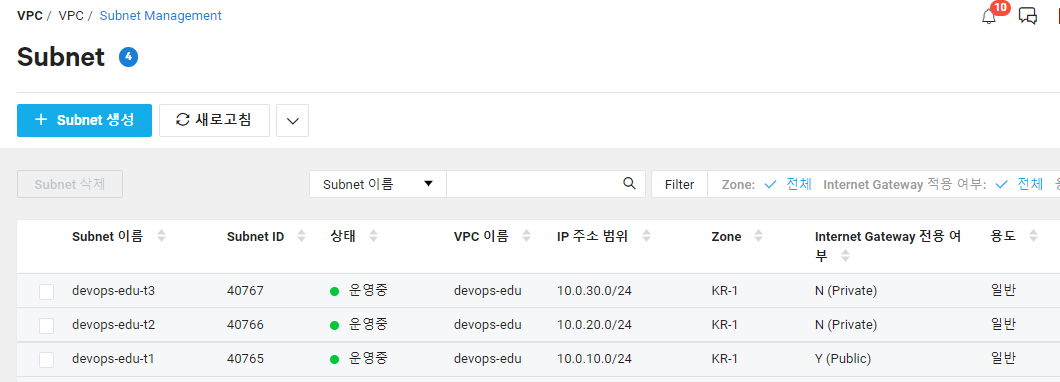

결과
