<1> ALB 생성 - alb.tf
<2> ALB와 ASG 연동 - asg.tf
<3> aws_lb_listener_rule 리소스를 사용해 리스너 규칙을 생성하여 연결 - alb.tf
<4> 도전 과제
<1> ALB 생성 - alb.tf
1
ALB 배포
cat <<EOT > alb.tf
resource "aws_lb" "myalb" {
name = "t101-alb"
load_balancer_type = "application"
subnets = [aws_subnet.mysubnet1.id, aws_subnet.mysubnet2.id]
security_groups = [aws_security_group.mysg.id]
tags = {
Name = "t101-alb"
}
}
output "myalb_dns" {
value = aws_lb.myalb.dns_name
description = "The DNS Address of the ALB"
}
EOT
2
terraform plan && terraform apply -auto-approve
3
terraform state list
4
ALB 정보 확인
aws elbv2 describe-load-balancers --output table
aws elbv2 describe-load-balancers | jq
5
terraform output -raw myalb_dns
6.
ALBDNS=$(terraform output -raw myalb_dns)
while true; do curl --connect-timeout 1 http://$ALBDNS/ ; echo; echo "------------------------------"; date; sleep 1; done
------------------------------
Tue Oct 25 07:36:16 UTC 2022
curl: (7) Failed to connect to t101-alb-1965989833.ap-northeast-2.elb.amazonaws.com port 80 after 322 ms: Connection refused
7
alb 리스너 생성
cat <<EOT > alb.tf
resource "aws_lb" "myalb" {
name = "t101-alb"
load_balancer_type = "application"
subnets = [aws_subnet.mysubnet1.id, aws_subnet.mysubnet2.id]
security_groups = [aws_security_group.mysg.id]
tags = {
Name = "t101-alb"
}
}
resource "aws_lb_listener" "myhttp" {
load_balancer_arn = aws_lb.myalb.arn
port = 80
protocol = "HTTP"
# By default, return a simple 404 page
default_action {
type = "fixed-response"
fixed_response {
content_type = "text/plain"
message_body = "404: page not found - T101 Study"
status_code = 404
}
}
}
output "myalb_dns" {
value = aws_lb.myalb.dns_name
description = "The DNS Address of the ALB"
}
EOT
8
terraform plan && terraform apply -auto-approve
9
# ALB DNS 주소 curl 접속 확인
ALBDNS=$(terraform output -raw myalb_dns)
while true; do curl --connect-timeout 1 http://$ALBDNS/ ; echo; echo "------------------------------"; date; sleep 1; done
404 나오면 정상
------------------------------
Tue Oct 25 07:33:09 UTC 2022
404: page not found - T101 Study
10
aws_lb_target_group 리소스를 사용하여 ASG의 대상 그룹을 생성
대상그룹 만들기~~~
cat <<EOT > alb.tf
resource "aws_lb" "myalb" {
name = "t101-alb"
load_balancer_type = "application"
subnets = [aws_subnet.mysubnet1.id, aws_subnet.mysubnet2.id]
security_groups = [aws_security_group.mysg.id]
tags = {
Name = "t101-alb"
}
}
resource "aws_lb_listener" "myhttp" {
load_balancer_arn = aws_lb.myalb.arn
port = 80
protocol = "HTTP"
# By default, return a simple 404 page
default_action {
type = "fixed-response"
fixed_response {
content_type = "text/plain"
message_body = "404: page not found - T101 Study"
status_code = 404
}
}
}
resource "aws_lb_target_group" "myalbtg" {
name = "t101-alb-tg"
port = 80
protocol = "HTTP"
vpc_id = aws_vpc.myvpc.id
health_check {
path = "/"
protocol = "HTTP"
matcher = "200-299"
interval = 5
timeout = 3
healthy_threshold = 2
unhealthy_threshold = 2
}
}
output "myalb_dns" {
value = aws_lb.myalb.dns_name
description = "The DNS Address of the ALB"
}
EOT
11
terraform plan && terraform apply -auto-approve
// 대상 그룹이 만들어 진다. 콘솔에서 확인!!!
// ALB 대상 그룹 확인 : 아직은 타켓 대상(EC2) 없음
<2> ALB와 ASG 연동 - asg.tf
1
대상서버 추가
cat <<EOT > asg.tf
data "aws_ami" "my_amazonlinux2" {
most_recent = true
filter {
name = "owner-alias"
values = ["amazon"]
}
filter {
name = "name"
values = ["amzn2-ami-hvm-*-x86_64-ebs"]
}
owners = ["amazon"]
}
resource "aws_launch_configuration" "mylauchconfig" {
name_prefix = "t101-lauchconfig-"
image_id = data.aws_ami.my_amazonlinux2.id
instance_type = "t2.micro"
security_groups = [aws_security_group.mysg.id]
associate_public_ip_address = true
user_data = <<-EOF
#!/bin/bash
wget https://busybox.net/downloads/binaries/1.31.0-defconfig-multiarch-musl/busybox-x86_64
mv busybox-x86_64 busybox
chmod +x busybox
RZAZ=\$(curl http://169.254.169.254/latest/meta-data/placement/availability-zone-id)
IID=\$(curl 169.254.169.254/latest/meta-data/instance-id)
LIP=\$(curl 169.254.169.254/latest/meta-data/local-ipv4)
echo "<h1>RegionAz(\$RZAZ) : Instance ID(\$IID) : Private IP(\$LIP) : Web Server</h1>" > index.html
nohup ./busybox httpd -f -p 80 &
EOF
# Required when using a launch configuration with an auto scaling group.
lifecycle {
create_before_destroy = true
}
}
resource "aws_autoscaling_group" "myasg" {
name = "myasg"
launch_configuration = aws_launch_configuration.mylauchconfig.name
vpc_zone_identifier = [aws_subnet.mysubnet1.id, aws_subnet.mysubnet2.id]
min_size = 2
max_size = 10
health_check_type = "ELB"
target_group_arns = [aws_lb_target_group.myalbtg.arn]
tag {
key = "Name"
value = "terraform-asg"
propagate_at_launch = true
}
}
EOT
// health_check_type = "ELB"
target_group_arns = [aws_lb_target_group.myalbtg.arn]
2
terraform plan && terraform apply -auto-approve
3
확인

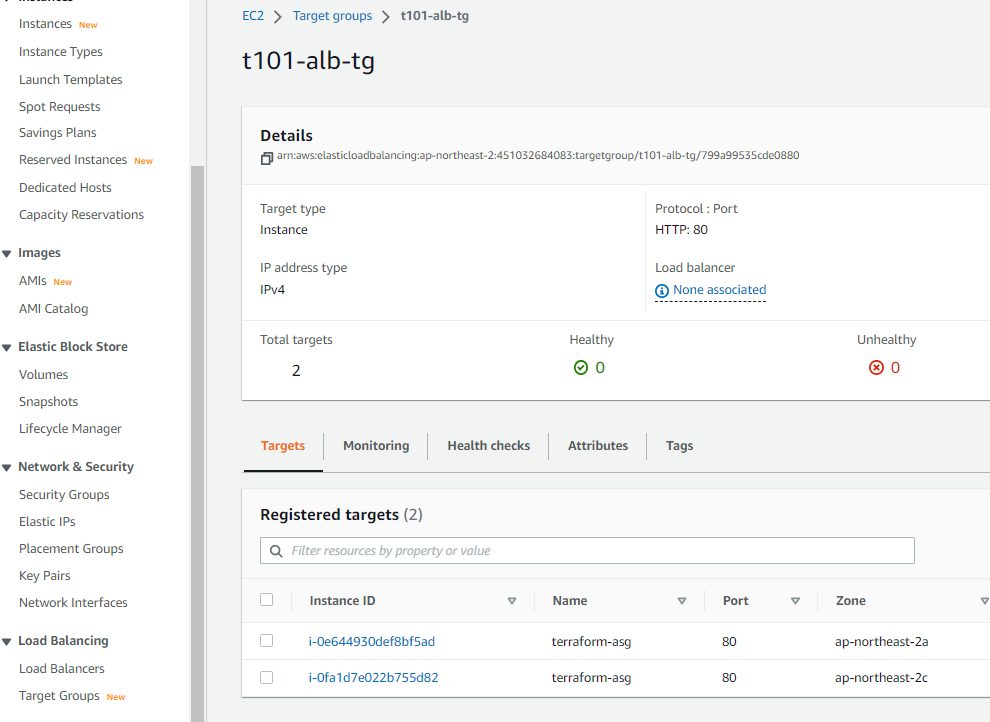

타겟그룹에 EC2가 추가됨.
콘솔 확인
<3> aws_lb_listener_rule 리소스를 사용해 리스너 규칙을 생성하여 연결 - alb.tf
1
cat <<EOT > alb.tf
resource "aws_lb" "myalb" {
name = "t101-alb"
load_balancer_type = "application"
subnets = [aws_subnet.mysubnet1.id, aws_subnet.mysubnet2.id]
security_groups = [aws_security_group.mysg.id]
tags = {
Name = "t101-alb"
}
}
resource "aws_lb_listener" "myhttp" {
load_balancer_arn = aws_lb.myalb.arn
port = 80
protocol = "HTTP"
# By default, return a simple 404 page
default_action {
type = "fixed-response"
fixed_response {
content_type = "text/plain"
message_body = "404: page not found - T101 Study"
status_code = 404
}
}
}
resource "aws_lb_target_group" "myalbtg" {
name = "t101-alb-tg"
port = 80
protocol = "HTTP"
vpc_id = aws_vpc.myvpc.id
health_check {
path = "/"
protocol = "HTTP"
matcher = "200-299"
interval = 5
timeout = 3
healthy_threshold = 2
unhealthy_threshold = 2
}
}
resource "aws_lb_listener_rule" "myalbrule" {
listener_arn = aws_lb_listener.myhttp.arn
priority = 100
condition {
path_pattern {
values = ["*"]
}
}
action {
type = "forward"
target_group_arn = aws_lb_target_group.myalbtg.arn
}
}
output "myalb_dns" {
value = aws_lb.myalb.dns_name
description = "The DNS Address of the ALB"
}
EOT
2
배포 완료 후 curl 접속 확인
# 배포
terraform plan && terraform apply -auto-approve
결과
-----------------------------
Tue Oct 25 07:48:45 UTC 2022
<h1>RegionAz(apne2-az3) : Instance ID(i-0fa1d7e022b755d82) : Private IP(10.10.2.18) : Web Server</h1>
------------------------------
Tue Oct 25 07:48:46 UTC 2022
<h1>RegionAz(apne2-az1) : Instance ID(i-0e644930def8bf5ad) : Private IP(10.10.1.93) : Web Server</h1>
------------------------------
Tue Oct 25 07:48:47 UTC 2022
<h1>RegionAz(apne2-az1) : Instance ID(i-0e644930def8bf5ad) : Private IP(10.10.1.93) : Web Server</h1>
------------------------------
Tue Oct 25 07:48:48 UTC 2022
3
테스트
# ALB DNS주소로 curl 접속 확인
ALBDNS=$(terraform output -raw myalb_dns)
for i in {1..100}; do curl -s http://$ALBDNS/ ; done | sort | uniq -c | sort -nr
vpc]# for i in {1..100}; do curl -s http://$ALBDNS/ ; done | sort | uniq -c | sort -nr
53 <h1>RegionAz(apne2-az1) : Instance ID(i-0e644930def8bf5ad) : Private IP(10.10.1.93) : Web Server</h1>
47 <h1>RegionAz(apne2-az3) : Instance ID(i-0fa1d7e022b755d82) : Private IP(10.10.2.18) : Web Server</h1>
53대 47로 분산 되고 있음.
4
# EC2 최소 2대 => 3대로 증가 수정
sed -i -e 's/min_size = 2/min_size = 3/g' asg.tf
# 배포
terraform plan && terraform apply -auto-approve
5
생성에 2~3분 걸리니 콘솔에서 생성 확인후 확인
# ALB DNS주소로 curl 접속 확인
for i in {1..100}; do curl -s http://$ALBDNS/ ; done | sort | uniq -c | sort -nr
vpc]# for i in {1..100}; do curl -s http://$ALBDNS/ ; done | sort | uniq -c | sort -nr
36 <h1>RegionAz(apne2-az1) : Instance ID(i-077fb0f43675b6849) : Private IP(10.10.1.176) : Web Server</h1>
33 <h1>RegionAz(apne2-az1) : Instance ID(i-0e644930def8bf5ad) : Private IP(10.10.1.93) : Web Server</h1>
31 <h1>RegionAz(apne2-az3) : Instance ID(i-0fa1d7e022b755d82) : Private IP(10.10.2.18) : Web Server</h1>
6
삭제:
terraform destroy -auto-approve
<4> 과제와 도전 과제
1
과제
위 내용 코드와 스크린샷
[root@ip-172-31-61-209 vpc]# ls
alb.tf asg.tf sg.tf terraform.tfstate terraform.tfstate.backup vpc.tf
2
도전 과제
변수로 처리
https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/lb#network-load-balancer
ALB 에 HTTPS(ACM 인증서) 리스너 설정하여 SSL Offload(HTTPS → HTTP로 타켓 대상 연결) 연결하는 테라폼 코드 작성 및 실습해보기
