다음은 주말 CloudNet 테라폼 스터디 내용 참고하여 정리한 부분입니다.
https://gasidaseo.notion.site/gasidaseo/CloudNet-Blog-c9dfa44a27ff431dafdd2edacc8a1863
앞장에서 s3 버킷을 만들었다.
해당 버킷을 사용하자.
<1> dev 환경에서 vpc , ec2 생성. 백엔드 적용
<2> stg 환경에서 vpc , ec2 생성. 백엔드 적용
<1> dev 환경에서 vpc , ec2 생성. 백엔드 적용
1
mkdir dev
cd dev
2
3개 리소스를 만든다.
vpc.tf
sg.tf
ec2.tf
3
cat <<EOT > vpc.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_vpc" "myvpc" {
cidr_block = "10.10.0.0/16"
enable_dns_support = true
enable_dns_hostnames = true
tags = {
Name = "t101-study"
}
}
resource "aws_subnet" "mysubnet1" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.1.0/24"
availability_zone = "ap-northeast-2a"
tags = {
Name = "t101-subnet1"
}
}
resource "aws_subnet" "mysubnet2" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.2.0/24"
availability_zone = "ap-northeast-2c"
tags = {
Name = "t101-subnet2"
}
}
resource "aws_internet_gateway" "myigw" {
vpc_id = aws_vpc.myvpc.id
tags = {
Name = "t101-igw"
}
}
resource "aws_route_table" "myrt" {
vpc_id = aws_vpc.myvpc.id
tags = {
Name = "t101-rt"
}
}
resource "aws_route_table_association" "myrtassociation1" {
subnet_id = aws_subnet.mysubnet1.id
route_table_id = aws_route_table.myrt.id
}
resource "aws_route_table_association" "myrtassociation2" {
subnet_id = aws_subnet.mysubnet2.id
route_table_id = aws_route_table.myrt.id
}
resource "aws_route" "mydefaultroute" {
route_table_id = aws_route_table.myrt.id
destination_cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.myigw.id
}
EOT
4
cat <<EOT > sg.tf
resource "aws_security_group" "mysg" {
vpc_id = aws_vpc.myvpc.id
name = "T101 SG"
description = "T101 Study SG"
}
resource "aws_security_group_rule" "mysginbound" {
type = "ingress"
from_port = 0
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = aws_security_group.mysg.id
}
resource "aws_security_group_rule" "mysgoutbound" {
type = "egress"
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = aws_security_group.mysg.id
}
EOT
5
cat <<EOT > ec2.tf
data "aws_ami" "my_amazonlinux2" {
most_recent = true
filter {
name = "owner-alias"
values = ["amazon"]
}
filter {
name = "name"
values = ["amzn2-ami-hvm-*-x86_64-ebs"]
}
owners = ["amazon"]
}
resource "aws_instance" "myec2" {
depends_on = [
aws_internet_gateway.myigw
]
ami = data.aws_ami.my_amazonlinux2.id
associate_public_ip_address = true
instance_type = "t2.micro"
vpc_security_group_ids = ["\${aws_security_group.mysg.id}"]
subnet_id = aws_subnet.mysubnet1.id
user_data = <<-EOF
#!/bin/bash
wget https://busybox.net/downloads/binaries/1.31.0-defconfig-multiarch-musl/busybox-x86_64
mv busybox-x86_64 busybox
chmod +x busybox
IID=\$(curl 169.254.169.254/latest/meta-data/instance-id)
LIP=\$(curl 169.254.169.254/latest/meta-data/local-ipv4)
echo "<h1>Instance ID(\$IID) : Private IP(\$LIP) : Web Server</h1>" > index.html
nohup ./busybox httpd -f -p 80 &
EOF
user_data_replace_on_change = true
tags = {
Name = "HallsHolicker-jjang"
}
}
output "myec2_public_ip" {
value = aws_instance.myec2.public_ip
description = "The public IP of the Instance"
}
EOT
6
terraform init && terraform plan && terraform apply -auto-approve
7
다른 터미널에서 curl로 확인한다. EC2로 접근이 되는지 확인한다.
MYIP=$(terraform output -raw myec2_public_ip)
while true; do curl --connect-timeout 1 http://$MYIP/ ; echo "------------------------------"; date; sleep 1; done
------------------------------
Thu Oct 27 06:07:05 UTC 2022
<h1>Instance ID(i-002c47956784bd36b) : Private IP(10.10.1.246) : Web Server</h1>
------------------------------
Thu Oct 27 06:07:06 UTC 2022
<h1>Instance ID(i-002c47956784bd36b) : Private IP(10.10.1.246) : Web Server</h1>
8
다른 터미널에서 s3 버킷 모니터링 ?
버킷 하위에 파일이 있는지 모니터링
NICKNAME=masterseo
while true; do aws s3 ls s3://$NICKNAME-t101study-tfstate --recursive --human-readable --summarize ; echo "------------------------------"; date; sleep 1; done
Total Objects: 0
Total Size: 0 Bytes
------------------------------
Thu Oct 27 06:14:12 UTC 2022
Total Objects: 0
9
NICKNAME=masterseo
cat <<EOT > backend.tf
terraform {
backend "s3" {
bucket = "$NICKNAME-t101study-tfstate"
key = "dev/terraform.tfstate"
region = "ap-northeast-2"
dynamodb_table = "terraform-locks"
# encrypt = true
}
}
EOT
10
terraform init
yes
ls terraform.tfstate*
# ls terraform.tfstate*
terraform.tfstate terraform.tfstate.backup
10
# S3 버킷에 파일 확인 - 원격에 tfstate 파일이 위치한다.
Total Objects: 1
Total Size: 21.7 KiB
------------------------------
Thu Oct 27 06:19:16 UTC 2022
2022-10-27 06:15:05 21.7 KiB dev/terraform.tfstate
11

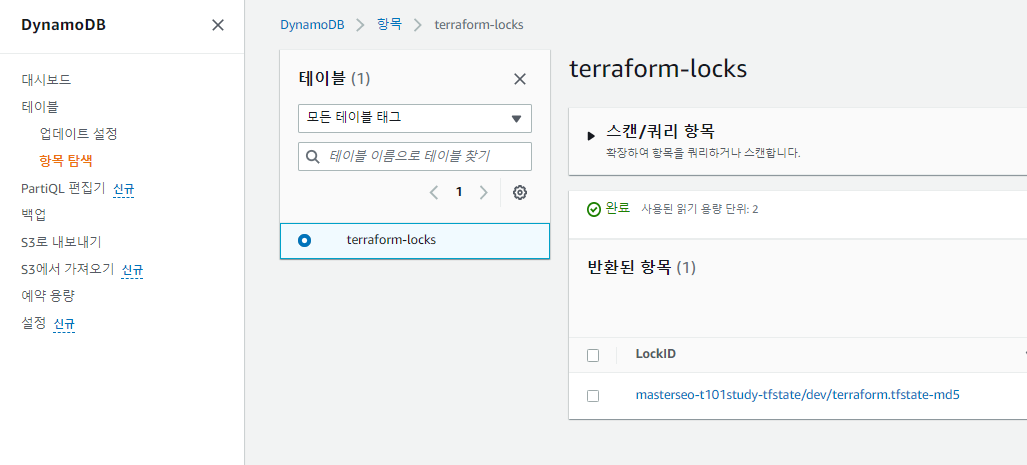

# DynamoDB에 LockID 확인
12
태그변경 , 적용
sed -i -e 's/HallsHolicker-jjang/akbun-jjangg/g' ec2.tf
terraform plan && terraform apply -lock-timeout=60s -auto-approve
다이나모 디비가서 확인 tfstate가 LockID로 나옴.
태그 변경이 완료되면 LockID에서 사라짐
<2> stg 환경에서 vpc , ec2 생성. 백엔드 적용
1
mkdir stg
cd stg
vpc.tf
sg.tf
ec2.tf
2
cat <<EOT > vpc.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_vpc" "stg_myvpc" {
cidr_block = "10.20.0.0/16"
enable_dns_support = true
enable_dns_hostnames = true
tags = {
Name = "stg_t101-study"
}
}
resource "aws_subnet" "stg_mysubnet1" {
vpc_id = aws_vpc.stg_myvpc.id
cidr_block = "10.20.1.0/24"
availability_zone = "ap-northeast-2a"
tags = {
Name = "stg_t101-subnet1"
}
}
resource "aws_subnet" "stg_mysubnet2" {
vpc_id = aws_vpc.stg_myvpc.id
cidr_block = "10.20.2.0/24"
availability_zone = "ap-northeast-2c"
tags = {
Name = "stg_t101-subnet2"
}
}
resource "aws_internet_gateway" "stg_myigw" {
vpc_id = aws_vpc.stg_myvpc.id
tags = {
Name = "stg_t101-igw"
}
}
resource "aws_route_table" "stg_myrt" {
vpc_id = aws_vpc.stg_myvpc.id
tags = {
Name = "stg_t101-rt"
}
}
resource "aws_route_table_association" "stg_myrtassociation1" {
subnet_id = aws_subnet.stg_mysubnet1.id
route_table_id = aws_route_table.stg_myrt.id
}
resource "aws_route_table_association" "stg_myrtassociation2" {
subnet_id = aws_subnet.stg_mysubnet2.id
route_table_id = aws_route_table.stg_myrt.id
}
resource "aws_route" "stg_mydefaultroute" {
route_table_id = aws_route_table.stg_myrt.id
destination_cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.stg_myigw.id
}
EOT
3
cat <<EOT > sg.tf
resource "aws_security_group" "stg_mysg" {
vpc_id = aws_vpc.stg_myvpc.id
name = "T101 SG"
description = "T101 Study SG"
}
resource "aws_security_group_rule" "stg_mysginbound" {
type = "ingress"
from_port = 0
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = aws_security_group.stg_mysg.id
}
resource "aws_security_group_rule" "stg_mysgoutbound" {
type = "egress"
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = aws_security_group.stg_mysg.id
}
EOT
4
cat <<EOT > ec2.tf
data "aws_ami" "my_amazonlinux2" {
most_recent = true
filter {
name = "owner-alias"
values = ["amazon"]
}
filter {
name = "name"
values = ["amzn2-ami-hvm-*-x86_64-ebs"]
}
owners = ["amazon"]
}
resource "aws_instance" "stg_myec2" {
depends_on = [
aws_internet_gateway.stg_myigw
]
ami = data.aws_ami.my_amazonlinux2.id
associate_public_ip_address = true
instance_type = "t2.micro"
vpc_security_group_ids = ["\${aws_security_group.stg_mysg.id}"]
subnet_id = aws_subnet.stg_mysubnet1.id
user_data = <<-EOF
#!/bin/bash
wget https://busybox.net/downloads/binaries/1.31.0-defconfig-multiarch-musl/busybox-x86_64
mv busybox-x86_64 busybox
chmod +x busybox
IID=\$(curl 169.254.169.254/latest/meta-data/instance-id)
LIP=\$(curl 169.254.169.254/latest/meta-data/local-ipv4)
echo "<h1>Instance ID(\$IID) : Private IP(\$LIP) : Web Server</h1>" > index.html
nohup ./busybox httpd -f -p 80 &
EOF
user_data_replace_on_change = true
tags = {
Name = "HallsHolicker-jjang"
}
}
output "myec2_public_ip" {
value = aws_instance.stg_myec2.public_ip
description = "The public IP of the Instance"
}
EOT
5
NICKNAME=masterseo
cat <<EOT > backend.tf
terraform {
backend "s3" {
bucket = "$NICKNAME-t101study-tfstate"
key = "stg/terraform.tfstate"
region = "ap-northeast-2"
dynamodb_table = "terraform-locks"
# encrypt = true
}
}
EOT
6

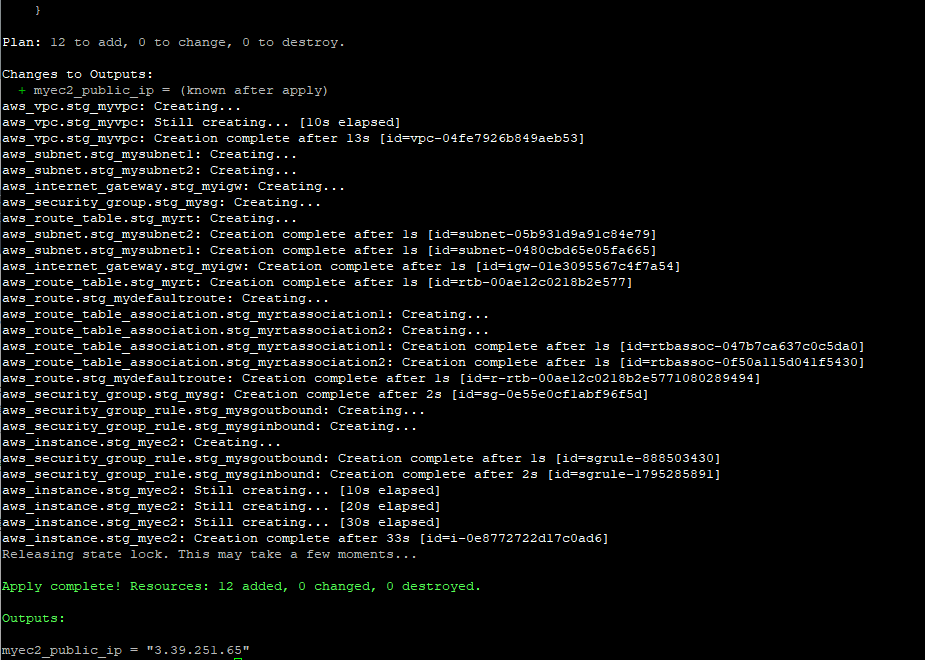

배포
terraform init
terraform plan && terraform apply-lock-timeout=60s -auto-approve
7

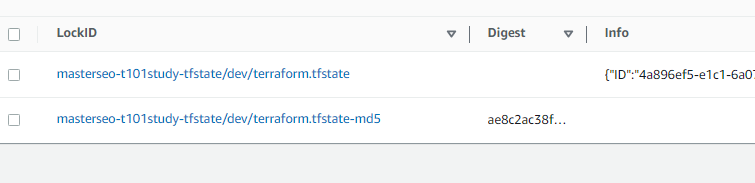

LockID 상태 확인 : 테라폼을 통해 apply 하는 도중에 아래 정보 확인 가능
8
배포후

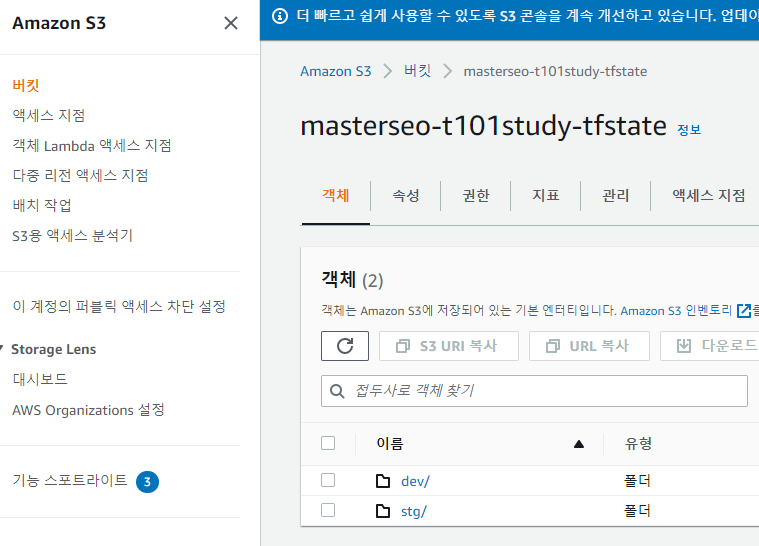

s3 확인
9

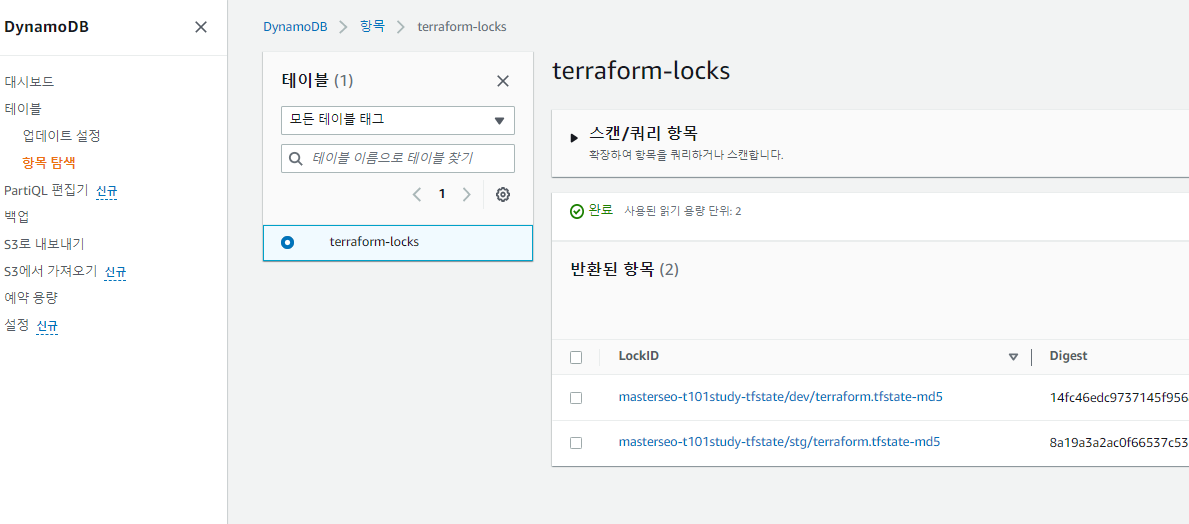

다이나모 디비 확인
