3. nhn클라우드- nks mario, tetris

by Master Seo
Apr 17. 2023

<1> mario 배포

<2> 정리

<3> tetris 배포

<4> 정리

<5> quake3 배포

<6> 정리




<1> mario 배포


1

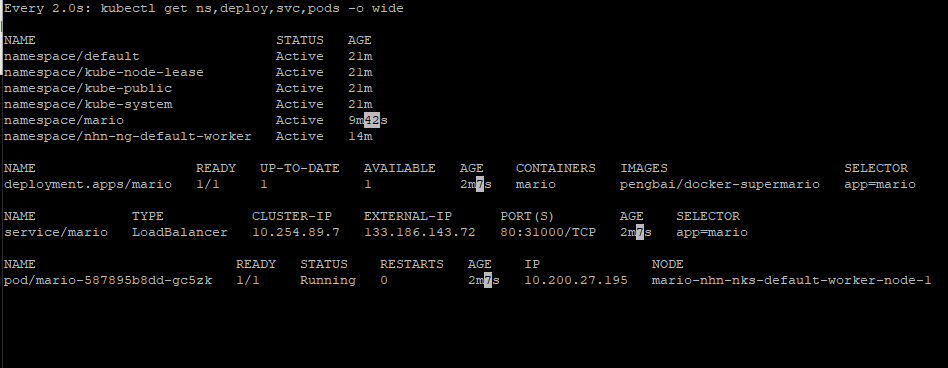

터미널 모니터링

watch -d 'kubectl get ns,deploy,svc,pods -o wide'



2

kubectl create namespace mario

k ns mario

Context "default" modified.

Active namespace is "mario".



3

curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/1/mario.yaml

kubectl apply -f mario.yaml


more mario.yaml


cat <<EOF | kubectl create -f -

apiVersion: apps/v1

kind: Deployment

metadata:

name: mario

labels:

app: mario

spec:

replicas: 1

selector:

matchLabels:

app: mario

template:

metadata:

labels:

app: mario

spec:

containers:

- name: mario

image: pengbai/docker-supermario

---

apiVersion: v1

kind: Service

metadata:

name: mario

spec:

selector:

app: mario

ports:

- port: 80

protocol: TCP

targetPort: 8080

type: LoadBalancer

EOF



2000 mario.txt



10 mario.png




삭제

kubectl delete deploy,svc mario



4

# 확인

kubectl get deploy,svc mario

kubectl exec deploy/mario -- ps axf


# 게임 웹 접속 주소 확인

GAMENIP=$(kubectl get pod -l app=mario -o jsonpath='{.items[0].status.hostIP}')

GAMENPORT=$(kubectl get svc mario -o jsonpath={.spec.ports[0].nodePort})

echo -e "GAME URL = http://$GAMENIP:$GAMENPORT"


(⎈|default:mario) [root@2048game-nhn-web01 ~]# echo -e "GAME URL = http://$GAMENIP:$GAMENPORT"




4






5

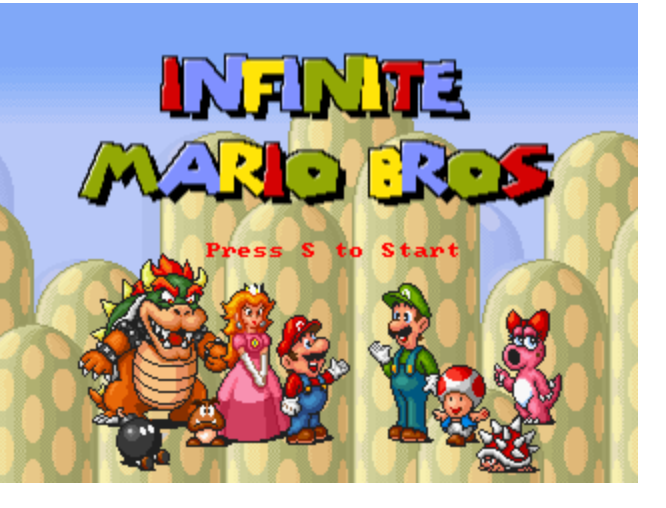

게임 시작 s 입력, 점프(s), 쏘기(a)


6

mario pod에서 웹 접속 확인

kubectl exec -it deploy/mario -- ls /usr/local/tomcat/logs


tail로 접속자 확인

kubectl exec -it deploy/mario -- tail /usr/local/tomcat/logs/localhost_access_log.xxxx-xx-xx.txt




7

삭제

kubectl delete deploy,svc mario




<2> 정리


타입을 노드포트 대신 로드밸런서로 변경하면 외부에서 접속이 가능하다.

type: LoadBalancer






<3> tetris 배포


1

https://hub.docker.com/r/bsord/tetris

Docker

https://hub.docker.com/r/bsord/tetris




2

kubectl create namespace tetris

k ns tetris



3

cat <<EOF | kubectl create -f -

apiVersion: apps/v1

kind: Deployment

metadata:

name: tetris

labels:

app: tetris

spec:

replicas: 1

selector:

matchLabels:

app: tetris

template:

metadata:

labels:

app: tetris

spec:

containers:

- name: tetris

image: bsord/tetris

EOF


kubectl expose deployment tetris --port=80 --type=LoadBalancer


100 테트리스.png


kubectl delete deploy,svc tetris


4

cat <<EOF | kubectl create -f -

apiVersion: apps/v1

kind: Deployment

metadata:

name: tetris

labels:

app: tetris

spec:

replicas: 1

selector:

matchLabels:

app: tetris

template:

metadata:

labels:

app: tetris

spec:

containers:

- name: tetris

image: bsord/tetris

---

apiVersion: v1

kind: Service

metadata:

name: tetris

spec:

selector:

app: tetris

ports:

- port: 80

protocol: TCP

targetPort: 80

type: NodePort

EOF


5

// 타입을 로드밸런서로 변경하면 외부에서 접속이 된다.

type: LoadBalancer



# 확인

kubectl get deploy,svc tetris


topas3@cloudshell:~ (loyal-symbol-386014)$ kubectl get deploy,svc tetris

NAME READY UP-TO-DATE AVAILABLE AGE

deployment.apps/tetris 1/1 1 1 63s

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

service/tetris LoadBalancer 10.52.1.160 34.72.7.209 80:31120/TCP 56s




# 게임 웹 접속 주소 확인

GAMENIP=$(kubectl get pod -l app=tetris -o jsonpath='{.items[0].status.hostIP}')

GAMENPORT=$(kubectl get svc tetris -o jsonpath={.spec.ports[0].nodePort})

echo -e "GAME URL = http://$GAMENIP:$GAMENPORT"

-------------------------------

GAME URL = http://10.0.0.33:30524



6

화살표키, 일시중지(space bar)


7

kubectl delete deploy,svc tetris



8

기타.

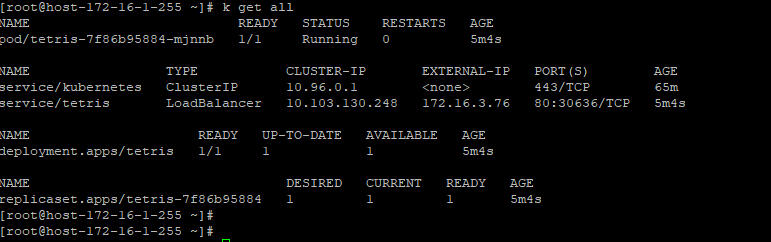

카카오 i cloud는 테트리스 로드밸런서가 사설로 나옴

300 kakao-tetris-사설.png



nhn으로 하면 공인으로 나옴,

300 tetris-nhn-eip.png




<4> 정리


타입을 로드밸런서로 변경하면 외부에서 접속이 된다.

type: LoadBalancer




<5> quake3 배포


1

링크

https://hub.docker.com/r/criticalstack/quake


발표 자료

https://www.slideshare.net/openstack_kr/openinfra-days-korea-2018-track-4-provisioning-dedicated-game-server-on-kubernetes-cluster



2

namespace 생성

kubectl create namespace quake3

(⎈|default:default) [root@2048game-nhn-web01 ~]# k ns quake3


(⎈|default:quake3) [root@2048game-nhn-web01 ~]#



3

(선택)

node 서비스


cat <<EOF | kubectl create -f -

apiVersion: apps/v1

kind: Deployment

metadata:

name: quake

spec:

selector:

matchLabels:

run: quake

replicas: 1

template:

metadata:

labels:

run: quake

annotations:

prometheus.io/scrape: 'true'

prometheus.io/port: '8080'

spec:

containers:

- command:

- q3

- server

- --config=/config/config.yaml

- --content-server=http://127.0.0.1:9090

- --agree-eula

image: docker.io/criticalstack/quake:latest

name: server

ports:

- containerPort: 8080

readinessProbe:

tcpSocket:

port: 8080

initialDelaySeconds: 15

periodSeconds: 5

volumeMounts:

- name: quake3-server-config

mountPath: /config

- name: quake3-content

mountPath: /assets

- command:

- q3

- content

- --seed-content-url=http://content.quakejs.com

image: docker.io/criticalstack/quake:latest

name: content-server

ports:

- containerPort: 9090

volumeMounts:

- name: quake3-content

mountPath: /assets

volumes:

- name: quake3-server-config

configMap:

name: quake3-server-config

- name: quake3-content

emptyDir: {}

---

apiVersion: v1

kind: Service

metadata:

name: quake

spec:

type: NodePort

selector:

run: quake

ports:

- port: 8080

targetPort: 8080

name: client

- port: 27960

targetPort: 27960

name: server

- port: 9090

targetPort: 9090

name: content

---

apiVersion: v1

kind: ConfigMap

metadata:

name: quake3-server-config

data:

config.yaml: |

fragLimit: 25

timeLimit: 15m

bot:

minPlayers: 3

game:

motd: "Welcome to Critical Stack"

type: FreeForAll

forceRespawn: false

inactivity: 10m

quadFactor: 3

weaponRespawn: 3

server:

hostname: "quakekube"

maxClients: 12

password: "changeme"

commands:

- addbot sarge 2

maps:

- name: q3dm7

type: FreeForAll

timeLimit: 10m

- name: q3dm17

type: FreeForAll

- name: q3wctf1

type: CaptureTheFlag

captureLimit: 8

- name: q3tourney2

type: Tournament

- name: q3wctf3

type: CaptureTheFlag

captureLimit: 8

- name: ztn3tourney1

type: Tournament

EOF



타입을 로드밸런서로 변경하면 외부에서 접속이 된다.

type: LoadBalancer


port를 8080에서 80으로 바꾸면 웹으로 접속도 된다.




4

Every 2.0s: kubectl get all


NAME READY STATUS RESTARTS AGE

pod/quake-566d6666f5-kqshs 2/2 Running 0 5m12s


NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

service/quake LoadBalancer 10.254.65.19 133.186.203.88 8080:32389/TCP,27960:31021/TCP,9090:30553/TCP 5m12s


NAME READY UP-TO-DATE AVAILABLE AGE

deployment.apps/quake 1/1 1 1 5m12s


NAME DESIRED CURRENT READY AGE

replicaset.apps/quake-566d6666f5 1 1 1 5m12s

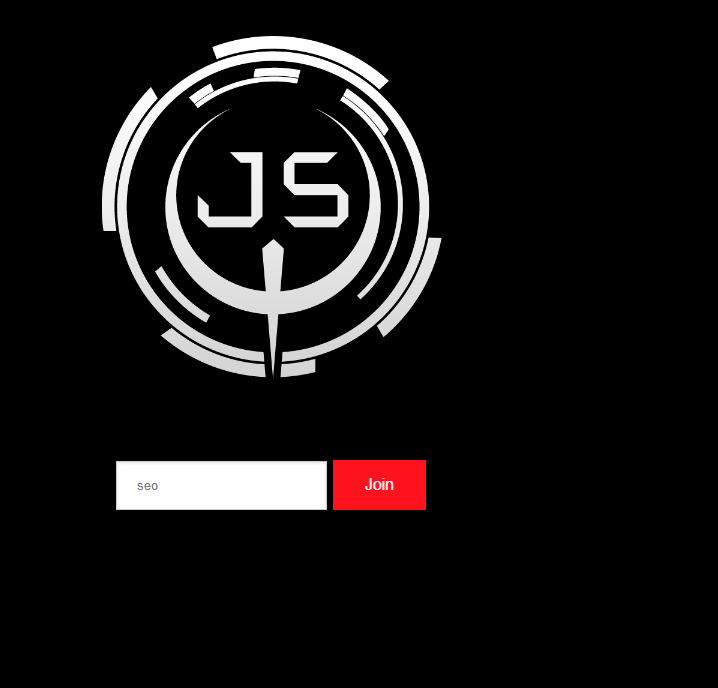

http://133.186.203.88:8080/


199 quake3.png

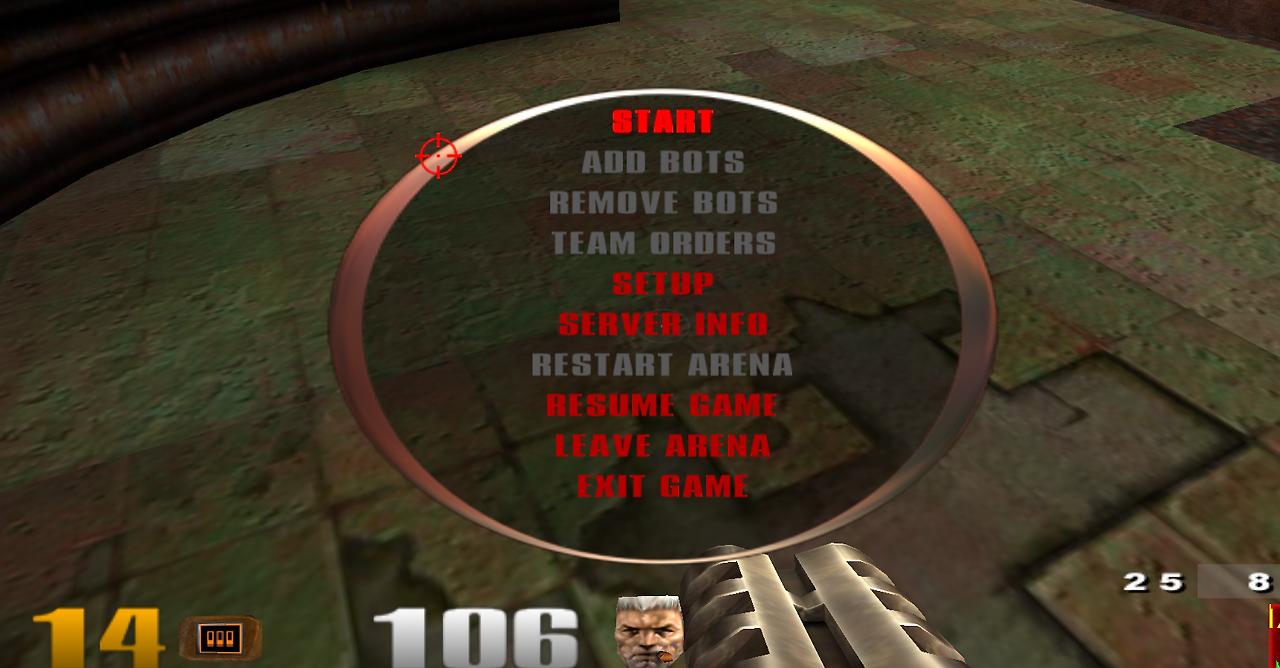

200 quakr.png




5

kubectl exec deploy/quake -it -- cat /config/config.yaml


# 프로세스 확인

kubectl exec deploy/quake -it -c server -- ps axf


kubectl exec deploy/quake -it -c content-server -- ps -ef


# 게임파드가 배포된 노드의 IP 확인

QNAME=$(kubectl get pod -l run=quake -o jsonpath='{.items[0].metadata.name}')

QNODE=$(kubectl get pod $QNAME -o jsonpath={.spec.nodeName})

QNODEIP=$(kubectl get node $QNODE -o jsonpath={.status.addresses[0].address})


# 게임 접속하기 위한 NodePort

QPORT=$(kubectl get service quake -o jsonpath='{.spec.ports[0].nodePort}')


# 게임 접속 웹 URL 접속 확인

echo -e "Quake3 Game Web URL = http://$QNODEIP:$QPORT"


(⎈|default:quake3) [root@2048game-nhn-web01 ~]# echo -e "Quake3 Game Web URL = http://$QNODEIP:$QPORT"

Quake3 Game Web URL = http://10.0.0.33:32280



6

화살표키, CTRL키 , ALT키, Space키



7

k delete service quake

k delete deploy quake

k delete configmap quake3-server-config


kubectl delete deploy,svc quake




<6> 정리


1

타입을 로드밸런서로 변경하면 외부에서 접속이 된다.

type: LoadBalancer


2

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

service/quake LoadBalancer 10.254.65.19 133.186.203.88 8080:32389/TCP,27960:31021/TCP,9090:30553/TCP 5m12s


8080으로 접속

http://133.186.203.88:8080/



감사합니다.
