by Master Seo Apr 17. 2023

10. nhn클라우드- nks -Travel Demo

<1> Travel Demo Tutorial

<2>  네임스페이스 생성

<3> 정리

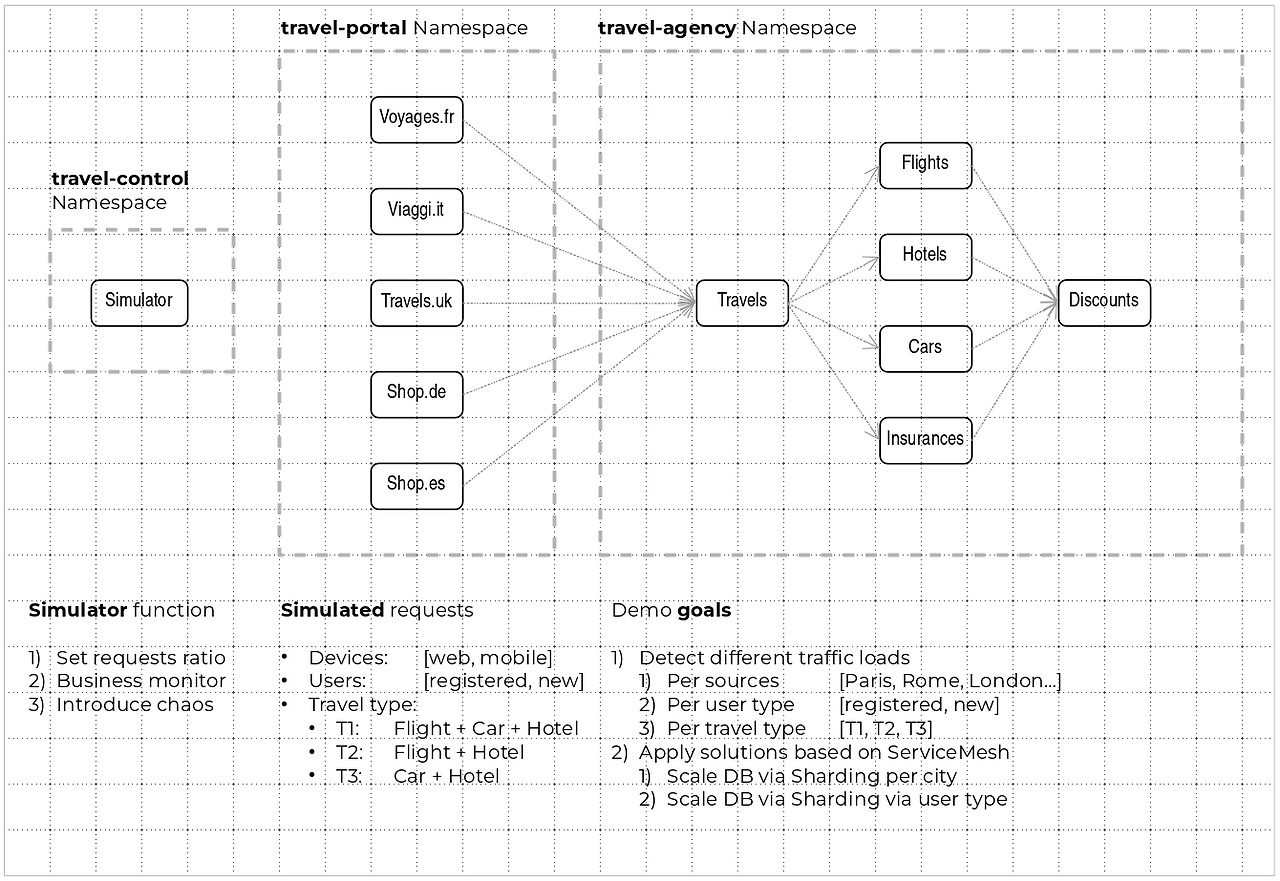

<1> Travel Demo Tutorial



https://kiali.io/docs/tutorials/travels/

https://kiali.io/docs/tutorials/travels/02-install-travel-demo/




<2>  네임스페이스 생성


1

 watch -d kubectl get ns,deploy,svc,pod


2

kubectl create namespace travel-agency

kubectl create namespace travel-portal

kubectl create namespace travel-control



# (옵션) istio 사용 시

kubectl label namespace travel-control istio-injection=enabled

kubectl label namespace travel-agency istio-injection=enabled

kubectl label namespace travel-portal istio-injection=enabled



# 서비스/디플로이먼트 배포

kubectl apply -f <(curl -L https://raw.githubusercontent.com/kiali/demos/master/travels/travel_agency.yaml) -n travel-agency


kubectl apply -f <(curl -L https://raw.githubusercontent.com/kiali/demos/master/travels/travel_portal.yaml) -n travel-portal


kubectl apply -f <(curl -L https://raw.githubusercontent.com/kiali/demos/master/travels/travel_control.yaml) -n travel-control



# 확인

kubectl get deployments -n travel-control

kubectl get deployments -n travel-portal

kubectl get deployments -n travel-agency



# 웹 접속을 위한 NodePort 설정

kubectl patch svc -n travel-control control -p '{"spec":{"type":"NodePort"}}'



# (옵션) kiali 접속해서 istio config 설정 및 삭제 테스트


# (옵션) istio 사용 시 - istio gw,vs 설정

cat <<EOF | kubectl create -f -

apiVersion: networking.istio.io/v1alpha3

kind: Gateway

metadata:

  name: travel-gateway

  namespace: travel-control

spec:

  selector:

    istio: ingressgateway # use istio default controller

  servers:

  - port:

      number: 80

      name: http

      protocol: HTTP

    hosts:

    - "*"

---

apiVersion: networking.istio.io/v1alpha3

kind: VirtualService

metadata:

  name: travel

  namespace: travel-control

spec:

  hosts:

  - "*"

  gateways:

  - travel-gateway

  http:

  - route:

    - destination:

        host: control

        port:

          number: 8080

EOF



# 삭제

kubectl delete namespace travel-agency

kubectl delete namespace travel-portal

kubectl delete namespace travel-control



<3> 정리



감사합니다.
