EKS 8탄-5. 스토리지-EBS 2

EKS 8탄 - 3주차


본 내용은 CloudNet 주말 스터디 내용을 참고로 작성되었습니다.

https://gasidaseo.notion.site/gasidaseo/CloudNet-Blog-c9dfa44a27ff431dafdd2edacc8a1863

계속 테스트하며  내용과 설명이 업데이트됩니다.


목표

pod가  EBS 사용하기

볼륨 증가 해보기

스냅숏 생성해 보기



<1> AWS EBS Controller

<2> PVC/PV 파드 테스트

<3> 볼륨 증가 시키기

<4> AWS Volume SnapShots Controller

<5>  volumesnapshot 테스트

<6> app & pvc 제거 : 강제로 장애 재현

<7> 정리




<1> AWS EBS Controller


EBS 컨트롤러로 Pod가 EBS 볼륨을 사용하게 하자.



1

참고

https://malwareanalysis.tistory.com/598

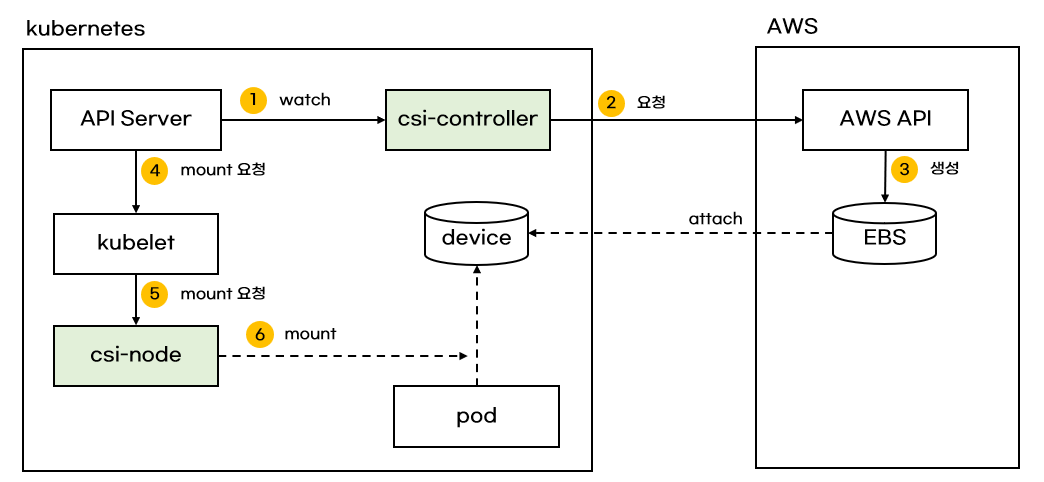

Pod가 EBS를 사용하기 위해서는 csi-controller 와 csi-node가 필요하다.

AWS API 호출하는 csi-controller

AWS 스토리지를 Pod에 mount하는 csi-node


설정 주의점

persistentvolume, persistentvolumeclaim의 accessModes는 ReadWriteOnce로 설정해야 합니다

EBS스토리지 기본 설정이 동일 AZ에 있는 EC2 인스턴스(에 배포된 파드)에 연결해야 하기 때문입니다.

=> Pod를 배포하는 노드 스케쥴링으로 해결.




2

설치 Amazon EBS CSI driver as an Amazon EKS add-on

https://docs.aws.amazon.com/ko_kr/eks/latest/userguide/managing-ebs-csi.html

https://github.com/kubernetes-sigs/aws-ebs-csi-driver/blob/master/docs/parameters.md



3

# 아래는 aws-ebs-csi-driver 전체 버전 정보와 기본 설치 버전(True) 정보 확인


aws eks describe-addon-versions --addon-name aws-ebs-csi-driver --kubernetes-version 1.24 --query "addons[].addonVersions[].[addonVersion,compatibilities[].defaultVersion]" --output text


(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# aws eks describe-addon-versions --addon-name aws-ebs-csi-driver --kubernetes-version 1.24 --query "addons[].addonVersions[].[addonVersion,compatibilities[].defaultVersion]" --output text

v1.18.0-eksbuild.1

True

v1.17.0-eksbuild.1

False

:

False

v1.14.1-eksbuild.1

False

v1.14.0-eksbuild.1




4

# EBS도  IRSA 설정

AWS관리형 정책 AmazonEBSCSIDriverPolicy 사용


eksctl create iamserviceaccount --name ebs-csi-controller-sa --namespace kube-system --cluster ${CLUSTER_NAME} --attach-policy-arn arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy --approve --role-only --role-name AmazonEKS_EBS_CSI_DriverRole



5

# IRSA 세팅 되었는지 확인 ?


kubectl get sa -n kube-system ebs-csi-controller-sa -o yaml | head -5



eksctl get iamserviceaccount --cluster myeks

(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get iamserviceaccount --cluster myeks

NAMESPACE       NAME                            ROLE ARN

kube-system     aws-load-balancer-controller    arn:aws:iam::476286675138:role/eksctl-myeks-addon-iamserviceaccount-kube-sy-Role1-ILKQZ0MFQ6E5

kube-system     ebs-csi-controller-sa          arn:aws:iam::4768:role/AmazonEKS_EBS_CSI_DriverRole

// 로드밸런서용 role IRSA생김

// ebs-csi용 role  IRSA 생김

// 쿠버네티스에는 서비스 어카운트가 생기고 , AWS는 IRSA가 생김



5

# Amazon EBS CSI driver 를 addon으로  추가하기

eksctl create addon --name aws-ebs-csi-driver --cluster ${CLUSTER_NAME} --service-account-role-arn arn:aws:iam::${ACCOUNT_ID}:role/AmazonEKS_EBS_CSI_DriverRole --force



6

# addon 된것 확인  ?

get addon으로 확인한다.


eksctl get addon --cluster ${CLUSTER_NAME}

NAME                    VERSION                 STATUS          ISSUES  IAMROLE                                                                         UPDATE AVAILABLE  CONFIGURATION VALUES

aws-ebs-csi-driver      v1.18.0-eksbuild.1      CREATING        0       arn:aws:iam::476286675138:role/AmazonEKS_EBS_CSI_DriverRole

coredns                 v1.9.3-eksbuild.3       ACTIVE          0

kube-proxy              v1.24.10-eksbuild.2     ACTIVE          0

vpc-cni                 v1.12.6-eksbuild.1      ACTIVE          0       arn:aws:iam::476286675138:role/eksctl-myeks-addon-vpc-cni-Role1-11DYQF2ETYXDT



kubectl get deploy,ds -l=app.kubernetes.io/name=aws-ebs-csi-driver -n kube-system



7

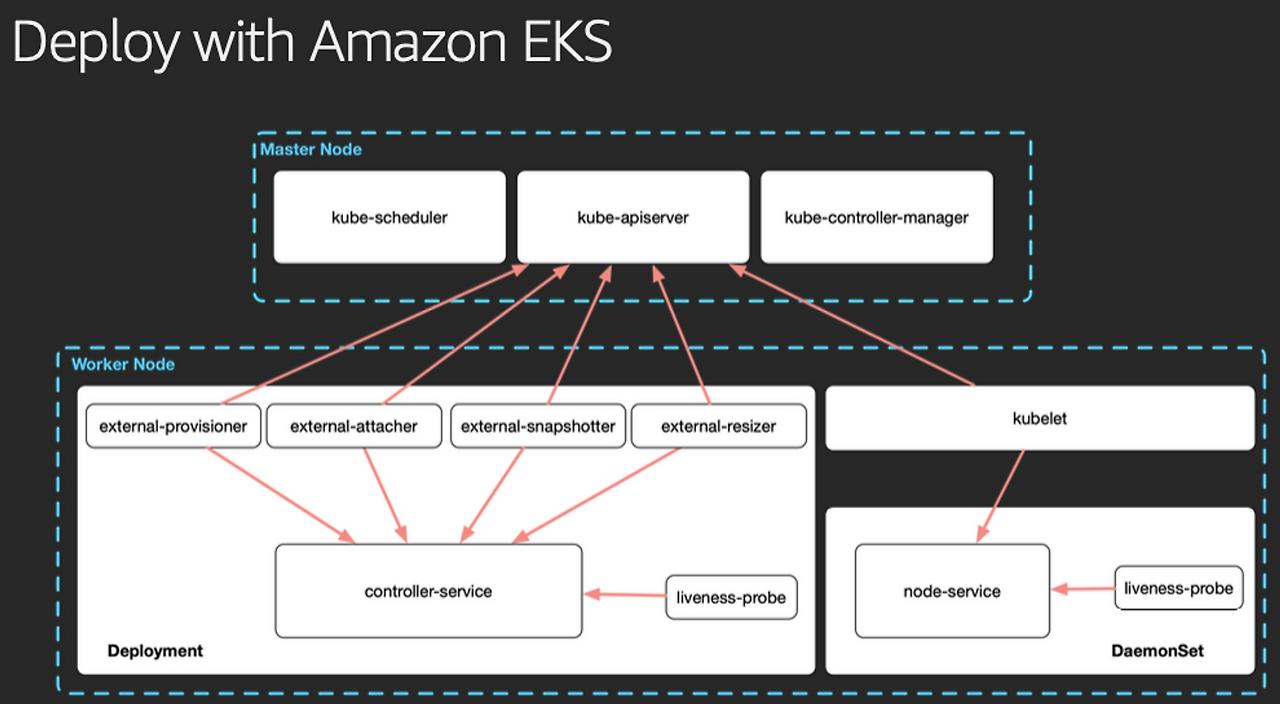

Pod가 EBS를 사용하기 위해서는 csi-controller 와 csi-node가 필요하다.

AWS API 호출하는 csi-controller

AWS 스토리지를 Pod에 mount하는 csi-node


ebs-csi-controller , ebs-csi-node 확인.

kubectl get pod -n kube-system -l 'app in (ebs-csi-controller,ebs-csi-node)'


(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod -n kube-system -l 'app in (ebs-csi-controller,ebs-csi-node)'

NAME                                  READY   STATUS    RESTARTS   AGE

ebs-csi-controller-67658f895c-bllmf   6/6     Running   0          109s

ebs-csi-controller-67658f895c-j4mnw   6/6     Running   0          109s

ebs-csi-node-7htwr                    3/3     Running   0          109s

ebs-csi-node-pchk5                    3/3     Running   0          109s

ebs-csi-node-skmhb                    3/3     Running   0          109s

// csi-controller pod와 csi-node pod 생성 확인


kubectl get pod -n kube-system -l app.kubernetes.io/component=csi-driver



8

# ebs-csi-controller 파드에 6개 컨테이너 확인


kubectl get pod -n kube-system -l app=ebs-csi-controller -o jsonpath='{.items[0].spec.containers[*].name}' ; echo

----------------------------------

ebs-plugin csi-provisioner csi-attacher csi-snapshotter csi-resizer liveness-probe



9

# csinodes 확인

// 워커 노드들이 csinodes로 동작한다.


kubectl get csinodes

NAME                                                                   DRIVERS   AGE

ip-192-168-1-140.ap-northeast-2.compute.internal   1         4h47m

ip-192-168-2-38.ap-northeast-2.compute.internal    1         4h48m

ip-192-168-2-85.ap-northeast-2.compute.internal    1         4h47m



10

모니터링 - 확인

Every 2.0s: kubectl get pods -n kube-syste

NAME                                            READY   STATUS    RESTARTS   AGE

aws-load-balancer-controller-6fb4f86d9d-t59w5   1/1     Running   0          3h42m

aws-load-balancer-controller-6fb4f86d9d-t7gvp   1/1     Running   0          3h42m

aws-node-2rxtk                                  1/1     Running   0          4h52m

aws-node-gwvfl                                  1/1     Running   0          4h52m

aws-node-x4fvb                                  1/1     Running   0          4h52m

busybox                                         1/1     Running   0          175m

coredns-6777fcd775-7qhw8                        1/1     Running   0          4h49m

coredns-6777fcd775-scllk                        1/1     Running   0          4h49m

ebs-csi-controller-67658f895c-bllmf             6/6     Running   0          8m17s

ebs-csi-controller-67658f895c-j4mnw             6/6     Running   0          8m17s

ebs-csi-node-7htwr                              3/3     Running   0          8m17s

ebs-csi-node-pchk5                              3/3     Running   0          8m17s

ebs-csi-node-skmhb                              3/3     Running   0          8m17s

external-dns-556896ffd4-tbfdd                   1/1     Running   0          3h41m

kube-ops-view-558d87b798-lktv4                  1/1     Running   0          3h40m

kube-proxy-992qw                                1/1     Running   0          4h50m

kube-proxy-lzsq2                                1/1     Running   0          4h50m

kube-proxy-rmznq                                1/1     Running   0          4h50m





11

# gp3 스토리지 클래스 생성

kubectl get sc

---------------

NAME            PROVISIONER             RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE

gp2 (default) kubernetes.io/aws-ebs Delete WaitForFirstConsumer  false 5h        local-path      rancher.io/local-path   Delete          WaitForFirstConsumer   fal



12

cat <<EOT > gp3-sc.yaml

kind: StorageClass

apiVersion: storage.k8s.io/v1

metadata:

  name: gp3

allowVolumeExpansion: true

provisioner: ebs.csi.aws.com

volumeBindingMode: WaitForFirstConsumer

parameters:

  type: gp3

  allowAutoIOPSPerGBIncrease: 'true'

  encrypted: 'true'

  #fsType: ext4 # 기본값이 ext4 이며 xfs 등 변경 가능

EOT


//   allowAutoIOPSPerGBIncrease: 'true' = 자동 iops

//   encrypted: 'true'   = ebs 볼륨 암호화

// allowVolumeExpansion: true  = 온라인 상에서 볼륨 증설 가능 허용


파라미터에 대한 추가 정보 ?

https://github.com/kubernetes-sigs/aws-ebs-csi-driver/blob/master/docs/parameters.md



13

모니터링 해보자.

http://kubeopsview.masterseo1.link:8080/


kubectl apply -f gp3-sc.yaml



14

kubectl get sc

// gp2가 디폴트

// gp3 사용하자.

(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get sc

NAME            PROVISIONER             RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE

gp2 (default)   kubernetes.io/aws-ebs   Delete          WaitForFirstConsumer   false                  5h8m

gp3   ebs.csi.aws.com   Delete      WaitForFirstConsumer   true                   17s

local-path  rancher.io/local-path  Delete  WaitForFirstConsumer  false



15

kubectl describe sc gp3 | grep Parameters





<2> PVC/PV 파드 테스트


1

콘솔에서 EBS 볼륨 확인



2

CLI로 확인


# 워커노드의 EBS 볼륨 확인 : tag(키/값) 필터링 - 링크

aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --output table

aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --query "Volumes[*].Attachments" | jq

aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --query "Volumes[*].{ID:VolumeId,Tag:Tags}" | jq

aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --query "Volumes[].[VolumeId, VolumeType, Attachments[].[InstanceId, State][]][]" | jq


aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --query "Volumes[].{VolumeId: VolumeId, VolumeType: VolumeType, InstanceId: Attachments[0].InstanceId, State: Attachments[0].State}" | jq



# 워커노드에서 파드에 추가한 EBS 볼륨 확인

aws ec2 describe-volumes --filters Name=tag:ebs.csi.aws.com/cluster,Values=true --output table


aws ec2 describe-volumes --filters Name=tag:ebs.csi.aws.com/cluster,Values=true --query "Volumes[*].{ID:VolumeId,Tag:Tags}" | jq


aws ec2 describe-volumes --filters Name=tag:ebs.csi.aws.com/cluster,Values=true --query "Volumes[].{VolumeId: VolumeId, VolumeType: VolumeType, InstanceId: Attachments[0].InstanceId, State: Attachments[0].State}" | jq




3

(별도 터미널로 모니터링)


# 워커노드에서 파드에 추가한 EBS 볼륨만 모니터링 하도록 걸어 놓자


while true; do aws ec2 describe-volumes --filters Name=tag:ebs.csi.aws.com/cluster,Values=true --query "Volumes[].{VolumeId: VolumeId, VolumeType: VolumeType, InstanceId: Attachments[0].InstanceId, State: Attachments[0].State}" --output text; date; sleep 1; done



4

# PVC 생성


cat <<EOT > awsebs-pvc.yaml

apiVersion: v1

kind: PersistentVolumeClaim

metadata:

  name: ebs-claim

spec:

  accessModes:

    - ReadWriteOnce

  resources:

    requests:

      storage: 4Gi

  storageClassName: gp3

EOT


kubectl apply -f awsebs-pvc.yaml

kubectl get pvc,pv



5

pod를 만들어 붙이자.


콘솔에서 확인하자.

파드를 만들면  EBS 스토리지가 생긴다.

gp3로 만들어 진다.



# 파드 생성


cat <<EOT > awsebs-pod.yaml

apiVersion: v1

kind: Pod

metadata:

  name: app

spec:

  terminationGracePeriodSeconds: 3

  containers:

  - name: app

    image: centos

    command: ["/bin/sh"]

    args: ["-c", "while true; do echo \$(date -u) >> /data/out.txt; sleep 5; done"]

    volumeMounts:

    - name: persistent-storage

      mountPath: /data

  volumes:

  - name: persistent-storage

    persistentVolumeClaim:

      claimName: ebs-claim

EOT

kubectl apply -f awsebs-pod.yaml



6

모니터링 결과 ?

pod가 생성되었는데 EBS가 생성된다!!!

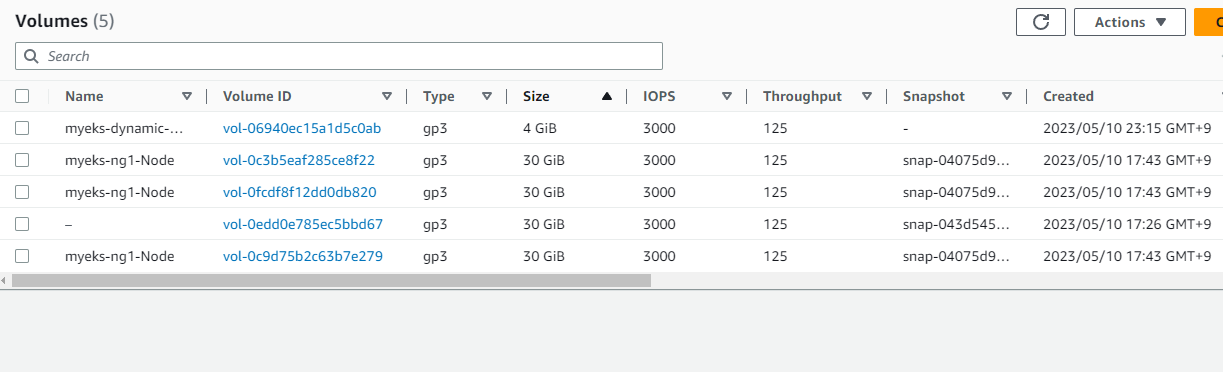

콘솔에서도 확인 하자.  EC2 > EBS


Wed May 10 23:14:54 KST 2023

Wed May 10 23:14:57 KST 2023

Wed May 10 23:14:59 KST 2023

None    None    vol-06940ec15a1d5c0ab   gp3

Wed May 10 23:15:02 KST 2023

None    None    vol-06940ec15a1d5c0ab   gp3

Wed May 10 23:15:05 KST 2023

i-05e5e1b64d625eb95     attached        vol-06940ec15a1d5c0ab


4GiB짜리가 생겼다.

pod가 gp3 볼륨을 사용한다.!!!



7

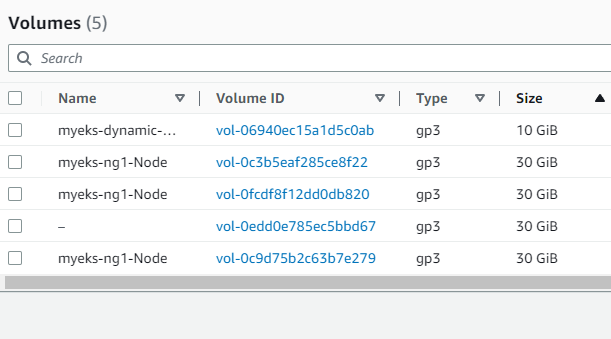

콘솔에서도 확인 하자.



8

# PVC, 파드 확인 ?


kubectl get pvc,pv,pod


NAME                                    STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE

persistentvolumeclaim/ebs-claim         Bound    pvc-f7a0ca05-1098-49c2-bcfd-bfc751d2ca21   4Gi        RWO            gp3            31m

persistentvolumeclaim/localpath-claim   Bound    pvc-c37e1be5-de1a-4e4b-a7df-4984a60f6ee3   1Gi        RWO            local-path     3h27m


NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                     STORAGECLASS   REASON   AGE

persistentvolume/pvc-c37e1be5-de1a-4e4b-a7df-4984a60f6ee3   1Gi        RWO            Delete           Bound    default/localpath-claim   local-path              3h23m

persistentvolume/pvc-f7a0ca05-1098-49c2-bcfd-bfc751d2ca21   4Gi        RWO            Delete           Bound    default/ebs-claim         gp3                     3m25s


NAME                                    READY   STATUS    RESTARTS   AGE

pod/app                                 1/1     Running   0          3m29s

pod/nginx-deployment-6fb79bc456-lbhp2   1/1     Running   0          4h9m


kubectl get VolumeAttachment



6

명령어로 확인해보자.


# 추가된 EBS 볼륨 상세 정보 확인

aws ec2 describe-volumes --volume-ids $(kubectl get pv -o jsonpath="{.items[0].spec.csi.volumeHandle}") | jq



7

# PV 상세 확인 : nodeAffinity 내용의 의미는?


kubectl get pv -o yaml | yh

...

    nodeAffinity:

      required:

        nodeSelectorTerms:

        - matchExpressions:

          - key: topology.ebs.csi.aws.com/zone

            operator: In

            values:

            - ap-northeast-2b

...



8

노드의 라벨 정보 보기


kubectl get node --label-columns=topology.ebs.csi.aws.com/zone,topology.kubernetes.io/zone

-----------------

NAME                                               STATUS   ROLES    AGE    VERSION                ZONE              ZONE

ip-192-168-1-140.ap-northeast-2.compute.internal   Ready    <none>   5h9m   v1.24.11-eks-a59e1f0   ap-northeast-2a   ap-northeast-2a

ip-192-168-2-38.ap-northeast-2.compute.internal    Ready    <none>   5h9m   v1.24.11-eks-a59e1f0   ap-northeast-2b   ap-northeast-2b

ip-192-168-2-85.ap-northeast-2.compute.internal    Ready    <none>   5h9m   v1.24.11-eks-a59e1f0   ap-northeast-2b   ap-northeast-2b



kubectl describe node | more



9

# 파일 내용 추가 저장이 잘 되어 있는지 확인

kubectl exec app -- tail -f /data/out.txt




10

kubectl df-pv


# 아래 명령어는 확인까지 다소 시간이 소요됨

# pod가 사용하는 pv 용량등 정보 확인해줌 ?


(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl df-pv

 PV NAME                                   PVC NAME   NAMESPACE  NODE NAME                                        POD NAME  VOLUME MOUNT NAME   SIZE  USED  AVAILABLE  %USED  IUSED  IFREE   %IUSED

 pvc-f7a0ca05-1098-49c2-bcfd-bfc751d2ca21  ebs-claim  default    ip-192-168-2-85.ap-northeast-2.compute.internal  app       persistent-storage  3Gi   28Ki  3Gi        0.00   12     262132  0.00



11

## 파드 내에서 볼륨 정보 확인

kubectl exec -it app -- sh -c 'df -hT --type=overlay'

-------------

Filesystem     Type     Size  Used Avail Use% Mounted on

overlay        overlay   30G  3.6G   27G  12% /


// 30G 보임



kubectl exec -it app -- sh -c 'df -hT --type=ext4'

Filesystem     Type  Size  Used Avail Use% Mounted on

/dev/nvme1n1   ext4  3.9G   16M  3.8G   1% /data


// data는 EBS볼륨에 붙어 있다.




<3> 볼륨 증가 시키기


로그가 너무 많아진 경우 볼륨을 늘려보자~


1

증가만 가능.

감소는 불가능.

온라인상에서 증가 시키자~

pod가 사용하는 스토리지를 온라인상에서 증가가 가능하다.



2

# 현재 pv 의 이름을 기준하여 4G > 10G 로 증가 : .spec.resources.requests.storage의 4Gi 를 10Gi로 변경

kubectl get pvc ebs-claim -o jsonpath={.spec.resources.requests.storage} ; echo

---------

4Gi


kubectl get pvc ebs-claim -o jsonpath={.status.capacity.storage} ; echo



3

patch로 증가 시키자.


kubectl patch pvc ebs-claim -p '{"spec":{"resources":{"requests":{"storage":"10Gi"}}}}'


kubectl patch pvc ebs-claim -p '{"status":{"capacity":{"storage":"10Gi"}}}'

# status 는 바로 위 커멘드 적용 후 EBS 10Gi 확장 후 알아서 10Gi 반영됨


4

# 증가 확인 하자 ?


볼륨 용량 수정 반영이 되어야 되니, 수치 반영이 조금 느릴수 있다


kubectl exec -it app -- sh -c 'df -hT --type=ext4'

---------------------------------------

Filesystem     Type  Size  Used Avail Use% Mounted on

/dev/nvme2n1   ext4  9.8G   28K  9.7G   1% /data


// 10 GiB로 증가 되었다.



5

콘솔에서도 확인하자.

EBS에서 확인




6

kubectl df-pv


또 확인

aws ec2 describe-volumes --volume-ids $(kubectl get pv -o jsonpath="{.items[0].spec.csi.volumeHandle}") | jq



7

PVC 삭제  = PV도 같이 지워진다.

kubectl delete pod app & kubectl delete pvc ebs-claim



8

모니터링 결과 - gp3 삭제됨

i-05e5e1b64d625eb95     detaching       vol-06940ec15a1d5c0ab   gp3

Wed May 10 23:27:15 KST 2023

i-05e5e1b64d625eb95     detaching       vol-06940ec15a1d5c0ab   gp3

Wed May 10 23:27:17 KST 2023

None    None    vol-06940ec15a1d5c0ab   gp3

Wed May 10 23:27:19 KST 2023

Wed May 10 23:27:21 KST 2023

Wed May 10 23:27:23 KST 2023



9

아래 파라미터 링크 참고해 파라미터 설정 변경 가능.

https://github.com/kubernetes-sigs/aws-ebs-csi-driver/blob/master/docs/parameters.md





<4> AWS Volume SnapShots Controller


Pod가 쓰는 EBS인데  중요해서,  또 스냅셧을 뜨는 경우 사용한다.


1

EBS에 대해 스냅샷을 만들어보자.

볼륨 스냅셧 컨트롤러를 사용한다.


https://github.com/kubernetes-csi/external-snapshotter

https://kubernetes.io/docs/concepts/storage/volume-snapshots/



2

# (참고) EBS CSI Driver에 snapshots 기능 포함 될 것으로 보임

kubectl describe pod -n kube-system -l app=ebs-csi-controller



3

진행을 위해서는 CRD 부터 직접 설치해야 한다.

// aws 개선중?


# Install Snapshot CRDs

curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/client/config/crd/snapshot.storage.k8s.io_volumesnapshots.yaml

curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/client/config/crd/snapshot.storage.k8s.io_volumesnapshotclasses.yaml

curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/client/config/crd/snapshot.storage.k8s.io_volumesnapshotcontents.yaml


kubectl apply -f snapshot.storage.k8s.io_volumesnapshots.yaml,snapshot.storage.k8s.io_volumesnapshotclasses.yaml,snapshot.storage.k8s.io_volumesnapshotcontents.yaml



kubectl get crd | grep snapshot

---------

(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get crd | grep snapshot

volumesnapshotclasses.snapshot.storage.k8s.io    2023-05-10T14:35:04Z

volumesnapshotcontents.snapshot.storage.k8s.io   2023-05-10T14:35:04Z

volumesnapshots.snapshot.storage.k8s.io          2023-05-10T14:35:04Z



4

kubectl api-resources  | grep snapshot


(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl api-resources  | grep snapshot

volumesnapshotclasses             vsclass,vsclasses   snapshot.storage.k8s.io/v1             false        VolumeSnapshotClass

volumesnapshotcontents            vsc,vscs            snapshot.storage.k8s.io/v1             false        VolumeSnapshotContent

volumesnapshots                   vs                  snapshot.storage.k8s.io/v1             true         VolumeSnapshot

// api 리소스에 3개가 추가 되었다!!




5

// 스넵셧 콘트롤러 설치  ?


# Install Common Snapshot Controller

curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/deploy/kubernetes/snapshot-controller/rbac-snapshot-controller.yaml

curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/deploy/kubernetes/snapshot-controller/setup-snapshot-controller.yaml

kubectl apply -f rbac-snapshot-controller.yaml,setup-snapshot-controller.yaml



kubectl get deploy -n kube-system snapshot-controller

kubectl get pod -n kube-system -l app=snapshot-controller



6

스냅셧 클레스를 만들자!!!

# Install Snapshotclass = volumesnapshotclasses 를 만들자.


curl -s -O https://raw.githubusercontent.com/kubernetes-sigs/aws-ebs-csi-driver/master/examples/kubernetes/snapshot/manifests/classes/snapshotclass.yaml

kubectl apply -f snapshotclass.yaml


kubectl get vsclass # 혹은 volumesnapshotclasses







<5>  volumesnapshot 테스트


1

https://github.com/kubernetes-sigs/aws-ebs-csi-driver/tree/master/examples/kubernetes/snapshot

https://aws.amazon.com/ko/blogs/containers/using-amazon-ebs-snapshots-for-persistent-storage-with-your-amazon-eks-cluster-by-leveraging-add-ons/


2

# PVC 생성

kubectl apply -f awsebs-pvc.yaml


# 파드 생성

kubectl apply -f awsebs-pod.yaml


# 파일 내용 추가 저장 확인

kubectl exec app -- tail -f /data/out.txt

----------------

Wed May 10 14:39:08 UTC 2023

Wed May 10 14:39:13 UTC 2023

Wed May 10 14:39:18 UTC 2023

Wed May 10 14:39:23 UTC 2023

Wed May 10 14:39:28 UTC 2023

Wed May 10 14:39:33 UTC 2023



3

# VolumeSnapshot 생성 ?

Create a VolumeSnapshot referencing the PersistentVolumeClaim name >> EBS 스냅샷 확인


curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/ebs-volume-snapshot.yaml


cat ebs-volume-snapshot.yaml | yh

----------------

apiVersion: snapshot.storage.k8s.io/v1

kind: VolumeSnapshot

metadata:

  name: ebs-volume-snapshot

spec:

  volumeSnapshotClassName: csi-aws-vsc

  source:

    persistentVolumeClaimName: ebs-claim


kubectl apply -f ebs-volume-snapshot.yaml



스냅셧이 만들어진다.

volumesnapshot 이라고 하는 리소스가  PV로 된거를 스냅셧으로 떠준다.

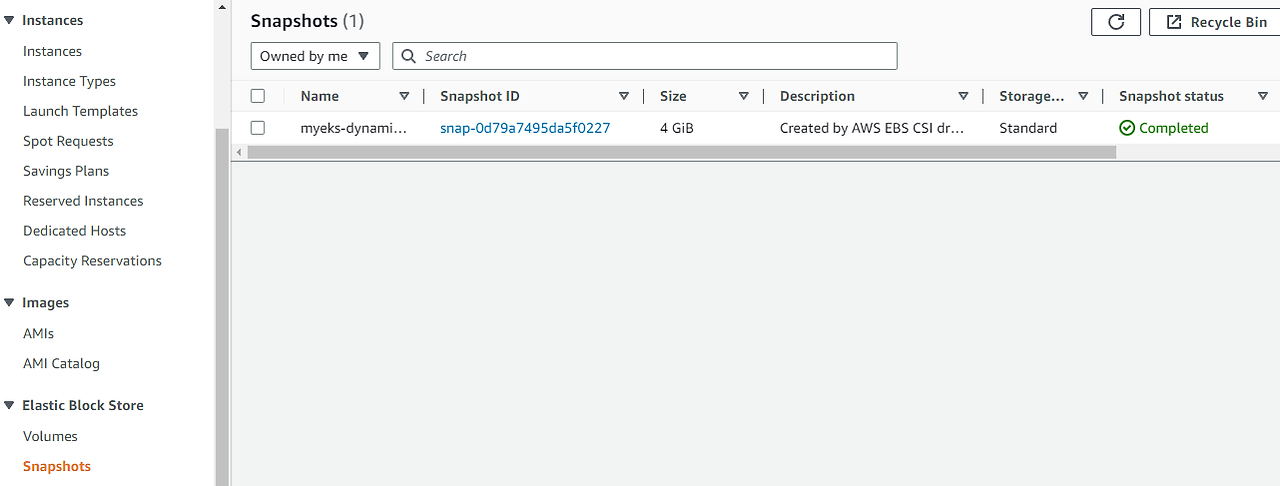

콘솔에서 확인하자.





4

# VolumeSnapshot 확인

명령어로 확인하자~


kubectl get volumesnapshot

----------------------

NAME                  READYTOUSE   SOURCEPVC   SOURCESNAPSHOTCONTENT   RESTORESIZE   SNAPSHOTCLASS   SNAPSHOTCONTENT                                    CREATIONTIME   AGE

ebs-volume-snapshot   true         ebs-claim                           4Gi           csi-aws-vsc     snapcontent-4fc0323e-18c9-4d26-a7d6-f7772d69a0d3   111s           112s



kubectl get volumesnapshot ebs-volume-snapshot -o jsonpath={.status.boundVolumeSnapshotContentName} ; echo

kubectl describe volumesnapshot.snapshot.storage.k8s.io ebs-volume-snapshot

kubectl get volumesnapshotcontents


# VolumeSnapshot ID 확인

kubectl get volumesnapshotcontents -o jsonpath='{.items[*].status.snapshotHandle}' ; echo


# AWS EBS 스냅샷 확인

aws ec2 describe-snapshots --owner-ids self | jq

aws ec2 describe-snapshots --owner-ids self --query 'Snapshots[]' --output table




<6> app & pvc 제거 : 강제로 장애 재현



1

# app & pvc 제거 : 강제로 장애 재현

kubectl delete pod app && kubectl delete pvc ebs-claim


2

콘솔에서 EBS 확인하자.



3

스냅샷으로 복원  ?


# 스냅샷에서 PVC 로 복원


kubectl get pvc,pv


NAME                                    STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE

persistentvolumeclaim/localpath-claim   Bound    pvc-c37e1be5-de1a-4e4b-a7df-4984a60f6ee3   1Gi        RWO            local-path     3h55m

NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS     CLAIM                     STORAGECLASS   REASON   AGE

persistentvolume/pvc-b1407ae6-25ee-47f4-9a19-58ac12e35145   4Gi        RWO            Delete           Released   default/ebs-claim         gp3                     7m6s

persistentvolume/pvc-c37e1be5-de1a-4e4b-a7df-4984a60f6ee3   1Gi        RWO            Delete           Bound      default/localpath-claim   local-path              3h51m



4

PVC 생성


cat <<EOT > ebs-snapshot-restored-claim.yaml

apiVersion: v1

kind: PersistentVolumeClaim

metadata:

  name: ebs-snapshot-restored-claim

spec:

  storageClassName: gp3

  accessModes:

    - ReadWriteOnce

  resources:

    requests:

      storage: 4Gi

  dataSource:

    name: ebs-volume-snapshot

    kind: VolumeSnapshot

    apiGroup: snapshot.storage.k8s.io

EOT

cat ebs-snapshot-restored-claim.yaml | yh

kubectl apply -f ebs-snapshot-restored-claim.yaml



5

# 확인

(1분 소요)


kubectl get pvc,pv

------------

(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pvc,pv


NAME                                                STATUS    VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE

persistentvolumeclaim/ebs-snapshot-restored-claim   Pending                                                                        gp3            97s

persistentvolumeclaim/localpath-claim               Bound     pvc-c37e1be5-de1a-4e4b-a7df-4984a60f6ee3   1Gi        RWO            local-path     3h57m


NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                     STORAGECLASS   REASON   AGE

persistentvolume/pvc-c37e1be5-de1a-4e4b-a7df-4984a60f6ee3   1Gi        RWO            Delete           Bound    default/localpath-claim   local-path              3h53m




6


# 파드 생성

curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/ebs-snapshot-restored-pod.yaml

cat ebs-snapshot-restored-pod.yaml | yh

kubectl apply -f ebs-snapshot-restored-pod.yaml






7

# 파일 내용 저장 확인

: 파드 삭제 전까지의 저장 기록이 남아 있다.

이후 파드 재생성 후 기록도 잘 저장되고 있다


kubectl exec app -- cat /data/out.txt

(masterseo@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec app -- cat /data/out.txt

Wed May 10 14:39:08 UTC 2023

Wed May 10 14:39:13 UTC 2023

Wed May 10 14:39:18 UTC 2023

Wed May 10 14:39:23 UTC 2023

Wed May 10 14:39:28 UTC 2023

Wed May 10 14:39:33 UTC 2023

Wed May 10 14:39:38 UTC 2023

Wed May 10 14:39:43 UTC 2023

Wed May 10 14:39:48 UTC 2023

Wed May 10 14:39:53 UTC 2023

Wed May 10 14:39:58 UTC 2023

Wed May 10 14:40:03 UTC 2023

Wed May 10 14:40:08 UTC 2023

Wed May 10 14:40:13 UTC 2023

Wed May 10 14:40:18 UTC 2023

Wed May 10 14:40:23 UTC 2023

Wed May 10 14:40:28 UTC 2023



8

참고

백업

https://hanhorang31.github.io/post/pkos2-2-localstorage/




<7> 정리


AWS에서 제공되는 EBS와 스넵셧을  쿠버네티스에서 사용할수 있다.



다음 과정

https://brunch.co.kr/@topasvga/3235



https://brunch.co.kr/@topasvga/3217


감사 합니다.

keyword
매거진의 이전글 EKS 8탄-4. EKS- 스토리지-EFS,스토리지
브런치는 최신 브라우저에 최적화 되어있습니다. IE chrome safari
