by Master Seo Oct 25. 2023

38탄-5. EKS DB -MySQL InnoDB 2/

<1> MySQL InnoDB Cluster 상세 정보 : MySQL Shell 의 SQL 모드 & 모드 변경

<2> 추가 정보 확인

<3> MySQL 라우터 확인 & 프라이머리 변경

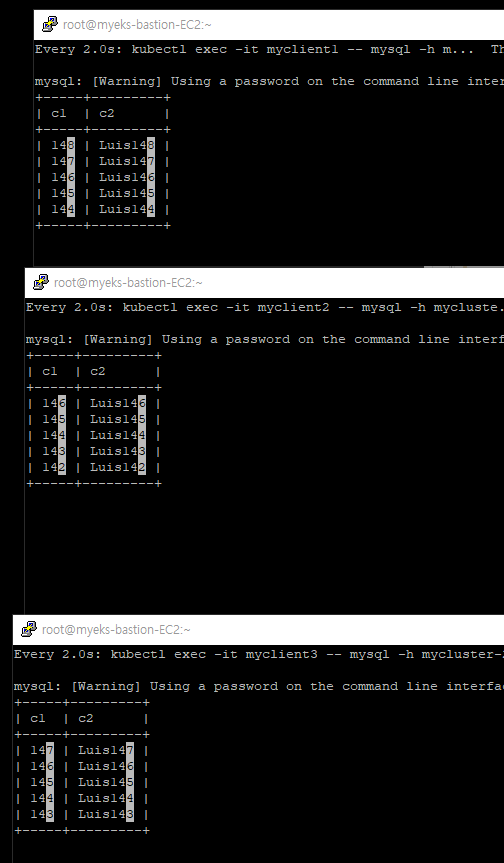

<4> 다수의 MySQL 클라이언트 파드를 통해 MySQL 라우터 시 부하분산 확인

<5> 반복적으로 데이터 INSERT  및 MySQL 서버에 복제 확인 : 세컨더리파드에 INSERT 시도



<1> MySQL InnoDB Cluster 상세 정보 : MySQL Shell 의 SQL 모드 & 모드 변경


# 접속

sql mode로 변경

MIC=mycluster.mysql-cluster.svc.cluster.local

kubectl exec -it -n mysql-operator deploy/mysql-operator -- mysqlsh mysqlx://root@$MIC --password=sakila --sqlx




# 데이터베이스 확인

SQL > show databases;



# PERSIST 설정된 시스템 변수 확인

SQL > SELECT * FROM performance_schema.persisted_variables;




# 현재 싱글 프라이머리 모드 동작 중

mycluster-0 파드가 프라이머리(소스)서버이며, 나머지 파드는 세컨더리(레플리카)서버이다.



SQL > SELECT MEMBER_HOST, MEMBER_ROLE FROM performance_schema.replication_group_members;

+-----------------------------------------------------------------+-------------+

| MEMBER_HOST                                                     | MEMBER_ROLE |

+-----------------------------------------------------------------+-------------+

| mycluster-1.mycluster-instances.mysql-cluster.svc.cluster.local | SECONDARY   |

| mycluster-0.mycluster-instances.mysql-cluster.svc.cluster.local | PRIMARY     |

| mycluster-2.mycluster-instances.mysql-cluster.svc.cluster.local | SECONDARY   |

+-----------------------------------------------------------------+-------------+



# 그룹 멤버 상태 확인


SQL > SELECT MEMBER_ID,MEMBER_STATE FROM performance_schema.replication_group_members;

+--------------------------------------+--------------+

| MEMBER_ID                            | MEMBER_STATE |

+--------------------------------------+--------------+

| e87266a2-db74-11ec-bce8-0235afde6de4 | ONLINE       |

| f1af17d8-db74-11ec-bd27-5a10126add15 | ONLINE       |

| f299e9c3-db74-11ec-bca0-729b96e7fbcf | ONLINE       |

+--------------------------------------+--------------+



# 그룹 복제 Group Replication 에 묶인 그룹 멤버 상태 정보 확인


SQL > SELECT * FROM performance_schema.replication_group_members \G

*************************** 1. row ***************************

              CHANNEL_NAME: group_replication_applier

                 MEMBER_ID: 719da3f9-d2a8-11ec-af79-ba7e60d88c8d

               MEMBER_HOST: mycluster-1.mycluster-instances.mysql-cluster.svc.cluster.local

               MEMBER_PORT: 3306

              MEMBER_STATE: ONLINE

               MEMBER_ROLE: SECONDARY

            MEMBER_VERSION: 8.1.0

MEMBER_COMMUNICATION_STACK: MySQL

*************************** 2. row ***************************

              CHANNEL_NAME: group_replication_applier

                 MEMBER_ID: 7e48b4c1-d2a8-11ec-b050-de005de3704a

               MEMBER_HOST: mycluster-0.mycluster-instances.mysql-cluster.svc.cluster.local

               MEMBER_PORT: 3306

              MEMBER_STATE: ONLINE

               MEMBER_ROLE: PRIMARY

            MEMBER_VERSION: 8.1.0

MEMBER_COMMUNICATION_STACK: MySQL

*************************** 3. row ***************************

              CHANNEL_NAME: group_replication_applier

                 MEMBER_ID: 80df97bc-d2a8-11ec-afa2-12ecfd025671

               MEMBER_HOST: mycluster-2.mycluster-instances.mysql-cluster.svc.cluster.local

               MEMBER_PORT: 3306

              MEMBER_STATE: ONLINE

               MEMBER_ROLE: SECONDARY

            MEMBER_VERSION: 8.1.0

MEMBER_COMMUNICATION_STACK: MySQL



# Group Replication 이 관리하는 멤버 목록과 상태 정보(View ID) 확인 : 그룹 멤버 변경 시 변경됨

SQL > SELECT VIEW_ID FROM performance_schema.replication_group_member_stats LIMIT 1;

+---------------------+

| VIEW_ID             |

+---------------------+

| 16524381853527486:3 |

+---------------------+


3이 계속 증가한다~~ = 최신 정보 유지




# 그룹 복제에서 추방 시 다시 재가입 동작 여부 확인 : 0 일 경우 다시 가입 시도하지 않는다, 예를 들어 3이라면 그룹 재가입을 3번 시도한다


SQL > SELECT COUNT(*) FROM performance_schema.events_stages_current WHERE EVENT_NAME LIKE '%auto-rejoin%';

+----------+

| COUNT(*) |

+----------+

|        0 |

+----------+



# 스토리지 엔진 : InnoDB 사용!


SQL > SHOW ENGINES;

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

| Engine             | Support | Comment                                                        | Transactions | XA   | Savepoints |

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

| ndbcluster         | NO      | Clustered, fault-tolerant tables                               | NULL         | NULL | NULL       |

| FEDERATED          | NO      | Federated MySQL storage engine                                 | NULL         | NULL | NULL       |

| MEMORY             | YES     | Hash based, stored in memory, useful for temporary tables      | NO           | NO   | NO         |

| InnoDB             | DEFAULT | Supports transactions, row-level locking, and foreign keys     | YES          | YES  | YES        |

| PERFORMANCE_SCHEMA | YES     | Performance Schema                                             | NO           | NO   | NO         |

| MyISAM             | YES     | MyISAM storage engine                                          | NO           | NO   | NO         |

| ndbinfo            | NO      | MySQL Cluster system information storage engine                | NULL         | NULL | NULL       |

| MRG_MYISAM         | YES     | Collection of identical MyISAM tables                          | NO           | NO   | NO         |

| BLACKHOLE          | YES     | /dev/null storage engine (anything you write to it disappears) | NO           | NO   | NO         |

| CSV                | YES     | CSV storage engine                                             | NO           | NO   | NO         |

| ARCHIVE            | YES     | Archive storage engine                                         | NO           | NO   | NO         |

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+





<2> 추가 정보 확인



1

# 플러그인 확인


SQL > SHOW PLUGINS;

+---------------------------------+----------+--------------------+----------------------+---------+

| Name                            | Status   | Type               | Library              | License |

+---------------------------------+----------+--------------------+----------------------+---------+

| binlog                          | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     |

...(생략)...

| group_replication               | ACTIVE   | GROUP REPLICATION  | group_replication.so | GPL     |

| clone                           | ACTIVE   | CLONE              | mysql_clone.so       | GPL     |

+---------------------------------+----------+--------------------+----------------------+---------+



# 그룹 멤버 확인

SQL > SELECT * FROM performance_schema.replication_group_members;

+---------------------------+--------------------------------------+-----------------------------------------------------------------+-------------+--------------+-------------+----------------+----------------------------+

| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST                                                     | MEMBER_PORT | MEMBER_STATE | MEMBER_ROLE | MEMBER_VERSION | MEMBER_COMMUNICATION_STACK |

+---------------------------+--------------------------------------+-----------------------------------------------------------------+-------------+--------------+-------------+----------------+----------------------------+

| group_replication_applier | 3896825f-7007-11ee-abea-92ad8ae2be7d | mycluster-2.mycluster-instances.mysql-cluster.svc.cluster.local |        3306 | ONLINE       | SECONDARY   | 8.1.0          | MySQL                      |

| group_replication_applier | 38b3bcf4-7007-11ee-acb3-b64e04162b41 | mycluster-0.mycluster-instances.mysql-cluster.svc.cluster.local |        3306 | ONLINE       | PRIMARY     | 8.1.0          | MySQL                      |

| group_replication_applier | 3a440805-7007-11ee-ad59-e2b30a30be9b | mycluster-1.mycluster-instances.mysql-cluster.svc.cluster.local |        3306 | ONLINE       | SECONDARY   | 8.1.0          | MySQL                      |

+---------------------------+--------------------------------------+-----------------------------------------------------------------+-------------+--------------+-------------+----------------+----------------------------+



# 그룹 멤버 포트, 버전 확인

SQL > SELECT MEMBER_HOST,MEMBER_PORT,MEMBER_VERSION FROM performance_schema.replication_group_members;

+-----------------------------------------------------------------+-------------+----------------+

| MEMBER_HOST                                                     | MEMBER_PORT | MEMBER_VERSION |

+-----------------------------------------------------------------+-------------+----------------+

| mycluster-2.mycluster-instances.mysql-cluster.svc.cluster.local |        3306 | 8.1.0          |

| mycluster-0.mycluster-instances.mysql-cluster.svc.cluster.local |        3306 | 8.1.0          |

| mycluster-1.mycluster-instances.mysql-cluster.svc.cluster.local |        3306 | 8.1.0          |

+-----------------------------------------------------------------+-------------+----------------+




# 복제 테스트


CREATE DATABASE test;

USE test;

CREATE TABLE t1 (c1 INT PRIMARY KEY, c2 TEXT NOT NULL);

INSERT INTO t1 VALUES (1, 'Luis');

SELECT * FROM t1;

SHOW BINLOG EVENTS;

+------------------+-----+----------------+-----------+-------------+----------------------------------+

| Log_name         | Pos | Event_type     | Server_id | End_log_pos | Info                             |

+------------------+-----+----------------+-----------+-------------+----------------------------------+

| mycluster.000001 |   4 | Format_desc    |      1000 |         126 | Server ver: 8.1.0, Binlog ver: 4 |

| mycluster.000001 | 126 | Previous_gtids |      1000 |         157 |                                  |

| mycluster.000001 | 157 | Stop           |      1000 |         180 |                                  |

+------------------+-----+----------------+-----------+-------------+----------------------------------+



# Using Group Replication Group Write Consensus : Inspecting a Group's Write Concurrency


SQL > SELECT group_replication_get_write_concurrency();

+-------------------------------------------+

| group_replication_get_write_concurrency() |

+-------------------------------------------+

|                                        10 |

+-------------------------------------------+



# A Group's Communication Protocol Version

SQL > SELECT group_replication_get_communication_protocol();

+------------------------------------------------+

| group_replication_get_communication_protocol() |

+------------------------------------------------+

| 8.0.27                                         |

+------------------------------------------------+

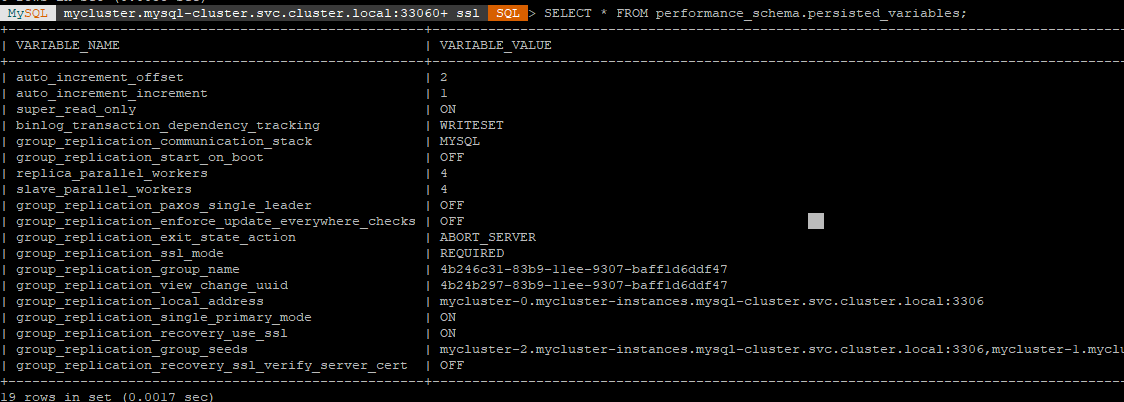

# PERSIST 로 설정된 시스템 변수 목록 조회


SQL > SELECT * FROM performance_schema.persisted_variables;

+----------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------+

| VARIABLE_NAME                                      | VARIABLE_VALUE                                                                                                                            |

+----------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------+

| auto_increment_offset                              | 2                                                                                                                                         |

| auto_increment_increment                           | 1                                                                                                                                         |

| super_read_only                                    | ON                                                                                                                                        |

| binlog_transaction_dependency_tracking             | WRITESET                                                                                                                                  |

| group_replication_communication_stack              | MYSQL                                                                                                                                     |

| group_replication_start_on_boot                    | OFF                                                                                                                                       |

| replica_parallel_workers                           | 4                                                                                                                                         |

| slave_parallel_workers                             | 4                                                                                                                                         |

| group_replication_paxos_single_leader              | OFF                                                                                                                                       |

| group_replication_enforce_update_everywhere_checks | OFF                                                                                                                                       |

| group_replication_exit_state_action                | ABORT_SERVER                                                                                                                              |

| group_replication_ssl_mode                         | REQUIRED                                                                                                                                  |

| group_replication_group_name                       | 4411d3c6-7007-11ee-a919-b64e04162b41                                                                                                      |

| group_replication_view_change_uuid                 | 4412077a-7007-11ee-a919-b64e04162b41                                                                                                      |

| group_replication_local_address                    | mycluster-0.mycluster-instances.mysql-cluster.svc.cluster.local:3306                                                                      |

| group_replication_single_primary_mode              | ON                                                                                                                                        |

| group_replication_recovery_use_ssl                 | ON                                                                                                                                        |

| group_replication_group_seeds                      | mycluster-2.mycluster-instances.mysql-cluster.svc.cluster.local:3306,mycluster-1.mycluster-instances.mysql-cluster.svc.cluster.local:3306 |

| group_replication_recovery_ssl_verify_server_cert  | OFF                                                                                                                                       |

+----------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------+



2

로그 확인


https://dev.mysql.com/doc/mysql-operator/en/mysql-operator-logs.html


# logs 확인

kubectl logs mycluster-0 -c sidecar -n mysql-cluster

kubectl logs mycluster-0 -c mysql -n mysql-cluster

kubectl logs deploy/mycluster-router -n mysql-cluster

kubectl logs deploy/mysql-operator -n mysql-operator



# kubetail 확인 - MySQL 서버

kubectl krew install tail


kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database --since 2h -c sidecar    # Initialization, including initial setup of data (initDB) and ongoing maintenance tasks for a specific instance, such as TLS certification updates


kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database --since 2h -c mysql      # The MySQL Server itself

kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database --since 2h -c fixdatadir


# Sets appropriate permissions and ownership of the MySQL data directory, upon initialization.


kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database --since 2h -c initconf   # InnoDBCluster's initialization

kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database --since 2h -c initmysql


 # Initializes the MySQL Server, including its data directory.

kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database --since 2h

kubectl tail -n mysql-cluster -l app.kubernetes.io/component=database



# kubetail 확인 - MySQL 라우터

kubectl tail -n mysql-cluster -l app.kubernetes.io/component=router --since 2h

kubectl tail -n mysql-cluster -l app.kubernetes.io/component=router



# kubetail 확인 - MySQL 오퍼레이터

kubectl tail -n mysql-operator -l name=mysql-operator --since 2h

kubectl tail -n mysql-operator -l name=mysql-operator




<3> MySQL 라우터 확인 & 프라이머리 변경


1


# MySQL 라우터 bash 셸 접속


kubectl exec -it -n mysql-cluster deploy/mycluster-router -- bash

--------------------



# help

mysqlrouter --help

mysqlrouter --version



# 관련 파일 확인

ls -al /tmp/mysqlrouter/

total 36

drwx------ 5 mysqlrouter mysqlrouter 4096 May 24 15:20 .

drwxrwxrwt 1 root        root        4096 May 24 15:20 ..

drwx------ 2 mysqlrouter mysqlrouter 4096 May 24 15:20 data

drwx------ 2 mysqlrouter mysqlrouter 4096 May 24 15:20 log

-rw------- 1 mysqlrouter mysqlrouter 1870 May 24 15:20 mysqlrouter.conf

-rw------- 1 mysqlrouter mysqlrouter   87 May 24 15:20 mysqlrouter.key

drwx------ 2 mysqlrouter mysqlrouter 4096 May 24 15:20 run

-rwx------ 1 mysqlrouter mysqlrouter  135 May 24 15:20 start.sh

-rwx------ 1 mysqlrouter mysqlrouter  158 May 24 15:20 stop.sh



cat /tmp/mysqlrouter/mysqlrouter.conf

[DEFAULT]

...

connect_timeout=5

read_timeout=30

dynamic_state=/tmp/mysqlrouter/data/state.json

...

[metadata_cache:bootstrap]  # 라우터에 접속할 InnoDB 클러스터의 정보를 구성하고 관리

cluster_type=gr

router_id=1

user=mysqlrouter

metadata_cluster=mycluster

ttl=0.5        # MySQL 라우터가 내부적으로 캐싱하고 있는 클러스터 메타데이터를 갱신하는 주기, 단위(초)

auth_cache_ttl=-1

auth_cache_refresh_interval=2

use_gr_notifications=0      # 해당 옵션 활성화시, 클러스터의 그룹 복제 변경사항을 MySQL 라우터가 알람을 받을 수 있다, 알람 받으면 클러스터 메타데이터를 갱신한다


# 각각 MySQL 기본 프로토콜로 연결되는 '읽기전용포트', 읽기-쓰기포트'와 X프로토콜로 연결되는 읽기전용포트', 읽기-쓰기포트'로 총 4개의 TCP 포트를 사용



# role 이 PRIMART 시 : 기본 round-robin 동작, MySQL 라우터 부트스트랩 설정 시 first-available 설정이 자동 지정, 2가지 중 선택(round-robin,first-available)


# role 이 SECONDARY 시 : 기본 round-robin 동작, MySQL 라우터 부트스트랩 설정 시 round-robin-with-fallback 설정이 자동 지정, 3가지 중 선택(round-robin,first-available,round-robin-with-fallback)




# role 이 PRIMART_AND_SECONDARY 시 : 기본 round-robin 동작, 2가지 중 선택(round-robin,first-available)

[routing:bootstrap_rw]

bind_address=0.0.0.0

bind_port=6446

destinations=metadata-cache://mycluster/?role=PRIMARY   # 라우팅 전달 대상이 URL 포맷은 동적이 대상임, role 프라이머리 서버로 연결(읽기-쓰기)

routing_strategy=first-available    # 쿼리 요청 전달 전략(4가지): round-robin, round-robin-with-fallback(세컨더리 서버에 RR, 세컨더리 없으면 프라이어머로 RR)

protocol=classic                    # 쿼리 요청 전달 전략(이어서): first-available(목록 중 사용 가능 첫번째 서버 연결, 연결안되면 그 다음 서버로 시도)

                                    # 쿼리 요청 전달 전략(이어서): next-available(first-available 와 동일하나, 연결 오류 서버는 연결 불가로 표시하고, 연결 대상에서 제외, 단 정적으로 서버 지정시만 가능)

[routing:bootstrap_ro]

bind_address=0.0.0.0

bind_port=6447

destinations=metadata-cache://mycluster/?role=SECONDARY # role 는 어떤 타입의 MySQL 서버로 연결할지를 설정, 여기서는 세컨터리 타입 서버로 연결(읽기전용)

routing_strategy=round-robin-with-fallback

protocol=classic     # 3306 기존 mysql TCP 통신 방법



[routing:bootstrap_x_rw]

bind_address=0.0.0.0

bind_port=6448

destinations=metadata-cache://mycluster/?role=PRIMARY

routing_strategy=first-available

protocol=x



[routing:bootstrap_x_ro]

bind_address=0.0.0.0

bind_port=6449

destinations=metadata-cache://mycluster/?role=SECONDARY

routing_strategy=round-robin-with-fallback

protocol=x

[http_server]

port=8443

ssl=1

ssl_cert=/tmp/mysqlrouter/data/router-cert.pem

ssl_key=/tmp/mysqlrouter/data/router-key.pem

...

exit

--------------------



# mysqlrouter 설정 확인

kubectl exec -it -n mysql-cluster deploy/mycluster-router -- mysqlrouter --help


kubectl exec -it -n mysql-cluster deploy/mycluster-router -- cat /tmp/mysqlrouter/mysqlrouter.conf

...(생략)...



# 메타데이터 캐시 정보 확인

kubectl exec -it -n mysql-cluster deploy/mycluster-router -- cat /tmp/mysqlrouter/data/state.json | jq

{

  "metadata-cache": {

    "group-replication-id": "4411d3c6-7007-11ee-a919-b64e04162b41",

    "cluster-metadata-servers": [

      "mysql://mycluster-2.mycluster-instances.mysql-cluster.svc.cluster.local:3306",

      "mysql://mycluster-0.mycluster-instances.mysql-cluster.svc.cluster.local:3306",

      "mysql://mycluster-1.mycluster-instances.mysql-cluster.svc.cluster.local:3306"

    ]

  },

  "version": "1.0.0"

}




# 라우터 계정 정보 확인

kubectl get secret -n mysql-cluster  mycluster-router -o jsonpath={.data.routerUsername} | base64 -d;echo

mysqlrouter

kubectl get secret -n mysql-cluster  mycluster-router -o jsonpath={.data.routerPassword} | base64 -d;echo

LLYjH-2wUqE-0=vmS-V673B-fWuia



# (옵션) 모니터링

watch -d "kubectl exec -it -n mysql-cluster deploy/mycluster-router -- cat /tmp/mysqlrouter/data/state.json"





<4> 다수의 MySQL 클라이언트 파드를 통해 MySQL 라우터 시 부하분산 확인


https://malwareanalysis.tistory.com/342?category=1099737


1


# mysql 클라이언트 파드 YAML 내용 확인

curl -s https://raw.githubusercontent.com/gasida/DOIK/main/2/myclient-new.yaml -o myclient.yaml

cat myclient.yaml | yh


# myclient 파드 1대 배포 : envsubst 활용

PODNAME=myclient1 envsubst < myclient.yaml | kubectl apply -f -


# myclient 파드 추가로 2대 배포

for ((i=2; i<=3; i++)); do PODNAME=myclient$i envsubst < myclient.yaml | kubectl apply -f - ; done


# myclient 파드들 확인

kubectl get pod -l app=myclient

NAME        READY   STATUS              RESTARTS   AGE

myclient1   1/1     Running             0          20s

myclient2   0/1     ContainerCreating   0          10s

myclient3   1/1     Running             0          8s




# 파드1에서 mysql 라우터 서비스로 접속 확인 : TCP 3306


kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SHOW DATABASES;"


kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SELECT @@HOSTNAME,@@SERVER_ID;"


kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SELECT @@HOSTNAME,host from information_schema.processlist WHERE ID=connection_id();"



# 파드1에서 mysql 라우터 서비스로 접속 확인 : TCP 6446

kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila --port=6446 -e "SELECT @@HOSTNAME,@@SERVER_ID;"



# 파드1에서 mysql 라우터 서비스로 접속 확인 : TCP 6447 >> 3초 간격으로 확인!

kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila --port=6447 -e "SELECT @@HOSTNAME,@@SERVER_ID;"

3초 간격

kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila --port=6447 -e "SELECT @@HOSTNAME,@@SERVER_ID;"



# 파드들에서 mysql 라우터 서비스로 접속 확인 : MySQL 라우터정책이 first-available 라서 무조건 멤버 (프라이머리) 첫번쨰로 전달, host 에는 라우터의 IP가 찍힌다.

for ((i=1; i<=3; i++)); do kubectl exec -it myclient$i -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "select @@hostname, @@read_only, @@super_read_only";echo; done

for ((i=1; i<=3; i++)); do kubectl exec -it myclient$i -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SELECT @@HOSTNAME,host from information_schema.processlist WHERE ID=connection_id();";echo; done

for ((i=1; i<=3; i++)); do kubectl exec -it myclient$i -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SELECT @@HOSTNAME;USE employees;SELECT * FROM employees LIMIT $i;";echo; done



# 파드들에서 mysql 라우터 서비스로 접속 확인 : TCP 6447 접속 시 round-robin-with-fallback 정책에 의해서 2대에 라운드 로빈(부하분산) 접속됨

for ((i=1; i<=3; i++)); do kubectl exec -it myclient$i -- mysql -h mycluster.mysql-cluster -uroot -psakila --port=6447 -e "SELECT @@HOSTNAME,host from information_schema.processlist WHERE ID=connection_id();";echo; done

for ((i=1; i<=3; i++)); do kubectl exec -it myclient$i -- mysql -h mycluster.mysql-cluster -uroot -psakila --port=6447 -e "SELECT @@HOSTNAME;USE employees;SELECT * FROM employees LIMIT $i;";echo; done

for ((i=1; i<=3; i++)); do kubectl exec -it myclient$i -- mysql -h mycluster.mysql-cluster -uroot -psakila --port=6447 -e "select @@hostname, @@read_only, @@super_read_only";echo; done




<5> 반복적으로 데이터 INSERT  및 MySQL 서버에 복제 확인 : 세컨더리파드에 INSERT 시도


복제가 되는지 확인 해보자


1


# 파드1에서 mysql 라우터 서비스로 접속 확인

kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila

--------------------

# 간단한 데이터베이스 생성

CREATE DATABASE test;

USE test;

CREATE TABLE t1 (c1 INT PRIMARY KEY, c2 TEXT NOT NULL);

INSERT INTO t1 VALUES (1, 'Luis');

SELECT * FROM t1;

exit

--------------------


# 조회

kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "USE test;SELECT * FROM t1;"

+----+------+

| c1 | c2   |

+----+------+

|  1 | Luis |



# 추가 후 조회

kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "USE test;INSERT INTO t1 VALUES (2, 'Luis2');"


kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "USE test;SELECT * FROM t1;"

+----+-------+

| c1 | c2    |

+----+-------+

|  1 | Luis  |

|  2 | Luis2 |




# 반복 추가 및 조회

for ((i=3; i<=100; i++)); do kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SELECT @@HOSTNAME;USE test;INSERT INTO t1 VALUES ($i, 'Luis$i');";echo; done


kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "USE test;SELECT * FROM t1;"

+----+-------+

| c1 | c2    |

+----+-------+

|  1 | Luis  |

|  2 | Luis2 |

|  3 | Luis3 |

|  4 | Luis4 |

|  5 | Luis5 |

|  6 | Luis6 |

|  7 | Luis7 |

|  8 | Luis8 |

|  9 | Luis9 |




# 모니터링 : 신규 터미널 3개

watch -d "kubectl exec -it myclient1 -- mysql -h mycluster-0.mycluster-instances.mysql-cluster.svc -uroot -psakila -e 'USE test;SELECT * FROM t1 ORDER BY c1 DESC LIMIT 5;'"


watch -d "kubectl exec -it myclient2 -- mysql -h mycluster-1.mycluster-instances.mysql-cluster.svc -uroot -psakila -e 'USE test;SELECT * FROM t1 ORDER BY c1 DESC LIMIT 5;'"


watch -d "kubectl exec -it myclient3 -- mysql -h mycluster-2.mycluster-instances.mysql-cluster.svc -uroot -psakila -e 'USE test;SELECT * FROM t1 ORDER BY c1 DESC LIMIT 5;'"



# 원하는 갯수 만큼 추가, CTRL+C 로 취소

for ((i=101; i<=1000; i++)); do kubectl exec -it myclient1 -- mysql -h mycluster.mysql-cluster -uroot -psakila -e "SELECT @@HOSTNAME;USE test;INSERT INTO t1 VALUES ($i, 'Luis$i');";echo; done




# (참고) 세컨더리 MySQL 서버 파드에 INSERT 가 되지 않는다 : --super-read-only option

kubectl exec -it myclient1 -- mysql -h mycluster-1.mycluster-instances.mysql-cluster.svc -uroot -psakila -e "USE test;INSERT INTO t1 VALUES (1089, 'Luis1089');"

혹은

kubectl exec -it myclient1 -- mysql -h mycluster-2.mycluster-instances.mysql-cluster.svc -uroot -psakila -e "USE test;INSERT INTO t1 VALUES (1089, 'Luis1089');"

ERROR 1290 (HY000) at line 1: The MySQL server is running with the --super-read-only option so it cannot execute this statement

command terminated with exit code 1



다음은

https://brunch.co.kr/@topasvga/3490



주말 CloudNet  스터디 내용 참고하여  정리한 부분입니다.

https://gasidaseo.notion.site/gasidaseo/CloudNet-Blog-c9dfa44a27ff431dafdd2edacc8a1863



감사합니다.

매거진의 이전글 38탄-4. EKS DB - 오퍼레이터,MySQL1/3
브런치는 최신 브라우저에 최적화 되어있습니다. IE chrome safari
