EKS 11탄-1. EKS 워크셥- 보안 - 1/5

EKS 보안 Workshop

https://www.eksworkshop.com/docs/security/

Security | EKS Workshop

<1> EKS를 만들기위한 명령서버인 aws-com11 ec2 생성

<2> EKS 클러스터 생성하기

<3> EKS Workshop Sample 사용

<4> EKS Security 사용

<5> Pod Security Standards - Privileged PSS profile

<1> EKS를 만들기위한 명령서버인 aws-com11 ec2 생성

1

EC2 생성

role 생성과 EC2에 적용

eksctl 설치 , kubectl 설치

EKS 생성

aws-com11

hostnamectl --static set-hostname aws-com11

sudo su -

[root@aws-demo3 ~]#

2

# eksctl 설치 = eksctl로 쿠버네티스 설치 할수 있다.

curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp

sudo mv -v /tmp/eksctl /usr/local/bin

eksctl version

3

# kubectl = 쿠버네티스 마스터에 명령을 내릴때 사용한다. 리소스 만들때 사용하는 툴.

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"

install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

kubectl version

4

aws-com11

# 기타 - EKS를 만들기위한 명령서버인 Cloud9 생성하기

cloudformation으로 만든다. (콘솔로 만들어도 된다.)

1

디폴트 VPC가 있어야 한다.

2

AWS 콘솔 로그인

오른쪽 위 cloud shell 실행

3

wget -q https://raw.githubusercontent.com/aws-samples/eks-workshop-v2/stable/lab/cfn/eks-workshop-ide-cfn.yaml -O eks-workshop-ide-cfn.yaml

aws cloudformation deploy --stack-name eks-workshop-ide --template-file ./eks-workshop-ide-cfn.yaml --parameter-overrides RepositoryRef=stable EksWorkshopC9InstanceType=t3.medium --capabilities CAPABILITY_NAMED_IAM

Ask before pasting multiline code

체크 해제

(5분 걸림)

wget으로 받은 yaml file

1-eks-workshop-ide-cfn.yaml

4

aws cloudformation describe-stacks --stack-name eks-workshop-ide --query 'Stacks[0].Outputs[?OutputKey==`Cloud9Url`].OutputValue' --output text

url 확인 웹 접속 (콘솔로 cloud9가서 접속 해도 된다.)

위 명령어들 모음

10 start.txt

<2> EKS 클러스터 생성하기

1

EC2 접속해 eks 클러스터 생성하기

export AWS_REGION=ap-northeast-2

export EKS_CLUSTER_NAME=myeks11-cluster

curl -fsSL https://raw.githubusercontent.com/aws-samples/eks-workshop-v2/stable/cluster/eksctl/cluster.yaml | envsubst | eksctl create cluster -f -

(20분 걸림)

2

타이머

https://vclock.kr/timer/#countdown=00:10:00&enabled=0&seconds=0&sound=xylophone&loop=1

타이머 온라인 - 타이머 - 온라인 타이머 - Timer - vClock.kr

3

# 아래 버전 1.30 이다.

# 최신 버전은 1.31 이다. 1.31로 수정하여 설치하자

cat << EOF > myeks-cluster.yaml

apiVersion: eksctl.io/v1alpha5

kind: ClusterConfig

availabilityZones:

- ${AWS_REGION}a

- ${AWS_REGION}b

- ${AWS_REGION}c

metadata:

name: ${EKS_CLUSTER_NAME}

region: ${AWS_REGION}

version: "1.31"

tags:

karpenter.sh/discovery: ${EKS_CLUSTER_NAME}

created-by: eks-workshop-v2

env: ${EKS_CLUSTER_NAME}

iam:

withOIDC: true

vpc:

cidr: 10.42.0.0/16

clusterEndpoints:

privateAccess: true

publicAccess: true

addons:

- name: vpc-cni

version: 1.16.0

configurationValues: '{"env":{"ENABLE_PREFIX_DELEGATION":"true", "ENABLE_POD_ENI":"true", "POD_SECURITY_GROUP_ENFORCING_MODE":"standard"},"enableNetworkPolicy": "true", "nodeAgent": {"enablePolicyEventLogs": "true"}}'

resolveConflicts: overwrite

managedNodeGroups:

- name: default

desiredCapacity: 3

minSize: 3

maxSize: 6

instanceType: m5.large

privateNetworking: true

releaseVersion: "1.30.0-20240625"

updateConfig:

maxUnavailablePercentage: 50

labels:

workshop-default: "yes"

EOF

eksctl create cluster -f myeks-cluster.yaml

myeks-cluster.yaml

2

결과?

eksctl-eks-workshop-cluster/VPC

eksctl-eks-workshop-cluster pub 3개

eksctl-eks-workshop-cluster pri 3개

클러스터 이름

eks-workshop

클러스터 > Compute > Node groups

default

3

kubectl get nodes

<3> EKS Workshop Sample 사용

쇼핑카트 마이크로 서비스가 배포되어 있는 상태이다.

https://www.eksworkshop.com/docs/introduction/getting-started/about

Sample application | EKS Workshop

<4> EKS Security 사용

https://www.eksworkshop.com/docs/security/

Security | EKS Workshop

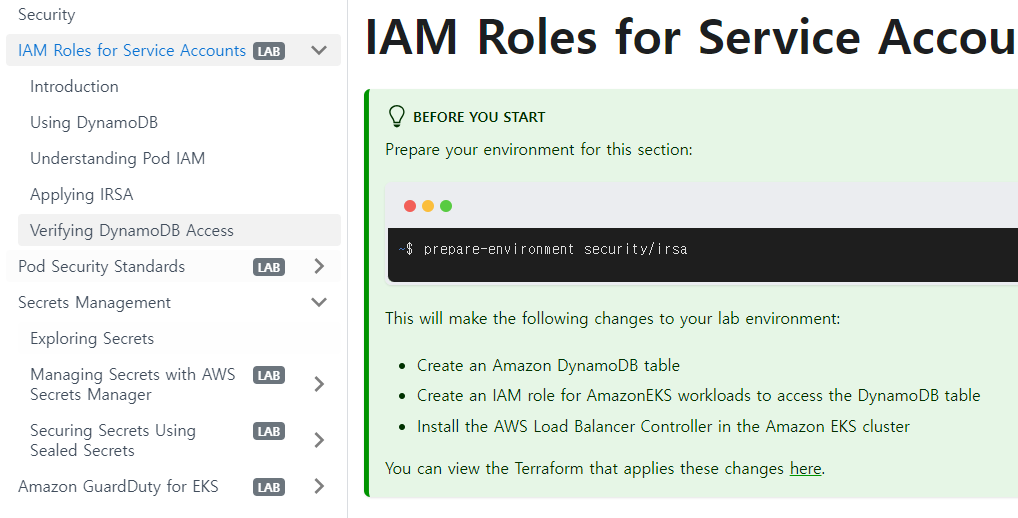

1

파드가 권한이 필요하다. = IRSA 사용한다.

use-cluster $EKS_CLUSTER_NAME

환경 설정을 한다.

EKS Workshop Sample 사용

2

https://www.eksworkshop.com/docs/security/iam-roles-for-service-accounts/using-dynamo

로컬 다이나모 디비 대신 AWS 다이나모 디비로 변경하려 한다.

확인

kubectl -n carts get -o yaml cm carts

<5> Pod Security Standards - Privileged PSS profile

1

디폴트 사용 = ROOT 로 사용 = 보안에 취약

2

ec2-user:~/environment $ kubectl get ns

NAME STATUS AGE

assets Active 30m

carts Active 30m

catalog Active 30m

checkout Active 30m

default Active 42m

kube-node-lease Active 42m

kube-public Active 42m

kube-system Active 42m

orders Active 30m

other Active 12m

rabbitmq Active 30m

ui Active 30m

ec2-user:~/environment $ kubectl -n assets get deployment

NAME READY UP-TO-DATE AVAILABLE AGE

assets 1/1 1 1 30m

ec2-user:~/environment $ kubectl -n assets get deployment assets -o yaml | yq '.spec.template.spec'

containers:

- envFrom:

- configMapRef:

name: assets

image: public.ecr.aws/aws-containers/retail-store-sample-assets:0.4.0

imagePullPolicy: IfNotPresent

livenessProbe:

failureThreshold: 3

httpGet:

path: /health.html

port: 8080

scheme: HTTP

periodSeconds: 3

successThreshold: 1

timeoutSeconds: 1

name: assets

ports:

- containerPort: 8080

name: http

protocol: TCP

resources:

limits:

memory: 128Mi

requests:

cpu: 128m

memory: 128Mi

securityContext:

capabilities:

drop:

- ALL

readOnlyRootFilesystem: false

terminationMessagePath: /dev/termination-log

terminationMessagePolicy: File

volumeMounts:

- mountPath: /tmp

name: tmp-volume

dnsPolicy: ClusterFirst

restartPolicy: Always

schedulerName: default-scheduler

securityContext: {}

serviceAccount: assets

serviceAccountName: assets

terminationGracePeriodSeconds: 30

volumes:

- emptyDir:

medium: Memory

name: tmp-volume

ec2-user:~/environment $

V

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/security/pss-psa/privileged-workload

namespace/assets unchanged

serviceaccount/assets unchanged

configmap/assets unchanged

service/assets unchanged

deployment.apps/assets configured

kubectl -n assets get pod

ec2-user:~/environment $ kubectl -n assets get pod

NAME READY STATUS RESTARTS AGE

assets-78666574f6-7hft5 1/1 Running 0 10s

ec2-user:~/environment $ kubectl -n assets exec $(kubectl -n assets get pods -o name) -- whoami

root

3

Baseline PSS Profile

권한으로 제한 사용 = 중간 보안

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/security/pss-psa/baseline-namespace

namespace/assets unchanged

serviceaccount/assets unchanged

configmap/assets unchanged

service/assets unchanged

Warning: would violate PodSecurity "baseline:latest": privileged (container "assets" must not set securityContext.privileged=true)

deployment.apps/assets configured

ec2-user:~/environment $

ec2-user:~/environment $

ec2-user:~/environment $ kubectl -n assets delete pod --all

pod "assets-7ccc84cb4d-xvkdv" deleted

ec2-user:~/environment $ kubectl -n assets get pod

NAME READY STATUS RESTARTS AGE

assets-7ccc84cb4d-zz2wj 1/1 Running 0 6s

ec2-user:~/environment $ kubectl -n assets get pod

NAME READY STATUS RESTARTS AGE

assets-7ccc84cb4d-zz2wj 1/1 Running 0 13s

ec2-user:~/environment $ kubectl get deployment -n assets assets -o yaml | yq '.status'

availableReplicas: 1

conditions:

- lastTransitionTime: "2023-11-09T02:22:42Z"

lastUpdateTime: "2023-11-09T02:22:42Z"

message: 'pods "assets-78666574f6-6v64m" is forbidden: violates PodSecurity "baseline:latest": privileged (container "assets" must not set securityContext.privileged=true)'

reason: FailedCreate

status: "True"

type: ReplicaFailure

- lastTransitionTime: "2023-11-09T02:23:29Z"

lastUpdateTime: "2023-11-09T02:23:29Z"

message: Deployment has minimum availability.

reason: MinimumReplicasAvailable

status: "True"

type: Available

- lastTransitionTime: "2023-11-09T01:40:32Z"

lastUpdateTime: "2023-11-09T02:23:29Z"

message: ReplicaSet "assets-78666574f6" is progressing.

reason: ReplicaSetUpdated

status: "True"

type: Progressing

observedGeneration: 4

readyReplicas: 1

replicas: 1

unavailableReplicas: 1

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/security/pss-psa/baseline-workload

namespace/assets unchanged

serviceaccount/assets unchanged

configmap/assets unchanged

service/assets unchanged

deployment.apps/assets configured

ec2-user:~/environment $ kubectl -n assets get pod

NAME READY STATUS RESTARTS AGE

assets-7ccc84cb4d-j6cvx 1/1 Running 0 36s

ec2-user:~/environment $ kubectl -n assets exec $(kubectl -n assets get pods -o name) -- whoami

nginx

4

Restricted PSS Profile

보안이 가장 강하다.

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/security/pss-psa/baseline-workload

namespace/assets unchanged

serviceaccount/assets unchanged

configmap/assets unchanged

service/assets unchanged

deployment.apps/assets configured

ec2-user:~/environment $

ec2-user:~/environment $

ec2-user:~/environment $ kubectl -n assets get pod

NAME READY STATUS RESTARTS AGE

assets-7ccc84cb4d-j6cvx 1/1 Running 0 36s

ec2-user:~/environment $ kubectl -n assets exec $(kubectl -n assets get pods -o name) -- whoami

nginx

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/security/pss-psa/restricted-namespace

Warning: existing pods in namespace "assets" violate the new PodSecurity enforce level "restricted:latest"

Warning: assets-7ccc84cb4d-j6cvx: allowPrivilegeEscalation != false, runAsNonRoot != true, seccompProfile

namespace/assets configured

serviceaccount/assets unchanged

configmap/assets unchanged

service/assets unchanged

deployment.apps/assets unchanged

ec2-user:~/environment $ kubectl -n assets delete pod --all

pod "assets-7ccc84cb4d-j6cvx" deleted

ec2-user:~/environment $ kubectl -n assets get pod

No resources found in assets namespace.

ec2-user:~/environment $

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/security/pss-psa/restricted-workload

namespace/assets unchanged

serviceaccount/assets unchanged

configmap/assets unchanged

service/assets unchanged

deployment.apps/assets configured

ec2-user:~/environment $ kubectl -n assets get pod

NAME READY STATUS RESTARTS AGE

assets-5bb65f9959-pvvm4 1/1 Running 0 4s

ec2-user:~/environment $

<7>Managing Secrets with AWS Secrets Manager

시크릿 매니저 사용

쿠버네티스에서 시크릿 매니저 사용해보자.

https://www.eksworkshop.com/docs/security/secrets-management/secrets-manager/

Managing Secrets with AWS Secrets Manager | EKS Workshop

1

ec2-user:~/environment $ export SECRET_SUFFIX=$(openssl rand -hex 4)

ec2-user:~/environment $ export SECRET_NAME="$EKS_CLUSTER_NAME-catalog-secret-${SECRET_SUFFIX}"

ec2-user:~/environment $ aws secretsmanager create-secret --name "$SECRET_NAME" \

> --secret-string '{"username":"catalog_user", "password":"default_password"}' --region $AWS_REGION

{

"ARN": "arn:aws:secretsmanager:ap-northeast-2:319485572629:secret:eks-workshop-catalog-secret-fbf13fe1-uimSoX",

"Name": "eks-workshop-catalog-secret-fbf13fe1",

"VersionId": "be3473c9-c5a4-4092-8e04-dc444b60a51c"

}

ec2-user:~/environment $ aws secretsmanager describe-secret --secret-id "$SECRET_NAME"

{

"ARN": "arn:aws:secretsmanager:ap-northeast-2:319485572629:secret:eks-workshop-catalog-secret-fbf13fe1-uimSoX",

"Name": "eks-workshop-catalog-secret-fbf13fe1",

"LastChangedDate": "2023-11-09T02:31:17.877000+00:00",

"VersionIdsToStages": {

"be3473c9-c5a4-4092-8e04-dc444b60a51c": [

"AWSCURRENT"

]

},

"CreatedDate": "2023-11-09T02:31:17.672000+00:00"

}

ec2-user:~/environment $

2

AWS Secrets and Configuration Provider (ASCP)

볼륨으로 가져오도록 해보자.

다음은 EKS 네트워크
