쿠버6탄-1. 유용한 쿠버네티스 명령어 20개

유용한 쿠버네티스 명령어를 알아보자~


실습 환경

Amazon EKS환경에서 실습한다.



<0> EKS 클러스터를 생성하자.

<1> 배포 웹서버를 6 pod로 확장하기

<2> 모든 네임스페이스에 있는 Pod를 pod-list.yaml 파일에 넣기

<3> 특정 네임스페이스에 있는 pod이름만 보기

<4>  Pod CPU 한번에 보기 = k top 명령어 = 메트릭

<5> 단일 컨테이너로 nginx pod 하나 생성해보자.

<6> myweb 네임스페이스 만들고, myweb 네임스페이스에 mongo web 만들자.

<7> busybox pod 만들고  sh 스크립트 사용해보자

<8> 영구 볼륨가 영구볼륨 목록을 보는법

<9> Pod 이름으로 정렬해서 보자

<10> nginx 이미지로 nginx-web01  웹서버를 만들자

<11> ssd를 가진 nginx pod 만들자

<12> nginx 1.23 버전으로 nginx123 Pod를 만들자

<13> 영구 볼륨 스토리지인 PV를 만들어 보자.

<14> redis  pod 만들기, 6379 port 사용

<15> Pod의 log 확인법

<16> Pod  lable이 run=redis 의  cpu 사용률 확인법

<17> 스토리지 10Gi ,     name: task-pv-volume  PV 생성하기

<18> busybox pod를  yaml 파일로 만들기,  sleep 10 실행 포함.

<19> db-user-pass 이름으로 스크릿 만들기

<20> 디플로이먼트로 배포하고 노드포트 사용하기




<0> EKS 클러스터를 생성하자.


비용 절감을 위해 node는 1개로 줄여 생성하자 = 콘솔에서  node수를 1개로 조정하자.


참고

https://brunch.co.kr/@topasvga/3572




<1> 배포 웹서버를 6 pod로 확장하기


kubectl scale deploy webserver --replicas=6

# 디플로이 다음 디플로이먼트 이름이 나와야 한다.



실습



1

터미널1

k ns default

watch -d kubectl get deploy,rs,po



터미널2

디플로이먼트 만들자.



cat <<EOT > eks-sample-deployment.yaml

apiVersion: apps/v1

kind: Deployment

metadata:

  name: eks-sample-linux-deployment

  namespace: eks-sample-app

  labels:

    app: eks-sample-linux-app

spec:

  replicas: 3

  selector:

    matchLabels:

      app: eks-sample-linux-app

  template:

    metadata:

      labels:

        app: eks-sample-linux-app

    spec:

      affinity:

        nodeAffinity:

          requiredDuringSchedulingIgnoredDuringExecution:

            nodeSelectorTerms:

            - matchExpressions:

              - key: kubernetes.io/arch

                operator: In

                values:

                - amd64

                - arm64

      containers:

      - name: nginx

        image: public.ecr.aws/nginx/nginx:1.23

        ports:

        - name: http

          containerPort: 80

        imagePullPolicy: IfNotPresent

      nodeSelector:

        kubernetes.io/os: linux

EOT


kubectl apply -f eks-sample-deployment.yaml



2

k get deploy,po


NAME                                          READY   UP-TO-DATE   AVAILABLE   AGE

deployment.apps/eks-sample-linux-deployment   2/2     2            2           15m


NAME                                               READY   STATUS    RESTARTS   AGE

pod/eks-sample-linux-deployment-66cfbc47b7-4g9xw   1/1     Running   0          15m

pod/eks-sample-linux-deployment-66cfbc47b7-rp7cg   1/1     Running   0          15m




kubectl scale deploy eks-sample-linux-deployment --replicas=6

# 디플로이 다음 디플로이먼트 이름이 나와야 한다.


k get deploy,po


NAME                                          READY   UP-TO-DATE   AVAILABLE   AGE

deployment.apps/eks-sample-linux-deployment   6/6     6            6           15m


NAME                                               READY   STATUS    RESTARTS   AGE

pod/eks-sample-linux-deployment-66cfbc47b7-4g9xw   1/1     Running   0          15m

pod/eks-sample-linux-deployment-66cfbc47b7-5fqqv   1/1     Running   0          5s

pod/eks-sample-linux-deployment-66cfbc47b7-9stlj   1/1     Running   0          5s

pod/eks-sample-linux-deployment-66cfbc47b7-fzw4p   1/1     Running   0          5s

pod/eks-sample-linux-deployment-66cfbc47b7-rp7cg   1/1     Running   0          15m

pod/eks-sample-linux-deployment-66cfbc47b7-x7phw   1/1     Running   0          5s


또는


kubectl scale deployment.apps/eks-sample-linux-deployment --replicas=6



3


k ns

default

eks-sample-app

kube-node-lease

kube-public

kube-system



k ns eks-sample-app

Context "12-24-user@myeks.ap-northeast-2.eksctl.io" modified.

Active namespace is "eks-sample-app".





참고

https://brunch.co.kr/@topasvga/1652

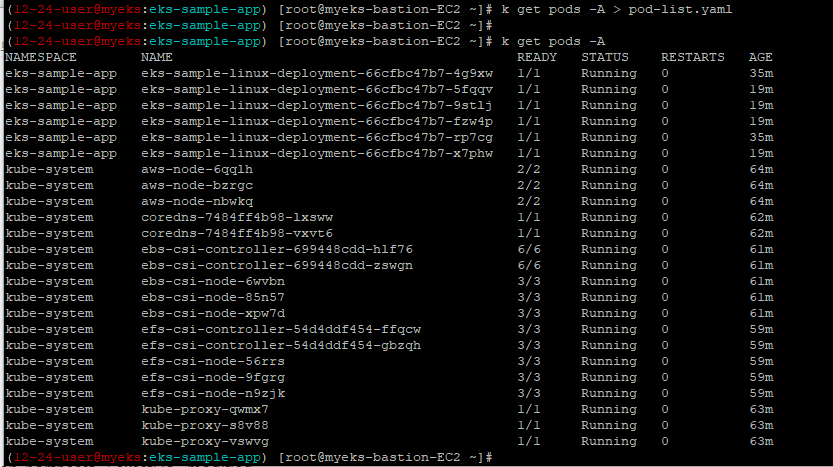

<2> 모든 네임스페이스에 있는 Pod를 pod-list.yaml 파일에 넣기



 k get pods -A

 k get pods -A > pod-list.yaml

 more pod-list.yaml


또는

 kubectl get pods --all-namespaces > pod-list.yaml







<3> 특정 네임스페이스에 있는 pod이름만 보기



k get pods  -n eks-sample-app  -o custom-columns=":metadata.name"


eks-sample-linux-deployment-66cfbc47b7-4g9xw

eks-sample-linux-deployment-66cfbc47b7-5fqqv

eks-sample-linux-deployment-66cfbc47b7-9stlj

eks-sample-linux-deployment-66cfbc47b7-fzw4p

eks-sample-linux-deployment-66cfbc47b7-rp7cg

eks-sample-linux-deployment-66cfbc47b7-x7phw

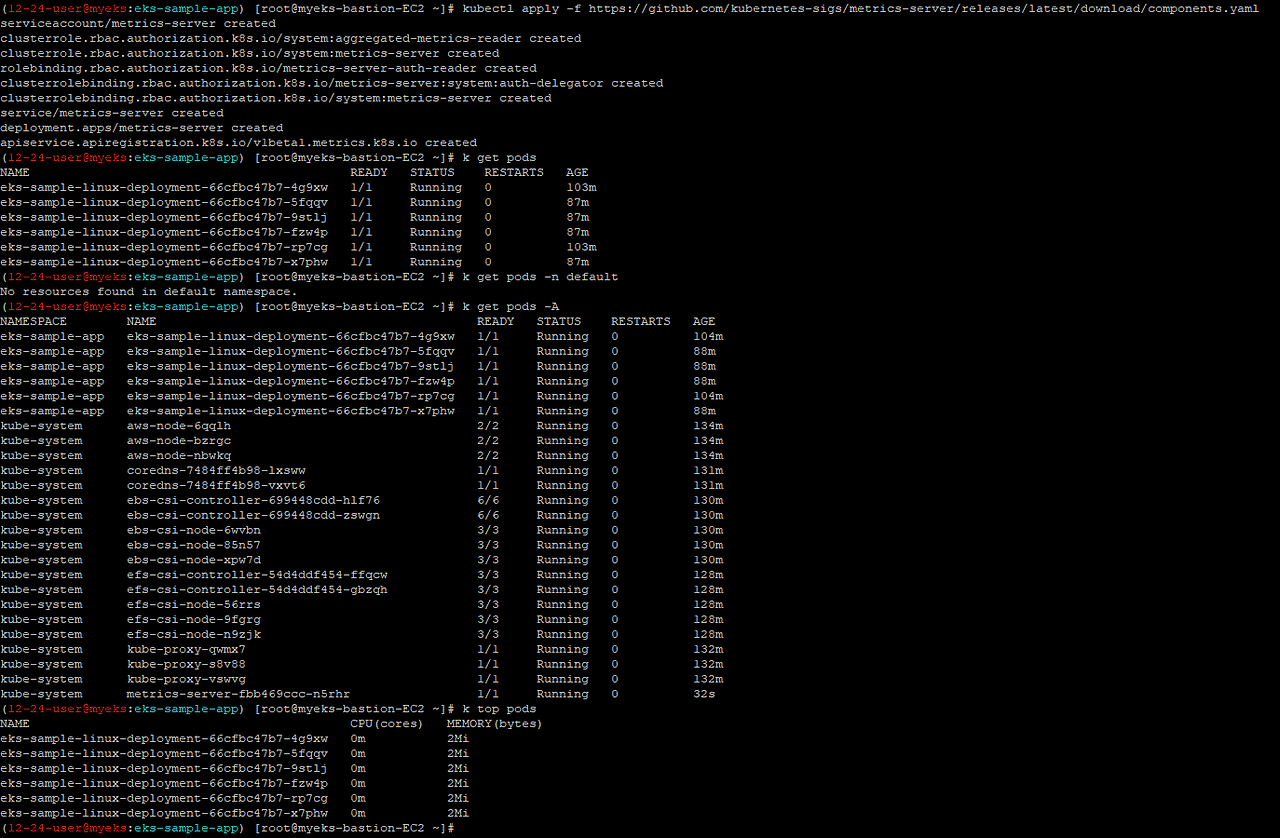

<4>  Pod CPU 한번에 보기 = k top 명령어 = 메트릭



kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml


 k top pods








<5> 단일 컨테이너로 nginx pod 하나 생성해보자.



# 단일 컨테이너로 nginx2 pod 하나 생성해보자.

pod안에 3개의 컨테이너가 있도록 생성해 보자.




1

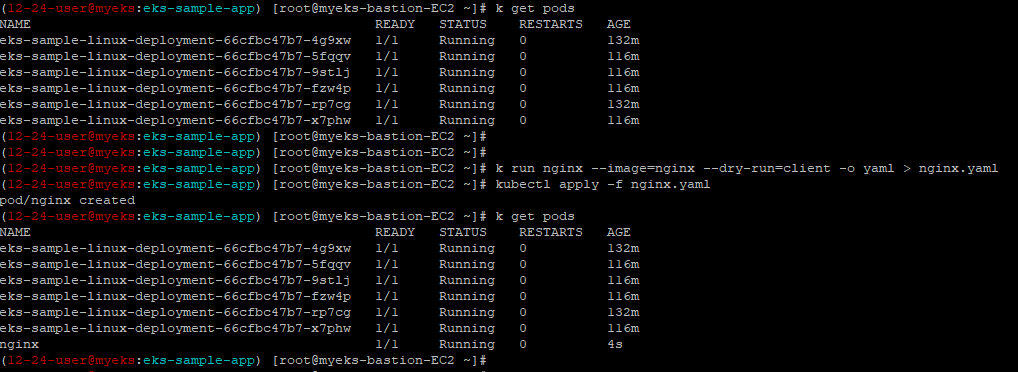

# 단일 컨테이너로 nginx2 pod 하나 생성해보자.


k run nginx --image=nginx --dry-run=client -o yaml > nginx.yaml

kubectl apply -f nginx.yaml

pod/nginx created



 k get pods

NAME                                           READY   STATUS    RESTARTS   AGE

eks-sample-linux-deployment-66cfbc47b7-4g9xw   1/1     Running   0          132m

eks-sample-linux-deployment-66cfbc47b7-5fqqv   1/1     Running   0          116m

eks-sample-linux-deployment-66cfbc47b7-9stlj   1/1     Running   0          116m

eks-sample-linux-deployment-66cfbc47b7-fzw4p   1/1     Running   0          116m

eks-sample-linux-deployment-66cfbc47b7-rp7cg   1/1     Running   0          132m

eks-sample-linux-deployment-66cfbc47b7-x7phw   1/1     Running   0          116m

nginx                                          1/1     Running   0          4s






2

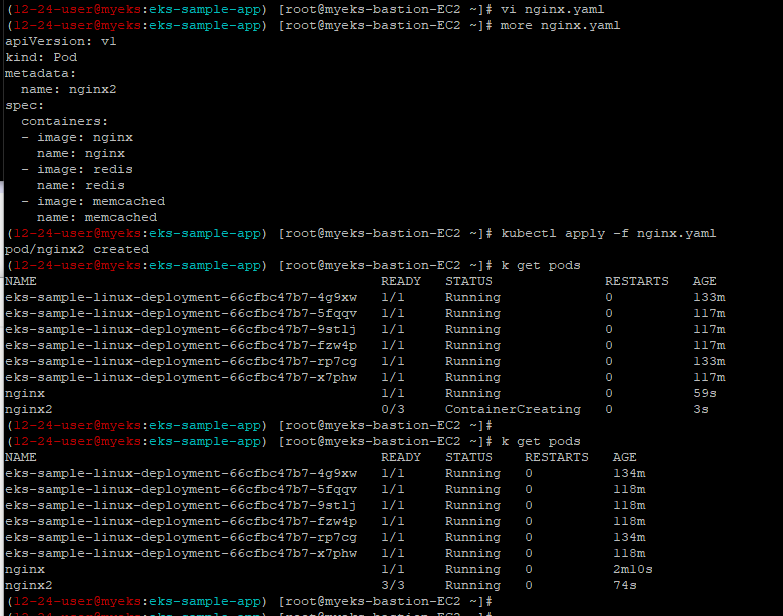

# pod안에 3개의 컨테이너가 있도록 생성해 보자.


vi nginx.yaml


more nginx.yaml

apiVersion: v1

kind: Pod

metadata:

  name: nginx2

spec:

  containers:

  - image: nginx

    name: nginx

  - image: redis

    name: redis

  - image: memcached

    name: memcached



kubectl apply -f nginx.yaml

pod/nginx2 created



k get pods

NAME                                           READY   STATUS              RESTARTS   AGE

eks-sample-linux-deployment-66cfbc47b7-4g9xw   1/1     Running             0          133m

eks-sample-linux-deployment-66cfbc47b7-5fqqv   1/1     Running             0          117m

eks-sample-linux-deployment-66cfbc47b7-9stlj   1/1     Running             0          117m

eks-sample-linux-deployment-66cfbc47b7-fzw4p   1/1     Running             0          117m

eks-sample-linux-deployment-66cfbc47b7-rp7cg   1/1     Running             0          133m

eks-sample-linux-deployment-66cfbc47b7-x7phw   1/1     Running             0          117m

nginx                                          1/1     Running             0          59s

nginx2                                         0/3     ContainerCreating   0          3s



k get pods

NAME                                           READY   STATUS    RESTARTS   AGE

eks-sample-linux-deployment-66cfbc47b7-4g9xw   1/1     Running   0          134m

eks-sample-linux-deployment-66cfbc47b7-5fqqv   1/1     Running   0          118m

eks-sample-linux-deployment-66cfbc47b7-9stlj   1/1     Running   0          118m

eks-sample-linux-deployment-66cfbc47b7-fzw4p   1/1     Running   0          118m

eks-sample-linux-deployment-66cfbc47b7-rp7cg   1/1     Running   0          134m

eks-sample-linux-deployment-66cfbc47b7-x7phw   1/1     Running   0          118m

nginx                                          1/1     Running   0          2m10s

nginx2                                         3/3     Running   0          74s








<6> myweb 네임스페이스 만들고, myweb 네임스페이스에 mongo web 만들자.



1

 k create ns myweb

namespace/myweb created



2

k run mongo --image=mongo -n myweb

pod/mongo created



3

k get pods   -n myweb

NAME    READY   STATUS    RESTARTS   AGE

mongo   1/1     Running   0          18s





# 추가 유틸 설치후 사용


4


k ns

default

eks-sample-app

kube-node-lease

kube-public

kube-system

myweb



k ns myweb

Context "12-24-user@myeks.ap-northeast-2.eksctl.io" modified.

Active namespace is "myweb".



myweb) [root@myeks-bastion-EC2 ~]# k get pods

NAME    READY   STATUS    RESTARTS   AGE

mongo   1/1     Running   0          3m37s




<7> busybox pod 만들고  sh 스크립트 사용해보자


kubectl run busybox --image=busybox --restart=Never -- /bin/sh -c "sleep 1"

pod/busybox created



k get pods

NAME      READY   STATUS      RESTARTS   AGE

busybox   0/1     Completed   0          22s

mongo     1/1     Running     0          18m




<8> 영구 볼륨가 영구볼륨 목록을 보는법


Pod가 삭제 되더라고 데이터가 보관 되도록 영구 스토리지를 사용하는 것이다.


k get pvc,pv


설정법

https://brunch.co.kr/@topasvga/3486

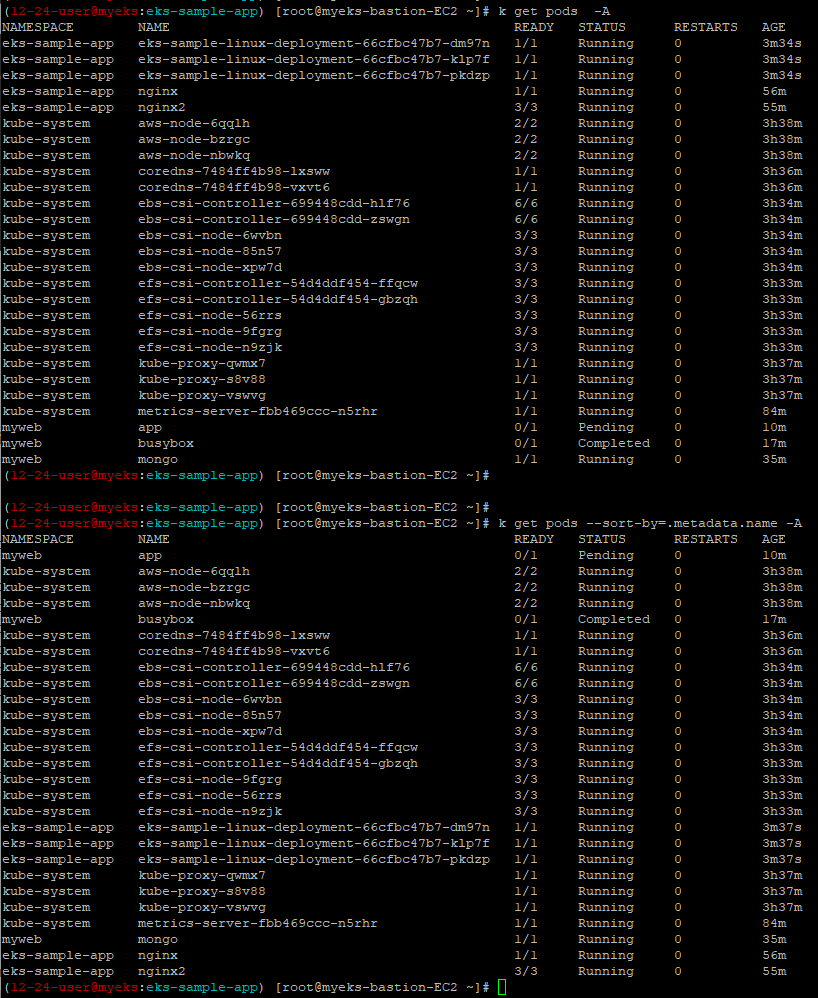

<9> Pod 이름으로 정렬해서 보자


pod이름 a ,b ,c 순으로 정렬해서 보는 명령어는?

--sort-by=.metadata.name



k get pods --sort-by=.metadata.name -A

NAMESPACE        NAME                                           READY   STATUS      RESTARTS   AGE

myweb            app                                            0/1     Pending     0          10m

kube-system      aws-node-6qqlh                                 2/2     Running     0          3h38m

kube-system      aws-node-bzrgc                                 2/2     Running     0          3h38m

kube-system      aws-node-nbwkq                                 2/2     Running     0          3h38m

myweb            busybox                                        0/1     Completed   0          17m

kube-system      coredns-7484ff4b98-lxsww                       1/1     Running     0          3h36m

kube-system      coredns-7484ff4b98-vxvt6                       1/1     Running     0          3h36m

kube-system      ebs-csi-controller-699448cdd-hlf76             6/6     Running     0          3h34m

kube-system      ebs-csi-controller-699448cdd-zswgn             6/6     Running     0          3h34m

kube-system      ebs-csi-node-6wvbn                             3/3     Running     0          3h34m

kube-system      ebs-csi-node-85n57                             3/3     Running     0          3h34m

kube-system      ebs-csi-node-xpw7d                             3/3     Running     0          3h34m

kube-system      efs-csi-controller-54d4ddf454-ffqcw            3/3     Running     0          3h33m

kube-system      efs-csi-controller-54d4ddf454-gbzqh            3/3     Running     0          3h33m

kube-system      efs-csi-node-9fgrg                             3/3     Running     0          3h33m

kube-system      efs-csi-node-56rrs                             3/3     Running     0          3h33m

kube-system      efs-csi-node-n9zjk                             3/3     Running     0          3h33m

eks-sample-app   eks-sample-linux-deployment-66cfbc47b7-dm97n   1/1     Running     0          3m37s

eks-sample-app   eks-sample-linux-deployment-66cfbc47b7-klp7f   1/1     Running     0          3m37s

eks-sample-app   eks-sample-linux-deployment-66cfbc47b7-pkdzp   1/1     Running     0          3m37s

kube-system      kube-proxy-qwmx7                               1/1     Running     0          3h37m

kube-system      kube-proxy-s8v88                               1/1     Running     0          3h37m

kube-system      kube-proxy-vswvg                               1/1     Running     0          3h37m

kube-system      metrics-server-fbb469ccc-n5rhr                 1/1     Running     0          84m

myweb            mongo                                          1/1     Running     0          35m

eks-sample-app   nginx                                          1/1     Running     0          56m

eks-sample-app   nginx2                                         3/3     Running     0          55m






<10> nginx 이미지로 nginx-web01  웹서버를 만들자


# nginx 이미지

# nginx-web01  웹서버를 만들자


k run nginx --image=nginx --dry-run=client -o yaml > nginx.yaml


vi nginx.yaml


kubectl apply -f nginx.yaml


k get pods



vi nginx.yaml

apiVersion: v1

kind: Pod

metadata:

  creationTimestamp: null

  labels:

    run: nginx

  name: nginx-web01

spec:

  containers:

  - image: nginx

    name: nginx

    resources: {}

  dnsPolicy: ClusterFirst

  restartPolicy: Always

status: {}




kubectl apply -f nginx.yaml

pod/nginx-web01 created



k get pods

NAME                                           READY   STATUS    RESTARTS   AGE

eks-sample-linux-deployment-66cfbc47b7-dm97n   1/1     Running   0          17m

eks-sample-linux-deployment-66cfbc47b7-klp7f   1/1     Running   0          17m

eks-sample-linux-deployment-66cfbc47b7-pkdzp   1/1     Running   0          17m

nginx-web01                                    1/1     Running   0          10s





<11> ssd를 가진 nginx pod 만들자


1

 k run nginx --image=nginx --dry-run=client -o yaml > nginx.yaml



2

vi nginx.yaml

apiVersion: v1

kind: Pod

metadata:

  creationTimestamp: null

  labels:

    run: nginx

  name: nginx-web01-ssd

spec:

  containers:

  - image: nginx

    name: nginx

    imagePullPolicy: IfNotPresent

  nodeSelector:

    disk: ssd



2

kubectl apply -f nginx.yaml

pod/nginx-web01-ssd created



3

 k get pods

NAME                                           READY   STATUS    RESTARTS   AGE

eks-sample-linux-deployment-66cfbc47b7-dm97n   1/1     Running   0          25m

eks-sample-linux-deployment-66cfbc47b7-klp7f   1/1     Running   0          25m

eks-sample-linux-deployment-66cfbc47b7-pkdzp   1/1     Running   0          25m

nginx-web01                                    1/1     Running   0          7m59s

nginx-web01-ssd                                0/1     Pending   0          24s





<12> nginx 1.23 버전으로 nginx123 Pod를 만들자


kubectl run nginx123 --image=nginx:1.23 --restart=Never --port=80


kubectl run nginxlast --image=nginx:latest --restart=Never --port=80





<13> 영구 볼륨 스토리지인 PV를 만들어 보자.



1


cat << EOT > pv.yaml

apiVersion: v1

kind: PersistentVolume

metadata:

  name: efs-pv

spec:

  capacity:

    storage: 5Gi

  volumeMode: Filesystem

  accessModes:

    - ReadWriteOnce

  storageClassName: ""

  persistentVolumeReclaimPolicy: Retain

  csi:

    driver: efs.csi.aws.com

    volumeHandle: fs-073d77123471b2917

EOT



kubectl apply -f pv.yaml




kubectl get pv efs-pv

NAME     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS   REASON   AGE

efs-pv   5Gi        RWO            Retain           Available                                   2s



참고 사이트

https://aws.amazon.com/ko/blogs/tech/persistent-storage-for-kubernetes/





<14> redis  pod 만들기, 6379 port 사용



kubectl run redis --image=redis --restart=Never --port=6379 --dry-run=client -o yaml > re.yaml


kubectl apply -f re.yaml


k get pods




more re.yaml

apiVersion: v1

kind: Pod

metadata:

  creationTimestamp: null

  labels:

    run: redis

  name: redis

spec:

  containers:

  - image: redis

    name: redis

    ports:

    - containerPort: 6379

    resources: {}

  dnsPolicy: ClusterFirst

  restartPolicy: Never

status: {}






<15> Pod의 log 확인법



alias k='kubectl'




k get pods

NAME    READY   STATUS    RESTARTS   AGE

redis   1/1     Running   0          20m



k logs redis

1:C 26 Dec 2023 01:01:28.115 * oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo

1:C 26 Dec 2023 01:01:28.115 * Redis version=7.2.3, bits=64, commit=00000000, modified=0, pid=1, just started

1:C 26 Dec 2023 01:01:28.115 # Warning: no config file specified, using the default config. In order to specify a config file use redis-server /path/to/redis.conf

1:M 26 Dec 2023 01:01:28.115 * monotonic clock: POSIX clock_gettime

1:M 26 Dec 2023 01:01:28.116 * Running mode=standalone, port=6379.

1:M 26 Dec 2023 01:01:28.117 * Server initialized

1:M 26 Dec 2023 01:01:28.117 * Ready to accept connections tcp



k logs redis  |grep Running

1:M 26 Dec 2023 01:01:28.116 * Running mode=standalone, port=6379.





<16> Pod  lable이 run=redis 의  cpu 사용률 확인법



k get pods

NAME    READY   STATUS    RESTARTS   AGE

redis   1/1     Running   0          26m




 k describe pod redis

Name:             redis

Namespace:        default

Priority:         0

Service Account:  default

Node:             ip-192-168-1-11.ap-northeast-2.compute.internal/192.168.1.11

Start Time:       Tue, 26 Dec 2023 10:01:25 +0900

Labels:           run=redis

Annotations:      <none>

Status:           Running

IP:               192.168.1.187

IPs:

  IP:  192.168.1.187

Containers:

  redis:

    Container ID:



# top 명령어는 메트릭 pod를 배포해야함!!!



k top po -l run=redis

NAME    CPU(cores)   MEMORY(bytes)

redis   2m           2Mi



k top po -l run=redis > pod-cpu.txt



more pod-cpu.txt

NAME    CPU(cores)   MEMORY(bytes)

redis   2m           2Mi




<17> 스토리지 10Gi ,     name: task-pv-volume  PV 생성하기



cat << EOT > pv-path1.yaml

apiVersion: v1

kind: PersistentVolume

metadata:

  name: task-pv-volume

  labels:

    type: local

spec:

  storageClassName: manual

  capacity:

    storage: 10Gi

  accessModes:

    - ReadWriteOnce

  hostPath:

    path: "/mnt/data"

EOT


kubectl apply -f pv-path1.yaml



kubectl get pv task-pv-volume


NAME             CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS   REASON   AGE

task-pv-volume   10Gi       RWO            Retain           Available           manual                  2s



# 참고 사이트

https://kubernetes.io/docs/tasks/configure-pod-container/configure-persistent-volume-storage/





<18> busybox pod를  yaml 파일로 만들기,  sleep 10 실행 포함.



kubectl run busybox --image=busybox --restart=Never --dry-run=client -o yaml -- /bin/sh -c "sleep 10"  > busybox2.yaml



more busybox2.yaml

apiVersion: v1

kind: Pod

metadata:

  creationTimestamp: null

  labels:

    run: busybox

  name: busybox

spec:

  containers:

  - args:

    - /bin/sh

    - -c

    - sleep 10

    image: busybox

    name: busybox

    resources: {}

  dnsPolicy: ClusterFirst

  restartPolicy: Never

status: {}




kubectl apply -f busybox2.yaml

pod/busybox created



k get pods

NAME      READY   STATUS    RESTARTS   AGE

busybox   1/1     Running   0          4s

redis     1/1     Running   0          72m




<19> db-user-pass 이름으로 스크릿 만들기



# db-user-pass 이름으로 스크릿 만들기


kubectl create secret generic db-user-pass --from-literal=username=admin --from-literal=password='S!B\*d$zDsb='

secret/db-user-pass created



kubectl get secrets

NAME           TYPE     DATA   AGE

db-user-pass   Opaque   2      30s



참고 사이트

https://kubernetes.io/docs/tasks/configmap-secret/managing-secret-using-kubectl/

https://brunch.co.kr/@topasvga/3303





<20> 디플로이먼트로 배포하고 노드포트 사용하기



1

kubectl create deployment nginx-project --image=nginx  --dry-run=client -o yaml --port=80 > nginx-deploy.yaml


more nginx-deploy.yaml


kubectl apply -f nginx-deploy.yaml




2

kubectl expose deployment nginx-project --port=80 --type=NodePort



kubectl expose deployment nginx-project --port=80 --type=NodePort  --dry-run=client -o yaml   > nodeport.yaml


 more nodeport.yaml

apiVersion: v1

kind: Service

metadata:

  creationTimestamp: null

  labels:

    app: nginx-project

  name: nginx-project

spec:

  ports:

  - port: 80

    protocol: TCP

    targetPort: 80

  selector:

    app: nginx-project

  type: NodePort

status:

  loadBalancer: {}



k get svc

NAME            TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE

kubernetes      ClusterIP   10.100.0.1       <none>        443/TCP        19h

nginx-project   NodePort    10.100.138.121   <none>        80:30314/TCP   4m31s




or

kubectl expose deployment nginx-project --port=80 --type=LoadBalancer



명령어 첨부



다음

https://brunch.co.kr/@topasvga/3580



같이보면 좋은 자료

https://brunch.co.kr/@topasvga/1656


감사합니다.







매거진의 이전글 (모음)쿠버네티스,Amazon EKS,GoogleGKE
브런치는 최신 브라우저에 최적화 되어있습니다. IE chrome safari
