by Master Seo Dec 28. 2023

43탄-1.테라폼-Amazon EKS클러스터 생성1

목표

클라우드포메이션으로 명령서버 1대 생성

명령서버 로그온해서 테라폼으로 EKS 생성하기


참고 사이트

테라폼으로 Amazon EKS 생성 매뉴얼


https://developer.hashicorp.com/terraform/tutorials/kubernetes/eks




<1> AWS = 클라우드포메이션으로 테라폼 cli설치된 EC2 1대 생성

<2> EC2 로그인해서 Amazon EKS  테라폼 파일 받기, 테라폼 초기화

<3> EKS 테라폼 파일 내용 보기

<4> EKS 테라폼 적용하여 생성하기 , 1.27버전



<1> AWS = 클라우드포메이션으로 테라폼 cli설치



1

사전 준비

ec2 keypair  생성 필요 = 명령 EC2 서버 로그인을 위해 필요

access-key / secret-key  생성 필요 = AWS 리소스를 만들 수 있는 권한이 필요하다.



2

아래 클라우드포메이션 파일로 테라폼 명령서버 만들자.




3

클라우드 포메이션으로 생성되는 리소스?

vpc1개

public subnet 1개

ec2 1개  = 명령서버 만들어질 때 aws cli , 테라폼이 모두 설치가 된다.





<2> EC2 로그인해서 Amazon EKS  테라폼 파일 받기, 테라폼 초기화



1

테라폼으로 Amazon EKS 생성 매뉴얼


https://developer.hashicorp.com/terraform/tutorials/kubernetes/eks



2

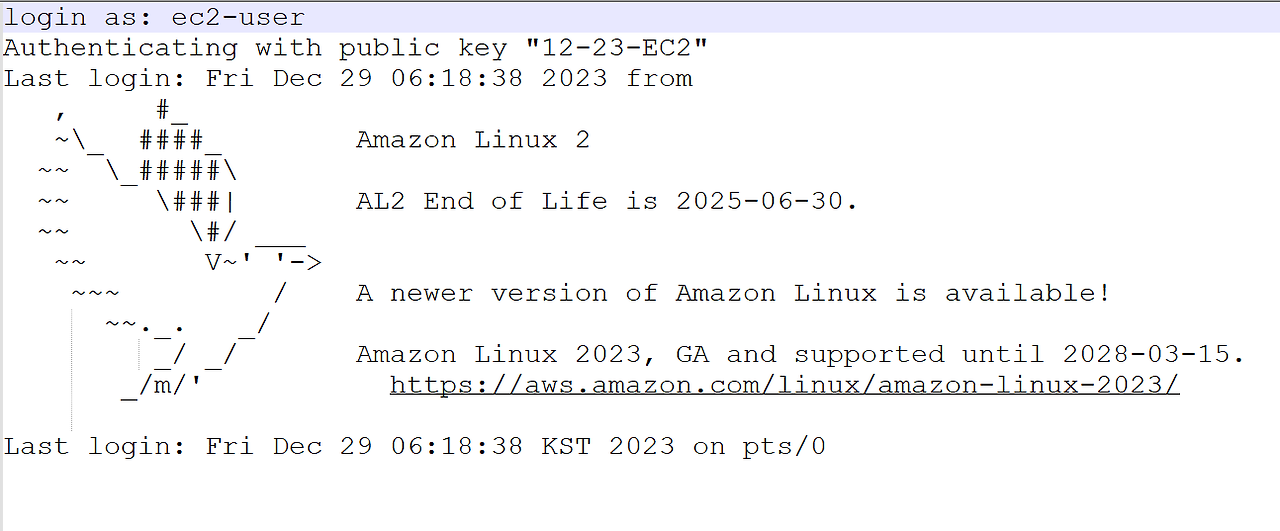

EC2 로그인



3

테라폼 git에서 tf파일 다운로드


git clone https://github.com/hashicorp/learn-terraform-provision-eks-cluster


 cd learn-terraform-provision-eks-cluster


[root@myeks2-bastion-EC2 learn-terraform-provision-eks-cluster]# ls

LICENSE  main.tf  outputs.tf  README.md  terraform.tf  variables.tf





4

4개의 tf파일


main.tf

outputs.tf

terraform.tf

variables.tf




5

terraform.tf 파일에서 주석 처리하기


 learn-terraform-provision-eks-cluster]# vi terraform.tf



# Copyright (c) HashiCorp, Inc.

# SPDX-License-Identifier: MPL-2.0


terraform {

  /*

cloud {

    workspaces {

      name = "learn-terraform-eks"

    }

  }

*/



  required_providers {

    aws = {




6

테라폼 사용을 위한 초기화



terraform init



Initializing the backend...

Initializing modules...

Initializing provider plugins...

- Reusing previous version of hashicorp/random from the dependency lock file

- Reusing previous version of hashicorp/kubernetes from the dependency lock file

- Reusing previous version of hashicorp/time from the dependency lock file

- Reusing previous version of hashicorp/tls from the dependency lock file

- Reusing previous version of hashicorp/cloudinit from the dependency lock file

- Reusing previous version of hashicorp/aws from the dependency lock file

- Installing hashicorp/aws v5.7.0...

- Installed hashicorp/aws v5.7.0 (signed by HashiCorp)

- Installing hashicorp/random v3.5.1...

- Installed hashicorp/random v3.5.1 (signed by HashiCorp)

- Installing hashicorp/kubernetes v2.21.1...

- Installed hashicorp/kubernetes v2.21.1 (signed by HashiCorp)

- Installing hashicorp/time v0.9.1...

- Installed hashicorp/time v0.9.1 (signed by HashiCorp)

- Installing hashicorp/tls v4.0.4...

- Installed hashicorp/tls v4.0.4 (signed by HashiCorp)

- Installing hashicorp/cloudinit v2.3.2...

- Installed hashicorp/cloudinit v2.3.2 (signed by HashiCorp)

Terraform has made some changes to the provider dependency selections recorded

in the .terraform.lock.hcl file. Review those changes and commit them to your

version control system if they represent changes you intended to make.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see

any changes that are required for your infrastructure. All Terraform commands

should now work.

If you ever set or change modules or backend configuration for Terraform,

rerun this command to reinitialize your working directory. If you forget, other

commands will detect it and remind you to do so if necessary.






<3> EKS 테라폼 파일 내용 보기



learn-terraform-provision-eks-cluster]# more *.tf



1


::::::::::::::

main.tf

::::::::::::::


# 프로바이더는 AWS 프로바이더이다


provider "aws" {

  region = var.region

}



# 가용 영역, data로 지정한다.


# Filter out local zones, which are not currently supported

# with managed node groups


data "aws_availability_zones" "available" {

  filter {

    name   = "opt-in-status"

    values = ["opt-in-not-required"]

  }

}



# EKS 클러스터 이름 = education-eks-xxxxxxxxxxxxxxxx


locals {

  cluster_name = "education-eks-${random_string.suffix.result}"

}



# 랜덤 리소스 생성


resource "random_string" "suffix" {

  length  = 8

  special = false

}




# VPC 네트워크 쪽은 모듈로 처리한다!!!!


# 모듈은 소스를  지정한다!!!  =  "terraform-aws-modules/vpc/aws"

# 서브넷은 slice  0 1 2로 지정한다.  = slice(data.aws_availability_zones.available.names, 0, 3)

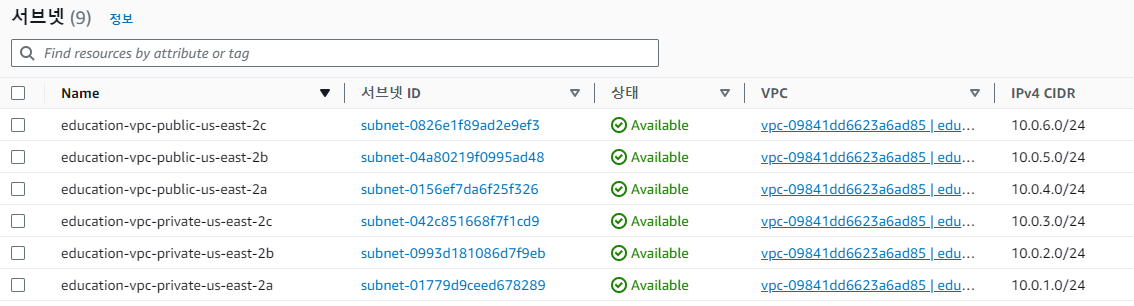

module "vpc" {

  source  = "terraform-aws-modules/vpc/aws"

  version = "5.0.0"

  name = "education-vpc"

  cidr = "10.0.0.0/16"

  azs  = slice(data.aws_availability_zones.available.names, 0, 3)

  private_subnets = ["10.0.1.0/24", "10.0.2.0/24", "10.0.3.0/24"]

  public_subnets  = ["10.0.4.0/24", "10.0.5.0/24", "10.0.6.0/24"]

  enable_nat_gateway   = true

  single_nat_gateway   = true

  enable_dns_hostnames = true

  public_subnet_tags = {

    "kubernetes.io/cluster/${local.cluster_name}" = "shared"

    "kubernetes.io/role/elb"                      = 1

  }

  private_subnet_tags = {

    "kubernetes.io/cluster/${local.cluster_name}" = "shared"

    "kubernetes.io/role/internal-elb"             = 1

  }

}




# EKS도 모듈로 처리한다.


module "eks" {

  source  = "terraform-aws-modules/eks/aws"

  version = "19.15.3"

  cluster_name    = local.cluster_name

  cluster_version = "1.27"

  vpc_id                         = module.vpc.vpc_id

  subnet_ids                     = module.vpc.private_subnets

  cluster_endpoint_public_access = true

  eks_managed_node_group_defaults = {

    ami_type = "AL2_x86_64"

  }



  eks_managed_node_groups = {

    one = {

      name = "node-group-1"

      instance_types = ["t3.small"]

      min_size     = 1

      max_size     = 3

      desired_size = 2

    }


    two = {

      name = "node-group-2"

      instance_types = ["t3.small"]

      min_size     = 1

      max_size     = 2

      desired_size = 1

    }

  }

}



클러스터 이름,  cluster_name    = local.cluster_name





# https://aws.amazon.com/blogs/containers/amazon-ebs-csi-driver-is-now-generally-available-in-amazon-eks-add-ons/




# ebs_csi 사용하기 위한 정책, IRSA

컨테이너 인스턴스 스토리지 드라이버 ( CSI )



data "aws_iam_policy" "ebs_csi_policy" {

  arn = "arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy"

}



module "irsa-ebs-csi" {

  source  = "terraform-aws-modules/iam/aws//modules/iam-assumable-role-with-oidc"

  version = "4.7.0"

  create_role                   = true

  role_name                     = "AmazonEKSTFEBSCSIRole-${module.eks.cluster_name}"

  provider_url                  = module.eks.oidc_provider

  role_policy_arns              = [data.aws_iam_policy.ebs_csi_policy.arn]

  oidc_fully_qualified_subjects = ["system:serviceaccount:kube-system:ebs-csi-controller-sa"]

}


resource "aws_eks_addon" "ebs-csi" {

  cluster_name             = module.eks.cluster_name

  addon_name               = "aws-ebs-csi-driver"

  addon_version            = "v1.20.0-eksbuild.1"

  service_account_role_arn = module.irsa-ebs-csi.iam_role_arn

  tags = {

    "eks_addon" = "ebs-csi"

    "terraform" = "true"

  }

}




2

::::::::::::::

outputs.tf

::::::::::::::


# 출력은 4가지 확인한다.




output "cluster_endpoint" {

  description = "Endpoint for EKS control plane"

  value       = module.eks.cluster_endpoint

}



output "cluster_security_group_id" {

  description = "Security group ids attached to the cluster control plane"

  value       = module.eks.cluster_security_group_id

}



output "region" {

  description = "AWS region"

  value       = var.region

}



output "cluster_name" {

  description = "Kubernetes Cluster Name"

  value       = module.eks.cluster_name

}





3

::::::::::::::

terraform.tf

::::::::::::::


# workspaces

프로바이더 지정

radom



terraform {

  /*

cloud {

    workspaces {

      name = "learn-terraform-eks"

    }

  }

*/




  required_providers {

    aws = {

      source  = "hashicorp/aws"

      version = "~> 5.7.0"

    }



    random = {

      source  = "hashicorp/random"

      version = "~> 3.5.1"

    }



    tls = {

      source  = "hashicorp/tls"

      version = "~> 4.0.4"

    }



    cloudinit = {

      source  = "hashicorp/cloudinit"

      version = "~> 2.3.2"

    }

  }

  required_version = "~> 1.3"

}





4

::::::::::::::

variables.tf

::::::::::::::


#변수는 리전만 한다.


variable "region" {

  description = "AWS region"

  type        = string

  default     = "us-east-2"

}



# 서울리전으로 변경시


vi variables.tf


# Copyright (c) HashiCorp, Inc.

# SPDX-License-Identifier: MPL-2.0

variable "region" {

  description = "AWS region"

  type        = string

  default     = "ap-northeast-2"

}





1-1

vpc 모듈


pwd

/root/learn-terraform-provision-eks-cluster/.terraform/modules/vpc/modules/vpc-endpoints



 ls -al

-rw-r--r-- 1 root root 1914 Dec 29 08:19 main.tf

-rw-r--r-- 1 root root  162 Dec 29 08:19 outputs.tf

-rw-r--r-- 1 root root 3488 Dec 29 08:19 README.md

-rw-r--r-- 1 root root 1049 Dec 29 08:19 variables.tf

-rw-r--r-- 1 root root  147 Dec 29 08:19 versions.tf





<4> EKS 테라폼 적용하여 생성하기 , 1.27버전



1

terraform apply -auto-approve


또는


terraform apply


module.irsa-ebs-csi.data.aws_partition.current: Reading...

module.eks.data.aws_caller_identity.current: Reading...

data.aws_iam_policy.ebs_csi_policy: Reading...

module.eks.module.kms.data.aws_caller_identity.current: Reading...


Do you want to perform these actions?

  Terraform will perform the actions described above.

  Only 'yes' will be accepted to approve.

  Enter a value: yes


random_string.suffix: Creating...

random_string.suffix: Creation complete after 0s [id=9kYKrjZB]

aws_eks_addon.ebs-csi: Creation complete after 15m15s [id=education-eks-9kYKrjZB:aws-ebs-csi-driver]

Apply complete! Resources: 63 added, 0 changed, 0 destroyed.




Outputs:

cluster_endpoint = "https://AA49B331E646740E1F6FB99B540B6E70.yl4.us-east-2.eks.amazonaws.com"

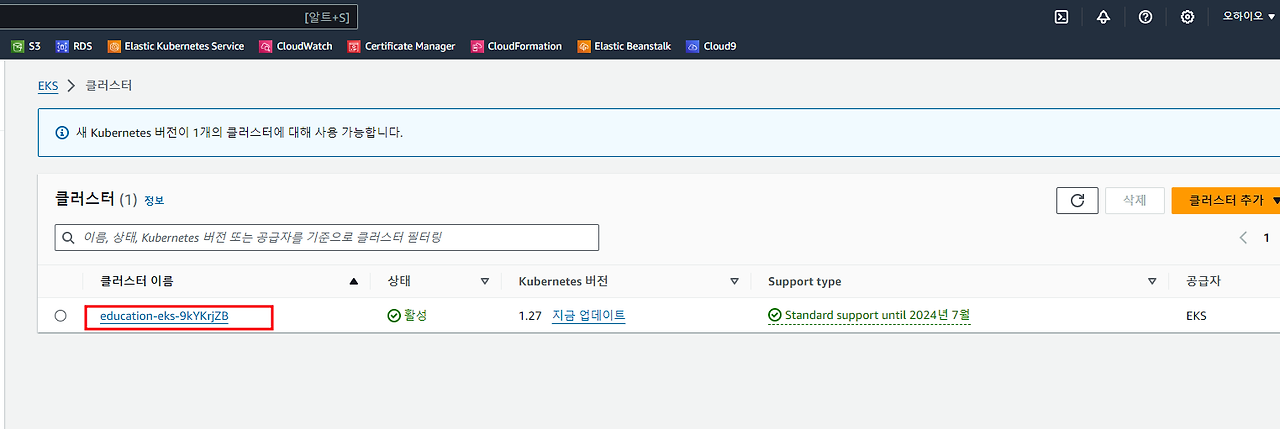

cluster_name = "education-eks-9kYKrjZB"

cluster_security_group_id = "sg-09f55ad884f013406"

region = "us-east-2"



[root@myeks2-bastion-EC2 learn-terraform-provision-eks-cluster]# ls

LICENSE  main.tf  outputs.tf  README.md  terraform.tf  terraform.tfstate  variables.tf




20분  걸림


https://vclock.kr/timer/#countdown=00:15:00&date=2023-12-29T13:46:02&sound=xylophone&loop=1



2  권한


aws eks --region $(terraform output -raw region) update-kubeconfig \

    --name $(terraform output -raw cluster_name)


Added new context arn:aws:eks:us-east-2:476286675138:cluster/education-eks-9kYKrjZB to /root/.kube/config



kubectl cluster-info


Kubernetes control plane is running at https://AA49B331E646740E1F6FB99B540B6E70.yl4.us-east-2.eks.amazonaws.com

CoreDNS is running at https://AA49B331E646740E1F6FB99B540B6E70.yl4.us-east-2.eks.amazonaws.com/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.

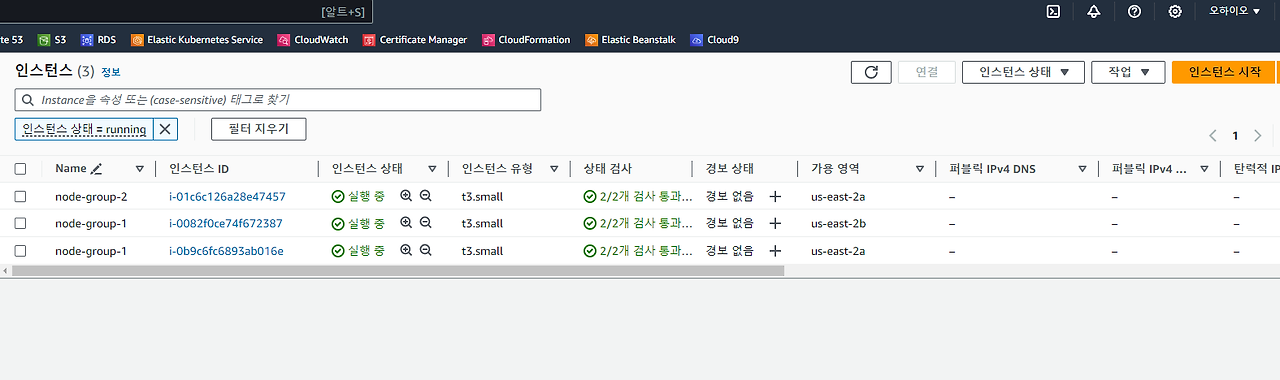

 kubectl get nodes

NAME                                       STATUS   ROLES    AGE   VERSION

ip-10-0-1-124.us-east-2.compute.internal   Ready    <none>   29m   v1.27.7-eks-e71965b

ip-10-0-1-30.us-east-2.compute.internal    Ready    <none>   22m   v1.27.7-eks-e71965b

ip-10-0-2-251.us-east-2.compute.internal   Ready    <none>   22m   v1.27.7-eks-e71965b




 k ns default

Context "arn:aws:eks:us-east-2:476286675138:cluster/education-eks-9kYKrjZB" modified.

Active namespace is "default".




목표 완료?

클라우드 포메이션으로 명령서버 1대 생성

명령서버 로그온해서 테라폼으로 EKS 생성하기




삭제


terraform destroy -auto-approve




다음 공부

https://brunch.co.kr/@topasvga/3586






감사합니다.
