6. (온라인) 네이버 클라우드 테라폼-2025-11
# 실습 코드
1
명령어와 코드
2
https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html
https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html
putty-64bit-0.83-installer.msi
3
실습 명령어
4
6개 서브넷 생성 테라폼 코드
5
서버 생성부분 제외된 코드
----

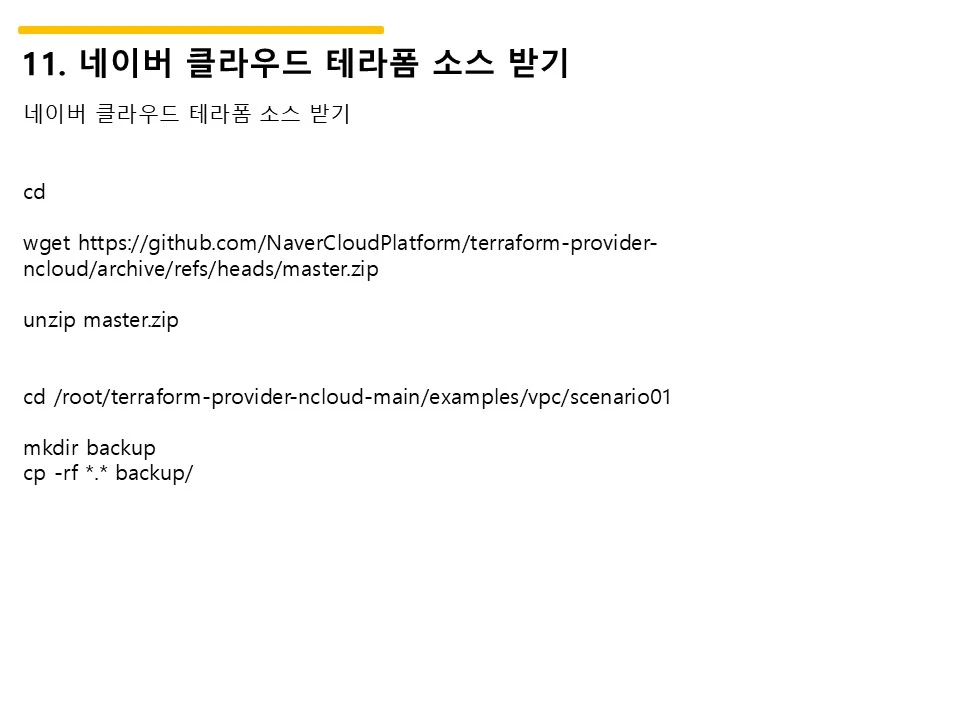

<1> 테라폼 소스 받기
wget https://github.com/NaverCloudPlatform/terraform-provider-ncloud/archive/refs/heads/master.zip
unzip master.zip
cd /root/terraform-provider-ncloud-main/examples/vpc/scenario01
mkdir backup
cp -rf *.* backup/
참고
https://brunch.co.kr/@topasvga/4965

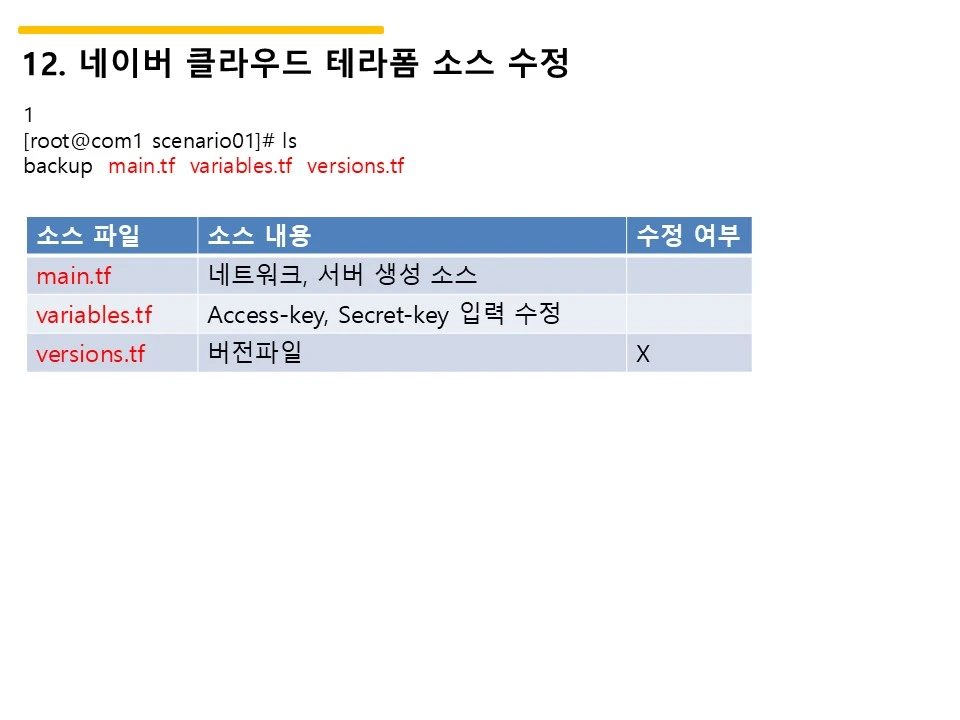

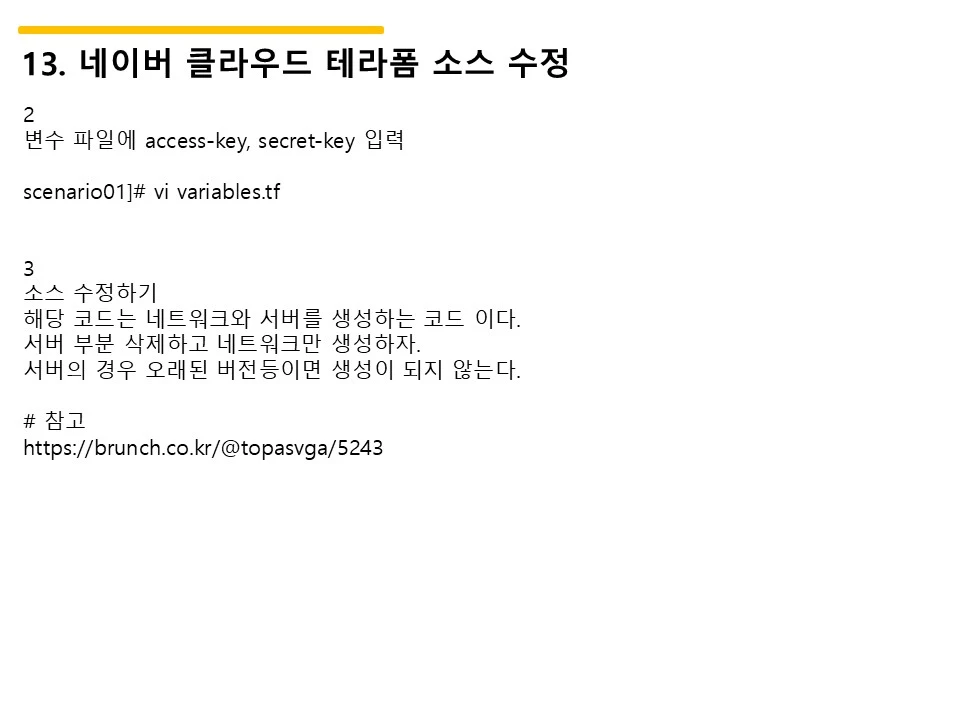

<2> 테라폼 소스 수정하기
0
[root@com1 scenario01]# ls
main.tf variables.tf versions.tf
1

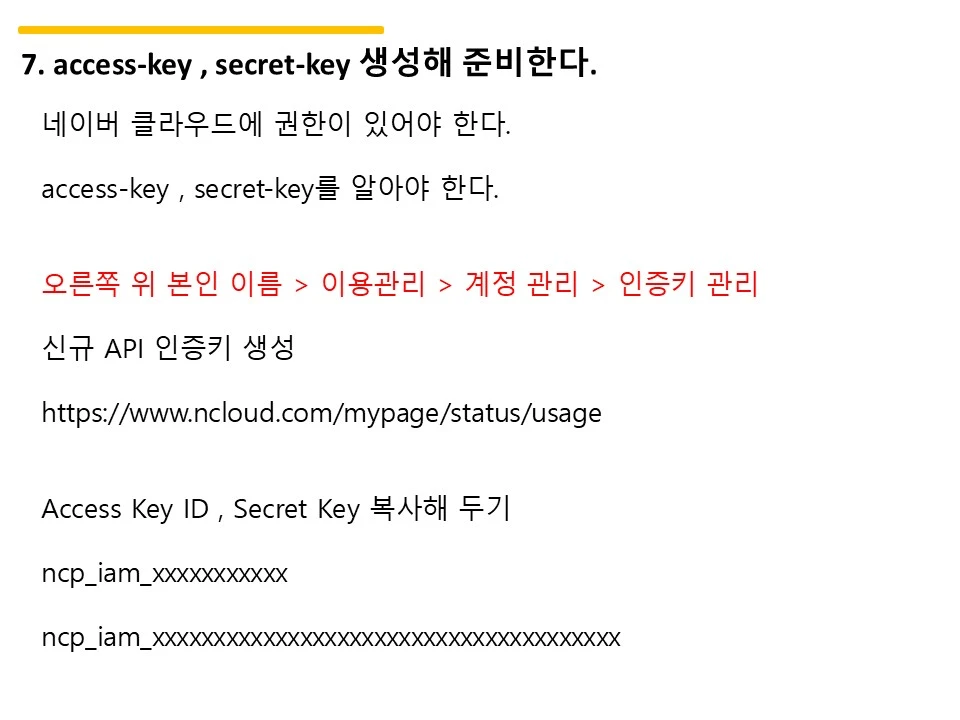

# 변수 수정
vi variables.tf
variable client_ip {
default = "YOUR_CLIENT_IP"
}
variable access_key {
default = "YOUR_ACCESS_KEY"
}
variable secret_key {
default = "YOUR_SECRET_KEY"
}
2
[root@com1 scenario01]# more *.tf
::::::::::::::
main.tf
::::::::::::::
# VPC > User scenario > Scenario 1. Single Public Subnet
# https://docs.ncloud.com/ko/networking/vpc/vpc_userscenario1.html
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_login_key" "key_scn_01" {
key_name = var.name_scn01
}
resource "ncloud_vpc" "vpc_scn_01" {
name = var.name_scn01
ipv4_cidr_block = "10.0.0.0/16"
}
resource "ncloud_subnet" "subnet_scn_01" {
name = var.name_scn01
vpc_no = ncloud_vpc.vpc_scn_01.id

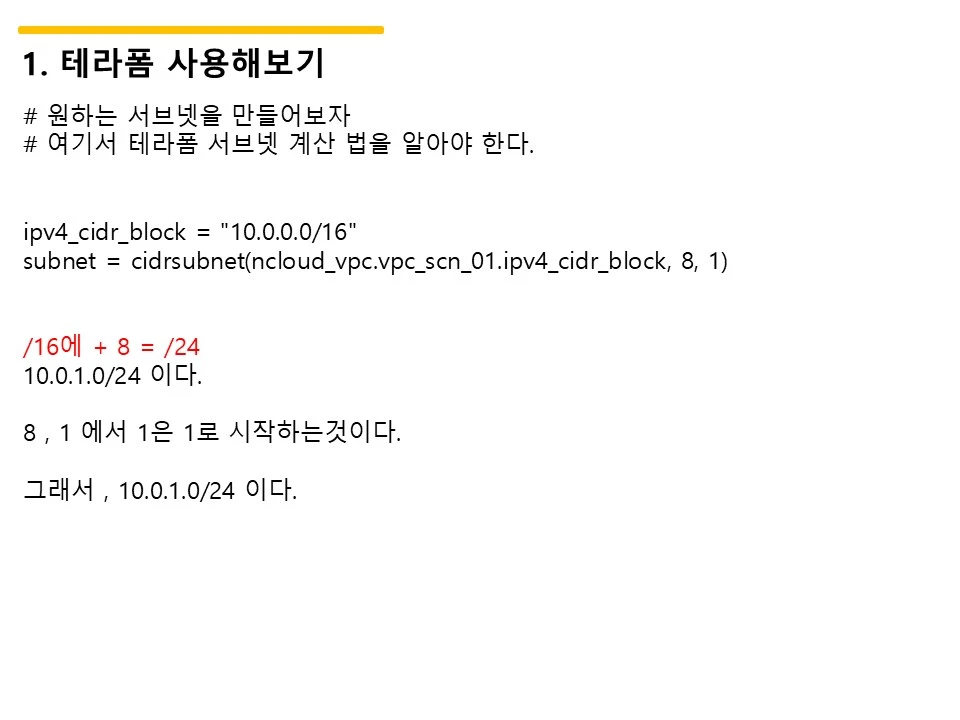

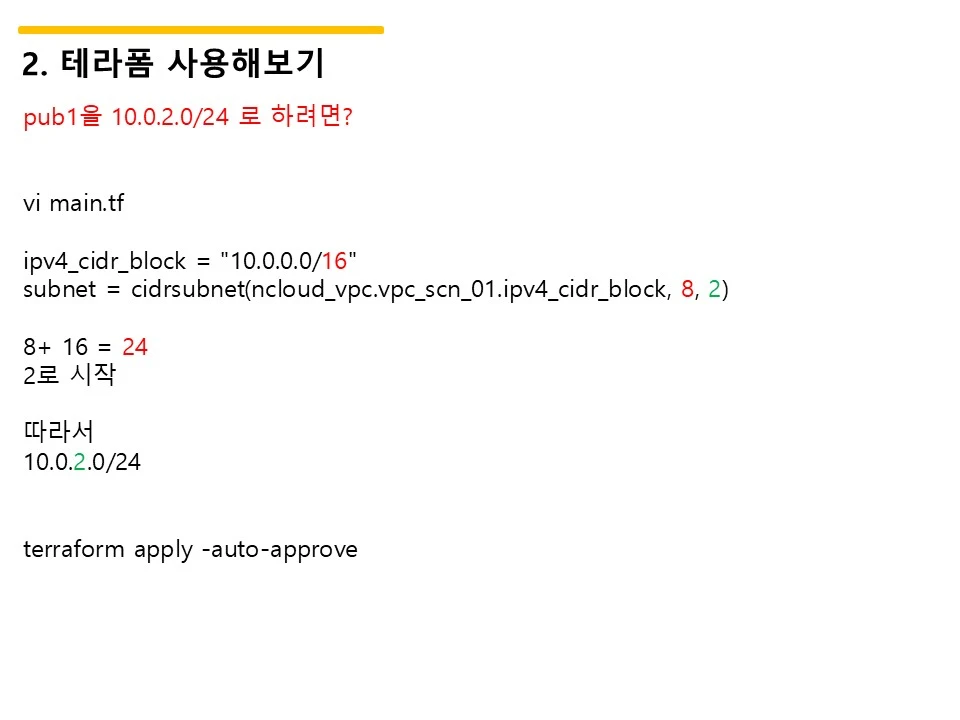

subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 8, 1)
// 10.0.1.0/24
zone = "KR-2"
network_acl_no = ncloud_vpc.vpc_scn_01.default_network_acl_no
subnet_type = "PUBLIC"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_server" "server_scn_01" {
subnet_no = ncloud_subnet.subnet_scn_01.id
name = var.name_scn01
server_image_product_code = "SW.VSVR.OS.LNX64.CNTOS.0703.B050"
login_key_name = ncloud_login_key.key_scn_01.key_name
}
resource "ncloud_public_ip" "public_ip_scn_01" {
server_instance_no = ncloud_server.server_scn_01.id
description = "for ${var.name_scn01}"
}
locals {
scn01_inbound = [
[1, "TCP", "0.0.0.0/0", "80", "ALLOW"],
[2, "TCP", "0.0.0.0/0", "443", "ALLOW"],
[3, "TCP", "${var.client_ip}/32", "22", "ALLOW"],
[4, "TCP", "${var.client_ip}/32", "3389", "ALLOW"],
[5, "TCP", "0.0.0.0/0", "32768-65535", "ALLOW"],
[197, "TCP", "0.0.0.0/0", "1-65535", "DROP"],
[198, "UDP", "0.0.0.0/0", "1-65535", "DROP"],
[199, "ICMP", "0.0.0.0/0", null, "DROP"],
]
scn01_outbound = [
[1, "TCP", "0.0.0.0/0", "80", "ALLOW"],
[2, "TCP", "0.0.0.0/0", "443", "ALLOW"],
[3, "TCP", "${var.client_ip}/32", "1000-65535", "ALLOW"],
[197, "TCP", "0.0.0.0/0", "1-65535", "DROP"],
[198, "UDP", "0.0.0.0/0", "1-65535", "DROP"],
[199, "ICMP", "0.0.0.0/0", null, "DROP"]
]
}
resource "ncloud_network_acl_rule" "network_acl_01_rule" {
network_acl_no = ncloud_vpc.vpc_scn_01.default_network_acl_no
dynamic "inbound" {
for_each = local.scn01_inbound
content {
priority = inbound.value[0]
protocol = inbound.value[1]
ip_block = inbound.value[2]
port_range = inbound.value[3]
rule_action = inbound.value[4]
description = "for ${var.name_scn01}"
}
}
dynamic "outbound" {
for_each = local.scn01_outbound
content {
priority = outbound.value[0]
protocol = outbound.value[1]
ip_block = outbound.value[2]
port_range = outbound.value[3]
rule_action = outbound.value[4]
description = "for ${var.name_scn01}"
}
}
}
::::::::::::::
variables.tf
::::::::::::::
variable name_scn01 {
default = "tf-scn01"
}
variable client_ip {
default = "YOUR_CLIENT_IP"
}
variable access_key {
default = "YOUR_ACCESS_KEY"
}
variable secret_key {
default = "YOUR_SECRET_KEY"
}
::::::::::::::
versions.tf
::::::::::::::
terraform {
required_providers {
ncloud = {
source = "navercloudplatform/ncloud"
}
}
required_version = ">= 0.13"
}
# 서버 생성부분 제외된 코드

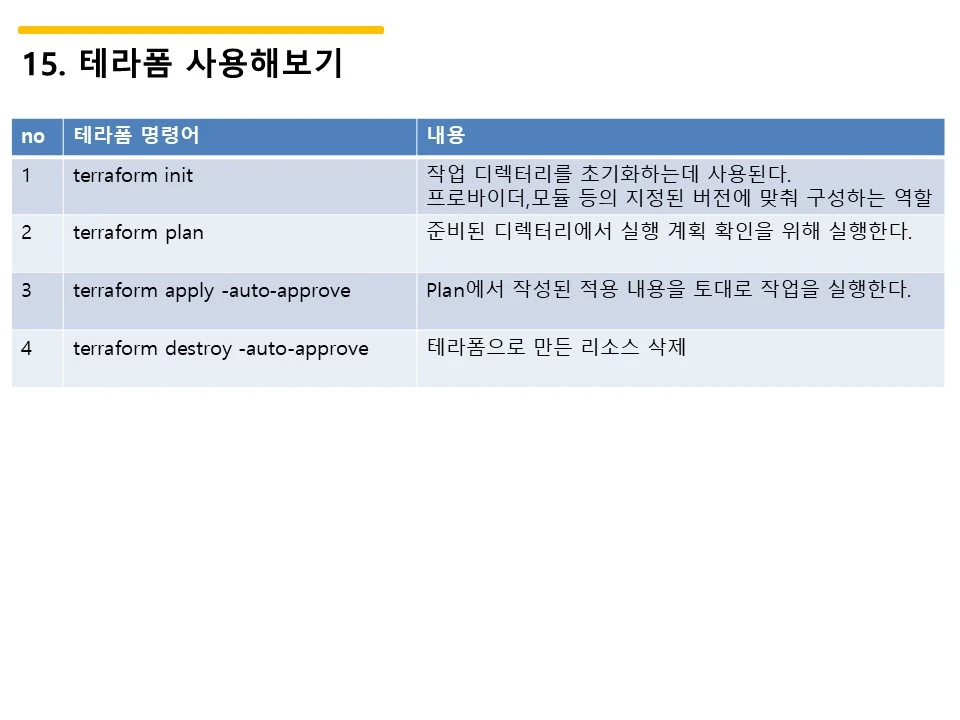

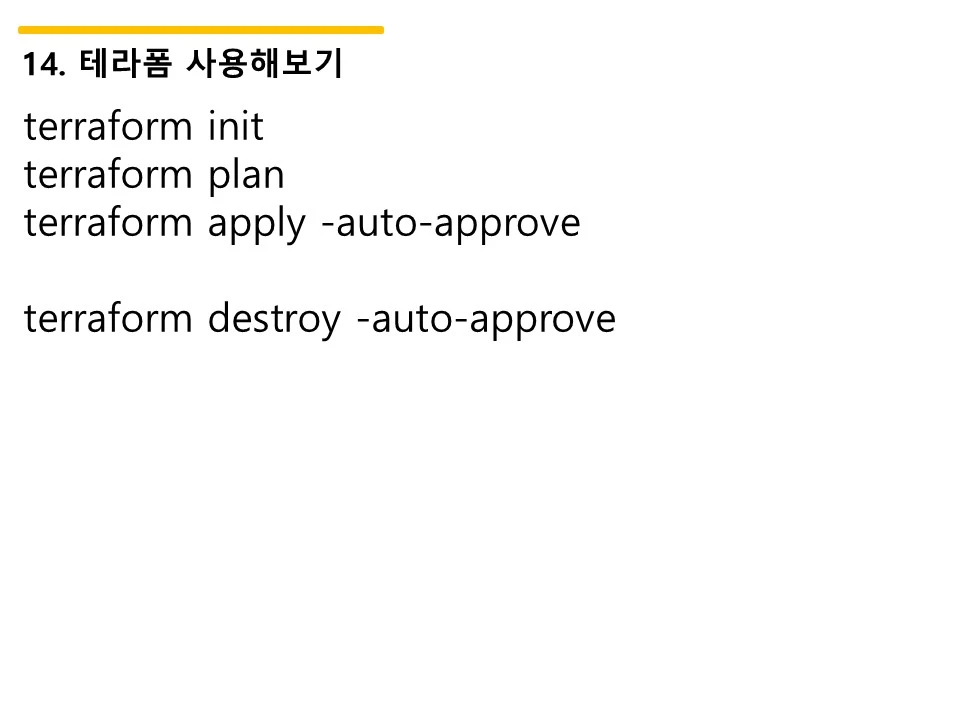

3
terraform init
terraform plan
terraform apply -auto-approve
4
Plan: 3 to add, 0 to change, 0 to destroy.
ncloud_vpc.vpc_scn_01: Creating...
ncloud_vpc.vpc_scn_01: Still creating... [00m10s elapsed]
ncloud_vpc.vpc_scn_01: Creation complete after 12s [id=127190]
ncloud_subnet.subnet_scn_01: Creating...
ncloud_network_acl_rule.network_acl_01_rule: Creating...
ncloud_subnet.subnet_scn_01: Still creating... [00m10s elapsed]
ncloud_network_acl_rule.network_acl_01_rule: Still creating... [00m10s elapsed]
ncloud_subnet.subnet_scn_01: Creation complete after 11s [id=269462]
ncloud_network_acl_rule.network_acl_01_rule: Still creating... [00m20s elapsed]
ncloud_network_acl_rule.network_acl_01_rule: Still creating... [00m30s elapsed]
ncloud_network_acl_rule.network_acl_01_rule: Creation complete after 33s [id=172904]
Apply complete! Resources: 3 added, 0 changed, 0 destroyed.
5

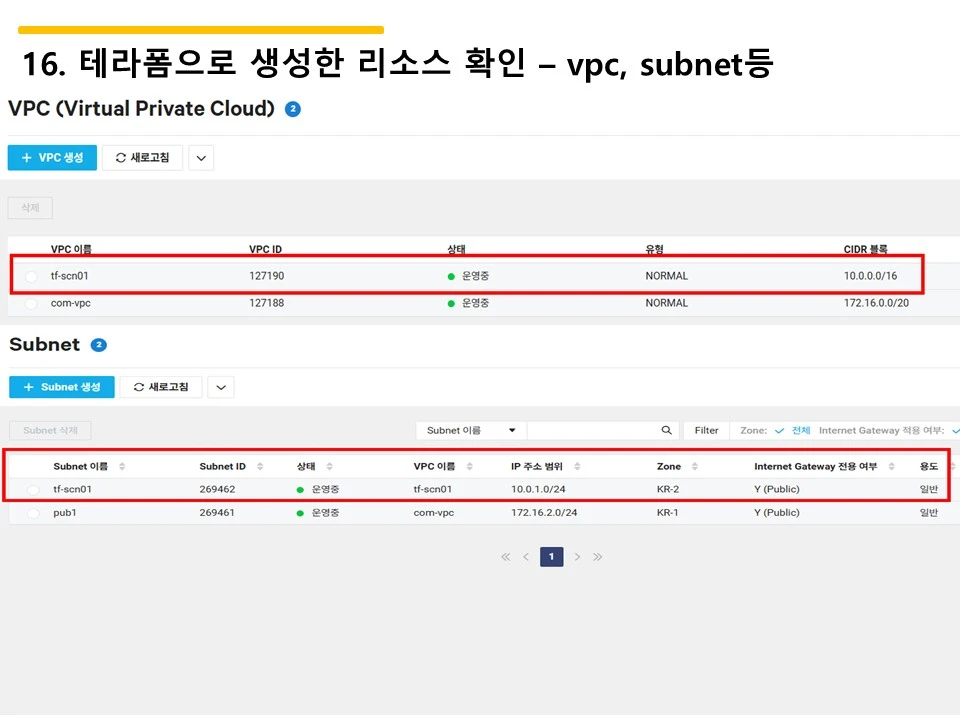

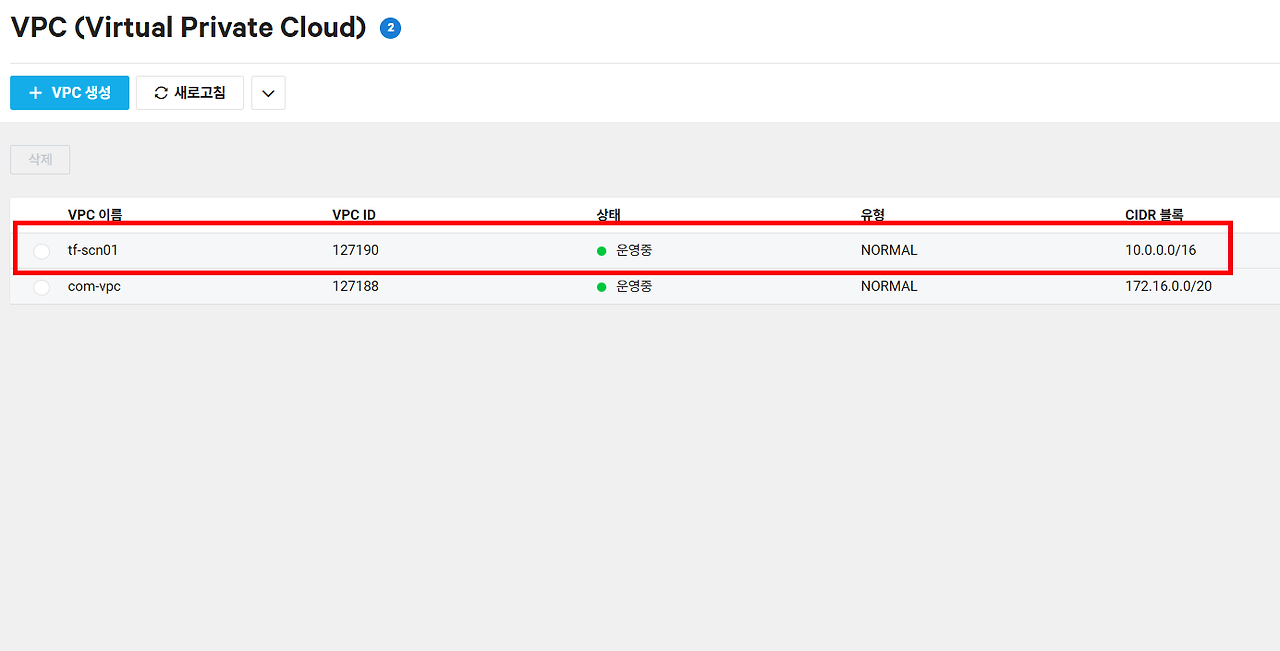

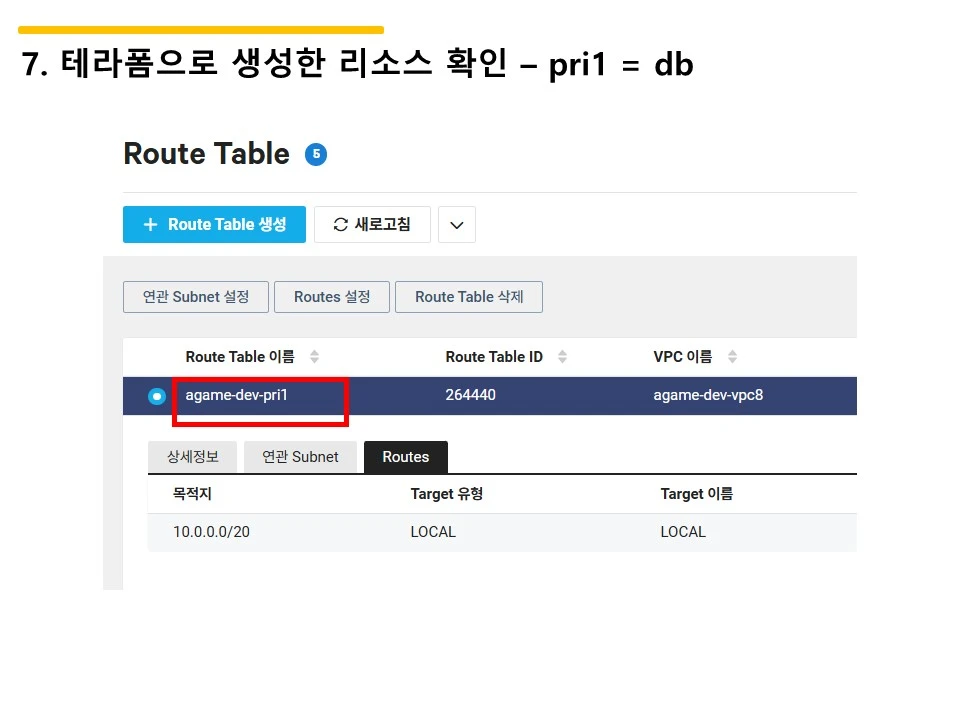

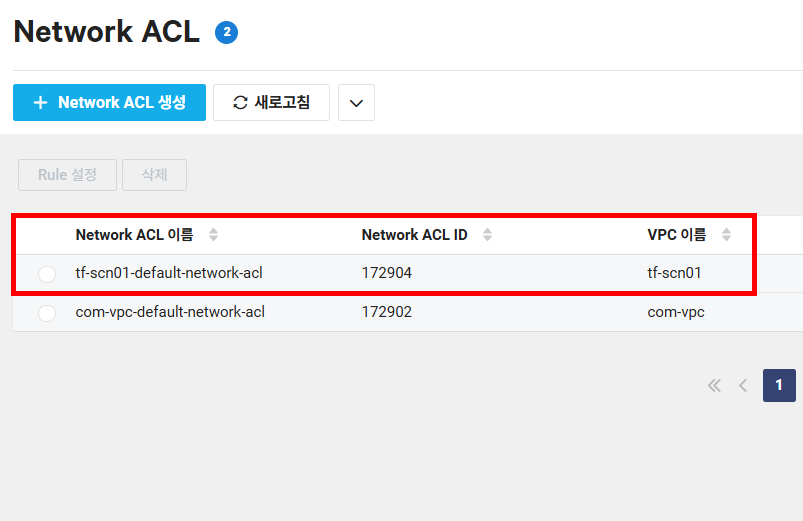

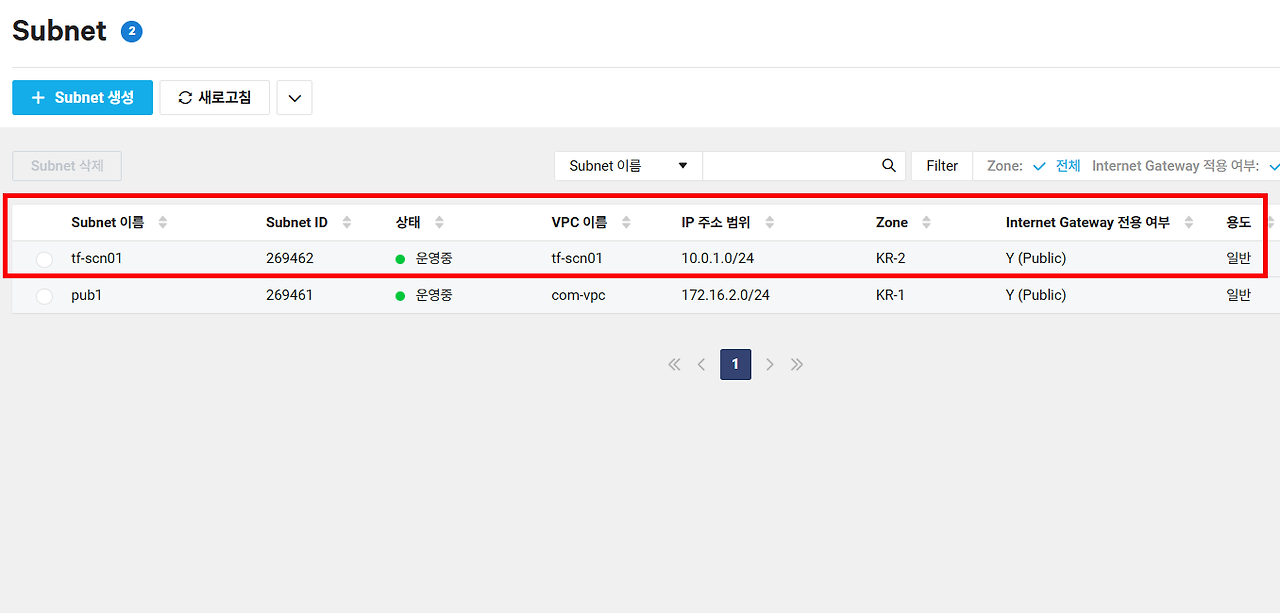

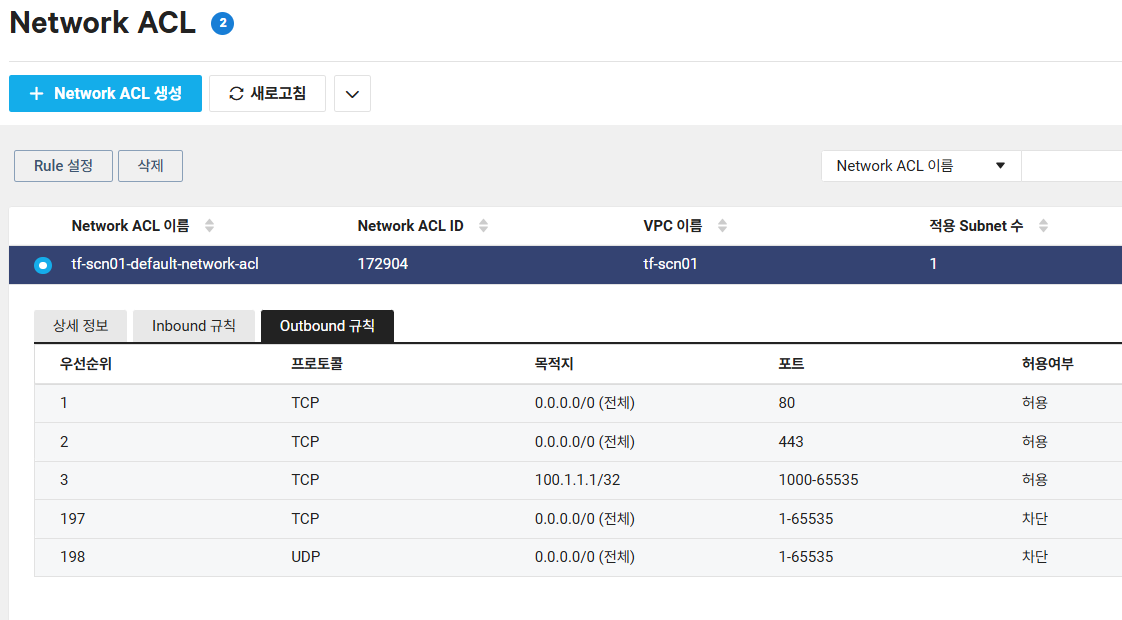

콘솔에서 확인

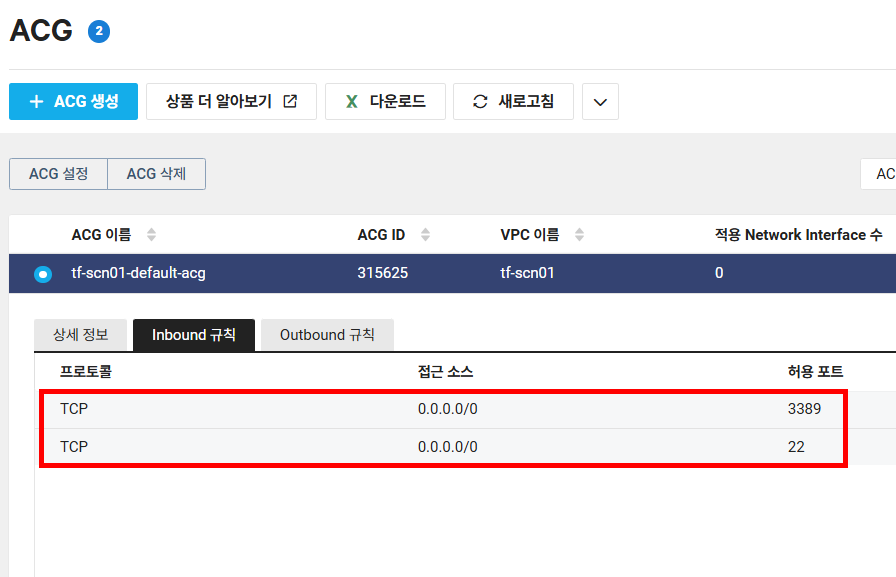

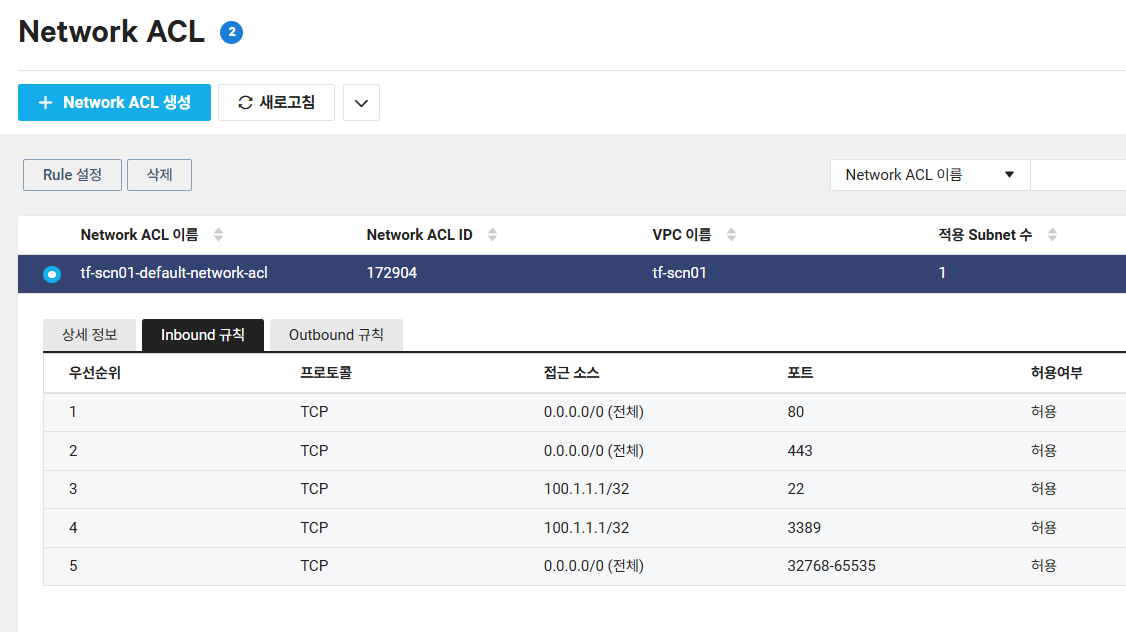

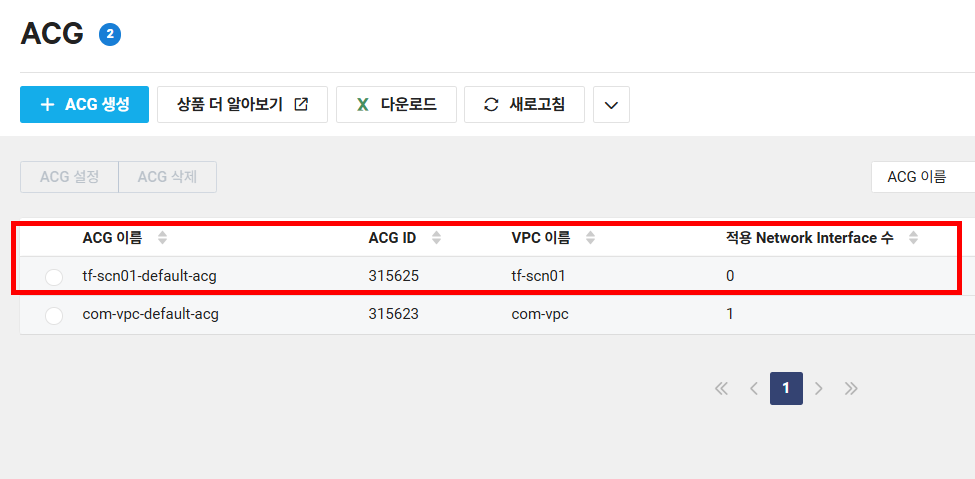

acg

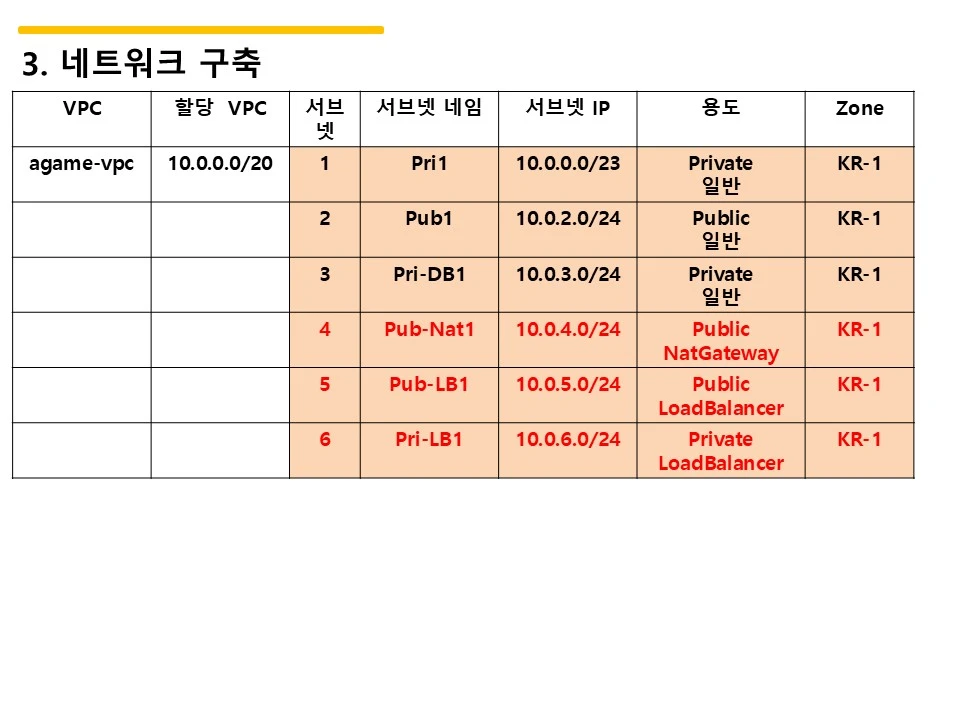

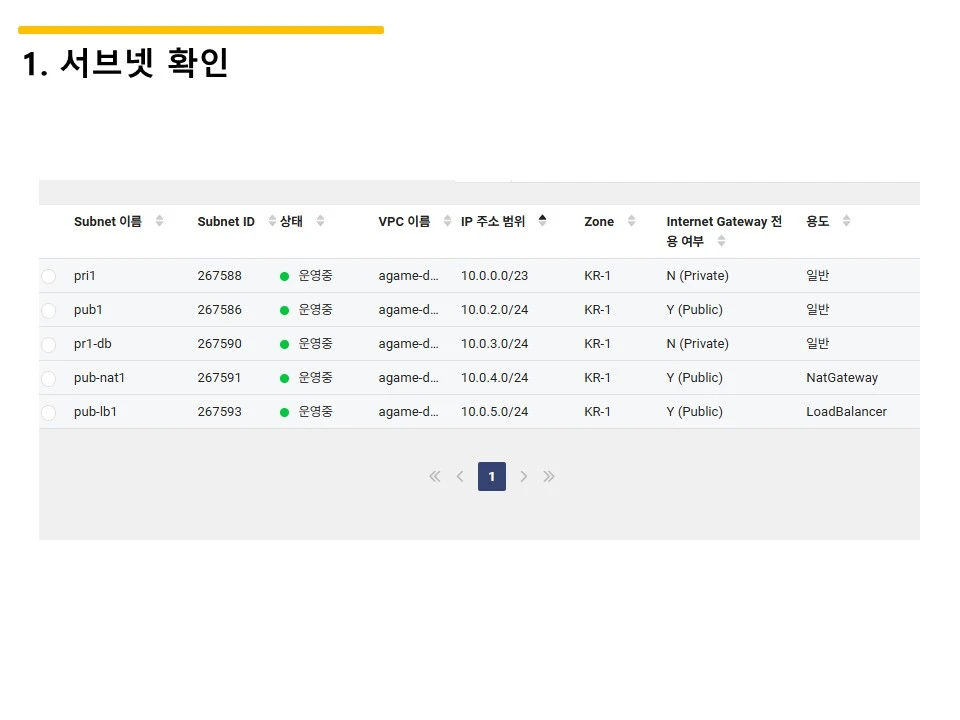

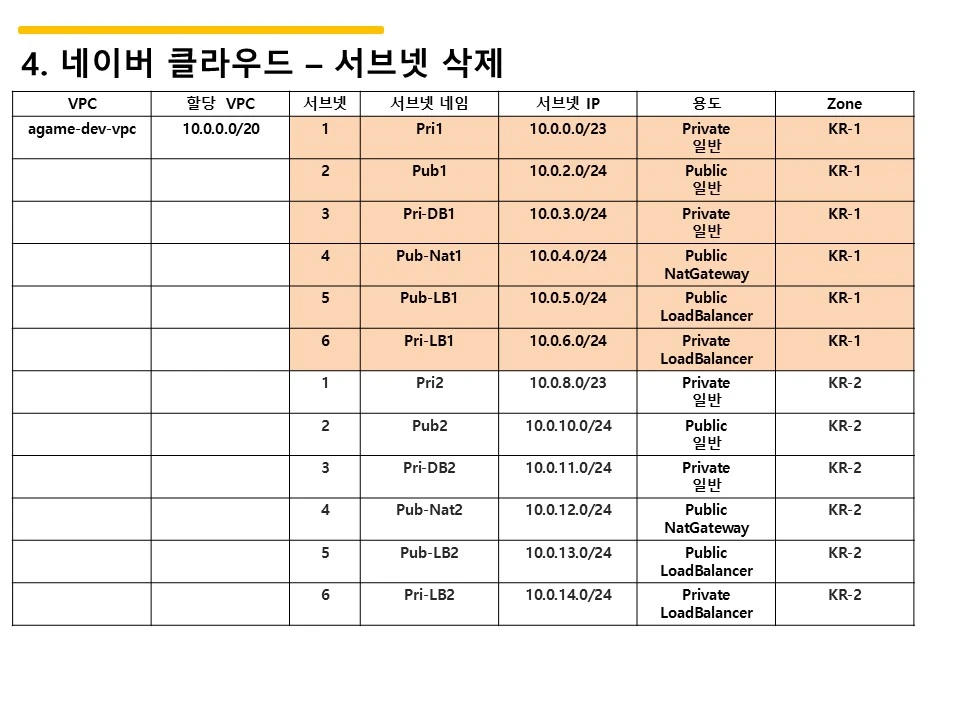

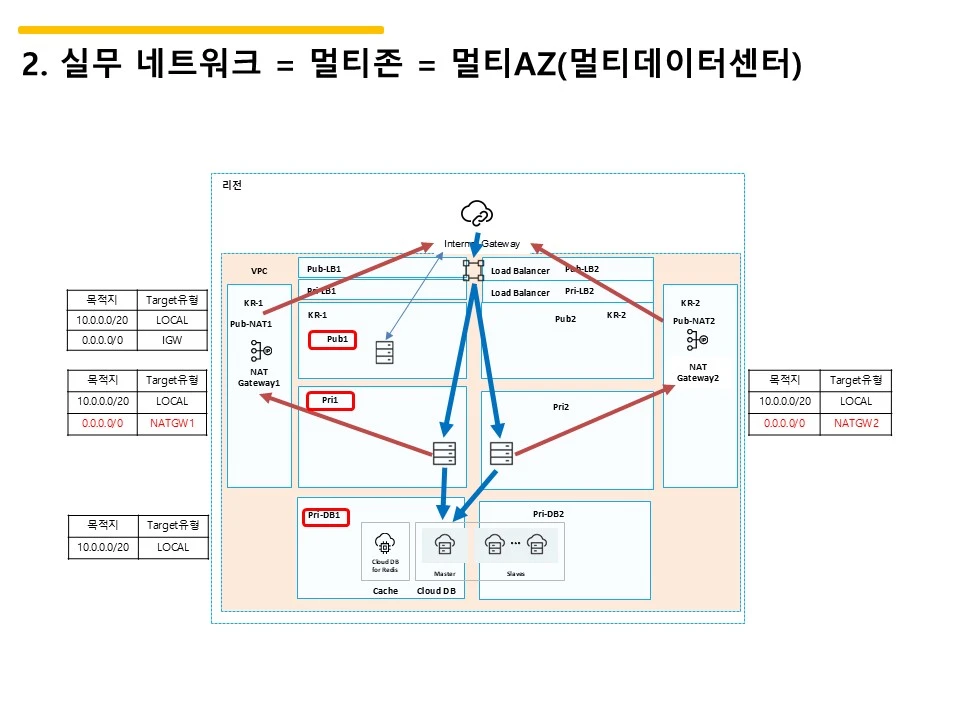

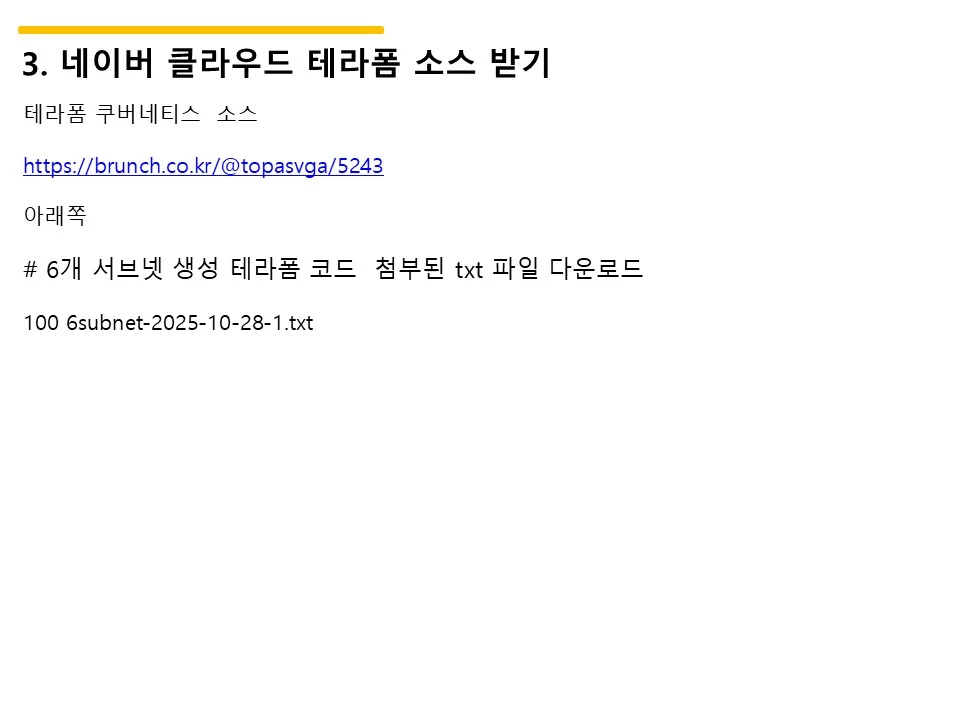

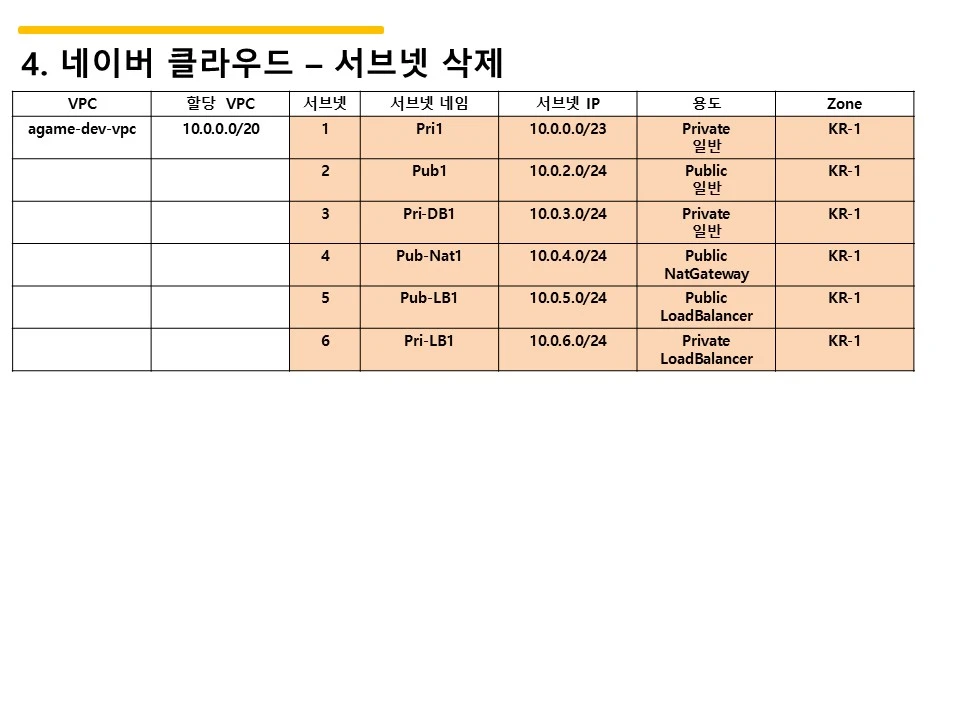

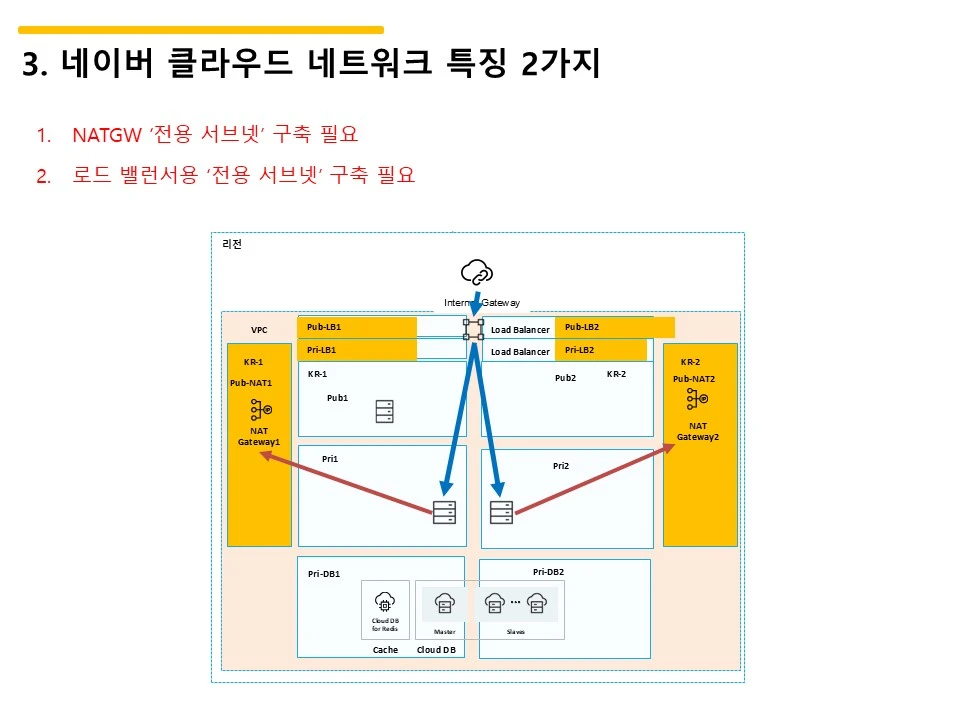

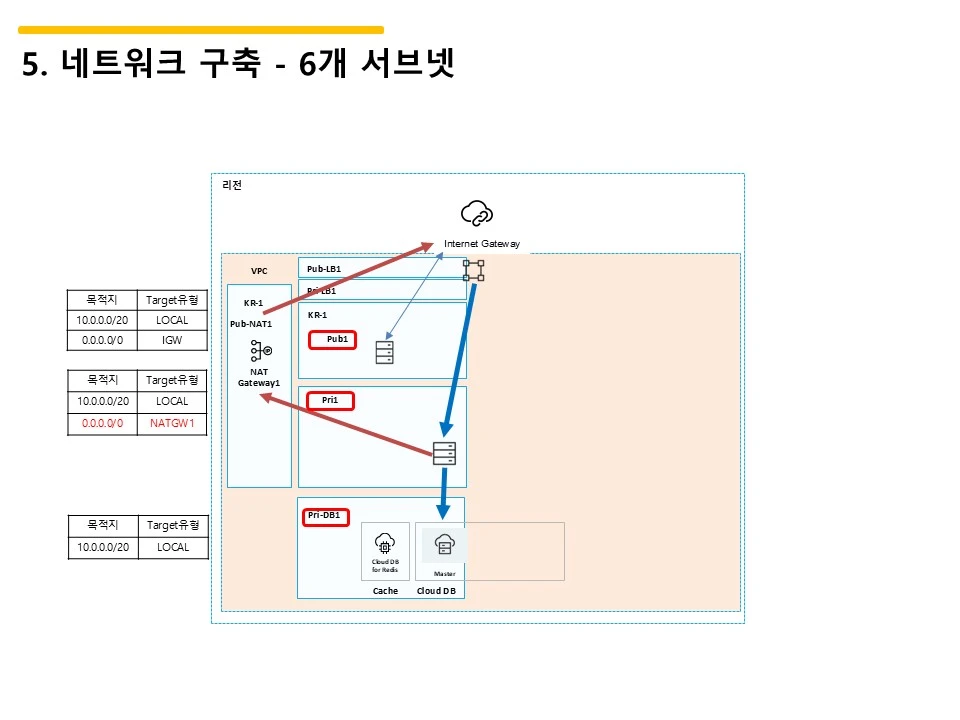

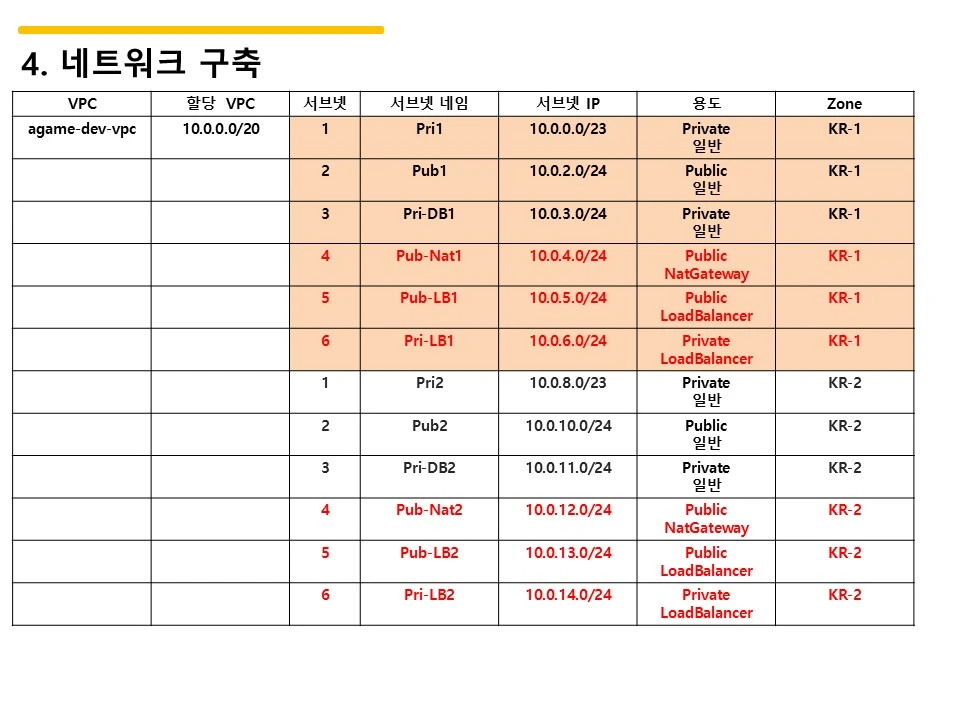

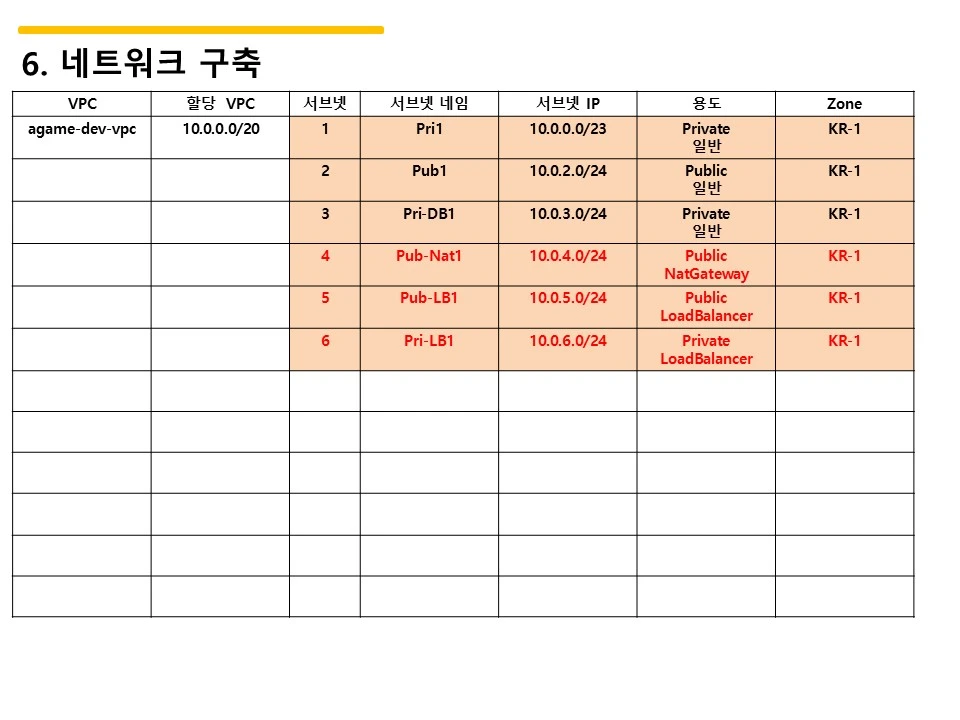

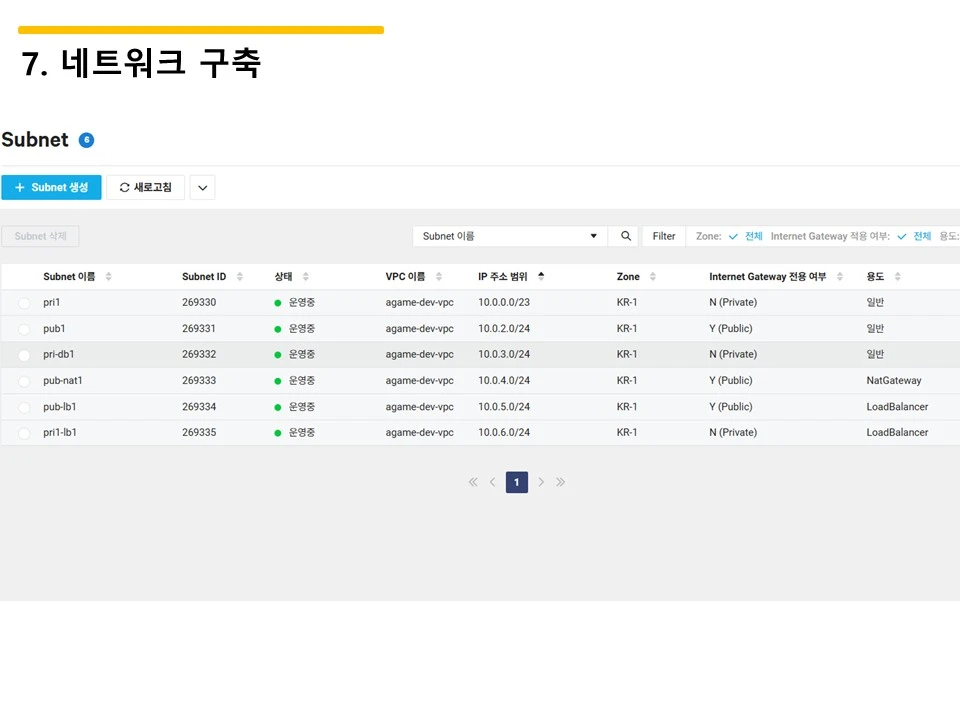

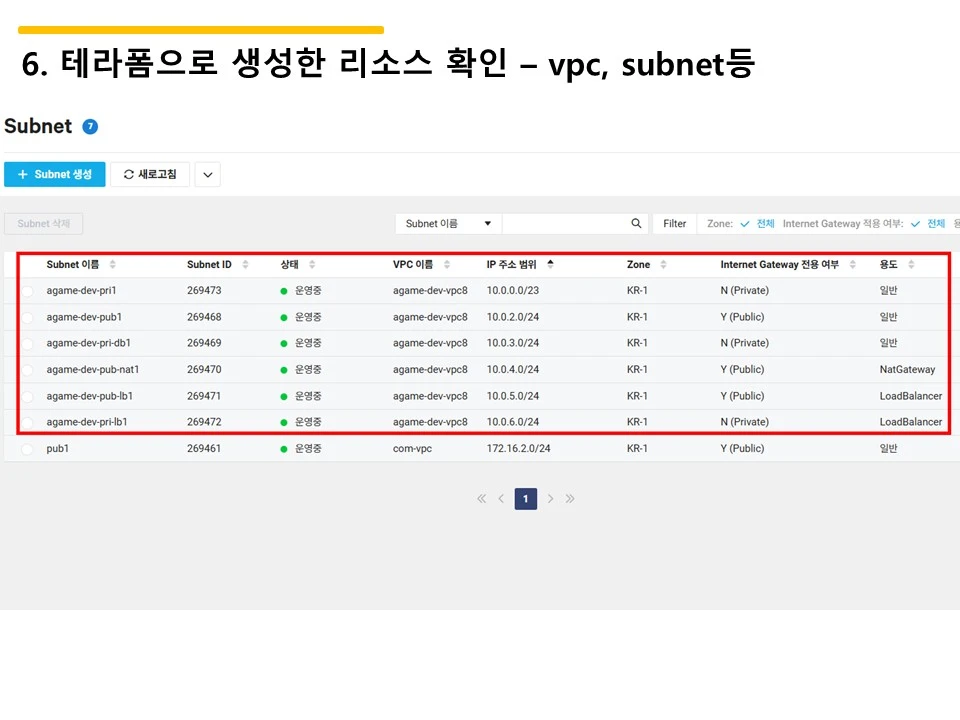

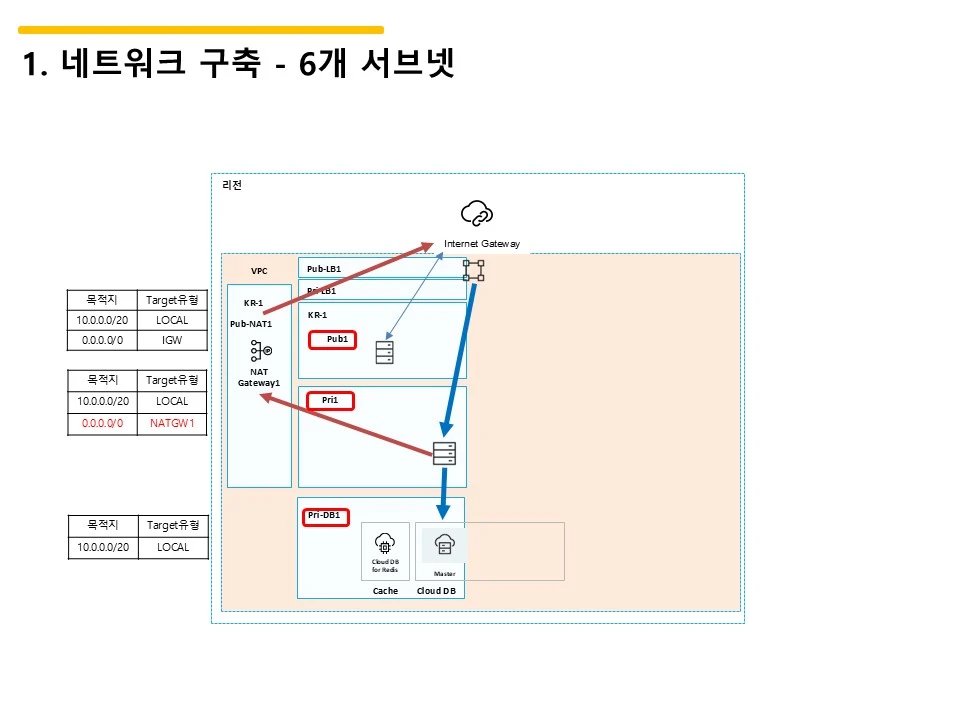

<3> 6개 서브넷 생성 테라폼 코드
[root@ngame-web01-dev 6]# more *.tf
::::::::::::::
main.tf
::::::::::::::
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_vpc" "vpc_vpc" {
name = var.name_vpc
ipv4_cidr_block = "10.0.0.0/20"
}
resource "ncloud_subnet" "subnet_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 ,0 )
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub1" {
name = var.name_pub1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,4 , 2)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-db1" {
name = var.name_pri-db1
vpc_no = ncloud_vpc.vpc_vpc.id

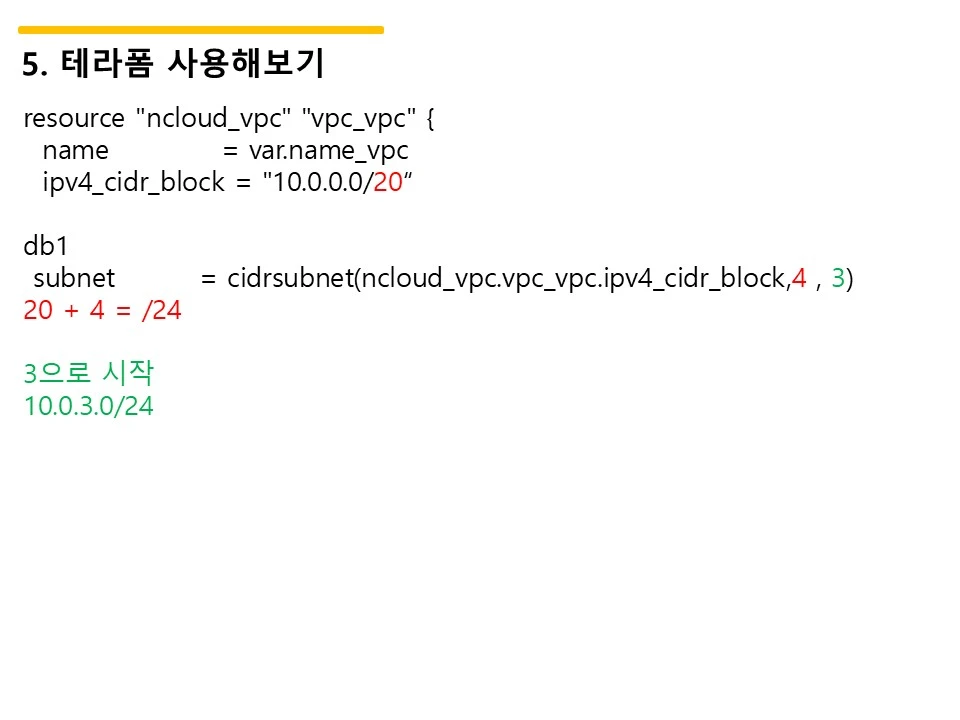

subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,4 , 3)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-nat1" {
name = var.name_pub-nat1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,4 , 4)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "NATGW"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-lb1" {
name = var.name_pub-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,4 , 5)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "LOADB"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-lb1" {
name = var.name_pri-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,4 , 6)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
usage_type = "LOADB"
}
::::::::::::::

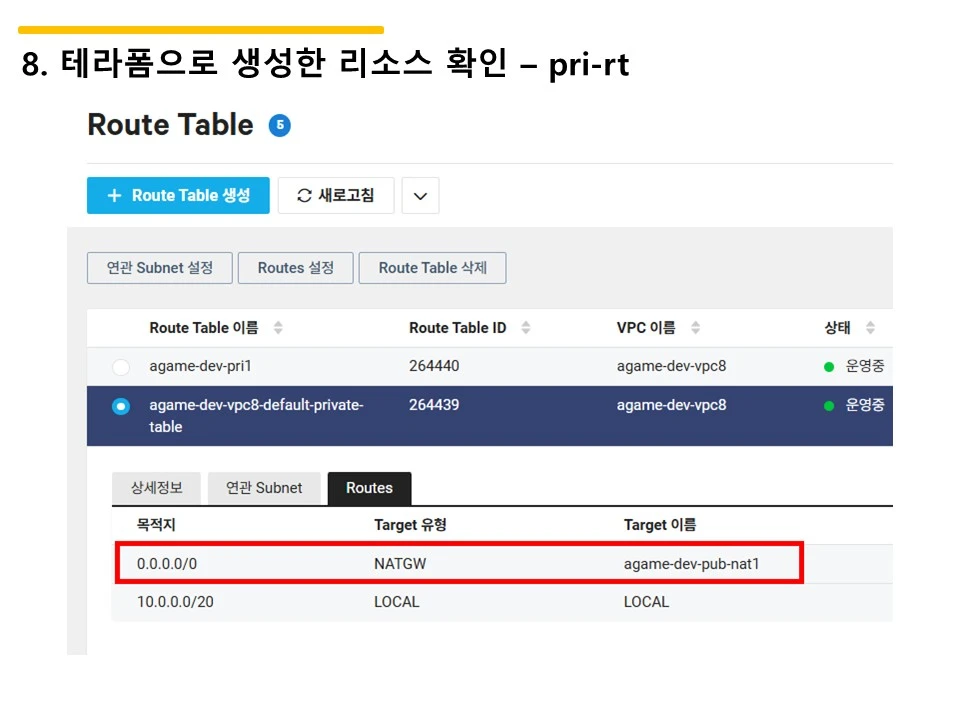

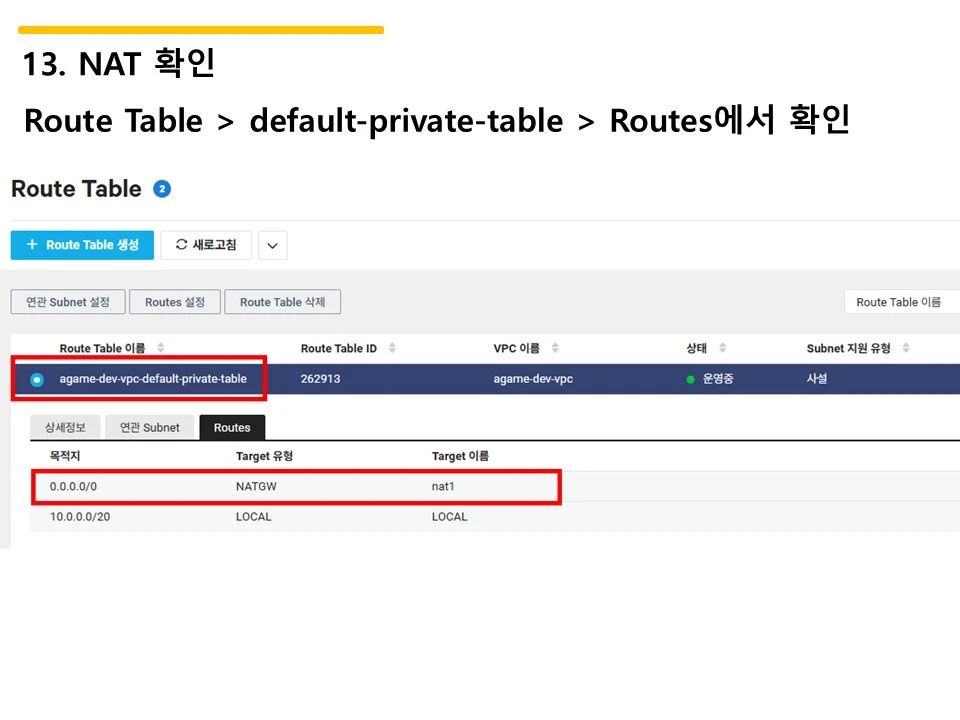

nat.tf
::::::::::::::

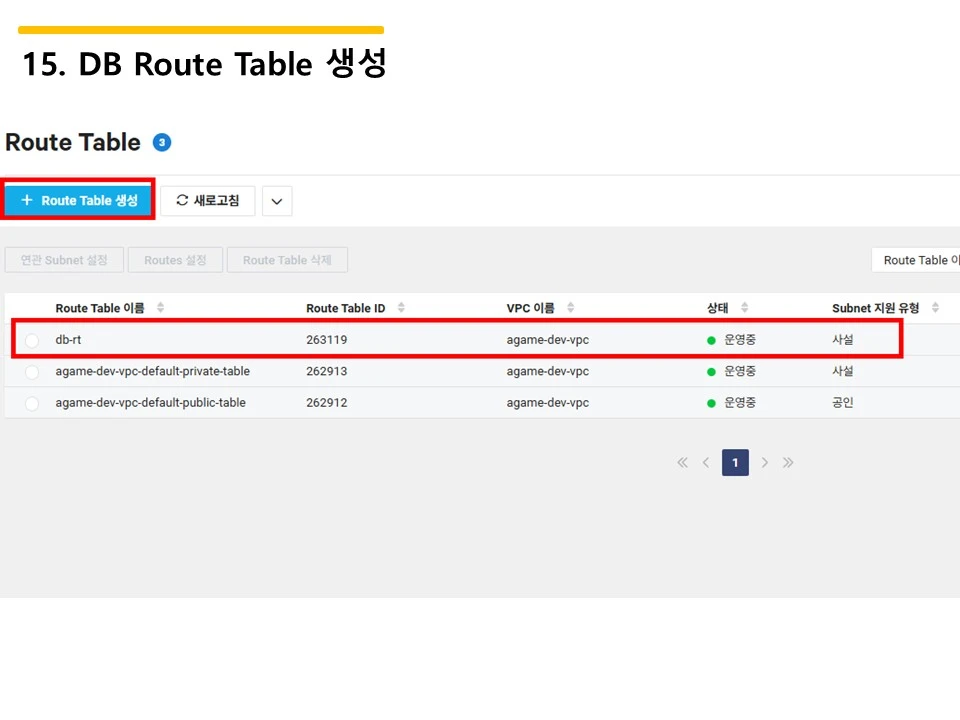

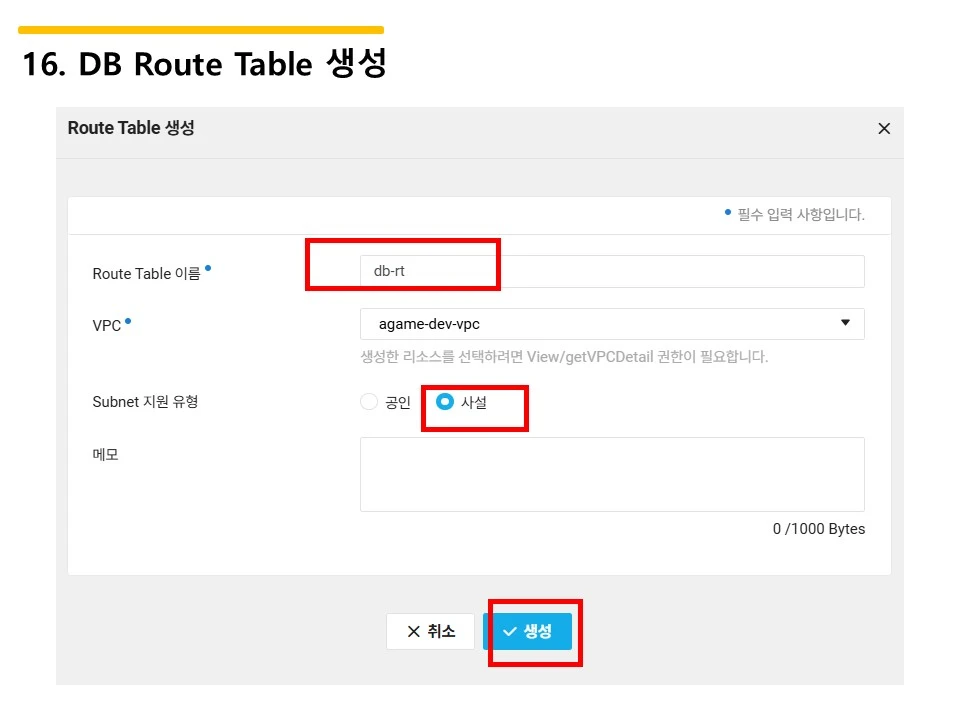

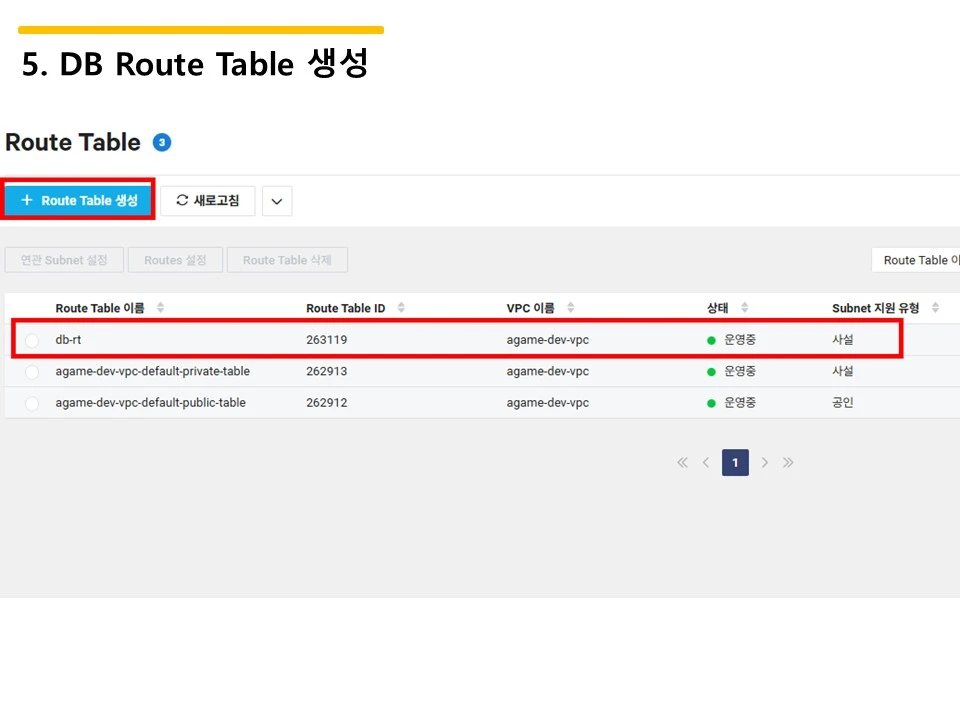

resource "ncloud_route_table" "route_table_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
supported_subnet_type = "PRIVATE"
}

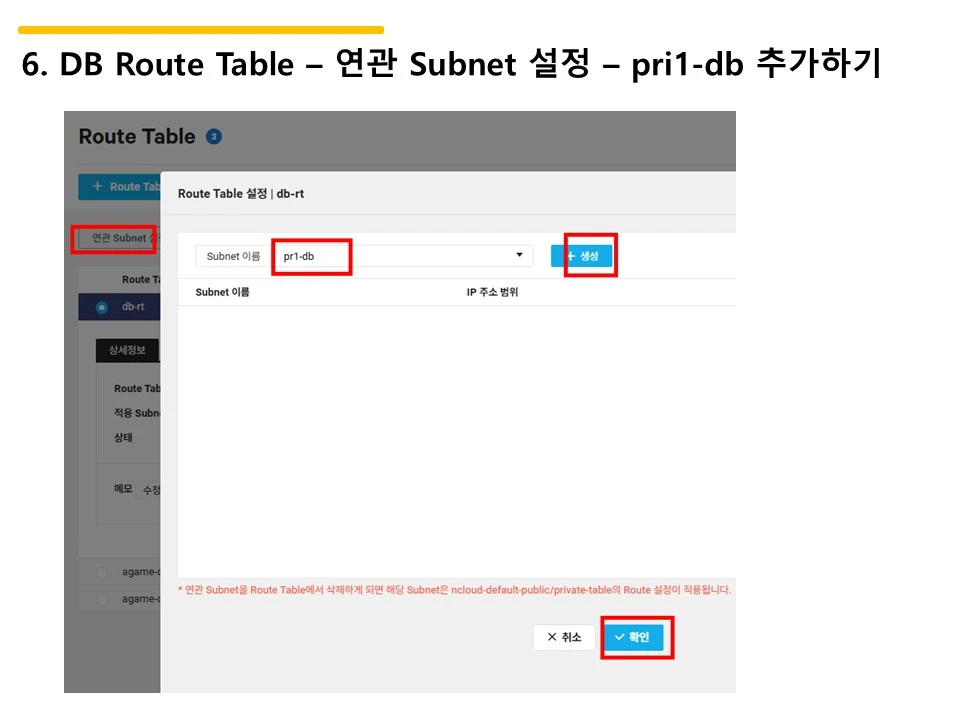

resource "ncloud_route_table_association" "subnet_pri-db1" {
route_table_no = ncloud_route_table.route_table_pri1.id
subnet_no = ncloud_subnet.subnet_pri-db1.id
}

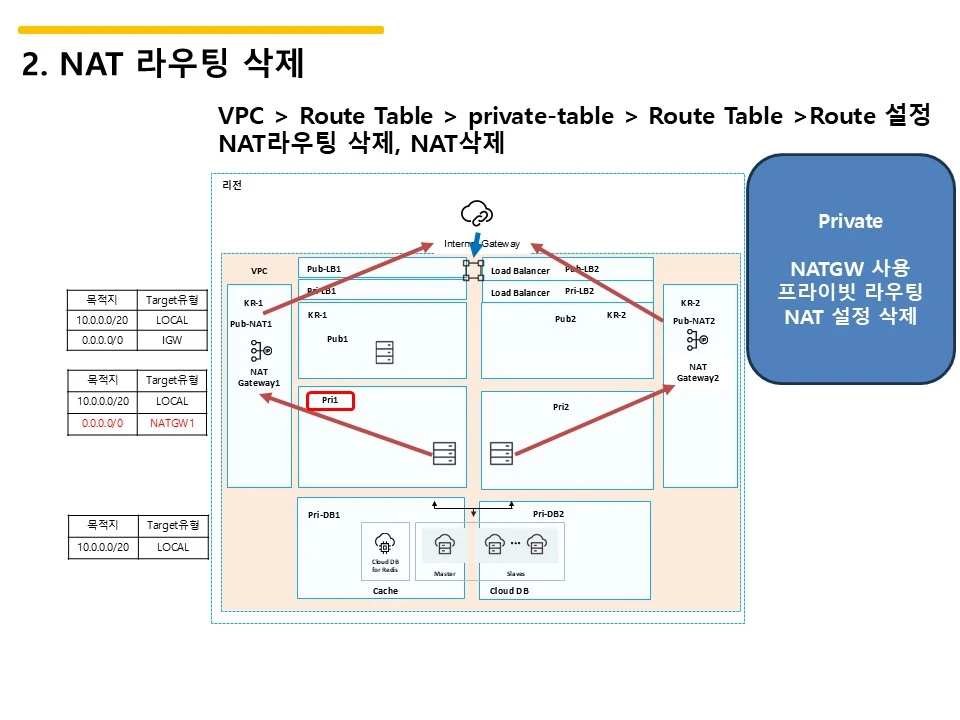

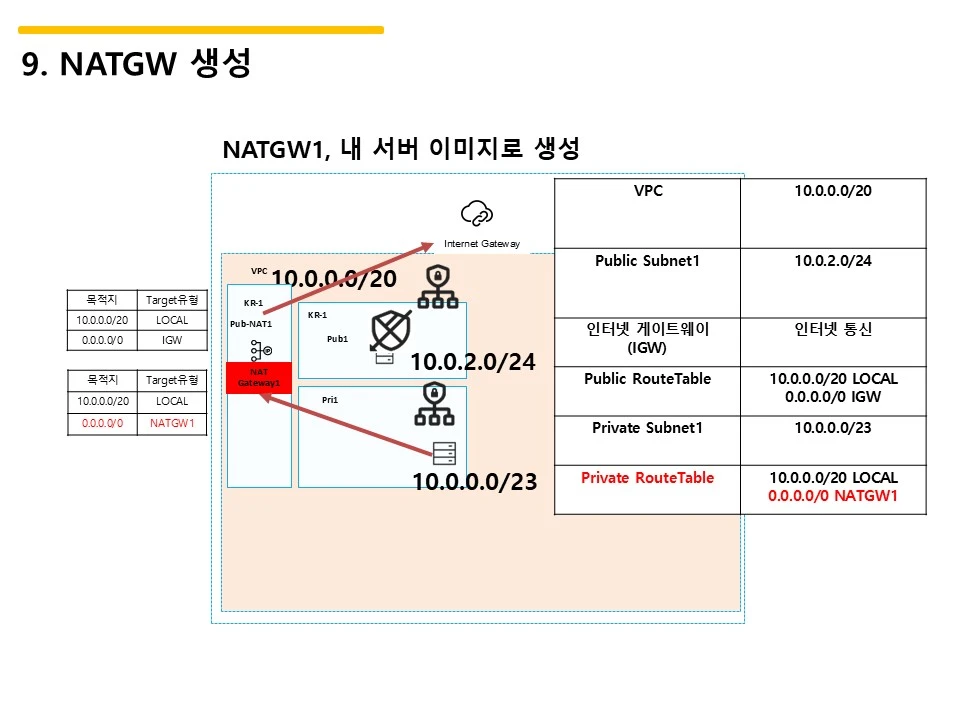

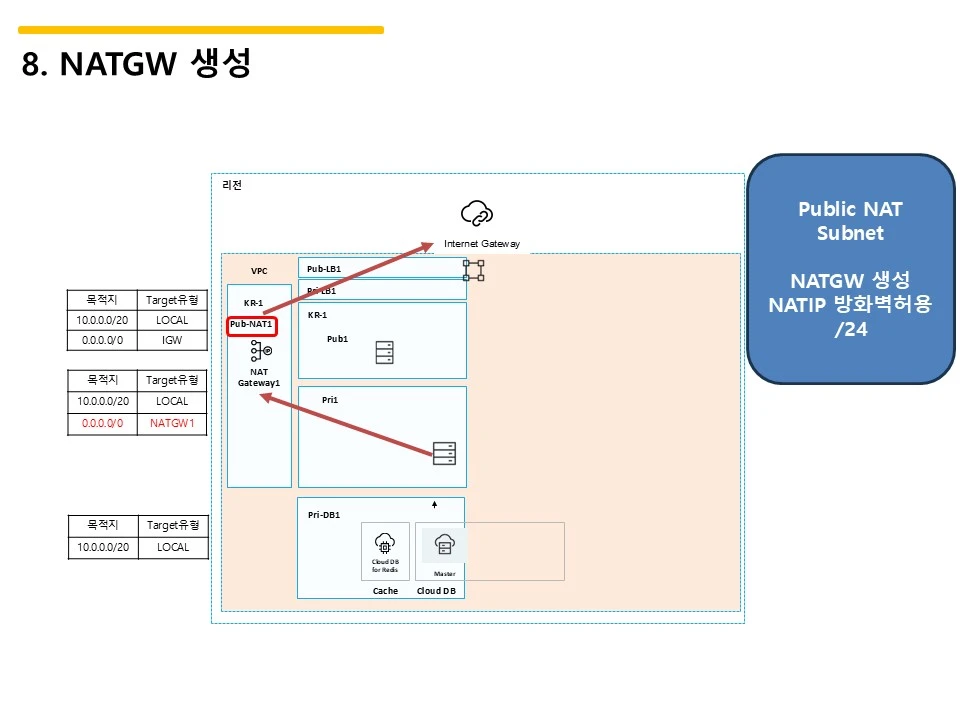

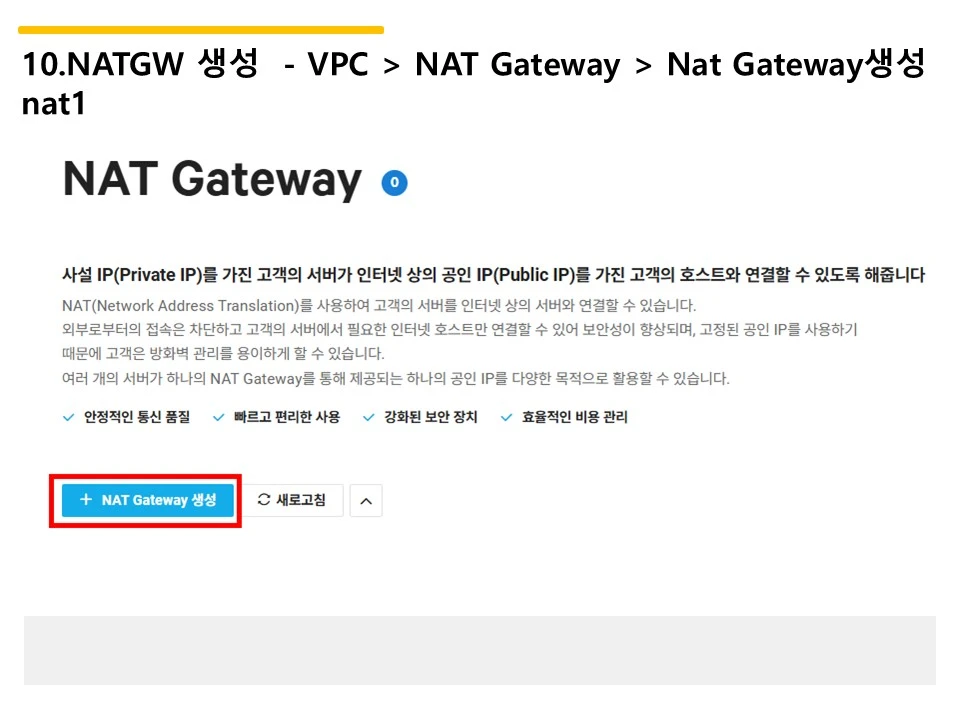

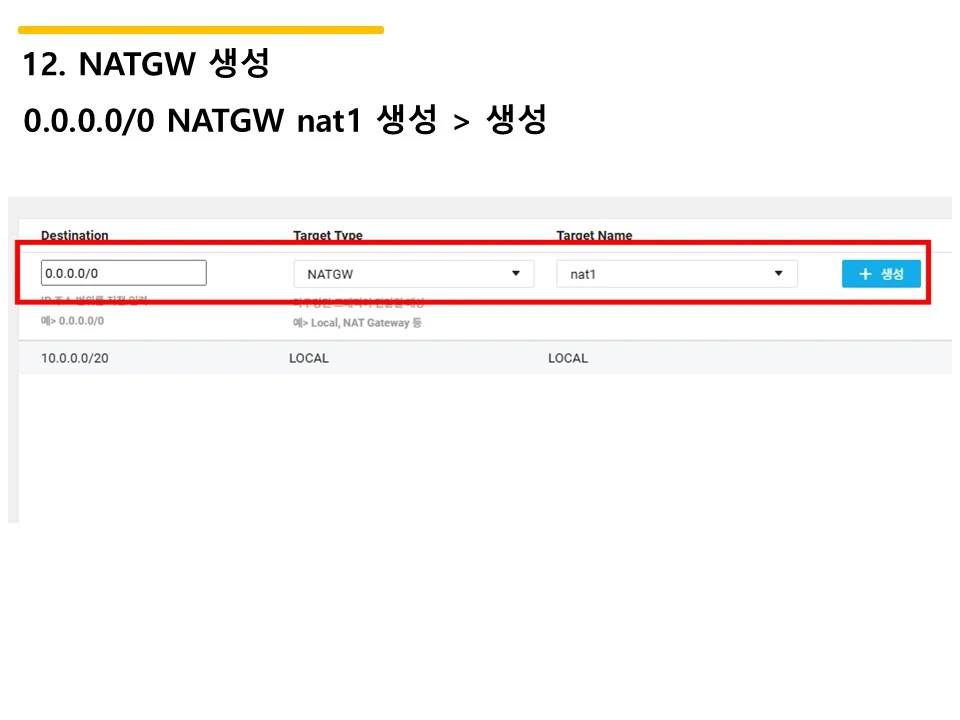

# NAT Gateway

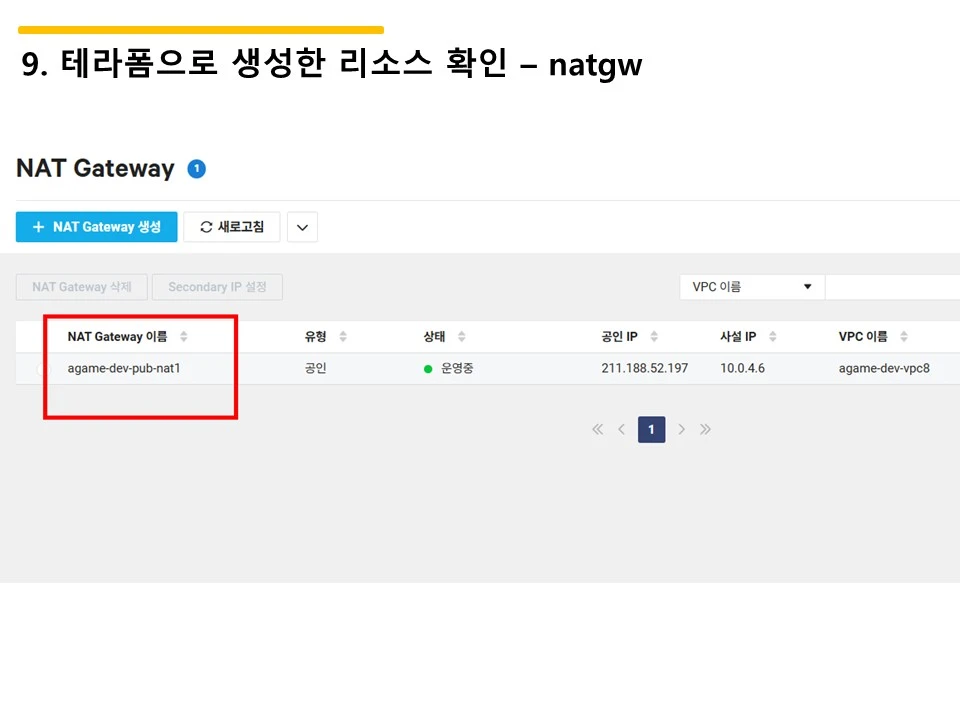

resource "ncloud_nat_gateway" "nat_gateway_scn_02" {
vpc_no = ncloud_vpc.vpc_vpc.id
subnet_no = ncloud_subnet.subnet_pub-nat1.id
zone = "KR-1"
name = var.name_pub-nat1
}

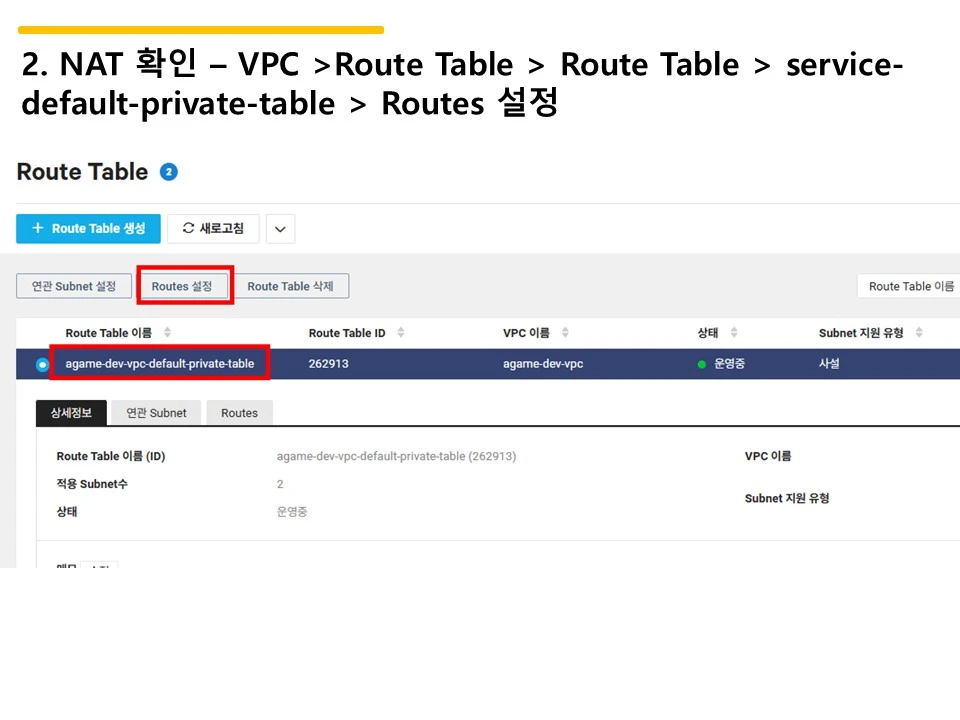

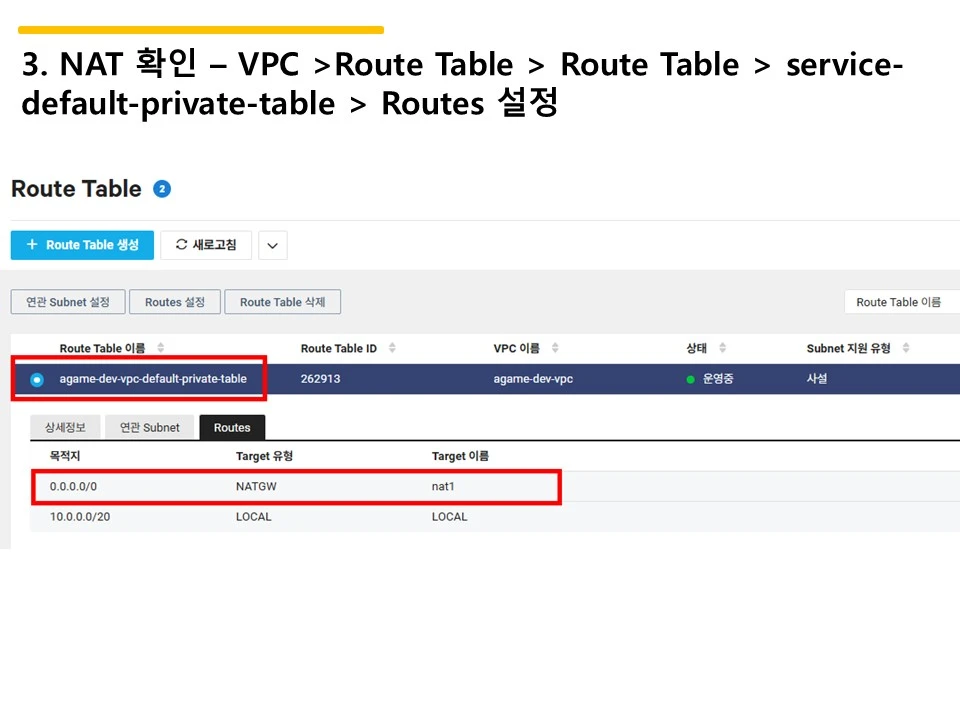

# Route Table

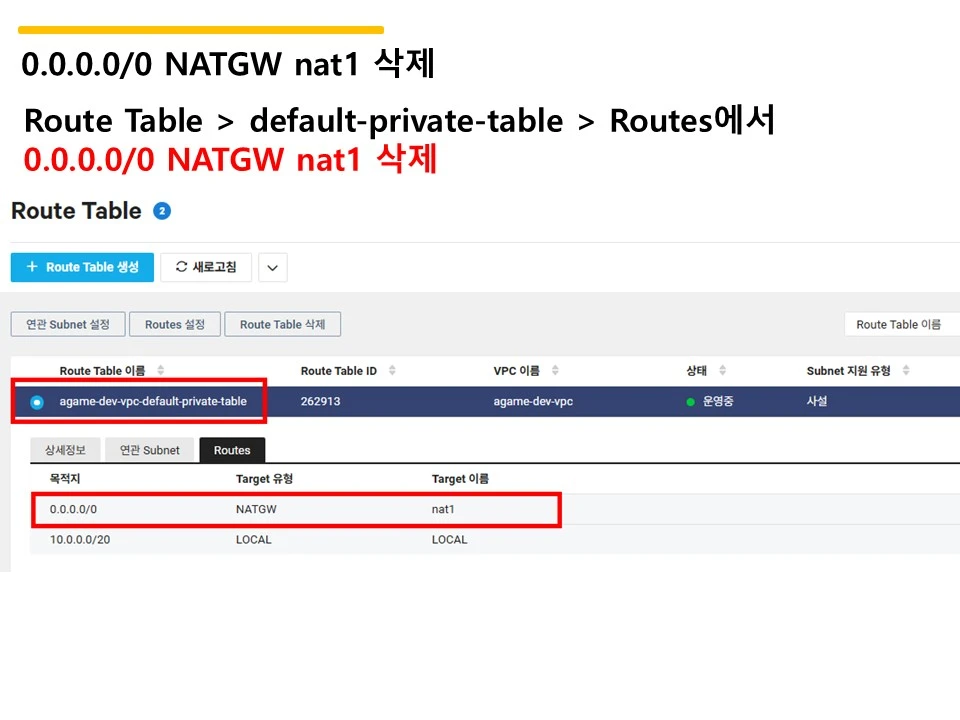

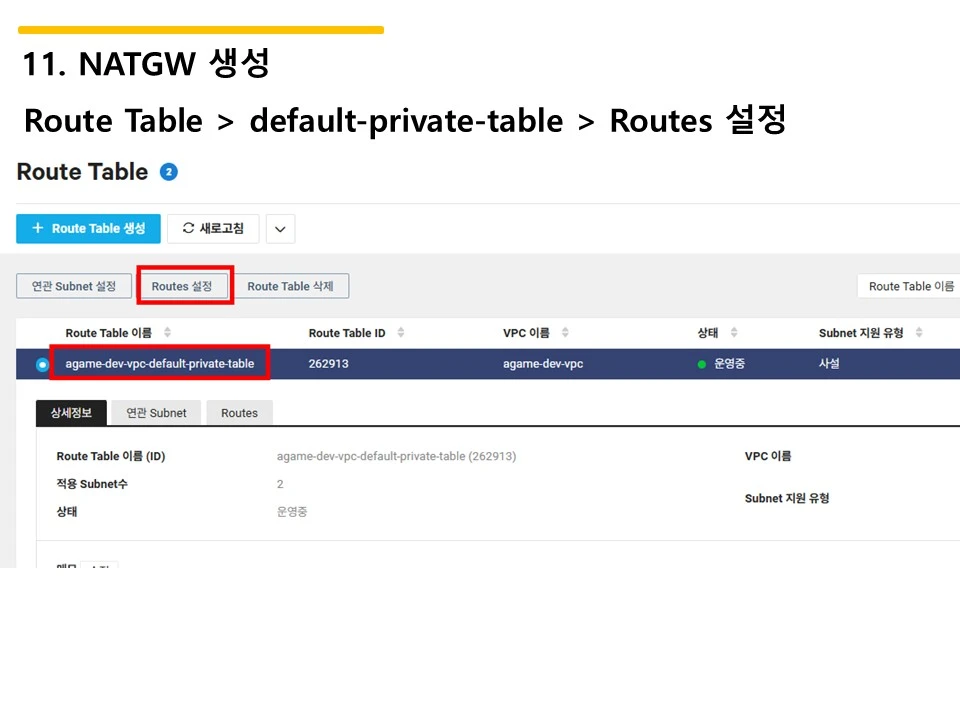

resource "ncloud_route" "route_scn_02_nat" {
route_table_no = ncloud_vpc.vpc_vpc.default_private_route_table_no
#route_table_no = ncloud_route_table.route_table_pri1.id
destination_cidr_block = "0.0.0.0/0"
target_type = "NATGW"
target_name = ncloud_nat_gateway.nat_gateway_scn_02.name
target_no = ncloud_nat_gateway.nat_gateway_scn_02.id
}
::::::::::::::
variables.tf
::::::::::::::
variable name_vpc {
default = "agame-dev-vpc8"
}
variable name_pri1 {
default = "agame-dev-pri1"
}
variable name_pub1 {
default = "agame-dev-pub1"
}
variable name_pri-db1 {
default = "agame-dev-pri-db1"
}
variable name_pub-nat1 {
default = "agame-dev-pub-nat1"
}
variable name_pub-lb1 {
default = "agame-dev-pub-lb1"
}
variable name_pri-lb1 {
default = "agame-dev-pri-lb1"
}
variable client_ip {
default = "3.3.3.3"
}
variable access_key {
default = "ncp_iam_BPAMKk4DuDA"
}
variable secret_key {
default = "ncp_iam_BPKMKRT5rLqFKuLdhkhZv"
}
variable nks_version {
default = "1.32"
}
variable name_scn_02 {
default = "tf-scn02"
}
variable login_key {
default = "agame-k8s12"
}
::::::::::::::
versions.tf
::::::::::::::
terraform {
required_providers {
ncloud = {
source = "navercloudplatform/ncloud"
}
}
required_version = ">= 0.13"
}
<4> 실습 자료
https://brunch.co.kr/@topasvga/5007
