by Master Seo Jul 08. 2021

EKS 2탄-3. EKS를 Helm으로 관리

실습 2탄 = 3/11

목표

명령서버(EC2 or Cloud9) 이해

Helm 이해

Helm은  패키지 관리 툴이다.

리눅스의  yum 같은 툴이다.



구성?

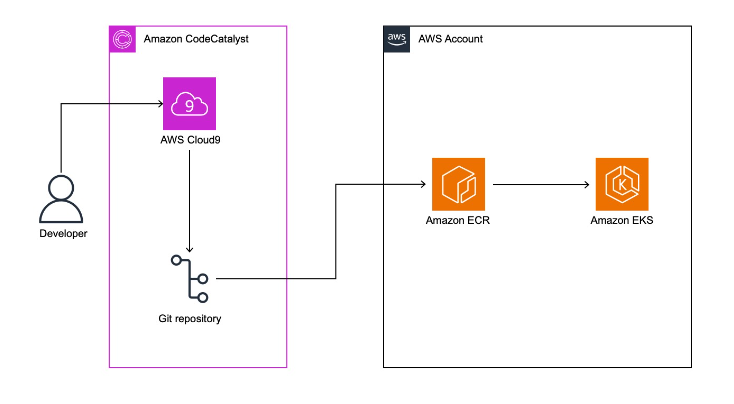

개발자--------명령서버(EC2 or Cloud9, Heml설치,EKS 어플리케이션 관리)--------EKS사용




<1>  Helm 설치

<2>  Helm 삭제

<10>  AWS EKS 실습 2




<1>  Helm 설치


1

명령서버인 EC2서버 로그인


sudo su -


curl -s https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3 | bash



버전 확인 ?


helm version --short

v3.13.1+g3547a4b



2

차트 저장소 생성 ?

stable로 생성함


helm repo add stable https://charts.helm.sh/stable

"stable" has been added to your repositories



3

설치 가능한 차트  나열 ?


helm search repo stable

NAME                       CHART VERSION   APP VERSION             DESCRIPTION

stable/acs-engine-autoscaler            2.2.2           2.1.1                   DEPRECATED Scales worker nodes within agent pools

stable/aerospike                        0.3.5           v4.5.0.5                DEPRECATED A Helm chart for Aerospike in Kubern...

stable/airflow                          7.13.3          1.10.12                 DEPRECATED - please use: https://github.com/air...

stable/ambassador                       5.3.2           0.86.1                  DEPRECATED A Helm chart for Datawire Ambassador



4

bash 설정 ?

helm completion bash >> ~/.bash_completion

. /etc/profile.d/bash_completion.sh

. ~/.bash_completion

source <(helm completion bash)



5

helm 업데이트 ?


# first, add the default repository, then update

helm repo add stable https://charts.helm.sh/stable


helm repo update

Hang tight while we grab the latest from your chart repositories...

...Successfully got an update from the "stable" chart repository

Update Complete. ⎈Happy Helming!⎈



6

모든 차트 나열?

helm search repo



7

nginx 검색?


helm search repo nginx

NAME                       CHART VERSION   APP VERSION     DESCRIPTION

stable/nginx-ingress  1.41.3          v0.34.1         DEPRECATED! An nginx Ingress controller that us...

stable/nginx-ldapauth-proxy     0.1.6   1.13.5   DEPRECATED - nginx proxy with ldapauth

stable/nginx-lego               0.3.1                Chart for nginx-ingress-controller and kube-lego

stable/gcloud-endpoints         0.1.2     1   DEPRECATED Develop, deploy, protect and monitor...



8

btnami 차트 리포지토리도 추가?


helm repo add bitnami https://charts.bitnami.com/bitnami



9

helm search repo bitnami



10

nginx 다시 검색?


helm search repo nginx

NAME                                    CHART VERSION   APP VERSION     DESCRIPTION

bitnami/nginx                           9.3.6           1.21.1          Chart for the nginx server

bitnami/nginx-ingress-controller  7.6.13          0.47.0          Chart for the nginx Ingress controller    stable/nginx-ingress  1.41.3          v0.34.1         DEPRECATED! An nginx Ingress controller that us...

stable/nginx-ldapauth-proxy    0.1.6    1.13.5     DEPRECATED - nginx proxy with ldapauth

stable/nginx-lego                       0.3.1             Chart for nginx-ingress-controller and kube-lego

bitnami/kong                 3.7.8           2.4.1           Kong is a scalable, open source API layer (aka ...

stable/gcloud-endpoints         0.1.2      1   DEPRECATED Develop, deploy, protect and monitor...


// 2개 모두 나옴



11

bitnami/nginx  검색?


helm search repo bitnami/nginx

NAME                                    CHART VERSION   APP VERSION     DESCRIPTION

bitnami/nginx                           9.3.6           1.21.1          Chart for the nginx server

bitnami/nginx-ingress-controller        7.6.13          0.47.0     Chart for the nginx Ingress controller




12

설치?


# mywebserver 라는 이름으로 설치해보자.


helm install mywebserver bitnami/nginx

NAME: mywebserver

LAST DEPLOYED: Thu Jul  8 10:40:33 2021

NAMESPACE: default

STATUS: deployed

REVISION: 1

TEST SUITE: None

NOTES:

** Please be patient while the chart is being deployed **

NGINX can be accessed through the following DNS name from within your cluster:

    mywebserver-nginx.default.svc.cluster.local (port 80)

To access NGINX from outside the cluster, follow the steps below:

1. Get the NGINX URL by running these commands:

  NOTE: It may take a few minutes for the LoadBalancer IP to be available.

        Watch the status with: 'kubectl get svc --namespace default -w mywebserver-nginx'

    export SERVICE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].port}" services mywebserver-nginx)

    export SERVICE_IP=$(kubectl get svc --namespace default mywebserver-nginx -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

    echo "http://${SERVICE_IP}:${SERVICE_PORT}"



13

서비스, pod , 디플로이먼트 확인?


kubectl get svc,po,deploy

NAME     TYPE           CLUSTER-IP       EXTERNAL-IP           PORT(S)        AGE

service/kubernetes     ClusterIP  10.100.0.1   <none>      443/TCP        24h

service/mywebserver-nginx   LoadBalancer   10.100.185.253

a8xxxxxx42.us-west-2.elb.amazonaws.com   80:32304/TCP   32s


NAME                                    READY   STATUS    RESTARTS   AGE

pod/mywebserver-nginx-dxddd-8bzrb   1/1     Running   0          31s


NAME                                READY   UP-TO-DATE   AVAILABLE   AGE

deployment.apps/mywebserver-nginx   1/1     1            1           32s



14

디플로이먼트 자세히 확인 ?

kubectl describe deployment mywebserver



15

Pod 확인?

kubectl get pods -l app.kubernetes.io/name=nginx

NAME                                READY   STATUS    RESTARTS   AGE

mywebserver-nginx-d57766ddd-8bzrb   1/1     Running   0          2m27s



16

상세히 확인 , URL 확인?

kubectl get service mywebserver-nginx -o wide

NAME    TYPE    CLUSTER-IP   EXTERNAL-IP                 PORT(S)        AGE     SELECTOR

mywebserver-nginx   LoadBalancer   10.100.185.253   a37252d730239409bbc4e08632528fc4-766156842.us-west-2.elb.amazonaws.com   80:32304/TCP   3m10s   app.kubernetes.io/instance=mywebserver,app.kubernetes.io/name=nginx



(3분 소요)



17

외부 IP 로  브라우저로 접속 확인?

잘 된다.




<2>  Helm 삭제



1

Helm 리스트 확인?


helm list

NAME            NAMESPACE       REVISION        UPDATED       STATUS          CHART           APP VERSION

mywebserver  default  1 2021-07-08 10:40:33.89 +0000 UTC deployed  nginx-9.3.6     1.21.1



2

삭제 ?

helm uninstall mywebserver



3

Pod 확인?


kubectl get pods -l app.kubernetes.io/name=nginx

pod는 없음

No resources found in default namespace.



4

서비스 리소스 확인?


kubectl get service mywebserver-nginx -o wide

서비스는 있음

NAME      TYPE     CLUSTER-IP       EXTERNAL-IP                             PORT(S)        AGE     SELECTOR

mywebserver-nginx   LoadBalancer   10.100.185.253   a37252d730239409bbc4e08632528fc4-766156842.us-west-2.elb.amazonaws.com   80:32304/TCP   8m37s   app.kubernetes.io/instance=mywebserver,app.kubernetes.io/name=nginx




다음은 워드 프레스 설치

https://brunch.co.kr/@topasvga/1695




<10>   AWS EKS 실습 2탄


https://brunch.co.kr/@topasvga/1882



https://brunch.co.kr/@topasvga/1679


감사합니다.
