실습 2탄 =4/11
1
터미널 2
모니터링
watch -d kubectl get ns
네임스페이스 추가 확인 , pod가 잘 안됨. 팬딩 확인.
2
별도의 네임 스페이스 만들어 사용하자
# Create a namespace wordpress
kubectl create namespace wordpress-cwi
kubens
kubens wordpress-cwi
# 네임 스페이스 확인
kubectl get ns
NAME STATUS AGE
amazon-cloudwatch Active 82m
default Active 45h
kube-node-lease Active 45h
kube-public Active 45h
kube-system Active 45h
wordpress-cwi Active 173m

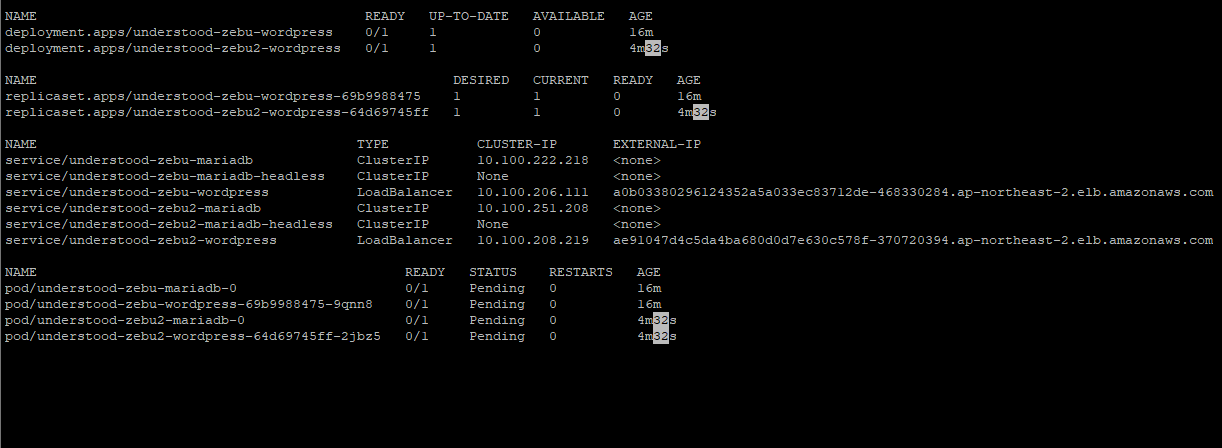

watch -d kubectl get ns,deploy,rs,svc,pods
# Add the bitnami Helm Charts Repository - 이미 실행
helm repo add bitnami https://charts.bitnami.com/bitnami
2
배포
# Deploy WordPress in its own namespace , 워드 프레스 네임 스페이스에 배포.
helm -n wordpress-cwi install understood-zebu bitnami/wordpress
(5분 걸림)
NAME: understood-zebu
LAST DEPLOYED: Fri Jul 9 04:48:36 2021
NAMESPACE: wordpress-cwi
STATUS: deployed
REVISION: 1
NOTES:
** Please be patient while the chart is being deployed **
Your WordPress site can be accessed through the following DNS name from within your cluster:
understood-zebu-wordpress.wordpress-cwi.svc.cluster.local (port 80)
To access your WordPress site from outside the cluster follow the steps below:
1. Get the WordPress URL by running these commands:
NOTE: It may take a few minutes for the LoadBalancer IP to be available.
Watch the status with: 'kubectl get svc --namespace wordpress-cwi -w understood-zebu-wordpress'
export SERVICE_IP=$(kubectl get svc --namespace wordpress-cwi understood-zebu-wordpress --template "{{ range (index .status.loadBalancer.ingress 0) }}{{.}}{{ end }}")
echo "WordPress URL: http://$SERVICE_IP/"
echo "WordPress Admin URL: http://$SERVICE_IP/admin"
2. Open a browser and access WordPress using the obtained URL.
3. Login with the following credentials below to see your blog:
echo Username: user
# 패스워드를 확인하자.
echo Password: $(kubectl get secret --namespace wordpress-cwi understood-zebu-wordpress -o jsonpath="{.data.wordpress-password}" | base64 --decode)
# 구버전으로 페이지가 작동하지 않음.- PASS
# pop가 pending 상태
참고
helm search repo wordpress
3
배포 상태 추적
kubectl -n wordpress-cwi rollout status deployment understood-zebu-wordpress
deployment "understood-zebu-wordpress" successfully rolled out
4
Word press 사이트 URL 확인?
export SERVICE_URL=$(kubectl get svc -n wordpress-cwi understood-zebu-wordpress --template "{{ range (index .status.loadBalancer.ingress 0) }}{{.}}{{ end }}")
echo "Public URL: http://$SERVICE_URL/"
http://ad0cef4e08b2b41c1a31faf884ff7b79-412213092.ap-northeast-2.elb.amazonaws.com/
5

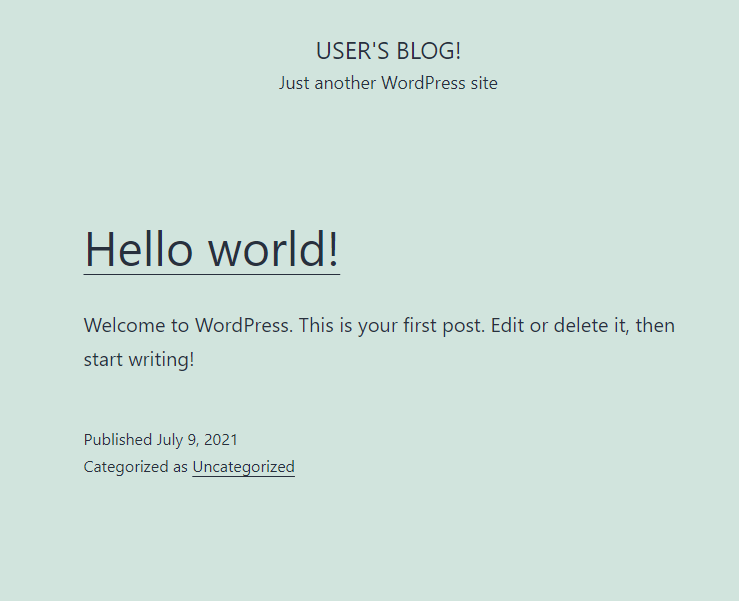

접속
6

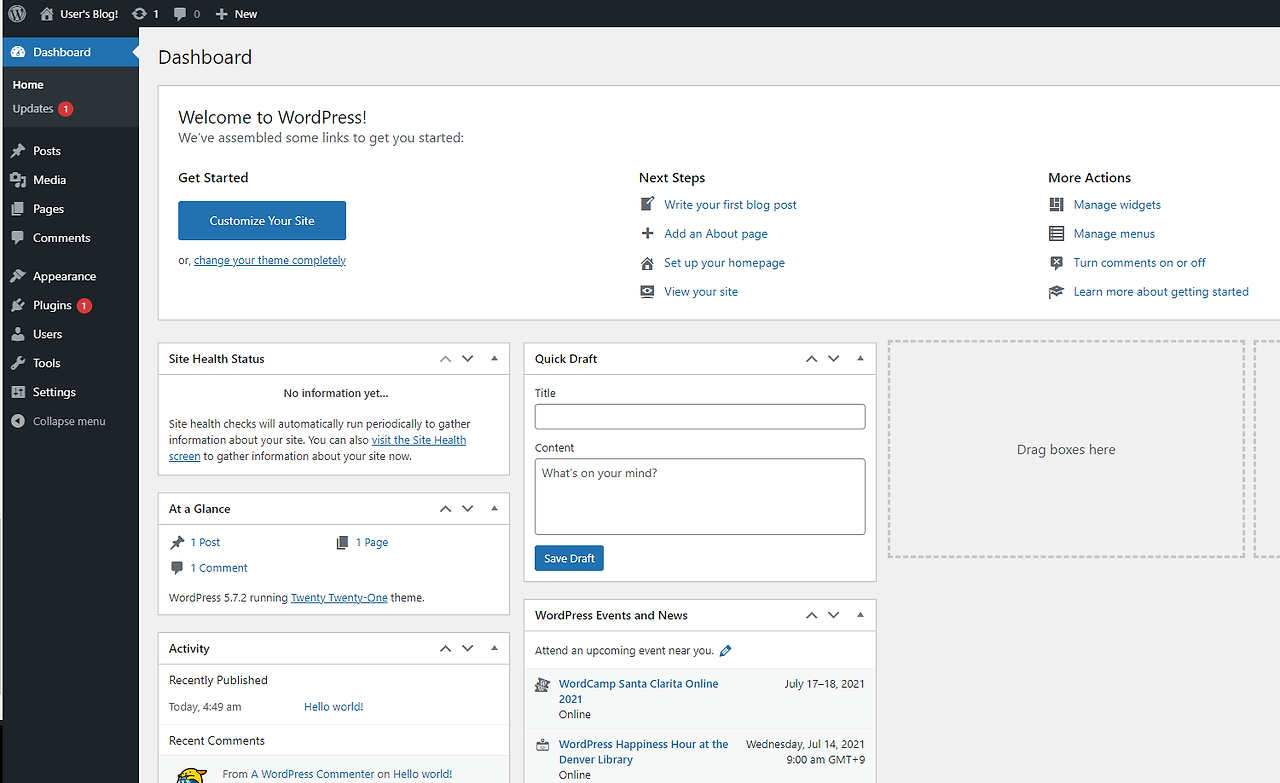

admin 접속?
export ADMIN_URL="http://$SERVICE_URL/admin"
export ADMIN_PASSWORD=$(kubectl get secret --namespace wordpress-cwi understood-zebu-wordpress -o jsonpath="{.data.wordpress-password}" | base64 --decode)
7
echo "Admin URL: http://$SERVICE_URL/admin
Username: user
Password: $ADMIN_PASSWORD
"
8
삭제
1deployment.apps/understood-zebu-wordpress
k delete deployment.apps/understood-zebu-wordpress
