19탄-28.테라폼-aws-멀티 프로바이더
다음은 주말 CloudNet 테라폼 스터디 내용 참고하여 정리한 부분입니다.
https://gasidaseo.notion.site/gasidaseo/CloudNet-Blog-c9dfa44a27ff431dafdd2edacc8a1863
<1> Provider 이론
<2> Provider 실습
<3> 2개의 리전에 RDS 리소스 배포하기 준비 - 백엔드 리소스 배포
<4> 2개의 리전에 RDS리소스 배포하기 - rds 배포하기
<1> Provider 이론
1
provicer 설정
provider "aws" {
region = "us-east-2"
}
2
provider 상세 설정
terraform {
required_providers {
<LOCAL_NAME> = {
source = "<URL>"
version = "<VERSION>"
}
}
}
terraform {
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 4.0"
}
}
}
registry.terraform.io/hashicorp/aws
= hashicorp/aws
3
2개 리전 배포시
provider "aws" {
region = "us-east-2"
}
provider "aws" {
region = "us-west-1"
}
리전간 리소스 구분법은 alias 사용
provider "aws" {
region = "us-east-2"
alias = "region_1"
}
provider "aws" {
region = "us-west-1"
alias = "region_2"
}
data "aws_region" "region_1" {
provider = aws.region_1
}
data "aws_region" "region_2" {
provider = aws.region_2
}
output "region_1" {
value = data.aws_region.region_1.name
description = "The name of the first region"
}
output "region_2" {
value = data.aws_region.region_2.name
description = "The name of the second region"
}
<2> Provider 실습
1
실습 하기
소스 다운로드
git clone https://github.com/brikis98/terraform-up-and-running-code.git
cd terraform-up-and-running-code/code/terraform
tree
참고
실습은 테라폼 버전 1.2.3 사용하는것으로 한다.
https://brunch.co.kr/@topasvga/2844
2
# 이동
cd ~/terraform-up-and-running-code/code/terraform/07-working-with-multiple-providers
3
# 테라폼 코드 파일 생성
cat <<EOT > multple-region.tf
terraform {
required_version = ">= 1.0.0, < 2.0.0"
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 4.0"
}
}
}
provider "aws" {
region = "us-east-2"
alias = "region_1"
}
provider "aws" {
region = "us-west-1"
alias = "region_2"
}
data "aws_region" "region_1" {
provider = aws.region_1
}
data "aws_region" "region_2" {
provider = aws.region_2
}
output "region_1" {
value = data.aws_region.region_1.name
description = "The name of the first region"
}
output "region_2" {
value = data.aws_region.region_2.name
description = "The name of the second region"
}
EOT
4
# init & plan & apply
terraform init
terraform plan & terraform apply -auto-approve
Outputs:
region_1 = "us-east-2"
region_2 = "us-west-1"
5
2개 리전에 ec2 생성
리전별 ami가 다르므로 필터를 활용한다.
data "aws_ami" "ubuntu_region_1" {
provider = aws.region_1
most_recent = true
owners = ["099720109477"] # Canonical
filter {
name = "name"
values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]
}
}
data "aws_ami" "ubuntu_region_2" {
provider = aws.region_2
most_recent = true
owners = ["099720109477"] # Canonical
filter {
name = "name"
values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]
}
6
ami는
resource "aws_instance" "region_1" {
provider = aws.region_1
ami = data.aws_ami.ubuntu_region_1.id
instance_type = "t2.micro"
}
resource "aws_instance" "region_2" {
provider = aws.region_2
ami = data.aws_ami.ubuntu_region_2.id
instance_type = "t2.micro"
}
7
각 리전에 ec2 생성 실습하기
# [터미널1] us-east-2
while true; do aws ec2 describe-instances --region us-east-2 --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output text ; echo "------------------------------" ; sleep 1; done
# [터미널2] us-west-1
while true; do aws ec2 describe-instances --region us-west-1 --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output text ; echo "------------------------------" ; sleep 1; done
# 이동
cd ~/terraform-up-and-running-code/code/terraform/07-working-with-multiple-providers/examples/multi-region
cat main.tf outputs.tf
[ec2-user@ip-172-31-61-209 s3]$ cat main.tf
terraform {
required_version = ">= 1.0.0, < 2.0.0"
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 4.0"
}
}
}
provider "aws" {
region = "us-east-2"
}
resource "aws_s3_bucket" "terraform_state" {
bucket = var.bucket_name
// This is only here so we can destroy the bucket as part of automated tests. You should not copy this for production
// usage
force_destroy = true
}
# Enable versioning so you can see the full revision history of your
# state files
resource "aws_s3_bucket_versioning" "enabled" {
bucket = aws_s3_bucket.terraform_state.id
versioning_configuration {
status = "Enabled"
}
}
# Enable server-side encryption by default
resource "aws_s3_bucket_server_side_encryption_configuration" "default" {
bucket = aws_s3_bucket.terraform_state.id
rule {
apply_server_side_encryption_by_default {
sse_algorithm = "AES256"
}
}
}
# Explicitly block all public access to the S3 bucket
resource "aws_s3_bucket_public_access_block" "public_access" {
bucket = aws_s3_bucket.terraform_state.id
block_public_acls = true
block_public_policy = true
ignore_public_acls = true
restrict_public_buckets = true
}
resource "aws_dynamodb_table" "terraform_locks" {
name = var.table_name
billing_mode = "PAY_PER_REQUEST"
hash_key = "LockID"
attribute {
name = "LockID"
type = "S"
}
}
[ec2-user@ip-172-31-61-209 s3]$ cat variables.tf
variable "bucket_name" {
description = "The name of the S3 bucket. Must be globally unique."
type = string
}
variable "table_name" {
description = "The name of the DynamoDB table. Must be unique in this AWS account."
type = string
}[ec2-user@ip-172-31-61-209 s3]$
# init & plan & apply
terraform init
terraform plan && terraform apply -auto-approve
Outputs:
instance_region_1_az = "us-east-2c"
instance_region_2_az = "us-west-1c"
region_1 = "us-east-2"
region_2 = "us-west-1"
------------------------------
None 54.177.224.99 running
------------------------------
None 54.177.224.99 running
None 18.223.235.39 running
------------------------------
None 18.223.235.39 running
# 아래 RDS 배포 후 데이터 INSERT 등 실습 후 삭제해도 됨
terraform destroy -auto-approve
<3> 2개의 리전에 RDS 리소스 배포하기 준비 - 백엔드 리소스 배포
1
환경변수
# 환경변수에 지정
export TF_VAR_bucket_name=masterseo-t101-tfstate
export TF_VAR_table_name=masterseo-t101-locks
# 환경변수 확인
export | grep TF_VAR_
# 이동
cd ~/terraform-up-and-running-code/code/terraform/03-terraform-state/file-layout-example/global/s3
cat main.tf variables.tf
[ec2-user@ip-172-31-61-209 s3]$ cat main.tf
terraform {
required_version = ">= 1.0.0, < 2.0.0"
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 4.0"
}
}
}
provider "aws" {
region = "us-east-2"
}
resource "aws_s3_bucket" "terraform_state" {
bucket = var.bucket_name
// This is only here so we can destroy the bucket as part of automated tests. You should not copy this for production
// usage
force_destroy = true
}
# Enable versioning so you can see the full revision history of your
# state files
resource "aws_s3_bucket_versioning" "enabled" {
bucket = aws_s3_bucket.terraform_state.id
versioning_configuration {
status = "Enabled"
}
}
# Enable server-side encryption by default
resource "aws_s3_bucket_server_side_encryption_configuration" "default" {
bucket = aws_s3_bucket.terraform_state.id
rule {
apply_server_side_encryption_by_default {
sse_algorithm = "AES256"
}
}
}
# Explicitly block all public access to the S3 bucket
resource "aws_s3_bucket_public_access_block" "public_access" {
bucket = aws_s3_bucket.terraform_state.id
block_public_acls = true
block_public_policy = true
ignore_public_acls = true
restrict_public_buckets = true
}
resource "aws_dynamodb_table" "terraform_locks" {
name = var.table_name
billing_mode = "PAY_PER_REQUEST"
hash_key = "LockID"
attribute {
name = "LockID"
type = "S"
}
}
[ec2-user@ip-172-31-61-209 s3]$ cat variables.tf
variable "bucket_name" {
description = "The name of the S3 bucket. Must be globally unique."
type = string
}
variable "table_name" {
description = "The name of the DynamoDB table. Must be unique in this AWS account."
type = string
}
[ec2-user@ip-172-31-61-209 s3]$
# 초기화 및 검증 및 배포 : 환경변수 적용 확인
terraform init
terraform plan && terraform apply -auto-approve
# 확인
aws s3 ls
[ec2-user@ip-172-31-61-209 s3]$ aws s3 ls
2022-12-12 23:05:39 masterseo-t101-tfstate

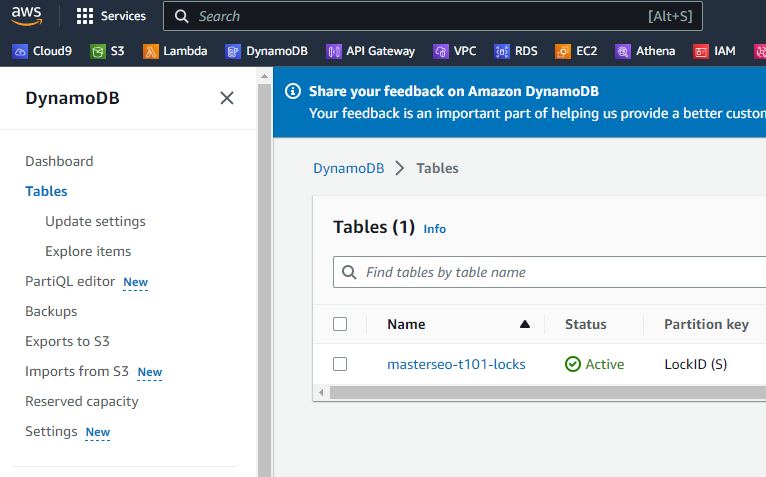

aws dynamodb list-tables --output text
[ec2-user@ip-172-31-61-209 s3]$ aws dynamodb list-tables --output text
TABLENAMES masterseo-t101-locks
<4> 2개의 리전에 RDS리소스 배포하기 - rds 배포하기
primary rds 배포
다른 리전에 리드 리플리카 배포하기
리드 리플리카는 primary rds 접속 정보를 알아야 한다.
따라서 백엔드를 먼저 만든다.
1
백엔드 만들기
s3 와 dynamodb 를 만든다.
2
rds 만드는데 20분 걸린다.
rds 모니터링1
rds 모니터링2
콘솔로 rds 생성 확인
3
# [터미널1] us-east-2
while true; do aws rds describe-db-instances --region us-east-2 --query "*[].[Endpoint.Address,Endpoint.Port,MasterUsername]" --output text ; echo "------------------------------" ; sleep 1; done
# [터미널2] us-west-1
while true; do aws rds describe-db-instances --region us-west-1 --query "*[].[Endpoint.Address,Endpoint.Port,MasterUsername]" --output text ; echo "------------------------------" ; sleep 1; done
# 환경변수에 지정
export TF_VAR_db_username='cloudneta'
export TF_VAR_db_password='cloudnetaQ!'
# 이동
cd ~/terraform-up-and-running-code/code/terraform/07-working-with-multiple-providers/live/prod/data-stores/mysql
# main.tf 에 백엔드 부분 수정
vi main.tf
backend "s3" {
# This backend configuration is filled in automatically at test time by Terratest. If you wish to run this example
# manually, uncomment and fill in the config below.
bucket = "masterseo-t101-tfstate"
key = "prod/data-stores/mysql/terraform.tfstate"
region = "us-east-2"
dynamodb_table = "masterseo-t101-locks"
# encrypt = true
}
}
# 초기화 및 검증 : 환경변수 적용 확인
terraform init
terraform plan
# 배포 : 총 25분 정도 소요 (8분 후 primary 완료, 이후 16분 후 replica 생성 및 동기화 완료)
terraform apply -auto-approve
터미널1
10분 후
terraform-up-and-running2xxcdywcyg.us-east-2.rds.amazonaws.com 3306 cloudneta
------------------------------
terraform-up-and-running202ywcyg.us-east-2.rds.amazonaws.com 3306 cloudneta
------------------------------
터미널2
10분후
None None cloudneta
------------------------------
None None cloudneta
------------------------------
None None cloudneta
------------------------------
20분 후
------------------------------
terraform-up-and-running20221212235630237200000001.czsgi0qnuznr.us-west-1.rds.amazonaws.com 3306 cloudneta
------------------------------
terraform-up-and-running20221212235630237200000001.czsgi0qnuznr.us-west-1.rds.amazonaws.com 3306 cloudneta
------------------------------
콘솔에서 확인

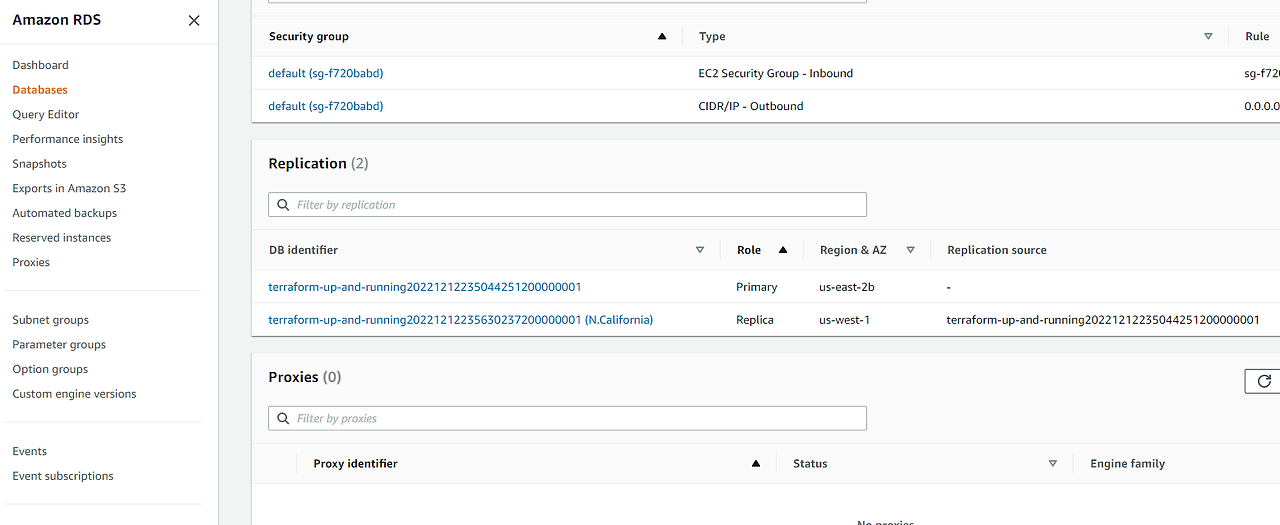

오하이오 us-east-2
20분 후

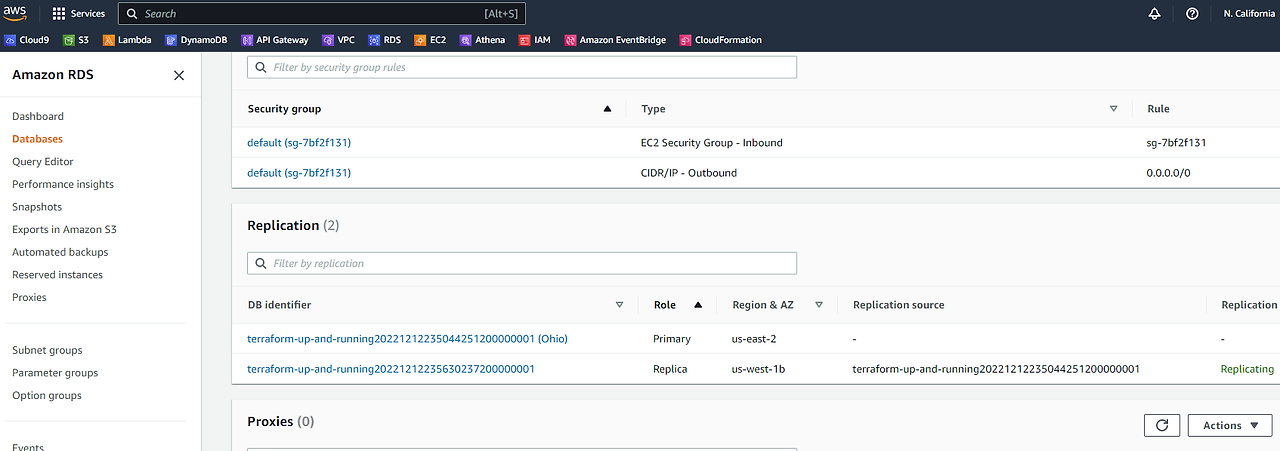

캘리포니아 us-west-1
terraform output
aws s3 ls s3://$TF_VAR_bucket_name --recursive --human-readable --summarize
[ec2-user@ip-172-31-61-209 mysql]$ cat main.tf
terraform {
required_version = ">= 1.0.0, < 2.0.0"
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 4.0"
}
}
backend "s3" {
# This backend configuration is filled in automatically at test time by Terratest. If you wish to run this example
# manually, uncomment and fill in the config below.
bucket = "masterseo-t101-tfstate"
key = "prod/data-stores/mysql/terraform.tfstate"
region = "us-east-2"
dynamodb_table = "masterseo-t101-locks"
# encrypt = true
}
}
provider "aws" {
region = "us-east-2"
alias = "primary"
}
provider "aws" {
region = "us-west-1"
alias = "replica"
}
module "mysql_primary" {
source = "../../../../modules/data-stores/mysql"
providers = {
aws = aws.primary
}
db_name = var.db_name
db_username = var.db_username
db_password = var.db_password
# Must be enabled to support replication
backup_retention_period = 1
}
module "mysql_replica" {
source = "../../../../modules/data-stores/mysql"
providers = {
aws = aws.replica
}
# Make this a replica of the primary
replicate_source_db = module.mysql_primary.arn
}
[ec2-user@ip-172-31-61-209 mysql]$
.
[ec2-user@ip-172-31-61-209 mysql]$ cat variables.tf
# ---------------------------------------------------------------------------------------------------------------------
# REQUIRED PARAMETERS
# You must provide a value for each of these parameters.
# ---------------------------------------------------------------------------------------------------------------------
variable "db_username" {
description = "The username for the database"
type = string
sensitive = true
}
variable "db_password" {
description = "The password for the database"
type = string
sensitive = true
}
# ---------------------------------------------------------------------------------------------------------------------
# OPTIONAL PARAMETERS
# These parameters have reasonable defaults.
# ---------------------------------------------------------------------------------------------------------------------
variable "db_name" {
description = "The name to use for the database"
type = string
default = "example_database_prod"
}
[ec2-user@ip-172-31-61-209 mysql]$
[ec2-user@ip-172-31-61-209 mysql]$ more outputs.tf
output "primary_address" {
value = module.mysql_primary.address
description = "Connect to the primary database at this endpoint"
}
output "primary_port" {
value = module.mysql_primary.port
description = "The port the primary database is listening on"
}
output "primary_arn" {
value = module.mysql_primary.arn
description = "The ARN of the primary database"
}
output "replica_address" {
value = module.mysql_replica.address
description = "Connect to the replica database at this endpoint"
}
output "replica_port" {
value = module.mysql_replica.port
description = "The port the replica database is listening on"
}
output "replica_arn" {
value = module.mysql_replica.arn
description = "The ARN of the replica database"
}
[ec2-user@ip-172-31-61-209 mysql]$
code
# (옵션) Primary RDS에 데이터 INSERT 후 Replica RDS에 복제되는지 확인 해보세요
# 삭제 6분 정도 소요
terraform destroy -auto-approve
# S3/DynamoDB 삭제
cd ~/terraform-up-and-running-code/code/terraform/03-terraform-state/file-layout-example/global/s3
terraform destroy -auto-approve
주의
실무에서는 고려할 사항이 많다.
alias 많은 사용은 권장하지 않는다. 하나의 리전 장애시 코드가 동작하지 않는다. 격리해야 한다.
다음
https://brunch.co.kr/@topasvga/2857
https://brunch.co.kr/@topasvga/2421
xx감사합니다.
