by Master Seo Aug 06. 2023

1. GCP-테라폼-쿠버네티스,LB 사용하기


<1> 인증하기

<2> 코드 이해

<3> 초기와 적용하기

<4> 리소스 확인과 접속






<1> 인증하기


1

gcloud auth list


2

gcloud config list project




<2>  코드 이해



1

version.tf


terraform {

  required_version = ">= 0.12"

}


# 테러폼 0.12 버전 이상



2

$ more main.tf


variable "region" {

  type        = string

  description = "Region for the resource."

}


variable "location" {

  type        = string

  description = "Location represents region/zone for the resource."

}


variable "network_name" {

  default = "tf-gke-k8s"

}


provider "google" {

  region = var.region

}


resource "google_compute_network" "default" {

  name                    = var.network_name

  auto_create_subnetworks = false

}


resource "google_compute_subnetwork" "default" {

  name                     = var.network_name

  ip_cidr_range            = "10.127.0.0/20"

  network                  = google_compute_network.default.self_link

  region                   = var.region

  private_ip_google_access = true

}


data "google_client_config" "current" {

}

data "google_container_engine_versions" "default" {

  location = var.location

}


resource "google_container_cluster" "default" {

  name               = var.network_name

  location           = var.location

  initial_node_count = 3

  min_master_version = data.google_container_engine_versions.default.latest_master_version

  network            = google_compute_subnetwork.default.name

  subnetwork         = google_compute_subnetwork.default.name

  // Use legacy ABAC until these issues are resolved:

  //   https://github.com/mcuadros/terraform-provider-helm/issues/56

  //   https://github.com/terraform-providers/terraform-provider-kubernetes/pull/73

  enable_legacy_abac = true

  // Wait for the GCE LB controller to cleanup the resources.

  // Wait for the GCE LB controller to cleanup the resources.

  provisioner "local-exec" {

    when    = destroy

    command = "sleep 90"

  }

}


output "network" {

  value = google_compute_subnetwork.default.network

}


output "subnetwork_name" {

  value = google_compute_subnetwork.default.name

}


output "cluster_name" {

  value = google_container_cluster.default.name

}


output "cluster_region" {

  value = var.region

}


output "cluster_location" {

  value = google_container_cluster.default.location

}



3

$ more k8s.tf


provider "kubernetes" {

  version = "~> 1.10.0"

  host    = google_container_cluster.default.endpoint

  token   = data.google_client_config.current.access_token

  client_certificate = base64decode(

    google_container_cluster.default.master_auth[0].client_certificate,

  )

  client_key = base64decode(google_container_cluster.default.master_auth[0].client_key)

  cluster_ca_certificate = base64decode(

    google_container_cluster.default.master_auth[0].cluster_ca_certificate,

  )

}


resource "kubernetes_namespace" "staging" {

  metadata {

    name = "staging"

  }

}


resource "google_compute_address" "default" {

  name   = var.network_name

  region = var.region

}


resource "kubernetes_service" "nginx" {

  metadata {

    namespace = kubernetes_namespace.staging.metadata[0].name

    name      = "nginx"

  }

  spec {

    selector = {

      run = "nginx"

    }

    session_affinity = "ClientIP"

    port {

      protocol    = "TCP"

      port        = 80

      target_port = 80

    }

    type             = "LoadBalancer"

    load_balancer_ip = google_compute_address.default.address

  }

}


resource "kubernetes_replication_controller" "nginx" {

  metadata {

    name      = "nginx"

    namespace = kubernetes_namespace.staging.metadata[0].name

    labels = {

      run = "nginx"

    }

  }

  spec {

    selector = {

      run = "nginx"

    }

    template {

      metadata {

          name = "nginx"

          labels = {

              run = "nginx"

          }

      }

      spec {

        container {

            image = "nginx:latest"

            name  = "nginx"

            resources {

                limits {

                    cpu    = "0.5"

                    memory = "512Mi"

                }

                requests {

                    cpu    = "250m"

                    memory = "50Mi"

                }

            }

        }

      }

    }

  }

}


output "load-balancer-ip" {

  value = google_compute_address.default.address

}









<3> 초기와 적용하기


1

terraform init



2

terraform apply -var="region="Region to be allocated"" -var="location="Zone to be allocated""




<4> 리소스 확인과 접속


1

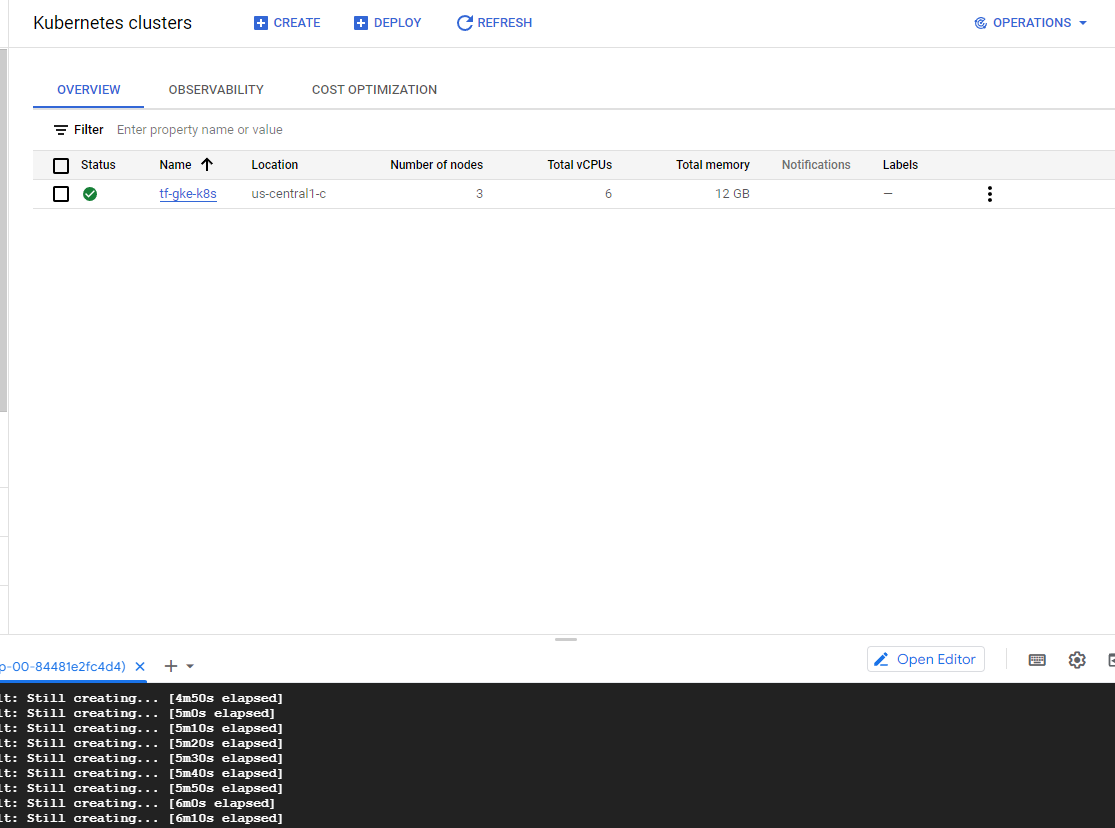

쿠버네티스 Endpoints IP 확인




2

브라우저로 접속




다음 보기

https://brunch.co.kr/@topasvga/3391



전체 보기

https://brunch.co.kr/@topasvga/3394
