by Master Seo Aug 06. 2023

2. GCP-테라폼- HTTPS LB



<1> 환경설정

<2> 설정




<1> 환경설정


1

gcloud auth list



2

gcloud config list project




<2> 설정



1

설정 파일 보기


$ ls *.tf

main.tf  mig.tf  outputs.tf  tls.tf  variables.tf  versions.tf


$ more versions.tf


terraform {

  required_version = ">= 0.13"

  required_providers {

    google = {

      source  = "hashicorp/google"

      version = ">= 3.53, < 5.0"

    }


    google-beta = {

      source  = "hashicorp/google-beta"

      version = ">= 4.40, < 5.0"

    }


    random = {

      source = "hashicorp/random"

    }


    template = {

      source = "hashicorp/template"

    }

    tls = {

      source = "hashicorp/tls"

    }

  }

}




$ more main.tf


provider "google" {

  project = var.project

}


provider "google-beta" {

  project = var.project

}


resource "google_compute_network" "default" {

  name                    = var.network_name

  auto_create_subnetworks = "false"

}

resource "google_compute_subnetwork" "group1" {

  name                     = var.network_name

  ip_cidr_range            = "10.125.0.0/20"

  network                  = google_compute_network.default.self_link

  region                   = var.group1_region

  private_ip_google_access = true

}

# Router and Cloud NAT are required for installing packages from repos (apache, php etc)

resource "google_compute_router" "group1" {

  name    = "${var.network_name}-gw-group1"

  network = google_compute_network.default.self_link

  region  = var.group1_region

}

module "cloud-nat-group1" {

  source     = "terraform-google-modules/cloud-nat/google"

  version    = "~> 2.2"

  router     = google_compute_router.group1.name

  project_id = var.project

  region     = var.group1_region

  name       = "${var.network_name}-cloud-nat-group1"

}

resource "google_compute_subnetwork" "group2" {

  name                     = var.network_name

  ip_cidr_range            = "10.126.0.0/20"

  network                  = google_compute_network.default.self_link

  region                   = var.group2_region

  private_ip_google_access = true

}

# Router and Cloud NAT are required for installing packages from repos (apache, php etc)

resource "google_compute_router" "group2" {

  name    = "${var.network_name}-gw-group2"

  network = google_compute_network.default.self_link

  region  = var.group2_region

}

module "cloud-nat-group2" {

  source     = "terraform-google-modules/cloud-nat/google"

  version    = "~> 2.2"

  router     = google_compute_router.group2.name

  project_id = var.project

  region     = var.group2_region

  name       = "${var.network_name}-cloud-nat-group2"

}

resource "google_compute_subnetwork" "group3" {

  name                     = var.network_name

  ip_cidr_range            = "10.127.0.0/20"

  network                  = google_compute_network.default.self_link

  region                   = var.group3_region

  private_ip_google_access = true

}

# Router and Cloud NAT are required for installing packages from repos (apache, php etc)

resource "google_compute_router" "group3" {

  name    = "${var.network_name}-gw-group3"

  network = google_compute_network.default.self_link

  region  = var.group3_region

}

module "cloud-nat-group3" {

  source     = "terraform-google-modules/cloud-nat/google"

  version    = "~> 2.2"

  router     = google_compute_router.group3.name

  project_id = var.project

  region     = var.group3_region

  name       = "${var.network_name}-cloud-nat-group3"

}

resource "random_id" "assets-bucket" {

  prefix      = "terraform-static-content-"

  byte_length = 2

}

locals {

  health_check = {

    request_path = "/"

    port         = 80

  }

}

# [START cloudloadbalancing_ext_http_gce_plus_bucket]

module "gce-lb-https" {

  source  = "../../"

  name    = var.network_name

  project = var.project

  target_tags = [

    "${var.network_name}-group1",

    module.cloud-nat-group1.router_name,

    "${var.network_name}-group2",

    module.cloud-nat-group2.router_name,

    "${var.network_name}-group3",

    module.cloud-nat-group3.router_name

  ]

  firewall_networks = [google_compute_network.default.self_link]

  url_map           = google_compute_url_map.ml-bkd-ml-mig-bckt-s-lb.self_link

  create_url_map    = false

  ssl               = true

  private_key       = tls_private_key.example.private_key_pem

  certificate       = tls_self_signed_cert.example.cert_pem

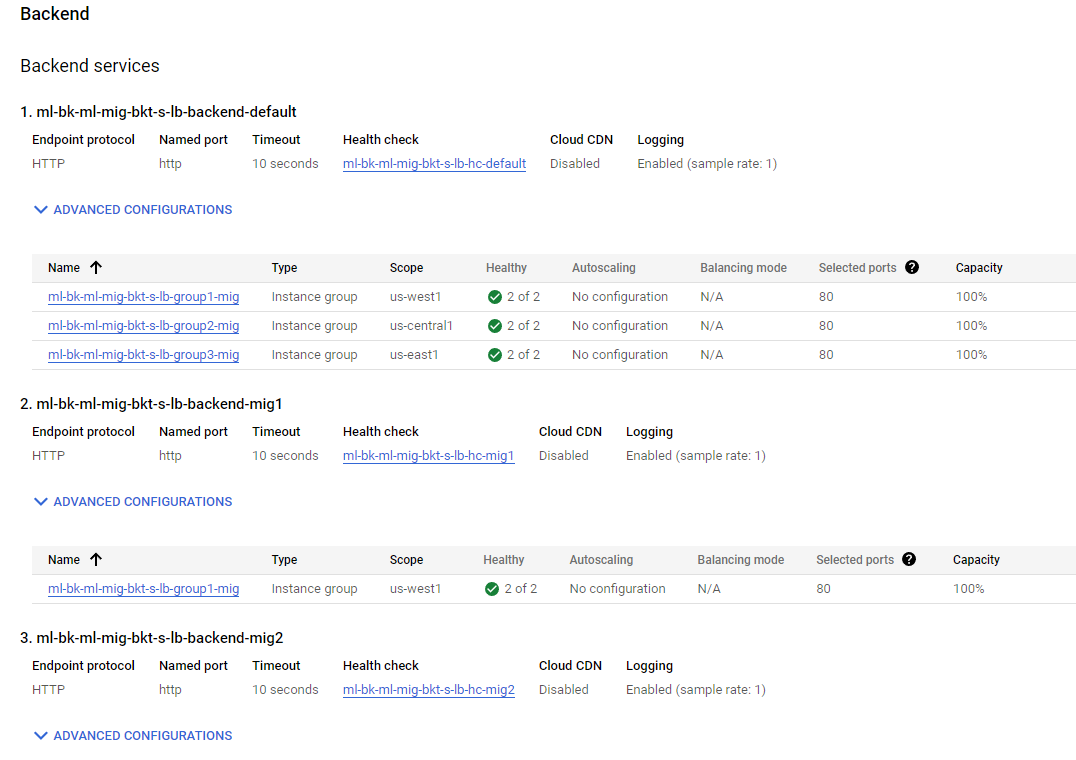

  backends = {

    default = {

      protocol    = "HTTP"

      port        = 80

      port_name   = "http"

      timeout_sec = 10

      enable_cdn  = false

      health_check = local.health_check

      log_config = {

        enable      = true

        sample_rate = 1.0

      }

      groups = [

        {

          group = module.mig1.instance_group

        },

        {

          group = module.mig2.instance_group

        },

        {

          group = module.mig3.instance_group

        },

      ]

      iap_config = {

        enable = false

      }

    }

    mig1 = {

      protocol    = "HTTP"

      port        = 80

      port_name   = "http"

      timeout_sec = 10

      enable_cdn  = false

      health_check = local.health_check

      log_config = {

        enable      = true

        sample_rate = 1.0

      }

      groups = [

        {

          group = module.mig1.instance_group

        },

      ]

      iap_config = {

        enable = false

      }

    }

    mig2 = {

      protocol    = "HTTP"

      port        = 80

      port_name   = "http"

      timeout_sec = 10

      enable_cdn  = false

      health_check = local.health_check

      log_config = {

        enable      = true

        sample_rate = 1.0

      }

      groups = [

        {

          group = module.mig2.instance_group

        },

      ]

      iap_config = {

        enable = false

      }

    }

    mig3 = {

      protocol    = "HTTP"

      port        = 80

      port_name   = "http"

      timeout_sec = 10

      enable_cdn  = false

      health_check = local.health_check

      log_config = {

        enable      = true

        sample_rate = 1.0

      }

      groups = [

        {

          group = module.mig3.instance_group

        },

      ]

      iap_config = {

        enable = false

      }

    }

  }

}

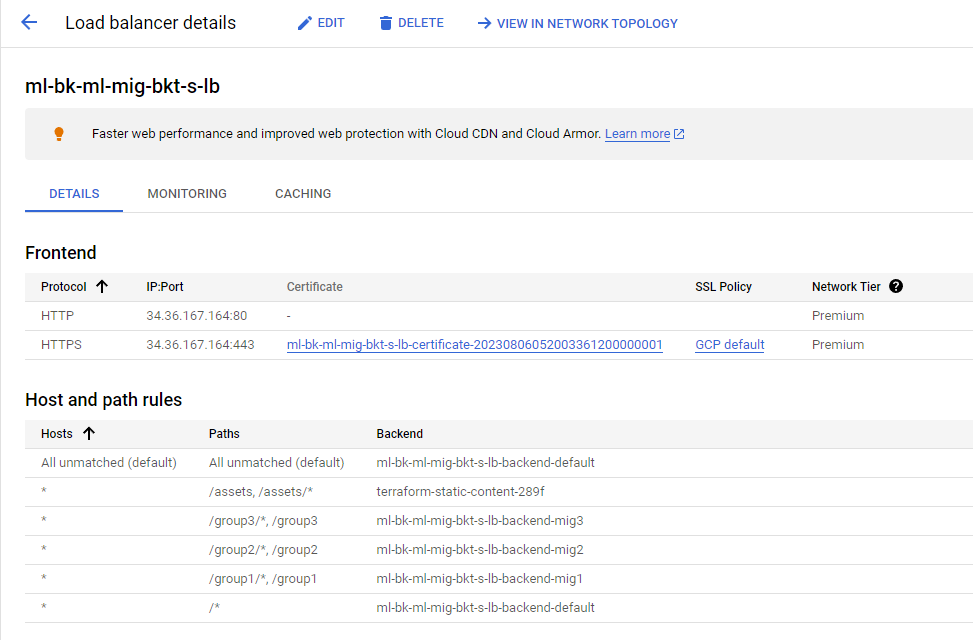

resource "google_compute_url_map" "ml-bkd-ml-mig-bckt-s-lb" {

  // note that this is the name of the load balancer

  name            = var.network_name

  default_service = module.gce-lb-https.backend_services["default"].self_link

  host_rule {

    hosts        = ["*"]

    path_matcher = "allpaths"

  }

  path_matcher {

    name            = "allpaths"

    default_service = module.gce-lb-https.backend_services["default"].self_link

    path_rule {

      paths = [

        "/group1",

        "/group1/*"

      ]

      service = module.gce-lb-https.backend_services["mig1"].self_link

    }

    path_rule {

      paths = [

        "/group2",

        "/group2/*"

      ]

      service = module.gce-lb-https.backend_services["mig2"].self_link

    }

    path_rule {

      paths = [

        "/group3",

        "/group3/*"

      ]

      service = module.gce-lb-https.backend_services["mig3"].self_link

    }

    path_rule {

      paths = [

        "/assets",

        "/assets/*"

      ]

      service = google_compute_backend_bucket.assets.self_link

    }

  }

}

resource "google_compute_backend_bucket" "assets" {

  name        = random_id.assets-bucket.hex

  description = "Contains static resources for example app"

  bucket_name = google_storage_bucket.assets.name

  enable_cdn  = true

}

resource "google_storage_bucket" "assets" {

  name     = random_id.assets-bucket.hex

  location = "US"

  // delete bucket and contents on destroy.

  force_destroy = true

}

// The image object in Cloud Storage.

// Note that the path in the bucket matches the paths in the url map path rule above.

resource "google_storage_bucket_object" "image" {

  name         = "assets/gcp-logo.svg"

  content      = file("gcp-logo.svg")

  content_type = "image/svg+xml"

  bucket       = google_storage_bucket.assets.name

}

// Make object public readable.

resource "google_storage_object_acl" "image-acl" {

  bucket         = google_storage_bucket.assets.name

  object         = google_storage_bucket_object.image.name

  predefined_acl = "publicRead"

}

# [END cloudloadbalancing_ext_http_gce_plus_bucket]






$ ls *.tf

main.tf  mig.tf  outputs.tf  tls.tf  variables.tf  versions.tf






$ more mig.tf


data "template_file" "group1-startup-script" {

  template = file(format("%s/gceme.sh.tpl", path.module))

  vars = {

    PROXY_PATH = "/group1"

  }

}

data "template_file" "group2-startup-script" {

  template = file(format("%s/gceme.sh.tpl", path.module))

  vars = {

    PROXY_PATH = "/group2"

  }

}

data "template_file" "group3-startup-script" {

  template = file(format("%s/gceme.sh.tpl", path.module))

  vars = {

    PROXY_PATH = "/group3"

  }

}

module "mig1_template" {

  source     = "terraform-google-modules/vm/google//modules/instance_template"

  version    = "~> 7.9"

  network    = google_compute_network.default.self_link

  subnetwork = google_compute_subnetwork.group1.self_link

  service_account = {

    email  = ""

    scopes = ["cloud-platform"]

  }

  name_prefix          = "${var.network_name}-group1"

  startup_script       = data.template_file.group1-startup-script.rendered

  source_image_family  = "ubuntu-2004-lts"

  source_image_project = "ubuntu-os-cloud"

  tags = [

    "${var.network_name}-group1",

    module.cloud-nat-group1.router_name

  ]

}

module "mig1" {

  source            = "terraform-google-modules/vm/google//modules/mig"

  version           = "~> 7.9"

  instance_template = module.mig1_template.self_link

  region            = var.group1_region

  hostname          = "${var.network_name}-group1"

  target_size       = 2

  named_ports = [{

    name = "http",

    port = 80

  }]

  network    = google_compute_network.default.self_link

  subnetwork = google_compute_subnetwork.group1.self_link

}

module "mig2_template" {

  source     = "terraform-google-modules/vm/google//modules/instance_template"

  version    = "~> 7.9"

  network    = google_compute_network.default.self_link

  subnetwork = google_compute_subnetwork.group2.self_link

  service_account = {

    email  = ""

    scopes = ["cloud-platform"]

  }

  name_prefix          = "${var.network_name}-group2"

  startup_script       = data.template_file.group2-startup-script.rendered

  source_image_family  = "ubuntu-2004-lts"

  source_image_project = "ubuntu-os-cloud"

  tags = [

    "${var.network_name}-group2",

    module.cloud-nat-group2.router_name

  ]

}

module "mig2" {

  source            = "terraform-google-modules/vm/google//modules/mig"

  version           = "~> 7.9"

  instance_template = module.mig2_template.self_link

  region            = var.group2_region

  hostname          = "${var.network_name}-group2"

  target_size       = 2

  named_ports = [{

    name = "http",

    port = 80

  }]

  network    = google_compute_network.default.self_link

  subnetwork = google_compute_subnetwork.group2.self_link

}

module "mig3_template" {

  source     = "terraform-google-modules/vm/google//modules/instance_template"

  version    = "~> 7.9"

  network    = google_compute_network.default.self_link

  subnetwork = google_compute_subnetwork.group3.self_link

  service_account = {

    email  = ""

    scopes = ["cloud-platform"]

  }

  name_prefix          = "${var.network_name}-group3"

  startup_script       = data.template_file.group3-startup-script.rendered

  source_image_family  = "ubuntu-2004-lts"

  source_image_project = "ubuntu-os-cloud"

  tags = [

    "${var.network_name}-group3",

    module.cloud-nat-group2.router_name

  ]

}

module "mig3" {

  source            = "terraform-google-modules/vm/google//modules/mig"

  version           = "~> 7.9"

  instance_template = module.mig3_template.self_link

  region            = var.group3_region

  hostname          = "${var.network_name}-group3"

  target_size       = 2

  named_ports = [{

    name = "http",

    port = 80

  }]

  network    = google_compute_network.default.self_link

  subnetwork = google_compute_subnetwork.group3.self_link

}







$ ls *.tf

main.tf  mig.tf  outputs.tf  tls.tf  variables.tf  versions.tf





$ more outputs.tf


output "group1_region" {

  value = var.group1_region

}

output "group2_region" {

  value = var.group2_region

}

output "group3_region" {

  value = var.group3_region

}

output "load-balancer-ip" {

  value = module.gce-lb-https.external_ip

}

output "load-balancer-ipv6" {

  value       = module.gce-lb-https.ipv6_enabled ? module.gce-lb-https.external_ipv6_address : "undefined"

  description = "The IPv6 address of the load-balancer, if enabled; else \"undefined\""

}

output "asset-url" {

  value = "https://${module.gce-lb-https.external_ip}/assets/gcp-logo.svg"

}

output "asset-url-ipv6" {

  value       = module.gce-lb-https.ipv6_enabled ? "https://${module.gce-lb-https.external_ipv6_address}/assets/gcp-logo.svg" : "undefined"

  description = "The asset url over IPv6 address of the load-balancer, if enabled; else \"undefined\""

}





$ ls *.tf

main.tf  mig.tf  outputs.tf  tls.tf  variables.tf  versions.tf





$ more tls.tf


resource "tls_private_key" "example" {

  algorithm = "RSA"

  rsa_bits  = 2048

}

resource "tls_self_signed_cert" "example" {

  private_key_pem = tls_private_key.example.private_key_pem

  # Certificate expires after 12 hours.

  validity_period_hours = 12

  # Generate a new certificate if Terraform is run within three

  # hours of the certificate's expiration time.

  early_renewal_hours = 3

  # Reasonable set of uses for a server SSL certificate.

  allowed_uses = [

    "key_encipherment",

    "digital_signature",

    "server_auth",

  ]






$ ls *.tf

main.tf  mig.tf  outputs.tf  tls.tf  variables.tf  versions.tf




$ more variables.tf


variable "group1_region" {

  default = "us-west1"

}

variable "group2_region" {

  default = "us-central1"

}

variable "group3_region" {

  default = "us-east1"

}

variable "network_name" {

  default = "ml-bk-ml-mig-bkt-s-lb"

}

variable "project" {

  type = string

}





2

terraform init


terraform plan -out=tfplan -var 'project=<PROJECT_ID>'


terraform apply tfplan



3

콘솔에서 LB 확인




4

IP확인

EXTERNAL_IP=$(terraform output | grep load-balancer-ip | cut -d = -f2 | xargs echo -n)

echo

https://${EXTERNAL_IP}





다음과정

https://brunch.co.kr/@topasvga/3392



전체 보기

https://brunch.co.kr/@topasvga/3394


감사합니다.


매거진의 이전글 1. GCP-테라폼-쿠버네티스,LB 사용하기
브런치는 최신 브라우저에 최적화 되어있습니다. IE chrome safari
