by Master Seo Aug 06. 2023

3. GCP-테라폼-Modular LB


목표


load balancing modules

regional TCP load balancer

regional internal TCP load balancer

global HTTP load balancer with Kubernetes Engine

global HTTPS content-based load balancer




<1> 환경설정

<2> TCP LB



<1> 환경설정


1

gcloud auth list


2

gcloud config list project





<2> TCP LB


1

export GOOGLE_PROJECT=$(gcloud config get-value project)



2

$ ls *.tf

locals.tf  main.tf  network.tf  outputs.tf  provider.tf  variables.tf  versions.tf



$ more *.tf

::::::::::::::

locals.tf

::::::::::::::


locals {

  health_check = {

    check_interval_sec  = 1

    healthy_threshold   = 4

    timeout_sec         = 1

    unhealthy_threshold = 5

    port                = 8080

    request_path        = "/mypath"

    host                = "1.2.3.4"

  }

}



::::::::::::::

main.tf


data "template_file" "instance_startup_script" {

  template = file("${path.module}/templates/gceme.sh.tpl")

  vars = {

    PROXY_PATH = ""

  }

}


resource "google_service_account" "instance-group" {

  account_id = "instance-group"

}


module "instance_template" {

  source               = "terraform-google-modules/vm/google//modules/instance_template"

  version              = "~> 8.0"

  subnetwork           = google_compute_subnetwork.subnetwork.self_link

  source_image_family  = var.image_family

  source_image_project = var.image_project

  startup_script       = data.template_file.instance_startup_script.rendered

  service_account = {

    email  = google_service_account.instance-group.email

    scopes = ["cloud-platform"]

  }

}


module "managed_instance_group" {

  source            = "terraform-google-modules/vm/google//modules/mig"

  version           = "~> 8.0"

  region            = var.region

  target_size       = 2

  hostname          = "mig-simple"

  instance_template = module.instance_template.self_link

  target_pools = [

    module.load_balancer_default.target_pool,

    module.load_balancer_no_hc.target_pool,

    module.load_balancer_custom_hc.target_pool

  ]

  named_ports = [{

    name = "http"

    port = 80

  }]

}


module "load_balancer_default" {

  name         = "basic-load-balancer-default"

  source       = "../../"

  region       = var.region

  service_port = 80

  network      = google_compute_network.network.name

  target_service_accounts = [google_service_account.instance-group.email]

}


module "load_balancer_no_hc" {

  name                 = "basic-load-balancer-no-hc"

  source               = "../../"

  region               = var.region

  service_port         = 80

  network              = google_compute_network.network.name

  disable_health_check = true

  target_service_accounts = [google_service_account.instance-group.email]

}


module "load_balancer_custom_hc" {

  name         = "basic-load-balancer-custom-hc"

  source       = "../../"

  region       = var.region

  service_port = 8080

  network      = google_compute_network.network.name

  health_check = local.health_check

  target_service_accounts = [google_service_account.instance-group.email]

}



::::::::::::::

network.tf

::::::::::::::


resource "google_compute_network" "network" {

  name                    = "load-balancer-module-network"

  auto_create_subnetworks = "false"

}


resource "google_compute_subnetwork" "subnetwork" {

  name          = "load-balancer-module-subnetwork"

  region        = var.region

  network       = google_compute_network.network.self_link

  ip_cidr_range = "10.0.0.0/16"

}


resource "google_compute_router" "router" {

  name    = "load-balancer-module-router"

  region  = var.region

  network = google_compute_network.network.self_link

}


module "cloud_nat" {

  project_id = var.project_id

  region     = var.region

  name       = "load-balancer-module-nat"

  source     = "terraform-google-modules/cloud-nat/google"

  version    = "~> 2.2"

  router     = google_compute_router.router.name

}




::::::::::::::

outputs.tf

::::::::::::::


output "load_balancer_default_ip" {

  description = "The external ip address of the forwarding rule for default lb."

  value       = module.load_balancer_default.external_ip

}




::::::::::::::

provider.tf

::::::::::::::

provider "google" {

  project = var.project_id

}


provider "google-beta" {

  project = var.project_id

}




::::::::::::::

variables.tf

::::::::::::::


variable "region" {

  default = "us-central1"

}


variable "project_id" {

  description = "GCP Project used to create resources."

}


variable "image_family" {

  description = "Image used for compute VMs."

  default     = "debian-11"

}


variable "image_project" {

  description = "GCP Project where source image comes from."

  default     = "debian-cloud"

}




::::::::::::::

versions.tf

::::::::::::::


terraform {

  required_version = ">= 0.13"

  required_providers {

    google = {

      source  = "hashicorp/google"

      version = ">= 3.53, < 5.0"

    }

    google-beta = {

      source  = "hashicorp/google-beta"

      version = ">= 3.53, < 5.0"

    }

    template = {

      source = "hashicorp/template"

    }

  }

}




3

terraform init



4

terraform plan


5

terraform apply



6

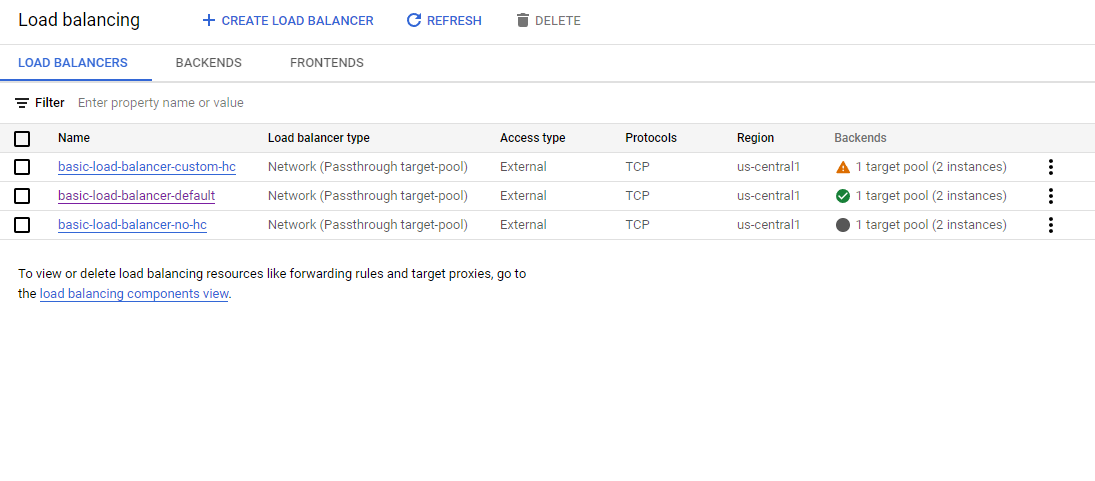

콘솔에서 보기



7

EXTERNAL_IP=$(terraform output | grep load_balancer_default_ip | cut -d = -f2 | xargs echo -n)


8

echo "

http://${EXTERNAL_IP}

"



다음과정

https://brunch.co.kr/@topasvga/3393



전체보기

https://brunch.co.kr/@topasvga/3394


감사합니다.
