AWS 53탄-17.테라폼으로 EC2 1대 -2024
<1> 클라우드 포메이션으로 명령서버 1대 만들기
<2> 디폴트 VPC에 테라폼으로 EC2 1대 만들어보자.
<3> 서버명 설정하기
<4> 보안그룹
<5> EC2 접속용 pem키 만들기
<6> 10.대 VPC에 테라폼으로 EC2 1대 만들어보자.
<1> 클라우드 포메이션으로 명령서버 1대 만들기
1

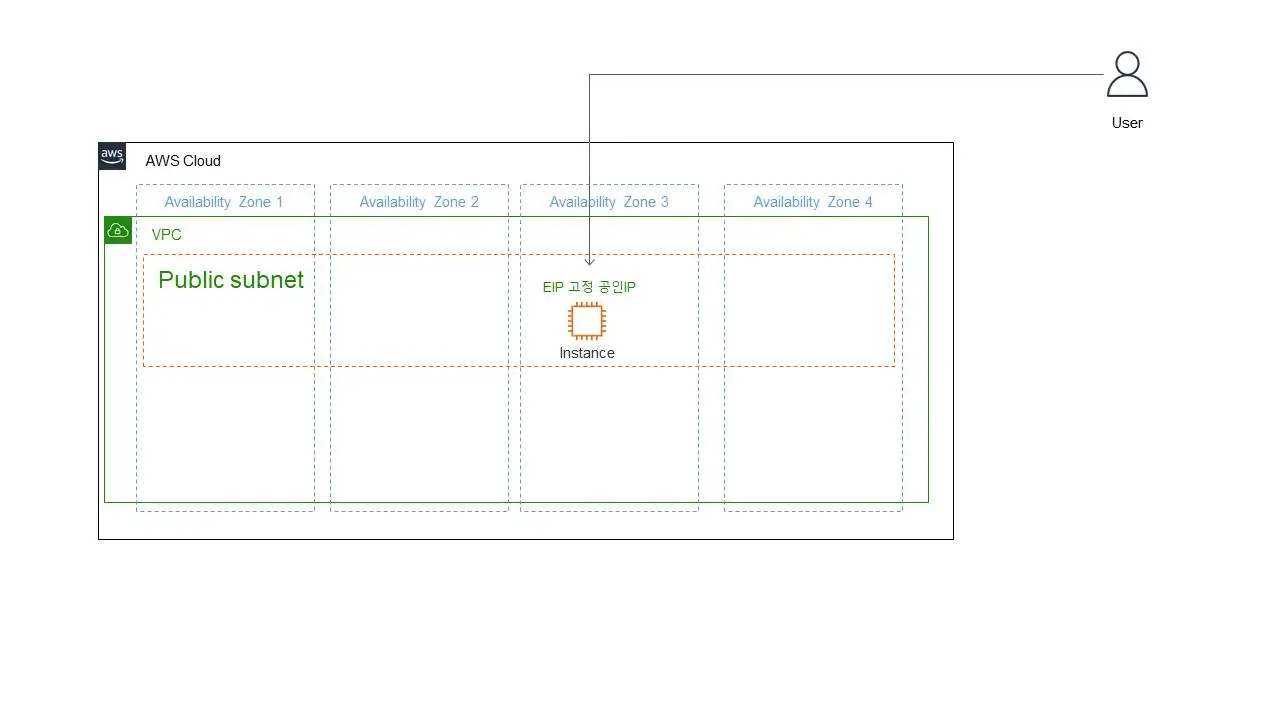

구성도
2
테라폼 명령서버 1대 만들기
명령서버 1대 생성을 위한 준비물
ec2 키페어 필요
서울리전
EC2 > Network & Security > Key Pairs > CREATE Key pair
PPK - 내 pc는 windows , putty로 접속 할 예정이라 ppk 사용
agame-dev-2024-09-23
access-key, secret-key 필요
IAM
agame-dev-2024-09-23-user
admin
access-key 생성
3
진행 ?
cloudformation으로 명령서버 1대 만들자.
자동으로 만들어보자.
서울리전 선택
<2> 디폴트 VPC에 테라폼으로 EC2 1대 만들어보자.
1
명령 ec2 로그인
2
아마존 리눅스에 테라폼 설치
amazon linux 테라폼 설치
sudo yum install -y yum-utils
sudo yum-config-manager --add-repo https://rpm.releases.hashicorp.com/AmazonLinux/hashicorp.repo
sudo yum -y install terraform
terraform version
3
aws의 디폴트 vpc로 사용함.
삭제 하지 않았다면 디폴트 VPC는 있습니다.
4
디폴트 vpc 없다면?
AWS 콘솔에서 디폴트 vpc 생성가능함.
AWS CLI 로 디폴트 vpc 생성 가능함.
5
콘솔에서 디폴트 네트워크 생성법 ?
aws 콘솔 로그인
https://console.aws.amazon.com/
VPC > Your VPCs > 오른쪽위 ACTION > CREATE DEFAULT VPC 클릭
6
테라폼으로 EC2 1대 생성해 보자.
cat <<EOT > main.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_instance" "example" {
ami = "ami-0a0064415cdedc552"
instance_type = "t2.micro"
}
EOT
terraform init
#초기화 , 각종 라이블러리를 불러옴.
terraform plan
#계획
terraform apply -auto-approve
<3> 서버명 설정하기
1
서버명 설정
cat <<EOT > main.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_instance" "example" {
ami = "ami-0a0064415cdedc552"
instance_type = "t2.micro"
tags = {
Name = "t101-study"
}
}
EOT
terraform apply -auto-approve
2
삭제 ?
삭제 자동 승인
terraform destroy -auto-approve
<4> 보안그룹
cat <<EOT > main.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_instance" "example" {
ami = "ami-0e9bfdb247cc8de84"
instance_type = "t2.micro"
vpc_security_group_ids = [aws_security_group.instance.id]
user_data = <<-EOF
#!/bin/bash
echo "Hello, T101 Study" > index.html
nohup busybox httpd -f -p 80 &
EOF
tags = {
Name = "aws-tts-seou-web02"
}
}
resource "aws_security_group" "instance" {
name = var.security_group_name
ingress {
from_port = 80
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "security_group_name" {
description = "The name of the security group"
type = string
default = "terraform-aws-tts-seoul-web02-sg"
}
output "public_ip" {
value = aws_instance.example.public_ip
description = "The public IP of the Instance"
}
EOT
terraform apply -auto-approve
2
aws0tts-seou-web02
새로 생성하면 ip가 변경된다.
PIP=<새로 만들어진 EC2 Public IP> = 콘솔에서 확인하자!!
PIP=13.124.123.216
while true; do curl --connect-timeout 1 http://$PIP:80/ ; echo "------------------------------"; date;
sleep 1; done
<5> EC2 접속용 pem키 만들기
1
[root@myeks2-bastion-EC2 seo]#
[root@myeks2-bastion-EC2 seo]# ls
1backup create_key.tf main.tf terraform_key.pem terraform.tfstate terraform.tfstate.backup
[root@myeks2-bastion-EC2 seo]#
[root@myeks2-bastion-EC2 seo]# more *.tf
::::::::::::::
create_key.tf
::::::::::::::
# RSA key of size 4096 bits
resource "tls_private_key" "terraform_make_key" {
algorithm = "RSA"
rsa_bits = 4096
}
resource "aws_key_pair" "terraform_make_keypair" {
key_name = "terraform_key"
public_key=tls_private_key.terraform_make_key.public_key_openssh
}
resource "local_file" "terraform_downloads_key" {
filename = "terraform_key.pem"
content = tls_private_key.terraform_make_key.private_key_pem
}
::::::::::::::
main.tf
::::::::::::::
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_instance" "example" {
ami = "ami-0c031a79ffb01a803"
instance_type = "t3.medium"
key_name = aws_key_pair.terraform_make_keypair.key_name
vpc_security_group_ids = [aws_security_group.instance.id]
user_data = <<-EOF
#!/bin/bash
echo "Hello, T101 Study" > index.html
nohup busybox httpd -f -p 80 &
EOF
tags = {
Name = "aws-tts-seou-web02"
}
}
resource "aws_security_group" "instance" {
name = var.security_group_name
ingress {
from_port = 22
to_port = 22
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "security_group_name" {
description = "The name of the security group"
type = string
default = "terraform-aws-tts-seoul-web02-sg"
}
output "public_ip" {
value = aws_instance.example.public_ip
description = "The public IP of the Instance"
}
[root@myeks2-bastion-EC2 seo]
다운로드
2
ssh -i terraform_key.pem ec2-user@13.125.57.190
3
삭제
terraform destroy -auto-approve
4
콘솔에서 디폴트 VPC 삭제하기
참고 자료
https://brunch.co.kr/@topasvga/3360
<6> 10.대 VPC에 테라폼으로 EC2 1대 만들어보자.
cd
mkdir vpc
cd vpc
vi vpc.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_vpc" "myvpc" {
cidr_block = "10.10.0.0/16"
tags = {
Name = "t101-study-vpc"
}
}
2
# 배포, 확인
terraform init && terraform plan && terraform apply -auto-approve
# 혹, lock 걸린다고 나오면 테라폼 프로세스를 kill 하고 사용하기 바란다.
[root@myeks2-bastion-EC2 vpc]# ps -ef |grep terraform
root 23765 20220 0 09:01 pts/0 00:00:04 terraform console
root 26841 20220 0 09:32 pts/0 00:00:00 grep --color=auto terraform
[root@myeks2-bastion-EC2 vpc]# kill -9 23765
아래는 임시 조치법
terraform apply -auto-approve -lock=false
terraform state list
aws_vpc.myvpc
terraform state show aws_vpc.myvpc
3
테리폼 콘솔 명령어로 보기
terraform console
// aws_vpc.myvpc.id 로 정보를 볼수 있다.
aws_vpc.myvpc.id
"vpc-0ebc8fe6e0d524570"
4
# VPC 확인
export AWS_PAGER=""
aws ec2 describe-vpcs | jq
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' | jq
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml
// default vpc 는 조회 안하도록 필터링해서 조회하자.
5
rm -rf vpc.tf
vpc dns 옵션 수정
vi main.tf
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_vpc" "myvpc" {
cidr_block = "10.10.0.0/16"
enable_dns_support = true
enable_dns_hostnames = true
tags = {
Name = "t101-study-vpc"
}
}
terraform init && terraform plan && terraform apply -auto-approve
// 콘솔 vpc 에서 확인하자.
// 콘솔 vpc > Resource map에서 확인하자. 서브넷이 없다.
6
// VCP + Subnet 만들기
// vpc 1개, 서브넷 1, 서브넷 2
provider "aws" {
region = "ap-northeast-2"oo
}
resource "aws_vpc" "myvpc" {
cidr_block = "10.10.0.0/16"
enable_dns_support = true
enable_dns_hostnames = true
tags = {
Name = "t101-study"
}
}
resource "aws_subnet" "mysubnet1" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.1.0/24"
availability_zone = "ap-northeast-2a"
tags = {
Name = "t101-pub1"
}
}
resource "aws_subnet" "mysubnet2" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.2.0/24"
availability_zone = "ap-northeast-2c"
tags = {
Name = "t101-pub2"
}
}
output "aws_vpc_id" {
value = aws_vpc.myvpc.id
}
// vpc_id 는 aws_vpc.myvpc,id 를 가져와서 사용한다.
// 콘솔 > vpc Resource map에서 확인하자.
7
# 배포
terraform plan && terraform apply -auto-approve
terraform state list
aws_subnet.mysubnet1
aws_subnet.mysubnet2
aws_vpc.myvpc
// vpc 1개, 서브넷 1, 서브넷 2
terraform state show aws_subnet.mysubnet1
terraform output
terraform output aws_vpc_id
terraform output -raw aws_vpc_id
# graph 확인 > graph.dot 파일 선택 후 오른쪽 상단 DOT 클릭
terraform graph > graph.dot
# 서브넷 확인
aws ec2 describe-subnets --output text
# 참고 :
aws ec2 describe-subnets --filters "Name=vpc-id,Values=vpc-<자신의 VPC ID>"
VPCID=$(terraform output -raw aws_vpc_id)
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" | jq
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" --output table
8
igw 추가 ?
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_vpc" "myvpc" {
cidr_block = "10.10.0.0/16"
enable_dns_support = true
enable_dns_hostnames = true
tags = {
Name = "t101-study"
}
}
resource "aws_subnet" "mysubnet1" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.1.0/24"
availability_zone = "ap-northeast-2a"
tags = {
Name = "t101-subnet1"
}
}
resource "aws_subnet" "mysubnet2" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.2.0/24"
availability_zone = "ap-northeast-2c"
tags = {
Name = "t101-subnet2"
}
}
resource "aws_internet_gateway" "myigw" {
vpc_id = aws_vpc.myvpc.id
tags = {
Name = "t101-igw"
}
}
output "aws_vpc_id" {
value = aws_vpc.myvpc.id
}
9
# 배포
terraform plan && terraform apply -auto-approve
terraform state list
aws_internet_gateway.myigw
aws_subnet.mysubnet1
aws_subnet.mysubnet2
aws_vpc.myvpc
10
디폴트 라우팅 추가 ?
provider "aws" {
region = "ap-northeast-2"
}
resource "aws_vpc" "myvpc" {
cidr_block = "10.10.0.0/16"
enable_dns_support = true
enable_dns_hostnames = true
tags = {
Name = "t101-study"
}
}
resource "aws_subnet" "mysubnet1" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.1.0/24"
availability_zone = "ap-northeast-2a"
tags = {
Name = "t101-subnet1"
}
}
resource "aws_subnet" "mysubnet2" {
vpc_id = aws_vpc.myvpc.id
cidr_block = "10.10.2.0/24"
availability_zone = "ap-northeast-2c"
tags = {
Name = "t101-subnet2"
}
}
resource "aws_internet_gateway" "myigw" {
vpc_id = aws_vpc.myvpc.id
tags = {
Name = "t101-igw"
}
}
resource "aws_route_table" "myrt" {
vpc_id = aws_vpc.myvpc.id
tags = {
Name = "t101-rt"
}
}
resource "aws_route_table_association" "myrtassociation1" {
subnet_id = aws_subnet.mysubnet1.id
route_table_id = aws_route_table.myrt.id
}
resource "aws_route_table_association" "myrtassociation2" {
subnet_id = aws_subnet.mysubnet2.id
route_table_id = aws_route_table.myrt.id
}
resource "aws_route" "mydefaultroute" {
route_table_id = aws_route_table.myrt.id
destination_cidr_block = "0.0.0.0/0"
gateway_id = aws_internet_gateway.myigw.id
}
output "aws_vpc_id" {
value = aws_vpc.myvpc.id
}
// 라우팅 테이블을 만들고, 연결 한다.
11
# 배포
terraform plan && terraform apply -auto-approve
terraform state list
aws_internet_gateway.myigw
aws_route.mydefaultroute
aws_route_table.myrt
aws_route_table_association.myrtassociation1
aws_route_table_association.myrtassociation2
aws_subnet.mysubnet1
aws_subnet.mysubnet2
aws_vpc.myvpc
terraform state show aws_route.mydefaultroute
# graph 확인 > graph.dot 파일 선택 후 오른쪽 상단 DOT 클릭
terraform graph > graph.dot
# 라우팅 테이블 확인
#aws ec2 describe-route-tables --filters 'Name=tag:Name,Values=t101-rt' --query 'RouteTables[].Associations[].SubnetId'
aws ec2 describe-route-tables --filters 'Name=tag:Name,Values=t101-rt' --output table
12
보안그룹 = sg.tf
ec2 = ec2.tf
vi sg.tf
resource "aws_security_group" "mysg" {
vpc_id = aws_vpc.myvpc.id
name = "T101 SG"
description = "T101 Study SG"
}
resource "aws_security_group_rule" "mysginbound" {
type = "ingress"
from_port = 80
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = aws_security_group.mysg.id
}
resource "aws_security_group_rule" "mysgoutbound" {
type = "egress"
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
security_group_id = aws_security_group.mysg.id
}
# 배포
ls *.tf
terraform plan && terraform apply -auto-approve
terraform state list
aws_security_group.mysg
aws_security_group_rule.mysginbound
aws_security_group_rule.mysgoutbound
...
terraform state show aws_security_group.mysg
terraform state show aws_security_group_rule.mysginbound
# graph 확인 > graph.dot 파일 선택 후 오른쪽 상단 DOT 클릭
terraform graph > graph.dot
13
ec2 배포
vi ec2.tf
data "aws_ami" "my_amazonlinux2" {
most_recent = true
filter {
name = "owner-alias"
values = ["amazon"]
}
filter {
name = "name"
values = ["amzn2-ami-hvm-*-x86_64-ebs"]
}
owners = ["amazon"]
}
resource "aws_instance" "myec2" {
depends_on = [
aws_internet_gateway.myigw
]
ami = data.aws_ami.my_amazonlinux2.id
associate_public_ip_address = true
instance_type = "t2.micro"
vpc_security_group_ids = ["${aws_security_group.mysg.id}"]
subnet_id = aws_subnet.mysubnet1.id
user_data = <<-EOF
#!/bin/bash
wget https://busybox.net/downloads/binaries/1.31.0-defconfig-multiarch-musl/busybox-x86_64
mv busybox-x86_64 busybox
chmod +x busybox
RZAZ=$(curl http://169.254.169.254/latest/meta-data/placement/availability-zone-id)
IID=$(curl 169.254.169.254/latest/meta-data/instance-id)
LIP=$(curl 169.254.169.254/latest/meta-data/local-ipv4)
echo "<h1>RegionAz($RZAZ) : Instance ID($IID) : Private IP($LIP) : Web Server</h1>" > index.html
nohup ./busybox httpd -f -p 80 &
EOF
user_data_replace_on_change = true
tags = {
Name = "t101-myec2"
}
}
output "myec2_public_ip" {
value = aws_instance.myec2.public_ip
description = "The public IP of the Instance"
}
t101-myec2가 생성된다.
# 다음은 설명
// ami = data.aws_ami.my_amazonlinux2.id
ami를 가져 온다.
// subnet_id = aws_subnet.mysubnet1.id
서브넷 id를 확인한다.
#
ls *.tf
terraform plan && terraform apply -auto-approve
terraform state list
data.aws_ami.my_amazonlinux2
aws_instance.myec2
...
terraform state show data.aws_ami.my_amazonlinux2
terraform state show aws_instance.myec2
# 데이터소스 값 확인
terraform console
>
data.aws_ami.my_amazonlinux2.id
"ami-01c81850a6167bb81"
// ami 정보가 나온다.
data.aws_ami.my_amazonlinux2.image_id
data.aws_ami.my_amazonlinux2.name
data.aws_ami.my_amazonlinux2.owners
data.aws_ami.my_amazonlinux2.platform_details
data.aws_ami.my_amazonlinux2.hypervisor
data.aws_ami.my_amazonlinux2.architecture
exit
# graph 확인 > graph.dot 파일 선택 후 오른쪽 상단 DOT 클릭
terraform graph > graph.dot
# 출력된 EC2 퍼블릭IP로 cul 접속 확인
terraform output -raw myec2_public_ip
52.79.154.3
MYIP=$(terraform output -raw myec2_public_ip)
while true; do curl --connect-timeout 1 http://$MYIP/ ; echo "------------------------------"; date; sleep 1; done
Mon Jul 10 17:03:00 KST 2023
<h1>RegionAz(apne2-az1) : Instance ID(i-064948a0afaa3a969) : Private IP(10.10.1.109) : Web Server</h1>
------------------------------
Mon Jul 10 17:03:01 KST 2023
<h1>RegionAz(apne2-az1) : Instance ID(i-064948a0afaa3a969) : Private IP(10.10.1.109) : Web Server</h1>
------------------------------
Mon Jul 10 17:03:02 KST 2023
14
삭제
terraform destroy -auto-approve
참고자료
https://brunch.co.kr/@topasvga/3360
다음
https://brunch.co.kr/@topasvga/4049
감사합니다.
