NCP 23탄-7. 테라폼-DB서버 생성-2024
<1> 네트워크 생성 , 웹서버 생성

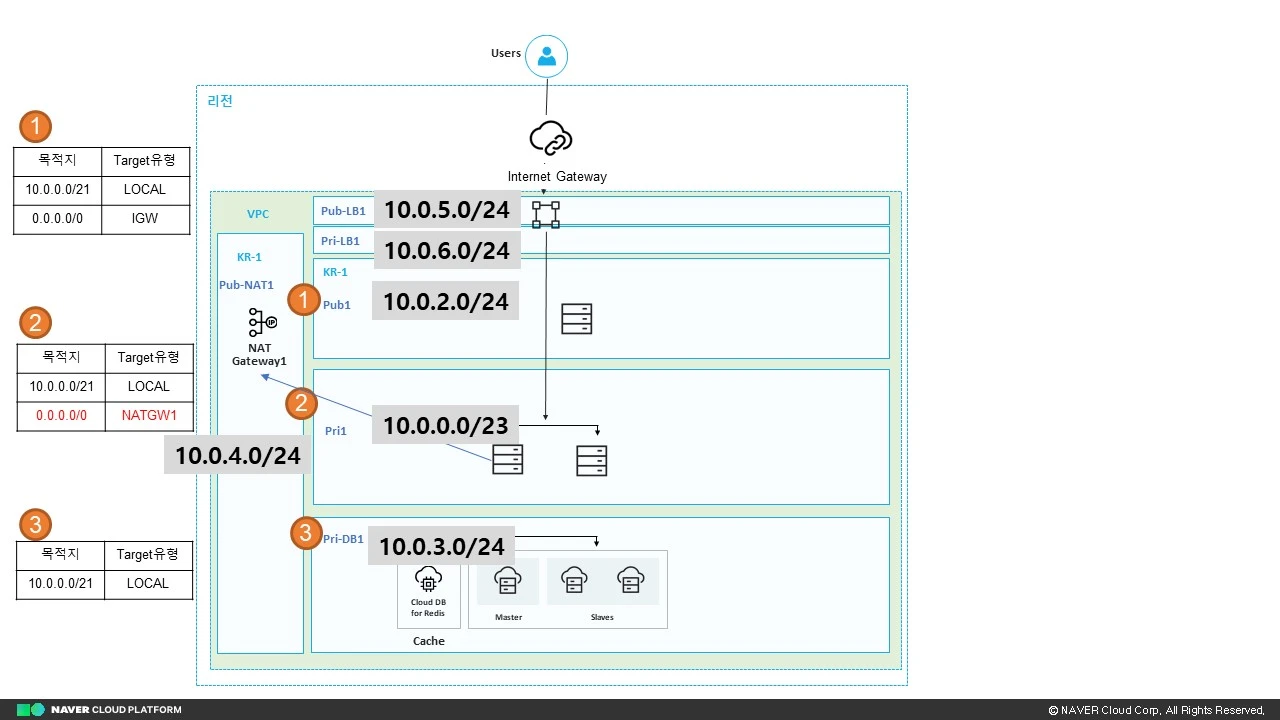

<2> DB 서버 생성
<1> 네트워크 생성 , 웹서버 생성
1
만들기?

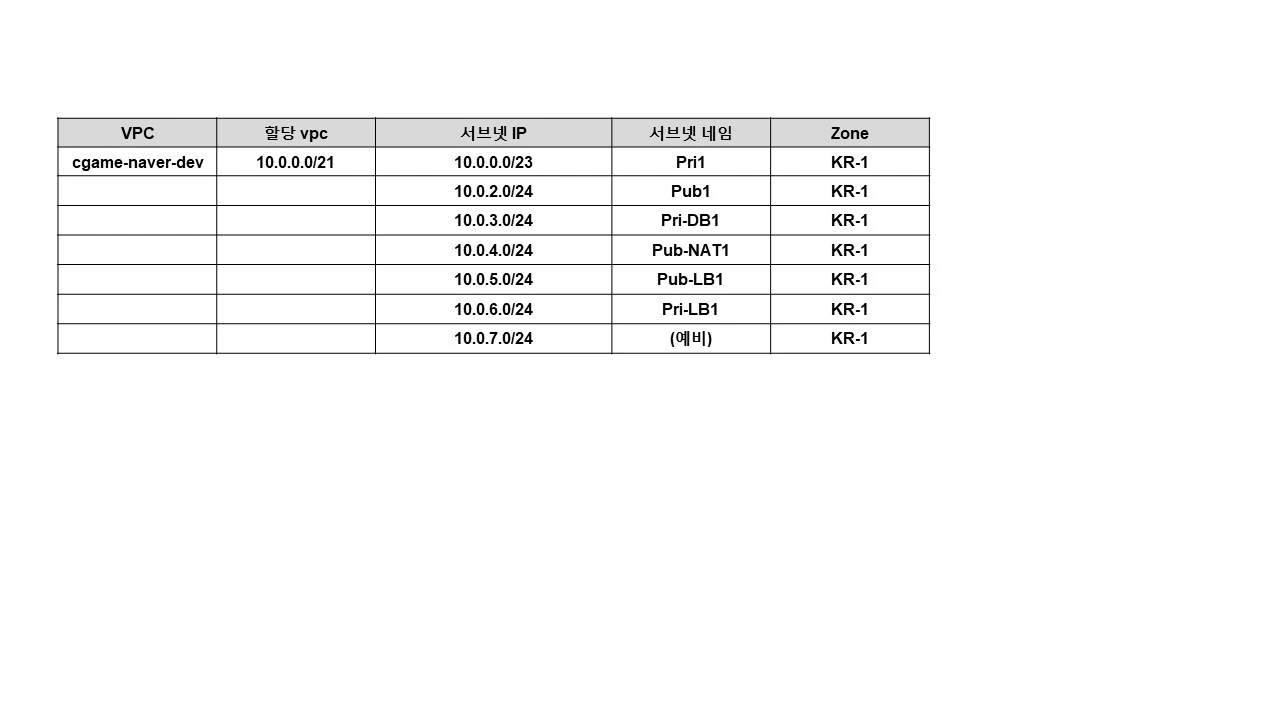

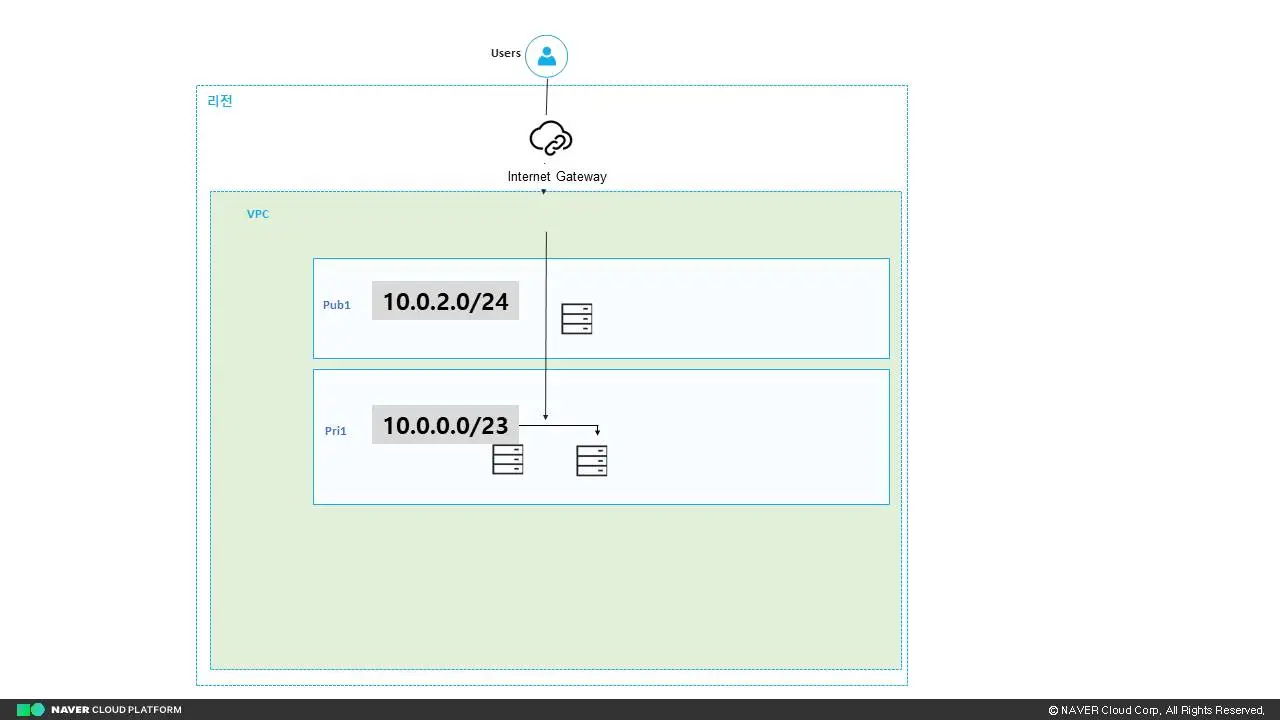

VPC
Public
Private
ipv4_cidr_block = "10.0.0.0/21"
2
[root@ngame-web01-dev 2]# more *.tf
::::::::::::::
main.tf
::::::::::::::
# VPC > User scenario > Scenario 1. Single Public Subnet
# https://docs.ncloud.com/ko/networking/vpc/vpc_userscenario1.html
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_login_key" "key_scn_01" {
key_name = var.name_vpc1
}
resource "ncloud_vpc" "vpc_vpc1" {
name = var.name_vpc1
ipv4_cidr_block = "10.0.0.0/21"
}
resource "ncloud_subnet" "subnet_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc1.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc1.ipv4_cidr_block, 2, 0)
// 10.0.1.0/24
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc1.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub1" {
name = var.name_pub1
vpc_no = ncloud_vpc.vpc_vpc1.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc1.ipv4_cidr_block, 3, 2)
// 10.0.1.0/24
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc1.default_network_acl_no
subnet_type = "PUBLIC"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_server" "server_web1" {
subnet_no = ncloud_subnet.subnet_pub1.id
name = var.name_web1
server_image_product_code = "SW.VSVR.OS.LNX64.CNTOS.0703.B050"
login_key_name = ncloud_login_key.key_scn_01.key_name
}
resource "ncloud_public_ip" "public_ip_web1" {
server_instance_no = ncloud_server.server_web1.id
description = "for ${var.name_web1}"
}
locals {
scn01_inbound = [
[1, "TCP", "0.0.0.0/0", "80", "ALLOW"],
[2, "TCP", "0.0.0.0/0", "443", "ALLOW"],
[3, "TCP", "${var.client_ip}/32", "22", "ALLOW"],
[4, "TCP", "${var.client_ip}/32", "3389", "ALLOW"],
[5, "TCP", "0.0.0.0/0", "32768-65535", "ALLOW"],
[197, "TCP", "0.0.0.0/0", "1-65535", "DROP"],
[198, "UDP", "0.0.0.0/0", "1-65535", "DROP"],
[199, "ICMP", "0.0.0.0/0", null, "DROP"],
]
scn01_outbound = [
[1, "TCP", "0.0.0.0/0", "80", "ALLOW"],
[2, "TCP", "0.0.0.0/0", "443", "ALLOW"],
[3, "TCP", "${var.client_ip}/32", "1000-65535", "ALLOW"],
[197, "TCP", "0.0.0.0/0", "1-65535", "DROP"],
[198, "UDP", "0.0.0.0/0", "1-65535", "DROP"],
[199, "ICMP", "0.0.0.0/0", null, "DROP"]
]
}
resource "ncloud_network_acl_rule" "network_acl_01_rule" {
network_acl_no = ncloud_vpc.vpc_vpc1.default_network_acl_no
dynamic "inbound" {
for_each = local.scn01_inbound
content {
priority = inbound.value[0]
protocol = inbound.value[1]
ip_block = inbound.value[2]
port_range = inbound.value[3]
rule_action = inbound.value[4]
description = "for ${var.name_vpc1}"
}
}
dynamic "outbound" {
for_each = local.scn01_outbound
content {
priority = outbound.value[0]
protocol = outbound.value[1]
ip_block = outbound.value[2]
port_range = outbound.value[3]
rule_action = outbound.value[4]
description = "for ${var.name_vpc1}"
}
}
}
::::::::::::::
variables.tf
::::::::::::::
# variable name_scn01 {
# default = "ngame-vpc2"
# }
variable name_vpc1 {
default = "ngame-vpc2"
}
variable name_pri1 {
default = "ngame-pri1"
}
variable name_pub1 {
default = "ngame-pub1"
}
variable name_web1 {
default = "ngame-web01"
}
variable name_pubip1 {
default = "ngame-pubip11"
}
variable client_ip {
default = "2.2.2.2"
}
variable access_key {
default = "ncp_iam_BPKT6sp5"
}
variable secret_key {
default = "ncp_iam_BPY9DLNrW50nQ"
}
::::::::::::::
versions.tf
::::::::::::::
terraform {
required_providers {
ncloud = {
source = "navercloudplatform/ncloud"
}
}
required_version = ">= 0.13"
}
[root@ngame-web01-dev 2]#
2
변수 처리하는데 서브넷 계산법을 알아야 한다.
cidrsubnet(prefix, newbits, netnum) 계산법?
cidrsubnet(prefix, newbits, netnum)
prefix ending in /16 and a newbits value of 4, the resulting subnet address will have length /20.
1)
ipv4_cidr_block = "10.0.0.0/16"
subnet = cidrsubnet(ncloud_vpc.vpc_scn_01.ipv4_cidr_block, 8, 1)
/16에 8을 더해 24비트로 결과가 나온다.
1로 시작한다.
10.0.1.0/24
16+8 = 24
1로 시작
2)
/21
21 3 2
21+3 = 24
2로 시작
10.0.2.0 /24 로 만들어짐
3
terraform init
terraform plan
terraform apply -auto-approve
4

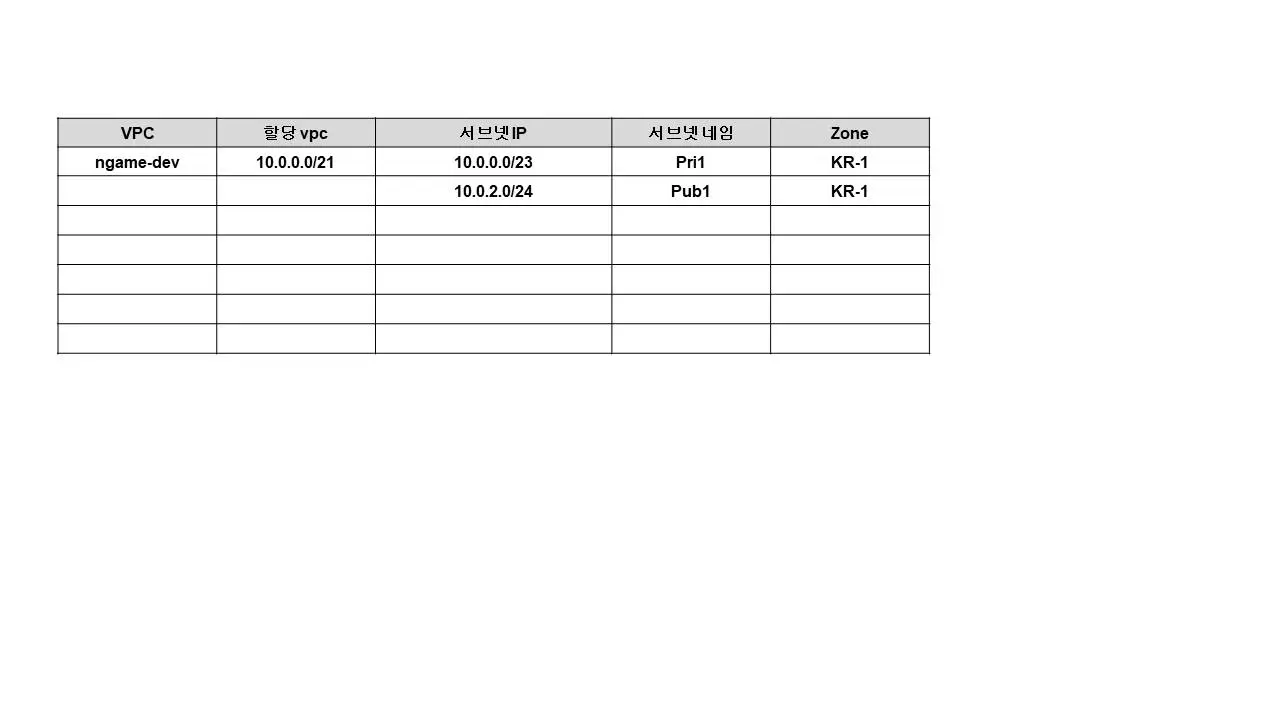

생성 결과
ngame-vpc2
10.0.0.0/21
ngame-pri1
10.0.0.0/23
ngame-pub1
10.0.2.0/24
서버1대
ngame-web01
5
삭제
terraform destroy -auto-approve
<2> DB 서버 생성
1
