NCP 23탄-8. 테라폼-로드밸런서 생성-2024
<1> 네트워크 구성과 네트워크 생성
<2> 삭제 - NAT라우팅 테이블 삭제, NATGW 삭제
<1> 네트워크 구성과 네트워크 생성
1

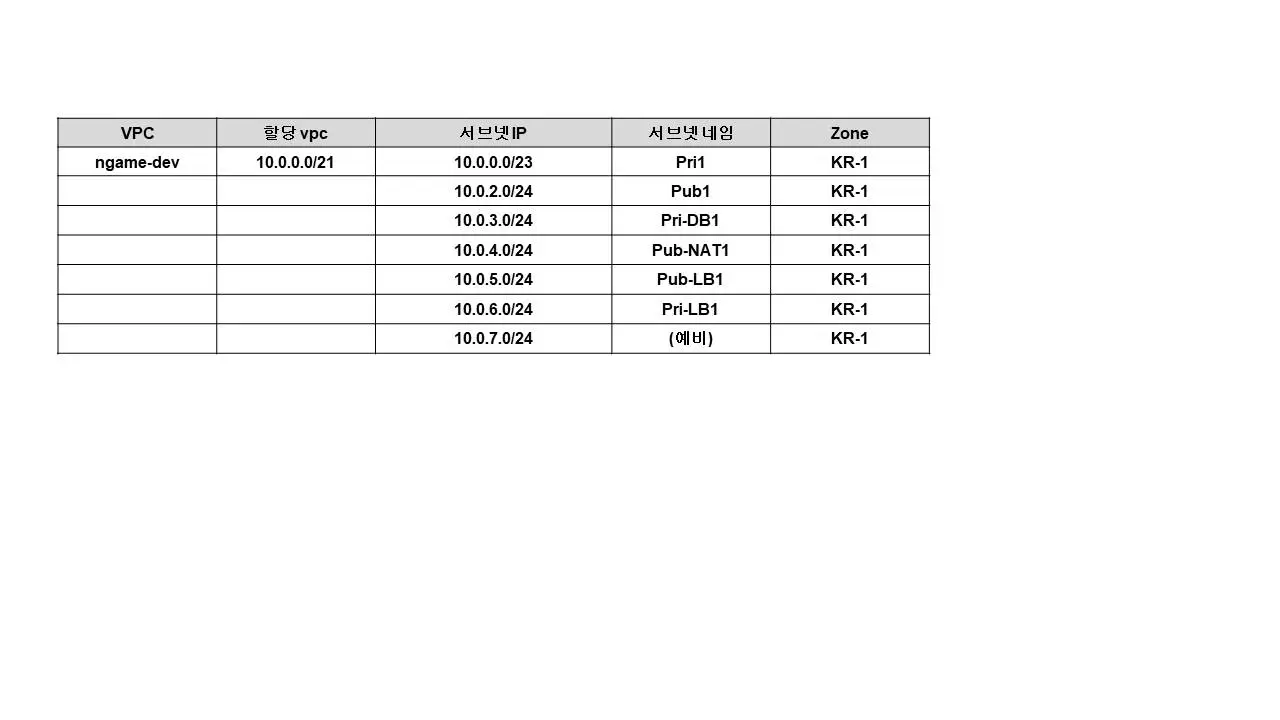

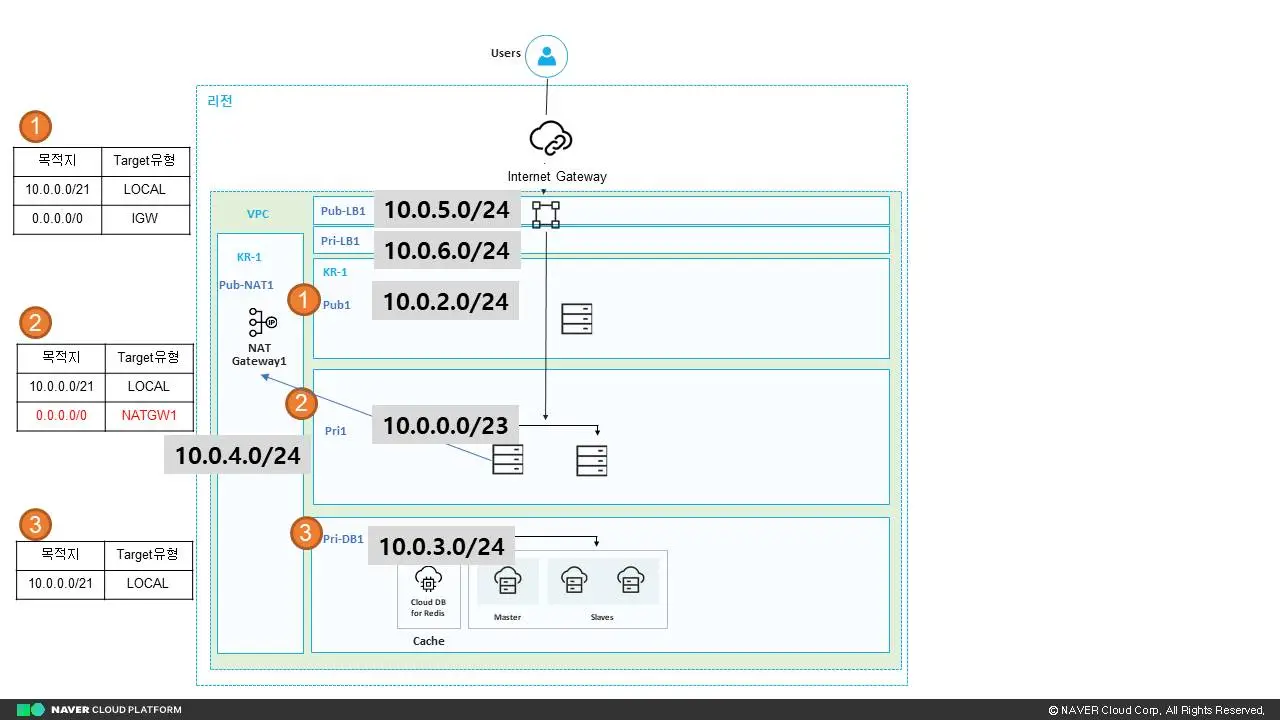

구성
2
네트워크 생성
DB서버 라우팅 테이블 분리
[root@ngame-web01-dev 5]# ls
main.tf nat.tf terraform.tfstate terraform.tfstate.backup variables.tf versions.tf
[root@ngame-web01-dev 5]# more *.tf
::::::::::::::
main.tf
::::::::::::::
provider "ncloud" {
support_vpc = true
region = "KR"
access_key = var.access_key
secret_key = var.secret_key
}
resource "ncloud_login_key" "key_vpc" {
key_name = var.name_vpc
}
resource "ncloud_vpc" "vpc_vpc" {
name = var.name_vpc
ipv4_cidr_block = "10.0.0.0/21"
}
resource "ncloud_subnet" "subnet_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,2 ,0 )
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub1" {
name = var.name_pub1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 2)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-db1" {
name = var.name_pri-db1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 3)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-nat1" {
name = var.name_pub-nat1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 4)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "NATGW"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pub-lb1" {
name = var.name_pub-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 5)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PUBLIC"
usage_type = "LOADB"
// PUBLIC(Public) | PRIVATE(Private)
}
resource "ncloud_subnet" "subnet_pri-lb1" {
name = var.name_pri-lb1
vpc_no = ncloud_vpc.vpc_vpc.id
subnet = cidrsubnet(ncloud_vpc.vpc_vpc.ipv4_cidr_block,3 , 6)
zone = "KR-1"
network_acl_no = ncloud_vpc.vpc_vpc.default_network_acl_no
subnet_type = "PRIVATE"
// PUBLIC(Public) | PRIVATE(Private)
usage_type = "LOADB"
}
::::::::::::::
nat.tf
::::::::::::::
resource "ncloud_route_table" "route_table_pri1" {
name = var.name_pri1
vpc_no = ncloud_vpc.vpc_vpc.id
supported_subnet_type = "PRIVATE"
}
resource "ncloud_route_table_association" "subnet_pri-db1" {
route_table_no = ncloud_route_table.route_table_pri1.id
subnet_no = ncloud_subnet.subnet_pri-db1.id
}
# NAT Gateway
resource "ncloud_nat_gateway" "nat_gateway_scn_02" {
vpc_no = ncloud_vpc.vpc_vpc.id
subnet_no = ncloud_subnet.subnet_pub-nat1.id
zone = "KR-1"
name = var.name_pub-nat1
}
# Route Table
resource "ncloud_route" "route_scn_02_nat" {
route_table_no = ncloud_vpc.vpc_vpc.default_private_route_table_no
#route_table_no = ncloud_route_table.route_table_pri1.id
destination_cidr_block = "0.0.0.0/0"
target_type = "NATGW"
target_name = ncloud_nat_gateway.nat_gateway_scn_02.name
target_no = ncloud_nat_gateway.nat_gateway_scn_02.id
}
::::::::::::::
variables.tf
::::::::::::::
variable name_vpc {
default = "agame-dev-vpc5"
}
variable name_pri1 {
default = "agame-dev-pri1"
}
variable name_pub1 {
default = "agame-dev-pub1"
}
variable name_pri-db1 {
default = "agame-dev-pri-db1"
}
variable name_pub-nat1 {
default = "agame-dev-pub-nat1"
}
variable name_pub-lb1 {
default = "agame-dev-pub-lb1"
}
variable name_pri-lb1 {
default = "agame-dev-pri-lb1"
}
variable client_ip {
default = "3.3.3.3"
}
variable access_key {
default = "ncp_iam_BPAMYYqKT6sp5"
}
variable secret_key {
default = "ncp_iam_BPKM9DLNrW50nQ"
}
variable nks_version {
default = "1.28"
}
variable name_scn_02 {
default = "tf-scn02"
}
::::::::::::::
versions.tf
::::::::::::::
terraform {
required_providers {
ncloud = {
source = "navercloudplatform/ncloud"
}
}
required_version = ">= 0.13"
}
# DB , 라우팅테이블 분리 참고 사이트
3
terraform init
terraform plan
terraform apply -auto-approve
4
# VPC 중복 , 로그인 키 중복 오류 나올경우
vi variables.tf
variable name_vpc {
default = "agame-dev-vpc5" // 수정하자.
}
terraform apply -auto-approve
5
삭제
terraform destroy -auto-approve
<2> 삭제 - NAT라우팅 테이블 삭제, NATGW 삭제
1

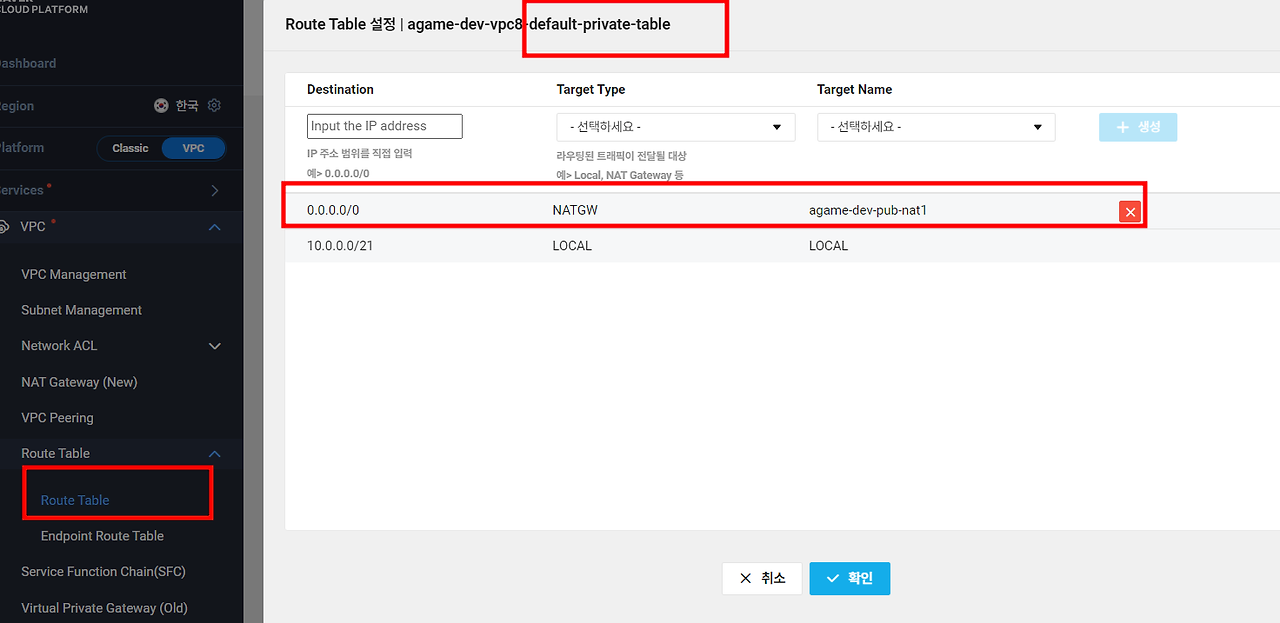

NAT라우팅 테이블 삭제
0.0.0.0/0 NAT 삭제
2
NATGW 삭제
3
로드 밸런서 삭제
4

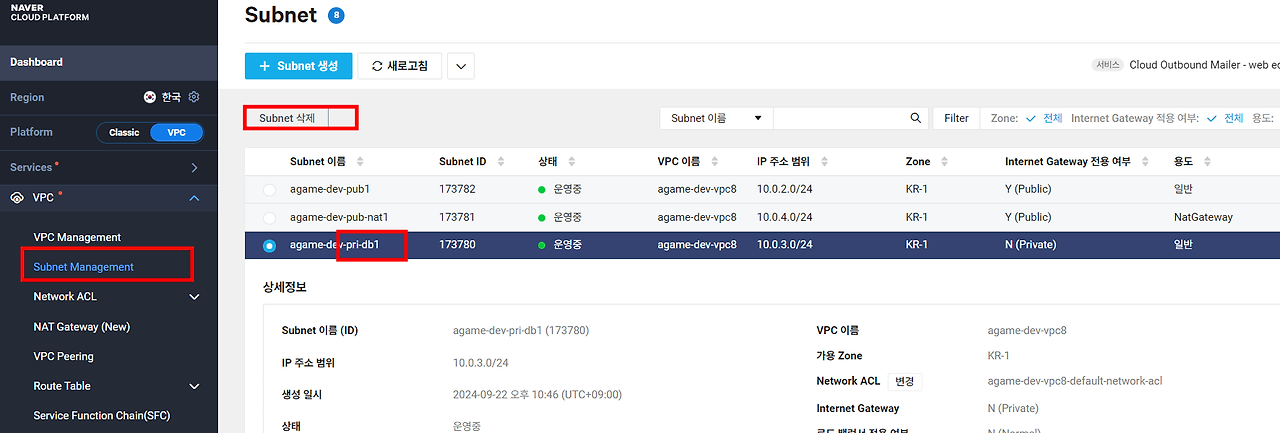

새로 생성한 DB 서브넷 삭제
pri1-DB
5
서브넷 삭제
6
VPC 삭제
다음
