by Master Seo Nov 09. 2023

39탄-3. EKS 기초-네트워크 - 로드 밸런서

다음은 EKS 생성된 상태에서 진행합니다.


AWS 네트워크 워크셥을 참고해서 작성합니다.

https://www.eksworkshop.com/docs/fundamentals/exposing/loadbalancer/



<1> 명령서버 Cloud9  ,실습 서버 EKS를 만들기

<2> cloud9에서 미리 환경 설정

<3> 로드밸런서  생성

<4> IP모드로 변경해보자

<5> pod를 3개로 늘려보자.

<6> 인그레스 만들어보자.

<7> 커스템 네트워킹

<8> 삭제



<1> 명령서버 Cloud9  ,실습 서버 EKS를 만들기


1

Cloud9 만들자.


2

EKS 만들자.


아래 메뉴얼 참고

https://brunch.co.kr/@topasvga/3518





<2> cloud9에서 미리 환경 설정


1

prepare-environment exposing/load-balancer


2

설정된 환경 확인

kubectl get svc -l app.kubernetes.io/created-by=eks-workshop -A



kubectl -n ui describe service ui






kubectl -n ui describe service ui




<3> 로드밸런서  생성


~/environment/eks-workshop/modules/exposing/load-balancer/nlb/nlb.yaml


apiVersion: v1

kind: Service

metadata:

  name: ui-nlb

  annotations:

    service.beta.kubernetes.io/aws-load-balancer-type: external

    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing

    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: instance

  namespace: ui

spec:

  type: LoadBalancer

  ports:

    - port: 80

      targetPort: 8080

      name: http

  selector:

    app.kubernetes.io/name: ui

    app.kubernetes.io/instance: ui

    app.kubernetes.io/component: service



kubectl apply -k ~/environment/eks-workshop/modules/exposing/load-balancer/nlb



3

ec2-user:~/environment $ kubectl get service -n ui

NAME     TYPE           CLUSTER-IP       EXTERNAL-IP                   PORT(S)        AGE

ui       ClusterIP      172.20.171.116   <none>                               80/TCP         7m31s

ui-nlb   LoadBalancer   172.20.169.45    k8s-ui-uinlb-2f82a3af0a-665145a02b51657e.elb.ap-northeast-2.amazonaws.com   80:31942/TCP   25s



aws elbv2 describe-load-balancers --query 'LoadBalancers[?contains(LoadBalancerName, `k8s-ui-uinlb`) == `true`]'


ALB_ARN=$(aws elbv2 describe-load-balancers --query 'LoadBalancers[?contains(LoadBalancerName, `k8s-ui-uinlb`) == `true`].LoadBalancerArn' | jq -r '.[0]')


TARGET_GROUP_ARN=$(aws elbv2 describe-target-groups --load-balancer-arn $ALB_ARN | jq -r '.TargetGroups[0].TargetGroupArn')



aws elbv2 describe-target-health --target-group-arn $TARGET_GROUP_ARN



kubectl get service -n ui ui-nlb -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}"




wait-for-lb $(kubectl get service -n ui ui-nlb -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}")

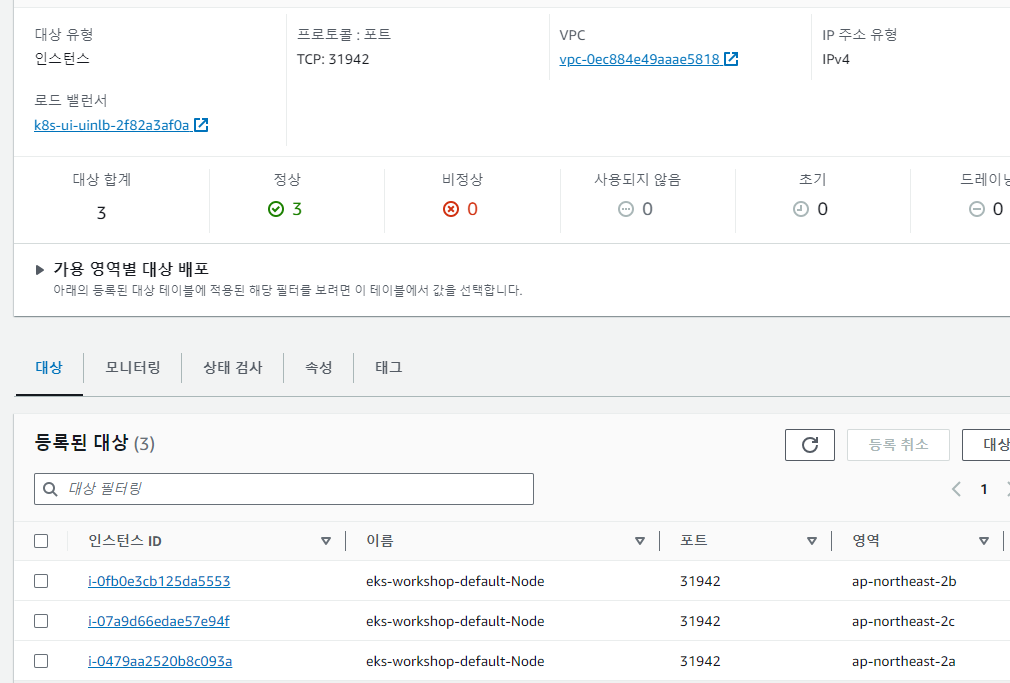

콘솔에서 로드밸런서 확인하자!!!

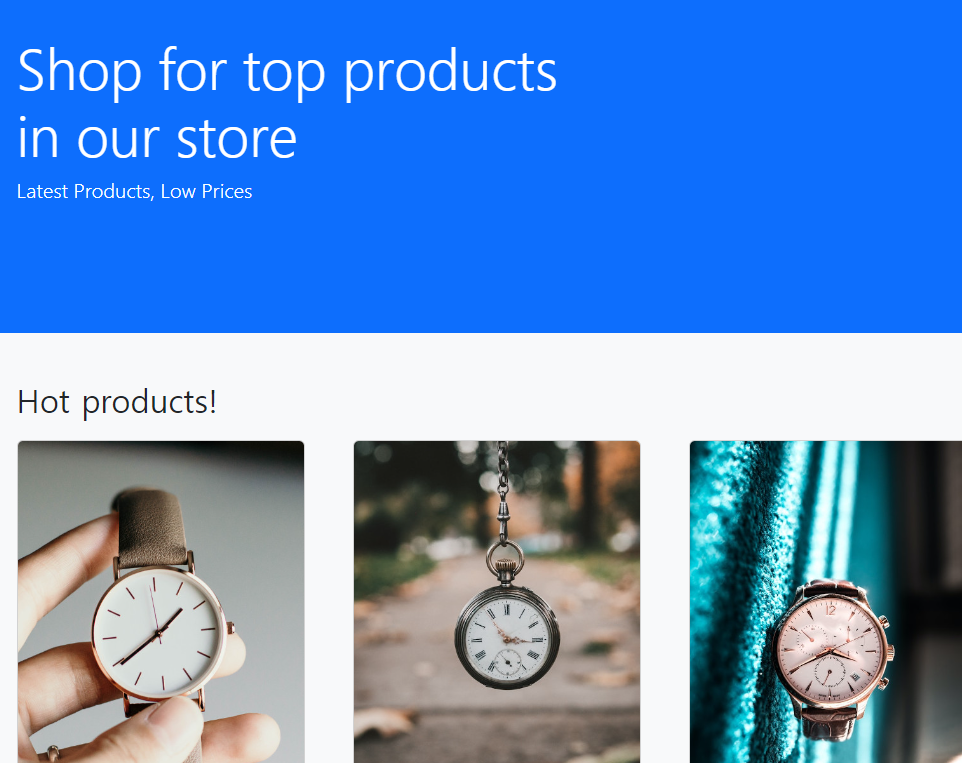

로드밸런서를 웹브라우저로 접속 해보자~







<4> IP모드로 변경해보자


~/environment/eks-workshop/modules/exposing/load-balancer/ip-mode/nlb.yaml


apiVersion: v1

kind: Service

metadata:

  name: ui-nlb

  annotations:

    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip

  namespace: ui





kubectl apply -k ~/environment/eks-workshop/modules/exposing/load-balancer/ip-mode

service/ui-nlb configured

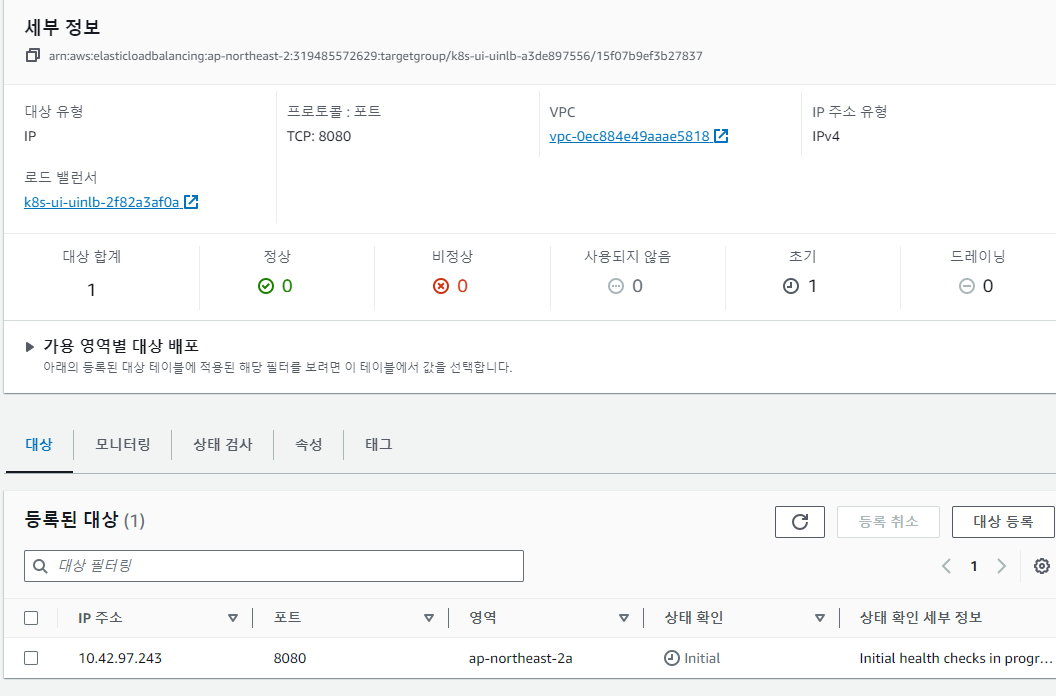

콘솔에서 보자.





kubectl describe service/ui-nlb -n ui



ALB_ARN=$(aws elbv2 describe-load-balancers --query 'LoadBalancers[?contains(LoadBalancerName, `k8s-ui-uinlb`) == `true`].LoadBalancerArn' | jq -r '.[0]')



TARGET_GROUP_ARN=$(aws elbv2 describe-target-groups --load-balancer-arn $ALB_ARN | jq -r '.TargetGroups[0].TargetGroupArn')



aws elbv2 describe-target-health --target-group-arn $TARGET_GROUP_ARN

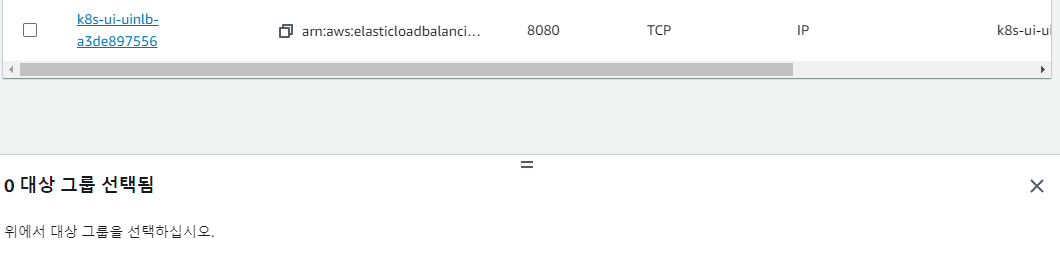

콘솔에서 보자.





<5> pod를 3개로 늘려보자.



kubectl scale -n ui deployment/ui --replicas=3



kubectl wait --for=condition=Ready pod -n ui -l app.kubernetes.io/name=ui --timeout=60s



ALB_ARN=$(aws elbv2 describe-load-balancers --query 'LoadBalancers[?contains(LoadBalancerName, `k8s-ui-uinlb`) == `true`].LoadBalancerArn' | jq -r '.[0]')


TARGET_GROUP_ARN=$(aws elbv2 describe-target-groups --load-balancer-arn $ALB_ARN | jq -r '.TargetGroups[0].TargetGroupArn')



aws elbv2 describe-target-health --target-group-arn $TARGET_GROUP_ARN




wait-for-lb $(kubectl get service -n ui ui-nlb -o jsonpath="{.status.loadBalancer.ingress[*].hostname}{'\n'}")





<6> 인그레스 만들어보자.



1

prepare-environment exposing/ingress



2

ec2-user:~/environment $ kubectl get ingress -n ui

No resources found in ui namespace.



ec2-user:~/environment $ kubectl get svc -n ui

NAME   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE

ui     ClusterIP   172.20.171.116   <none>        80/TCP    27m



ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/exposing/ingress/creating-ingress

ingress.networking.k8s.io/ui created



ec2-user:~/environment $ kubectl get ingress ui -n ui

NAME   CLASS   HOSTS   ADDRESS                                                            PORTS   AGE

ui     alb     *       k8s-ui-ui-5ddc3ba496-1337242164.ap-northeast-2.elb.amazonaws.com   80      9s

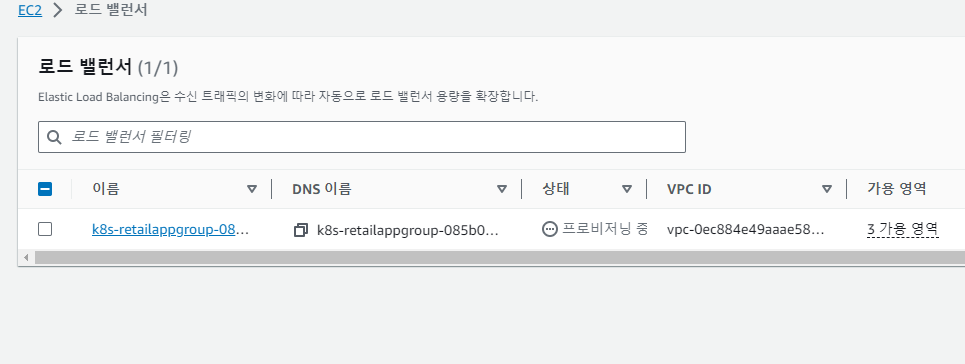

시간이 좀 걸린다.






<7> 커스템 네트워킹


네트워킹탭


https://www.eksworkshop.com/docs/networking/custom-networking/


prepare-environment networking/custom-networking


환경을 enable  해줘야함!!!

kubectl set env daemonset aws-node -n kube-system AWS_VPC_K8S_CNI_CUSTOM_NETWORK_CFG=true



상세


1

ec2-user:~/environment $

prepare-environment networking/custom-networking

Refreshing copy of workshop repository from GitHub...


Resetting the environment, please wait

Waiting for application to become ready...

Cleaning up previous lab infrastructure...

Creating infrastructure for next lab...

bash: line 130: EKS_DEFAULT_MNG_MIN: unbound variable



ec2-user:~/environment $ aws ec2 describe-vpcs --vpc-ids $VPC_ID

{

    "Vpcs": [

        {

            "CidrBlock": "10.42.0.0/16",

            "DhcpOptionsId": "dopt-0e1344cc95c5b04fa",

            "State": "available",

            "VpcId": "vpc-0ec884e49aaae5818",

            "OwnerId": "319485572629",

            "InstanceTenancy": "default",

            "CidrBlockAssociationSet": [

                {

                    "AssociationId": "vpc-cidr-assoc-017bd2856e6a729a7",

                    "CidrBlock": "10.42.0.0/16",

                    "CidrBlockState": {

                        "State": "associated"

                    }

                },

                {

                    "AssociationId": "vpc-cidr-assoc-0144325ff4751e64e",

                    "CidrBlock": "100.64.0.0/16",

                    "CidrBlockState": {

                        "State": "associated"

                    }

                }

            ],

            "IsDefault": false,

            "Tags": [

                {

                    "Key": "alpha.eksctl.io/eksctl-version",

                    "Value": "0.144.0"

                },

                {

                    "Key": "aws:cloudformation:logical-id",

                    "Value": "VPC"

                },

                {

                    "Key": "alpha.eksctl.io/cluster-name",

                    "Value": "eks-workshop"

                },

                {

                    "Key": "alpha.eksctl.io/cluster-oidc-enabled",

                    "Value": "true"

                },

                {

                    "Key": "created-by",

                    "Value": "eks-workshop-v2"

                },

                {

                    "Key": "eksctl.cluster.k8s.io/v1alpha1/cluster-name",

                    "Value": "eks-workshop"

                },

                {

                    "Key": "Name",

                    "Value": "eksctl-eks-workshop-cluster/VPC"

                },

                {

                    "Key": "karpenter.sh/discovery",

                    "Value": "eks-workshop"

                },

                {

                    "Key": "env",

                    "Value": "eks-workshop"

                },

                {

                    "Key": "aws:cloudformation:stack-name",

                    "Value": "eksctl-eks-workshop-cluster"

                },

                {

                    "Key": "aws:cloudformation:stack-id",

                    "Value": "arn:aws:cloudformation:ap-northeast-2:319485572629:stack/eksctl-eks-workshop-cluster/72939b30-7ec4-11ee-a993-06c248c7ee94"

                }

            ]

        }

    ]

}



ec2-user:~/environment $ aws ec2 describe-subnets --filters "Name=tag:created-by,Values=eks-workshop-v2"  --query "Subnets[*].CidrBlock"

[

    "10.42.0.0/19",

    "100.64.64.0/19",

    "10.42.128.0/19",

    "10.42.32.0/19",

    "10.42.64.0/19",

    "10.42.160.0/19",

    "100.64.0.0/19",

    "10.42.96.0/19",

    "100.64.32.0/19"

]



ec2-user:~/environment $ aws ec2 describe-vpcs --vpc-ids $VPC_ID | jq '.Vpcs[0].CidrBlockAssociationSet'

[

  {

    "AssociationId": "vpc-cidr-assoc-017bd2856e6a729a7",

    "CidrBlock": "10.42.0.0/16",

    "CidrBlockState": {

      "State": "associated"

    }

  },

  {

    "AssociationId": "vpc-cidr-assoc-0144325ff4751e64e",

    "CidrBlock": "100.64.0.0/16",

    "CidrBlockState": {

      "State": "associated"

    }

  }

]



ec2-user:~/environment $ kubectl set env daemonset aws-node -n kube-system AWS_VPC_K8S_CNI_CUSTOM_NETWORK_CFG=true

daemonset.apps/aws-node env updated

ec2-user:~/environment $ kubectl apply -k ~/environment/eks-workshop/modules/networking/custom-networking/provision

configmap/eni-env-hk5dh89ktf created

eniconfig.crd.k8s.amazonaws.com/ap-northeast-2a created

eniconfig.crd.k8s.amazonaws.com/ap-northeast-2b created

eniconfig.crd.k8s.amazonaws.com/ap-northeast-2c created



ec2-user:~/environment $ kubectl get ENIConfigs

NAME              AGE

ap-northeast-2a   7s

ap-northeast-2b   7s

ap-northeast-2c   7s



ec2-user:~/environment $ kubectl set env daemonset aws-node -n kube-system ENI_CONFIG_LABEL_DEF=topology.kubernetes.io/zone

daemonset.apps/aws-node env updated


ec2-user:~/environment $ kubectl set env daemonset aws-node -n kube-system ENI




2

기존 서브넷에 추가 ENI 를 새로 생성


aws eks create-nodegroup --region $AWS_REGION \

  --cluster-name $EKS_CLUSTER_NAME \

  --nodegroup-name custom-networking \

  --instance-types t3.medium --node-role $CUSTOM_NETWORKING_NODE_ROLE \

  --subnets $PRIMARY_SUBNET_1 $PRIMARY_SUBNET_2 $PRIMARY_SUBNET_3 \

  --labels type=customnetworking \

  --scaling-config minSize=1,maxSize=1,desiredSize=1




ec2-user:~/environment $ kubectl get nodes -L eks.amazonaws.com/nodegroup

NAME                                               STATUS   ROLES    AGE   VERSION                NODEGROUP

ip-10-42-110-74.ap-northeast-2.compute.internal    Ready    <none>   47s   v1.25.15-eks-4f4795d   custom-networking

ip-10-42-134-167.ap-northeast-2.compute.internal   Ready    <none>   94m   v1.25.6-eks-48e63af    default

ip-10-42-160-180.ap-northeast-2.compute.internal   Ready    <none>   94m   v1.25.6-eks-48e63af    default

ip-10-42-99-228.ap-northeast-2.compute.internal    Ready    <none>   94m   v1.25.6-eks-48e63af    default

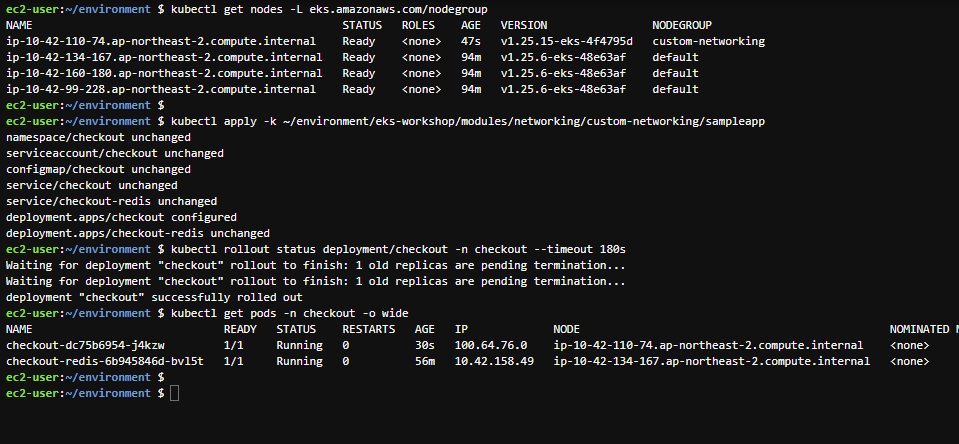

ip부족 해결




<8> 삭제


export EKS_CLUSTER_NAME=eks-workshop


delete-environment


(10분 이상 걸림)





eksctl delete cluster $EKS_CLUSTER_NAME --wait


(20분 걸림)



aws cloudformation delete-stack --stack-name eks-workshop-ide




다음은 오토 스케일러


https://brunch.co.kr/@topasvga/3521






감사합니다.
