EKS 11탄-4. EKS 기초-오토스케일링 - 4/5

<1> EKS 설치  (실습)

<2> 유틸리티 설치 (실습)

<3> 파드와 노드증가를 시각화 하여 확인하는 Kubeops view 설치 (실습)

<4> HPA (실습)

<5> 카펜터 (실습)

<1> EKS 설치

1

# 실습 자료 , EKS Autoscaling 입니다.

https://catalog.us-east-1.prod.workshops.aws/eks-autoscaling/ko-KR

EKS Autoscaling Workshop

2

1)

별도 EKS 설치법으로 설치하자.

https://brunch.co.kr/@topasvga/3518

EKS 11탄-1. EKS 워크셥- 보안 - 1/5

2)

# 실습 안내  - Cloud9 기반 EKS 설치법입니다.

현재 Cloud9 은 더 사용하지 않으므로, 별도 EKS 설치법으로 설치하자.

Cloud9 기반 EKS 설치법입니다.

https://innoshome.notion.site/innoshome/Amazon-EKS-a328fadd565a42d8a8178628e826da36

Amazon EKS 실습 안내

<2> 유틸리티 설치

##################################

## kubectl 등의 툴을 설치한다.

##################################

# 1. kubectl 설치 - 1.27

sudo curl --silent --location -o /usr/local/bin/kubectl \

  https://s3.us-west-2.amazonaws.com/amazon-eks/1.27.1/2023-04-19/bin/linux/amd64/kubectl

sudo chmod +x /usr/local/bin/kubectl

# 2. awscli v2 설치

curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"

unzip awscliv2.zip

sudo ./aws/install

# 3. jq, envsubst, bash-completion

sudo yum -y install jq gettext bash-completion moreutils

# 4. yq 설치 및 확인

echo 'yq() {

  docker run --rm -i -v "${PWD}":/workdir mikefarah/yq "$@"

}' | tee -a ~/.bashrc && source ~/.bashrc

for command in kubectl jq envsubst aws

  do

    which $command &>/dev/null && echo "$command in path" || echo "$command NOT FOUND"

  done

# 5. kubectl bash_completion

kubectl completion bash >>  ~/.bash_completion

. /etc/profile.d/bash_completion.sh

. ~/.bash_completion

# 6. shorthand alias

echo 'alias k=kubectl' >>  ~/.bash_profile

echo 'complete -o default -F __start_kubectl k' >>  ~/.bash_profile

# 7. AWS Load Balancer Controller version

echo 'export LBC_VERSION="v2.4.1"' >>  ~/.bash_profile

echo 'export LBC_CHART_VERSION="1.4.1"' >>  ~/.bash_profile

.  ~/.bash_profile

# 8. cloud9 temporary credential 삭제

aws cloud9 update-environment  --environment-id $C9_PID --managed-credentials-action DISABLE

rm -vf ${HOME}/.aws/credentials

# 9. ACCOUNT 환경 설정 추가

export ACCOUNT_ID=$(aws sts get-caller-identity --output text --query Account)

export AWS_REGION=$(curl -s 169.254.169.254/latest/dynamic/instance-identity/document | jq -r '.region')

export AZS=($(aws ec2 describe-availability-zones --query 'AvailabilityZones[].ZoneName' --output text --region $AWS_REGION))

# 10. AWS_REGION 환경 설정 확인

test -n "$AWS_REGION" && echo AWS_REGION is "$AWS_REGION" || echo AWS_REGION is not set

# 11. bash profile에 설정 추가

echo "export ACCOUNT_ID=${ACCOUNT_ID}" | tee -a ~/.bash_profile

echo "export AWS_REGION=${AWS_REGION}" | tee -a ~/.bash_profile

echo "export AZS=(${AZS[@]})" | tee -a ~/.bash_profile

aws configure set default.region ${AWS_REGION}

aws configure get default.region

# 12. Cloud 9 디스크 사이즈 증설

# curl -s https://gist.githubusercontent.com/joozero/b48ee68e2174a4f1ead93aaf2b582090/raw/2dda79390a10328df66e5f6162846017c682bef5/resize.sh | sh

# 13. 용량 확인

# df -h

# 14. KMS 생성

# aws kms create-alias --alias-name alias/eksworkshop --target-key-id $(aws kms create-key --query KeyMetadata.Arn --output text)

# 15. CMK ARN 설정

#export MASTER_ARN=$(aws kms describe-key --key-id alias/eksworkshop --query KeyMetadata.Arn --output text)

#echo "export MASTER_ARN=${MASTER_ARN}" | tee -a ~/.bash_profile

# 16. eksctl 설치

curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp

sudo mv -v /tmp/eksctl /usr/local/bin

# 17. eksctl 버전 확인

eksctl version

# 18. eksctl bash-completion

eksctl completion bash >> ~/.bash_completion

. /etc/profile.d/bash_completion.sh

. ~/.bash_completion

# 19. k9s 설치

K9S_VERSION=v0.27.4

curl -sL https://github.com/derailed/k9s/releases/download/${K9S_VERSION}/k9s_Linux_amd64.tar.gz | sudo tar xfz - -C /usr/local/bin k9s

# sudo 필요

# 20. kubens, kubectx 설치 - sudo 필요

yum install git -y

git clone https://github.com/ahmetb/kubectx /opt/kubectx

ln -s /opt/kubectx/kubens /usr/local/bin/kubens

ln -s /opt/kubectx/kubectx /usr/local/bin/kubectx

# 21. Helm 설치

curl -sSL https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3 | bash

helm version --short

helm repo add stable https://charts.helm.sh/stable

# 22. helm bash-completion

helm completion bash >> ~/.bash_completion

. /etc/profile.d/bash_completion.sh

. ~/.bash_completion

source <(helm completion bash)

## Console Credentials

# cloud 9 의 user Arn을 aws-auth 에 group (system:masters) username : admin 추가

c9builder=$(aws cloud9 describe-environment-memberships --environment-id=$C9_PID | jq -r '.memberships[].userArn')

if echo ${c9builder} | grep -q user; then

rolearn=${c9builder}

        echo Role ARN: ${rolearn}

elif echo ${c9builder} | grep -q assumed-role; then

        assumedrolename=$(echo ${c9builder} | awk -F/ '{print $(NF-1)}')

        rolearn=$(aws iam get-role --role-name ${assumedrolename} --query Role.Arn --output text)

        echo Role ARN: ${rolearn}

fi

# iam-identitymapping

eksctl create iamidentitymapping --cluster ${EKS_CLUSTER_NAME} --arn ${rolearn} --group system:masters --username admin

# 확인

kubectl describe configmap -n kube-system aws-auth

<3> 파드와 노드증가를 시각화 하여 확인하는 Kubeops view 설치

1

git clone https://codeberg.org/hjacobs/kube-ops-view.git

cd kube-ops-view/

kubectl apply -k deploy

2

외부에서 kube-ops-view를 접속하기 위해서 Service Type을 LoadBalancer 로 변경한다.

kubectl edit svc kube-ops-view

apiVersion: v1

kind: Service

metadata:

  annotations:

  name: kube-ops-view

spec:

  ....

  sessionAffinity: None

  type: LoadBalancer

status:

(3분 걸림)

# kube ops view 접속 URL

kubectl get svc kube-ops-view | tail -n 1 | awk '{ print "Kube-ops-view URL = http://"$4 }'

Kube-ops-view URL = http://a05de3399da504b78a0bbdef9ca2569b-20XXXXX.ap-northeast-2.elb.amazonaws.com

<4> HPA

1

CPU가 10%를 초과하면 새로운 컨테이너를 추가하도록 설정합니다.

kubectl autoscale deployment php-apache `#평균 cpu 사용율` \

    --cpu-percent=10 \

    --min=1 `#최소값` \

    --max=10 `#최댓값`

kubectl get hpa

2

부하 발생

kubectl run -i --tty load-generator --image=busybox /bin/sh

loop를 돌면서  http://php-apache   호출합니다.

while true; do wget -q -O - http://php-apache; done

3

상태 확인

kubectl get hpa -w

4

삭제

kubectl delete deployment php-apache

kubectl delete hpa php-apache

5

# 추가 부하 테스트 방법

https://brunch.co.kr/@topasvga/4189

웹서버 부하 테스트-2024-12

<5> 카펜터

1

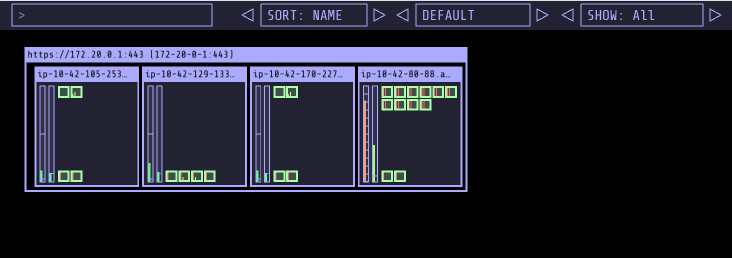

kubeops view

2

pod 증가시 = 노드 증가됨

3

파드 감소시  > 노드 1개 없어짐

4

비어있는 node에 TTL를 추가 (default=30초 이후에 삭제된다는 TTL을 추가한다.)

 deprovisiong -> cordon & delete node 12. delete가 완료됨

5

# 실습후 리소스 삭제 필수

클라우드 포메이션에서 삭제 하세요~

EC2에서 삭제 따로 하세요.

다음은

https://brunch.co.kr/@topasvga/3522

5. EKS 옵저버빌리티-2023
